◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51100 - TFR/S GM MIDDLE EAST ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#75237) — 43 parça

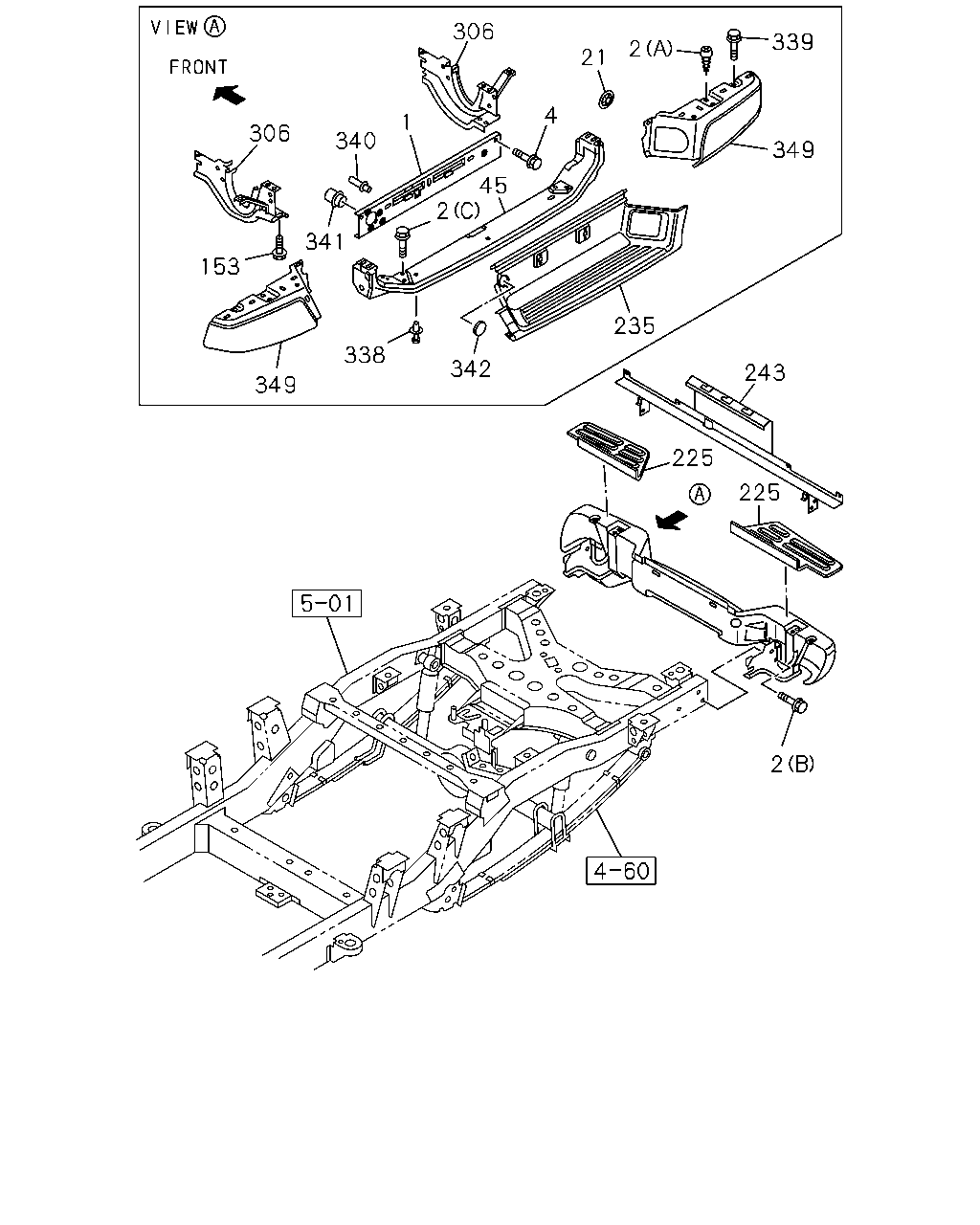

çizim 131962
306 340 306 153 349 338 341 2 1 45 4 21 2 339 349 235 342 243 225 2 225
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) 		8-98030-185-3 01 1 0610-0809 ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-185-3 01 1 0810- ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6) 00.029 (C) M10X20 FLANGE 		0-28051-020-0 04 1 0610-0809 ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 00.029 (C) M10X20 FLANGE 		0-28051-020-0 04 1 0810- ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6) (B) M12X30 FLANGE 		8-97161-815-1 06 1 0610-0611 ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6) (B) M12X30 		8-98062-142-0 06 1 0612-0809 ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) M12X30 		8-98062-142-0 06 1 0810- ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6) (A) M10X22 HEX SOCKET 		8-97352-591-0 04 1 0610-0809 ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 04 1 0810- ● ● ●
4 07.070 BOLT; BUMPER
REAR STEP BUMPER(VF6) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0610-0809 ● ● ●
4 07.070 BOLT; BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0810- ● ● ●
21 07.070 WASHER; LK,BUMPER
REAR STEP BUMPER(VF6) 01.269 		8-97182-223-0 02 1 0610-0809 ● ● ●
21 07.070 WASHER; LK,BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 01.269 		8-97182-223-0 02 1 0810- ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-170-0 01 1 0610-0809 ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-170-0 01 1 0810- ● ● ●
153 07.800 BOLT; BRKT
REAR STEP BUMPER(VF6) 		8-97352-592-0 04 1 0610-0809 ● ● ●
153 07.800 BOLT; BRKT
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-592-0 04 1 0810- ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-416-0 01 1 0610-0809 ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-416-0 01 1 0810- ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-415-0 01 1 0610-0809 ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-415-0 01 1 0810- ● ● ●
235 07.875 PAD; CENTER,BUMPER RR
REAR STEP BUMPER(VF6) 		8-98030-174-1 01 1 0610-0809 ● ● ●
235 07.875 PAD; CENTER,BUMPER RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-174-1 01 1 0810- ● ● ●
243 07.869 BRACKET
REAR BODY DELETE(8HH) 		8-97373-668-1 01 1 1309- ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6) 		8-98030-173-1 01 1 0610-0809 ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-173-1 01 1 0810- ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6) 		8-98030-172-1 01 1 0610-0809 ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-172-1 01 1 0810- ● ● ●
338 07.875 PIN; PUSH
REAR STEP BUMPER(VF6) 		8-97352-595-0 02 1 0610-0809 ● ● ●
338 07.875 PIN; PUSH
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-595-0 02 1 0810-1007 ● ● ●
338 07.875 PIN; PUSH
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-595-0 02 1 1008- ● ● ●
339 07.875 BOLT; BRACE
REAR STEP BUMPER(VF6) 		8-97352-593-0 02 1 0610-0809 ● ● ●
339 07.875 BOLT; BRACE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-593-0 02 1 0810- ● ● ●
340 07.875 RIVET
REAR STEP BUMPER(VF6) 		8-97352-594-0 05 1 0610-0809 ● ● ●
340 07.875 RIVET
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-594-0 05 1 0810- ● ● ●
341 07.875 CASE; LOCK CYLINDER
REAR STEP BUMPER(VF6) 		8-97352-584-1 01 1 0610-0809 ● ● ●
341 07.875 CASE; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-584-1 01 1 0810- ● ● ●
342 07.875 CAP; LOCK CYLINDER
REAR STEP BUMPER(VF6) 		8-98030-190-0 01 1 0610-0809 ● ● ●
342 07.875 CAP; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-190-0 01 1 0810- ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-168-1 01 1 0610- ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-182-1 01 1 0610- ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98030-167-1 01 1 0810- ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98030-181-1 01 1 0810- ● ● ●
