◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-74 - EVAPORATOR ▶
8-74 — EVAPORATOR (#7523) — 28 parça

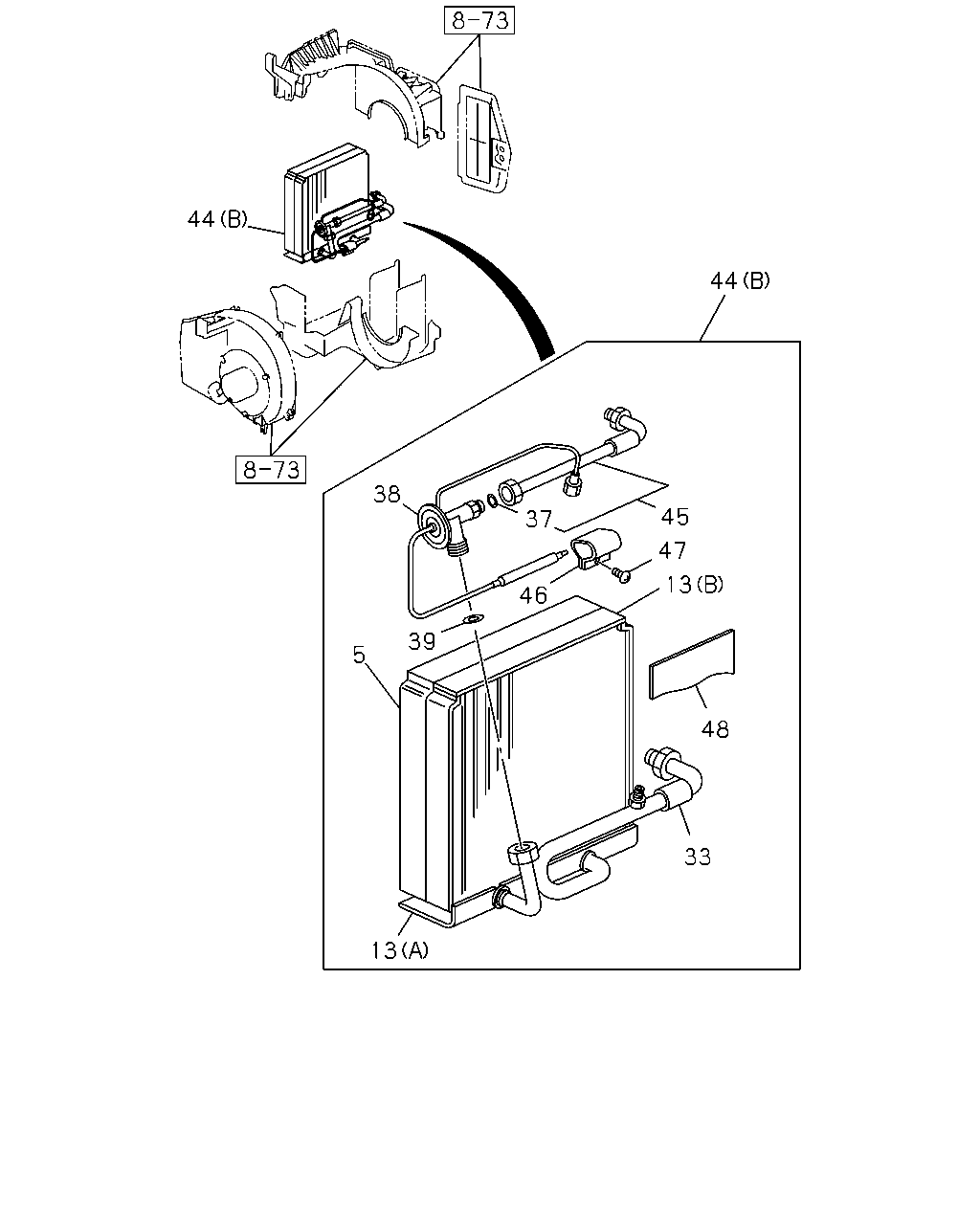

çizim 26008
44 44 38 45 37 47 13 46 39 5 48 33 13
BalonParca AdiParca NoAdetTipApplied Date A B
5 EVAPORATOR
A/C MAN CONT(C60) 		1-83562-098-0 01 1 0611- ●
5 EVAPORATOR 1-83562-098-0 01 1 0611- ●
13 SEAL; EVAP
A/C MAN CONT(C60) (A) 		1-83579-669-1 01 1 0611- ●
13 SEAL; EVAP
(A) 		1-83579-669-1 01 1 0611- ●
13 SEAL; EVAP
A/C MAN CONT(C60) (B) 		1-83579-816-0 01 1 0611- ●
13 SEAL; EVAP
(B) 		1-83579-816-0 01 1 0611- ●
33 LINING; EVAP
A/C MAN CONT(C60) 		1-83579-817-0 01 1 0611- ●
33 LINING; EVAP 1-83579-817-0 01 1 0611- ●
37 GASKET; EVAP
A/C MAN CONT(C60) ID=6.07 TAI 		8-94461-902-0 01 1 0611- ●
37 GASKET; EVAP
ID=6.07 TAI 		8-94461-902-0 01 1 0611- ●
38 VALVE; EXPANSION
A/C MAN CONT(C60) 		1-83569-158-0 01 1 0611- ●
38 VALVE; EXPANSION 1-83569-158-0 01 1 0611- ●
39 GASKET; EVAP
A/C MAN CONT(C60) TAI 		8-94481-717-0 01 1 0611- ●
39 GASKET; EVAP
TAI 		8-94481-717-0 01 1 0611- ●
44 EVAPORATOR ASM; A/C
(A) TAI 		8-97530-752-0 01 1 9811-0610 ● ●
44 EVAPORATOR ASM; A/C
A/C MAN CONT(C60) (B) 		1-83541-142-0 01 1 0611- ●
44 EVAPORATOR ASM; A/C
(B) 		1-83541-142-0 01 1 0611- ●
45 PIPE; EXPANSION VLV
A/C MAN CONT(C60) 		1-83567-689-0 01 1 0611- ●
45 PIPE; EXPANSION VLV 1-83567-689-0 01 1 0611- ●
46 CLIP; EXPANSION VLV
A/C MAN CONT(C60) ID=8X2 TAI 		8-94344-881-1 01 1 0611- ●
46 CLIP; EXPANSION VLV
ID=8X2 TAI 		8-94344-881-1 01 1 0611- ●
47 SCREW; EVAP
A/C MAN CONT(C60) TAI 		8-97130-601-0 01 1 0611- ●
47 SCREW; EVAP
TAI 		8-97130-601-0 01 1 0611- ●
48 INSULATOR; EVAP
A/C MAN CONT(C60) TAI 		1-83579-784-0 01 1 0611- ●
48 INSULATOR; EVAP
TAI 		1-83579-784-0 01 1 0611- ●

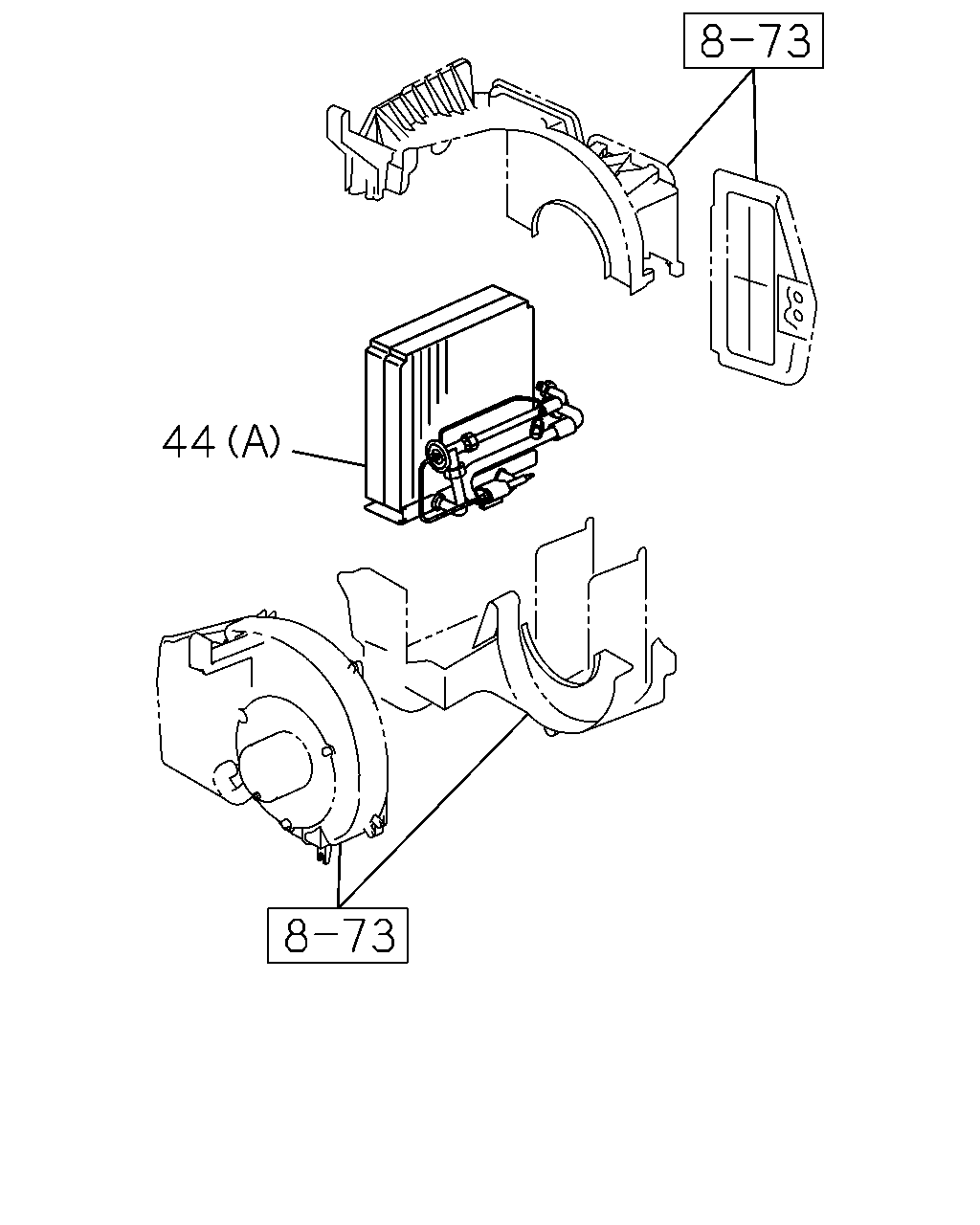

çizim 99235
44
BalonParca AdiParca NoAdetTipApplied Date A B
44 EVAPORATOR ASM; A/C
(A) TAI 		8-97530-752-0 01 1 9811-0610 ● ●
44 EVAPORATOR ASM; A/C
A/C MAN CONT(C60) (B) 		1-83541-142-0 01 1 0611- ●
44 EVAPORATOR ASM; A/C
(B) 		1-83541-142-0 01 1 0611- ●
