8-73 — BLOWER UNIT (#7522) — 400 parça

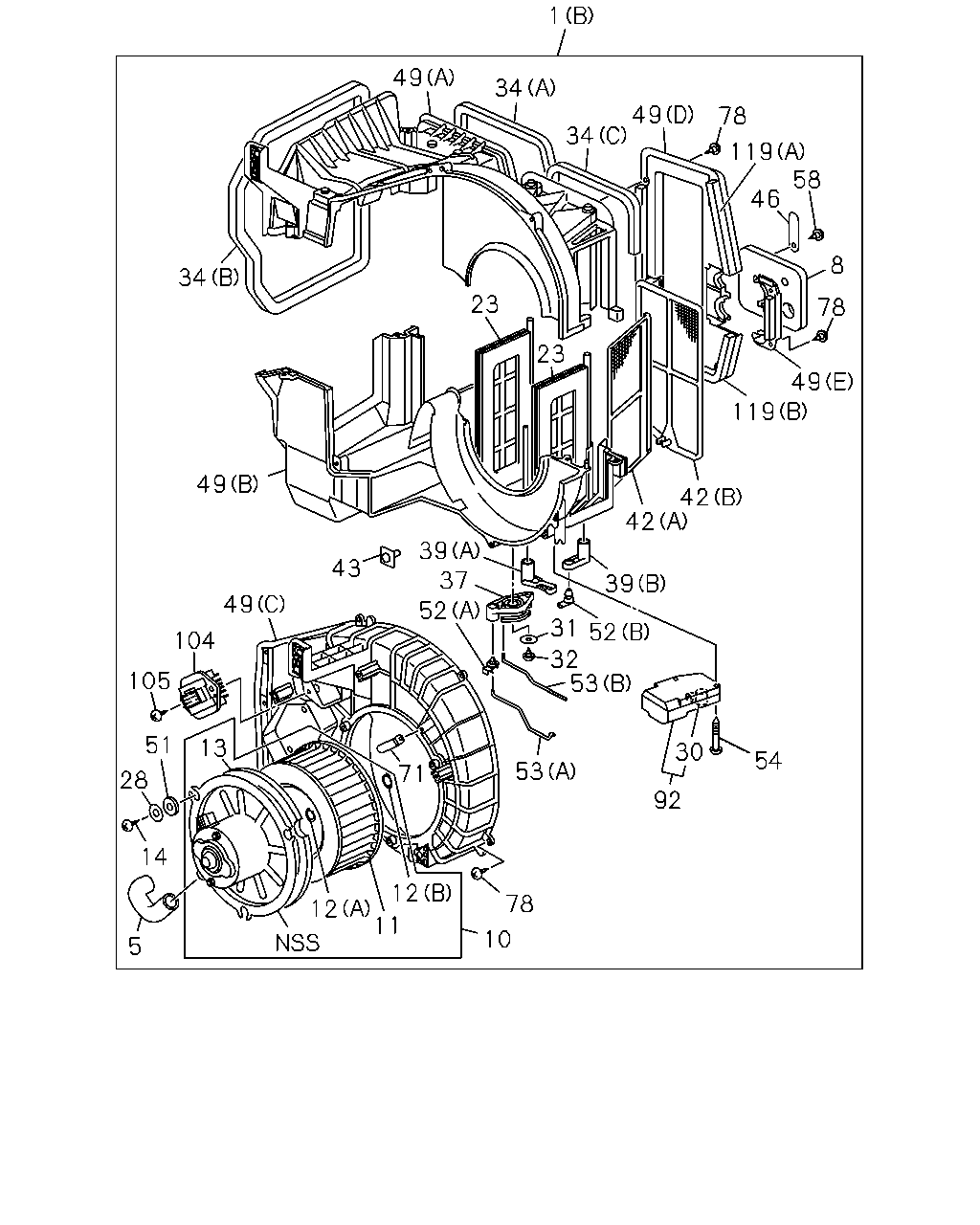

çizim 99236
1 49 34 49 34 78 119 58 46 8 34 23 78 23 49 119 49 42 42 39 37 43 39 49 52 31 52 104 32 53 105 51 13 30 54 53 71 28 92 14 12 78 12 11 10 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
A/C MAN CONT(C60) (C) 		1-83561-183-2 01 1 0611- ●
1 BLOWER ASM
(C) 		1-83561-183-2 01 1 0611- ●
1 BLOWER ASM
(A) TAI 		8-97530-678-0 01 1 9811-0610 ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41) (B) 		1-83561-181-2 01 1 0611- ●
5 HOSE; AIR
TAI 		8-97531-067-0 01 1 9811-0610 ● ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83563-147-0 01 1 0611- ●
5 HOSE; AIR 1-83563-147-0 01 1 0611- ●
8 SEAL; BLOWER UNIT
A/C MAN CONT(C60) TAI 		1-83539-261-1 01 1 0611- ●
8 SEAL; BLOWER UNIT
TAI 		1-83539-261-1 01 1 0611- ●
8 SEAL; BLOWER UNIT
TAI 		8-97530-751-0 01 1 9811-0610 ● ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) TAI 		1-83579-801-1 01 1 0611- ●
10 MOTOR ASM; FAN,BLOWER UNIT
TAI 		8-97531-063-0 01 1 9811-0610 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83561-164-0 01 1 0611- ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 0611- ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83579-796-0 01 1 0611- ●
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 0611- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		5-83569-088-0 01 1 0611- ●
12 RING; SNAP,FAN MOTOR
(A) TAI 		5-83569-088-0 01 1 0611- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI 		8-94243-962-0 01 1 0611- ●
12 RING; SNAP,FAN MOTOR
(B) TAI 		8-94243-962-0 01 1 0611- ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-636-0 01 1 0611- ●
13 LINING; BLOWER UNIT
TAI 		1-83579-636-0 01 1 0611- ●
14 SCREW; COVER TO CASE
TAI 		8-97531-066-0 03 1 9811-0610 ● ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M5X20 TAI 		9-09829-324-1 03 1 0611- ●
14 SCREW; COVER TO CASE
M5X20 TAI 		9-09829-324-1 03 1 0611- ●
23 SHUTTER; BLOWER UNIT
TAI 		8-97531-068-0 02 1 9811-0610 ● ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83579-797-0 02 1 0611- ●
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 0611- ●
28 WASHER; PL,FAN MOTOR
TAI 		8-97531-065-0 03 1 9811-0610 ● ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-170-0 03 1 0611- ●
28 WASHER; PL,FAN MOTOR
TAI 		1-83579-170-0 03 1 0611- ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83564-345-1 01 1 0611- ●
30 LEVER; ACTUATOR
TAI 		1-83564-345-1 01 1 0611- ●
31 WASHER; LEVER
TAI 		8-97531-073-0 01 1 9811-0610 ● ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-095-0 01 1 0611- ●
31 WASHER; LEVER
TAI 		1-83579-095-0 01 1 0611- ●
32 SCREW; LEVER
TAI 		8-97531-066-0 01 1 9811-0610 ● ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M5X20 TAI 		9-09829-324-1 01 1 0611- ●
32 SCREW; LEVER
M5X20 TAI 		9-09829-324-1 01 1 0611- ●
34 LINING; BLOWER UNIT
(A) TAI 		8-97531-082-0 01 1 9811-0610 ● ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		1-83579-633-2 01 1 0611- ●
34 LINING; BLOWER UNIT
(A) TAI 		1-83579-633-2 01 1 0611- ●
34 LINING; BLOWER UNIT
(B) TAI 		8-97531-083-0 01 1 9811-0610 ● ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (C) TAI 		1-83579-634-2 01 1 0611- ●
34 LINING; BLOWER UNIT
(C) TAI 		1-83579-634-2 01 1 0611- ●
34 LINING; BLOWER UNIT
(C) TAI 		8-97531-084-0 01 1 9811-0610 ● ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI 		1-83579-644-0 01 1 0611- ●
34 LINING; BLOWER UNIT
(B) TAI 		1-83579-644-0 01 1 0611- ●
37 LEVER; MODE LEVER
TAI 		8-97531-072-0 01 1 9811-0610 ● ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83564-375-0 01 1 0611- ●
37 LEVER; MODE LEVER 1-83564-375-0 01 1 0611- ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) TAI 		8-97531-070-0 01 1 9811-0610 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) 		1-83564-373-0 01 1 0611- ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 0611- ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) TAI 		8-97531-071-0 01 1 9811-0610 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		1-83564-374-0 01 1 0611- ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 0611- ●
42 FILTER; BLOWER UNIT
(A) TAI 		8-97530-756-0 02 1 9811-0610 ● ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		1-83579-800-1 01 1 0611- ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-1 01 1 0611- ●
42 FILTER; BLOWER UNIT
(B) TAI 		8-97531-080-0 01 1 9811-0610 ● ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		1-83579-993-0 02 1 0611- ●
42 FILTER; BLOWER UNIT
(A) TAI 		1-83579-993-0 02 1 0611- ●
43 BOLT; CASE
TAI 		8-97531-081-0 04 1 9811-0610 ● ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-657-2 04 1 0611- ●
43 BOLT; CASE
TAI 		1-83579-657-2 04 1 0611- ●
46 PLATE; BLOWER UNIT
HEATER & DEFROSTER(C41) TAI 		1-83571-870-1 01 1 0611- ●
49 CASE; BLOWER UNIT
A/C MAN CONT(C60) (F) 		8-97500-034-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(F) 		8-97500-034-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(F) TAI 		8-97530-750-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83564-369-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(A) TAI 		8-97531-056-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) 		1-83564-368-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(A) 		1-83564-368-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(B) TAI 		8-97531-057-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (C) 		1-83564-370-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(C) TAI 		8-97531-058-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (D) 		1-83564-371-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(D) 		1-83564-371-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(D) TAI 		8-97531-059-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (E) 		1-83564-372-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(E) 		1-83564-372-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(E) TAI 		8-97531-087-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
A/C MAN CONT(C60) (B) 		1-83564-378-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(B) 		1-83564-378-0 01 1 0611- ●
51 ISOLATOR; BLOWER UNIT
TAI 		8-97531-064-0 03 1 9811-0610 ● ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-496-0 03 1 0611- ●
51 ISOLATOR; BLOWER UNIT
TAI 		1-83579-496-0 03 1 0611- ●
52 CLIP; LEVER TO CASE
(B) TAI 		8-97531-078-0 01 1 9811-0610 ● ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		1-83574-136-0 01 1 0611- ●
52 CLIP; LEVER TO CASE
(A) TAI 		1-83574-136-0 01 1 0611- ●
52 CLIP; LEVER TO CASE
(A) TAI 		8-97531-086-0 01 1 9811-0610 ● ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		8-94248-794-0 01 1 0611- ●
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 0611- ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) TAI 		8-97531-076-0 01 1 9811-0610 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI 		1-83579-639-0 01 1 0611- ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) TAI 		1-83579-639-0 01 1 0611- ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) TAI 		8-97531-077-0 01 1 9811-0610 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) 		1-83579-799-0 01 1 0611- ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 0611- ●
54 SCREW; ACTUATOR TO CASE
TAI 		8-97531-075-0 02 1 9811-0610 ● ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		8-94348-809-0 02 1 0611- ●
54 SCREW; ACTUATOR TO CASE
TAI 		8-94348-809-0 02 1 0611- ●
58 SCREW; PLATE TO CASE
HEATER & DEFROSTER(C41) M4X16 		8-94324-850-0 01 1 0611- ●
71 CLIP; HARNESS
TAI 		8-97531-085-0 01 1 9811-0610 ● ●
71 CLIP; HARNESS
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		8-97096-145-0 01 1 0611- ●
71 CLIP; HARNESS 8-97096-145-0 01 1 0611- ●
78 SCREW; CASE TO CASE
TAI 		8-97531-062-0 18 1 9811-0610 ● ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M4X16 		8-94324-850-0 18 1 0611- ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 0611- ●
92 ACTUATOR; BLOWER UNIT
TAI 		8-97531-074-0 01 1 9811-0610 ● ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83579-798-1 01 1 0611- ●
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 0611- ●
104 RESISTOR; BLOWER UNIT
TAI 		8-97531-079-0 01 1 9811-0610 ● ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83519-093-0 01 1 0611- ●
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 0611- ●
105 SCREW; RESISTOR
TAI 		8-97531-062-0 02 1 9811-0610 ● ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M4X16 		8-94324-850-0 02 1 0611- ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 0611- ●
119 LINING; CASE
(C) TAI 		8-97530-754-0 01 1 9811-0610 ● ●
119 LINING; CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		1-83579-670-1 01 1 0611- ●
119 LINING; CASE
(A) TAI 		1-83579-670-1 01 1 0611- ●
119 LINING; CASE
(D) TAI 		8-97530-758-0 01 1 9811-0610 ● ●
119 LINING; CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI 		1-83579-671-1 01 1 0611- ●
119 LINING; CASE
(B) TAI 		1-83579-671-1 01 1 0611- ●
119 LINING; CASE
(A) TAI 		8-97531-060-0 01 1 9811-0610 ● ●
119 LINING; CASE
A/C MAN CONT(C60) (D) 		1-83579-672-0 01 1 0611- ●
119 LINING; CASE
(D) 		1-83579-672-0 01 1 0611- ●
119 LINING; CASE
(B) TAI 		8-97531-061-0 01 1 9811-0610 ● ●
119 LINING; CASE
A/C MAN CONT(C60) (C) 		1-83579-795-0 01 1 0611- ●
119 LINING; CASE
(C) 		1-83579-795-0 01 1 0611- ●

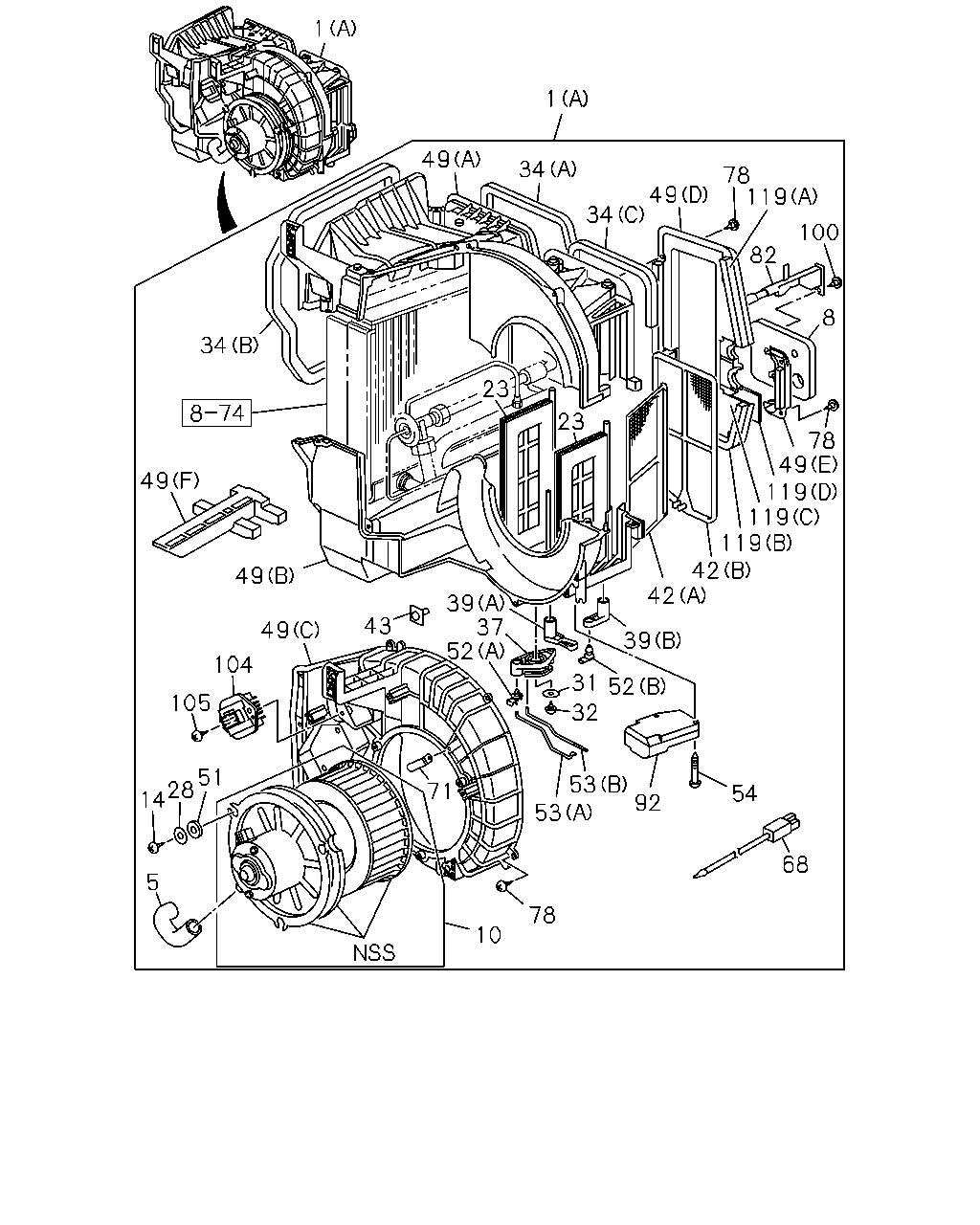

çizim 99237
1 1 49 34 78 119 49 34 100 82 8 34 23 23 78 49 119 119 119 42 42 49 49 39 37 52 43 49 39 104 31 52 105 32 51 28 14 53 92 53 71 54 68 5 78 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
A/C MAN CONT(C60) (C) 		1-83561-183-2 01 1 0611- ●
1 BLOWER ASM
(C) 		1-83561-183-2 01 1 0611- ●
1 BLOWER ASM
(A) TAI 		8-97530-678-0 01 1 9811-0610 ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41) (B) 		1-83561-181-2 01 1 0611- ●
5 HOSE; AIR
TAI 		8-97531-067-0 01 1 9811-0610 ● ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83563-147-0 01 1 0611- ●
5 HOSE; AIR 1-83563-147-0 01 1 0611- ●
8 SEAL; BLOWER UNIT
A/C MAN CONT(C60) TAI 		1-83539-261-1 01 1 0611- ●
8 SEAL; BLOWER UNIT
TAI 		1-83539-261-1 01 1 0611- ●
8 SEAL; BLOWER UNIT
TAI 		8-97530-751-0 01 1 9811-0610 ● ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) TAI 		1-83579-801-1 01 1 0611- ●
10 MOTOR ASM; FAN,BLOWER UNIT
TAI 		8-97531-063-0 01 1 9811-0610 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83561-164-0 01 1 0611- ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 0611- ●
14 SCREW; COVER TO CASE
TAI 		8-97531-066-0 03 1 9811-0610 ● ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M5X20 TAI 		9-09829-324-1 03 1 0611- ●
14 SCREW; COVER TO CASE
M5X20 TAI 		9-09829-324-1 03 1 0611- ●
23 SHUTTER; BLOWER UNIT
TAI 		8-97531-068-0 02 1 9811-0610 ● ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83579-797-0 02 1 0611- ●
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 0611- ●
28 WASHER; PL,FAN MOTOR
TAI 		8-97531-065-0 03 1 9811-0610 ● ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-170-0 03 1 0611- ●
28 WASHER; PL,FAN MOTOR
TAI 		1-83579-170-0 03 1 0611- ●
31 WASHER; LEVER
TAI 		8-97531-073-0 01 1 9811-0610 ● ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-095-0 01 1 0611- ●
31 WASHER; LEVER
TAI 		1-83579-095-0 01 1 0611- ●
32 SCREW; LEVER
TAI 		8-97531-066-0 01 1 9811-0610 ● ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M5X20 TAI 		9-09829-324-1 01 1 0611- ●
32 SCREW; LEVER
M5X20 TAI 		9-09829-324-1 01 1 0611- ●
34 LINING; BLOWER UNIT
(A) TAI 		8-97531-082-0 01 1 9811-0610 ● ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		1-83579-633-2 01 1 0611- ●
34 LINING; BLOWER UNIT
(A) TAI 		1-83579-633-2 01 1 0611- ●
34 LINING; BLOWER UNIT
(B) TAI 		8-97531-083-0 01 1 9811-0610 ● ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (C) TAI 		1-83579-634-2 01 1 0611- ●
34 LINING; BLOWER UNIT
(C) TAI 		1-83579-634-2 01 1 0611- ●
34 LINING; BLOWER UNIT
(C) TAI 		8-97531-084-0 01 1 9811-0610 ● ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI 		1-83579-644-0 01 1 0611- ●
34 LINING; BLOWER UNIT
(B) TAI 		1-83579-644-0 01 1 0611- ●
37 LEVER; MODE LEVER
TAI 		8-97531-072-0 01 1 9811-0610 ● ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83564-375-0 01 1 0611- ●
37 LEVER; MODE LEVER 1-83564-375-0 01 1 0611- ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) TAI 		8-97531-070-0 01 1 9811-0610 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) 		1-83564-373-0 01 1 0611- ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 0611- ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) TAI 		8-97531-071-0 01 1 9811-0610 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		1-83564-374-0 01 1 0611- ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 0611- ●
42 FILTER; BLOWER UNIT
(A) TAI 		8-97530-756-0 02 1 9811-0610 ● ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		1-83579-800-1 01 1 0611- ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-1 01 1 0611- ●
42 FILTER; BLOWER UNIT
(B) TAI 		8-97531-080-0 01 1 9811-0610 ● ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		1-83579-993-0 02 1 0611- ●
42 FILTER; BLOWER UNIT
(A) TAI 		1-83579-993-0 02 1 0611- ●
43 BOLT; CASE
TAI 		8-97531-081-0 04 1 9811-0610 ● ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-657-2 04 1 0611- ●
43 BOLT; CASE
TAI 		1-83579-657-2 04 1 0611- ●
49 CASE; BLOWER UNIT
A/C MAN CONT(C60) (F) 		8-97500-034-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(F) 		8-97500-034-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(F) TAI 		8-97530-750-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83564-369-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(A) TAI 		8-97531-056-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) 		1-83564-368-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(A) 		1-83564-368-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(B) TAI 		8-97531-057-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (C) 		1-83564-370-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(C) TAI 		8-97531-058-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (D) 		1-83564-371-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(D) 		1-83564-371-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(D) TAI 		8-97531-059-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (E) 		1-83564-372-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(E) 		1-83564-372-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(E) TAI 		8-97531-087-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
A/C MAN CONT(C60) (B) 		1-83564-378-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(B) 		1-83564-378-0 01 1 0611- ●
51 ISOLATOR; BLOWER UNIT
TAI 		8-97531-064-0 03 1 9811-0610 ● ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-496-0 03 1 0611- ●
51 ISOLATOR; BLOWER UNIT
TAI 		1-83579-496-0 03 1 0611- ●
52 CLIP; LEVER TO CASE
(B) TAI 		8-97531-078-0 01 1 9811-0610 ● ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		1-83574-136-0 01 1 0611- ●
52 CLIP; LEVER TO CASE
(A) TAI 		1-83574-136-0 01 1 0611- ●
52 CLIP; LEVER TO CASE
(A) TAI 		8-97531-086-0 01 1 9811-0610 ● ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		8-94248-794-0 01 1 0611- ●
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 0611- ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) TAI 		8-97531-076-0 01 1 9811-0610 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI 		1-83579-639-0 01 1 0611- ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) TAI 		1-83579-639-0 01 1 0611- ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) TAI 		8-97531-077-0 01 1 9811-0610 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) 		1-83579-799-0 01 1 0611- ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 0611- ●
54 SCREW; ACTUATOR TO CASE
TAI 		8-97531-075-0 02 1 9811-0610 ● ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		8-94348-809-0 02 1 0611- ●
54 SCREW; ACTUATOR TO CASE
TAI 		8-94348-809-0 02 1 0611- ●
68 THERMOSTAT; BLOWER UNIT
TAI 		8-97530-753-0 01 1 9811-0610 ● ●
68 THERMOSTAT; BLOWER UNIT
A/C MAN CONT(C60) 		1-83544-026-1 01 1 0611- ●
68 THERMOSTAT; BLOWER UNIT 1-83544-026-1 01 1 0611- ●
71 CLIP; HARNESS
TAI 		8-97531-085-0 01 1 9811-0610 ● ●
71 CLIP; HARNESS
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		8-97096-145-0 01 1 0611- ●
71 CLIP; HARNESS 8-97096-145-0 01 1 0611- ●
78 SCREW; CASE TO CASE
TAI 		8-97531-062-0 18 1 9811-0610 ● ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M4X16 		8-94324-850-0 18 1 0611- ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 0611- ●
82 BRACKET; BLOWER UNIT
TAI 		8-97530-749-0 01 1 9811-0610 ● ●
82 BRACKET; BLOWER UNIT
A/C MAN CONT(C60) 		1-83571-932-0 01 1 0611- ●
82 BRACKET; BLOWER UNIT 1-83571-932-0 01 1 0611- ●
92 ACTUATOR; BLOWER UNIT
TAI 		8-97531-074-0 01 1 9811-0610 ● ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83579-798-1 01 1 0611- ●
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 0611- ●
100 SCREW; BRKT
TAI 		8-97531-062-0 01 1 9811-0610 ● ●
100 SCREW; BRKT
A/C MAN CONT(C60) M4X16 		8-94324-850-0 01 1 0611- ●
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 0611- ●
104 RESISTOR; BLOWER UNIT
TAI 		8-97531-079-0 01 1 9811-0610 ● ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83519-093-0 01 1 0611- ●
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 0611- ●
105 SCREW; RESISTOR
TAI 		8-97531-062-0 02 1 9811-0610 ● ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M4X16 		8-94324-850-0 02 1 0611- ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 0611- ●
119 LINING; CASE
(C) TAI 		8-97530-754-0 01 1 9811-0610 ● ●
119 LINING; CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		1-83579-670-1 01 1 0611- ●
119 LINING; CASE
(A) TAI 		1-83579-670-1 01 1 0611- ●
119 LINING; CASE
(D) TAI 		8-97530-758-0 01 1 9811-0610 ● ●
119 LINING; CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI 		1-83579-671-1 01 1 0611- ●
119 LINING; CASE
(B) TAI 		1-83579-671-1 01 1 0611- ●
119 LINING; CASE
(A) TAI 		8-97531-060-0 01 1 9811-0610 ● ●
119 LINING; CASE
A/C MAN CONT(C60) (D) 		1-83579-672-0 01 1 0611- ●
119 LINING; CASE
(D) 		1-83579-672-0 01 1 0611- ●
119 LINING; CASE
(B) TAI 		8-97531-061-0 01 1 9811-0610 ● ●
119 LINING; CASE
A/C MAN CONT(C60) (C) 		1-83579-795-0 01 1 0611- ●
119 LINING; CASE
(C) 		1-83579-795-0 01 1 0611- ●

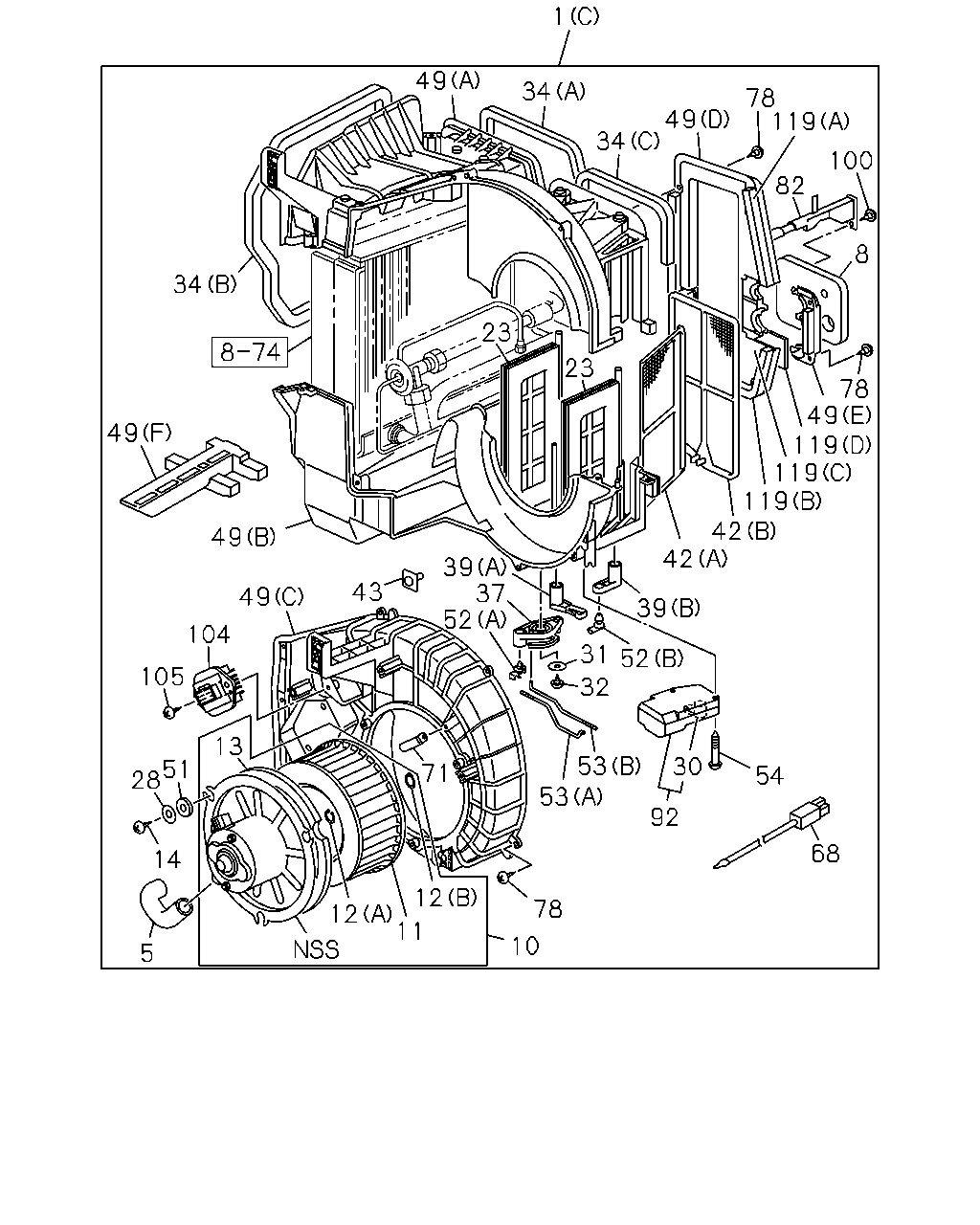

çizim 99238
1 49 34 78 119 49 34 100 82 8 34 23 23 78 49 119 119 119 42 42 49 49 39 37 52 43 49 39 104 31 52 105 32 13 53 53 30 51 28 71 54 92 68 14 12 78 12 11 10 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
A/C MAN CONT(C60) (C) 		1-83561-183-2 01 1 0611- ●
1 BLOWER ASM
(C) 		1-83561-183-2 01 1 0611- ●
1 BLOWER ASM
(A) TAI 		8-97530-678-0 01 1 9811-0610 ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41) (B) 		1-83561-181-2 01 1 0611- ●
5 HOSE; AIR
TAI 		8-97531-067-0 01 1 9811-0610 ● ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83563-147-0 01 1 0611- ●
5 HOSE; AIR 1-83563-147-0 01 1 0611- ●
8 SEAL; BLOWER UNIT
A/C MAN CONT(C60) TAI 		1-83539-261-1 01 1 0611- ●
8 SEAL; BLOWER UNIT
TAI 		1-83539-261-1 01 1 0611- ●
8 SEAL; BLOWER UNIT
TAI 		8-97530-751-0 01 1 9811-0610 ● ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) TAI 		1-83579-801-1 01 1 0611- ●
10 MOTOR ASM; FAN,BLOWER UNIT
TAI 		8-97531-063-0 01 1 9811-0610 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83561-164-0 01 1 0611- ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 0611- ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83579-796-0 01 1 0611- ●
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 0611- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		5-83569-088-0 01 1 0611- ●
12 RING; SNAP,FAN MOTOR
(A) TAI 		5-83569-088-0 01 1 0611- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI 		8-94243-962-0 01 1 0611- ●
12 RING; SNAP,FAN MOTOR
(B) TAI 		8-94243-962-0 01 1 0611- ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-636-0 01 1 0611- ●
13 LINING; BLOWER UNIT
TAI 		1-83579-636-0 01 1 0611- ●
14 SCREW; COVER TO CASE
TAI 		8-97531-066-0 03 1 9811-0610 ● ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M5X20 TAI 		9-09829-324-1 03 1 0611- ●
14 SCREW; COVER TO CASE
M5X20 TAI 		9-09829-324-1 03 1 0611- ●
23 SHUTTER; BLOWER UNIT
TAI 		8-97531-068-0 02 1 9811-0610 ● ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83579-797-0 02 1 0611- ●
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 0611- ●
28 WASHER; PL,FAN MOTOR
TAI 		8-97531-065-0 03 1 9811-0610 ● ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-170-0 03 1 0611- ●
28 WASHER; PL,FAN MOTOR
TAI 		1-83579-170-0 03 1 0611- ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83564-345-1 01 1 0611- ●
30 LEVER; ACTUATOR
TAI 		1-83564-345-1 01 1 0611- ●
31 WASHER; LEVER
TAI 		8-97531-073-0 01 1 9811-0610 ● ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-095-0 01 1 0611- ●
31 WASHER; LEVER
TAI 		1-83579-095-0 01 1 0611- ●
32 SCREW; LEVER
TAI 		8-97531-066-0 01 1 9811-0610 ● ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M5X20 TAI 		9-09829-324-1 01 1 0611- ●
32 SCREW; LEVER
M5X20 TAI 		9-09829-324-1 01 1 0611- ●
34 LINING; BLOWER UNIT
(A) TAI 		8-97531-082-0 01 1 9811-0610 ● ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		1-83579-633-2 01 1 0611- ●
34 LINING; BLOWER UNIT
(A) TAI 		1-83579-633-2 01 1 0611- ●
34 LINING; BLOWER UNIT
(B) TAI 		8-97531-083-0 01 1 9811-0610 ● ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (C) TAI 		1-83579-634-2 01 1 0611- ●
34 LINING; BLOWER UNIT
(C) TAI 		1-83579-634-2 01 1 0611- ●
34 LINING; BLOWER UNIT
(C) TAI 		8-97531-084-0 01 1 9811-0610 ● ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI 		1-83579-644-0 01 1 0611- ●
34 LINING; BLOWER UNIT
(B) TAI 		1-83579-644-0 01 1 0611- ●
37 LEVER; MODE LEVER
TAI 		8-97531-072-0 01 1 9811-0610 ● ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83564-375-0 01 1 0611- ●
37 LEVER; MODE LEVER 1-83564-375-0 01 1 0611- ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) TAI 		8-97531-070-0 01 1 9811-0610 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) 		1-83564-373-0 01 1 0611- ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 0611- ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) TAI 		8-97531-071-0 01 1 9811-0610 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		1-83564-374-0 01 1 0611- ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 0611- ●
42 FILTER; BLOWER UNIT
(A) TAI 		8-97530-756-0 02 1 9811-0610 ● ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		1-83579-800-1 01 1 0611- ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-1 01 1 0611- ●
42 FILTER; BLOWER UNIT
(B) TAI 		8-97531-080-0 01 1 9811-0610 ● ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		1-83579-993-0 02 1 0611- ●
42 FILTER; BLOWER UNIT
(A) TAI 		1-83579-993-0 02 1 0611- ●
43 BOLT; CASE
TAI 		8-97531-081-0 04 1 9811-0610 ● ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-657-2 04 1 0611- ●
43 BOLT; CASE
TAI 		1-83579-657-2 04 1 0611- ●
49 CASE; BLOWER UNIT
A/C MAN CONT(C60) (F) 		8-97500-034-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(F) 		8-97500-034-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(F) TAI 		8-97530-750-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83564-369-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(A) TAI 		8-97531-056-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) 		1-83564-368-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(A) 		1-83564-368-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(B) TAI 		8-97531-057-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (C) 		1-83564-370-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(C) TAI 		8-97531-058-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (D) 		1-83564-371-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(D) 		1-83564-371-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(D) TAI 		8-97531-059-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (E) 		1-83564-372-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(E) 		1-83564-372-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(E) TAI 		8-97531-087-0 01 1 9811-0610 ● ●
49 CASE; BLOWER UNIT
A/C MAN CONT(C60) (B) 		1-83564-378-0 01 1 0611- ●
49 CASE; BLOWER UNIT
(B) 		1-83564-378-0 01 1 0611- ●
51 ISOLATOR; BLOWER UNIT
TAI 		8-97531-064-0 03 1 9811-0610 ● ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-496-0 03 1 0611- ●
51 ISOLATOR; BLOWER UNIT
TAI 		1-83579-496-0 03 1 0611- ●
52 CLIP; LEVER TO CASE
(B) TAI 		8-97531-078-0 01 1 9811-0610 ● ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		1-83574-136-0 01 1 0611- ●
52 CLIP; LEVER TO CASE
(A) TAI 		1-83574-136-0 01 1 0611- ●
52 CLIP; LEVER TO CASE
(A) TAI 		8-97531-086-0 01 1 9811-0610 ● ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		8-94248-794-0 01 1 0611- ●
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 0611- ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) TAI 		8-97531-076-0 01 1 9811-0610 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI 		1-83579-639-0 01 1 0611- ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) TAI 		1-83579-639-0 01 1 0611- ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) TAI 		8-97531-077-0 01 1 9811-0610 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) 		1-83579-799-0 01 1 0611- ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 0611- ●
54 SCREW; ACTUATOR TO CASE
TAI 		8-97531-075-0 02 1 9811-0610 ● ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		8-94348-809-0 02 1 0611- ●
54 SCREW; ACTUATOR TO CASE
TAI 		8-94348-809-0 02 1 0611- ●
68 THERMOSTAT; BLOWER UNIT
TAI 		8-97530-753-0 01 1 9811-0610 ● ●
68 THERMOSTAT; BLOWER UNIT
A/C MAN CONT(C60) 		1-83544-026-1 01 1 0611- ●
68 THERMOSTAT; BLOWER UNIT 1-83544-026-1 01 1 0611- ●
71 CLIP; HARNESS
TAI 		8-97531-085-0 01 1 9811-0610 ● ●
71 CLIP; HARNESS
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		8-97096-145-0 01 1 0611- ●
71 CLIP; HARNESS 8-97096-145-0 01 1 0611- ●
78 SCREW; CASE TO CASE
TAI 		8-97531-062-0 18 1 9811-0610 ● ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M4X16 		8-94324-850-0 18 1 0611- ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 0611- ●
82 BRACKET; BLOWER UNIT
TAI 		8-97530-749-0 01 1 9811-0610 ● ●
82 BRACKET; BLOWER UNIT
A/C MAN CONT(C60) 		1-83571-932-0 01 1 0611- ●
82 BRACKET; BLOWER UNIT 1-83571-932-0 01 1 0611- ●
92 ACTUATOR; BLOWER UNIT
TAI 		8-97531-074-0 01 1 9811-0610 ● ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83579-798-1 01 1 0611- ●
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 0611- ●
100 SCREW; BRKT
TAI 		8-97531-062-0 01 1 9811-0610 ● ●
100 SCREW; BRKT
A/C MAN CONT(C60) M4X16 		8-94324-850-0 01 1 0611- ●
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 0611- ●
104 RESISTOR; BLOWER UNIT
TAI 		8-97531-079-0 01 1 9811-0610 ● ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83519-093-0 01 1 0611- ●
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 0611- ●
105 SCREW; RESISTOR
TAI 		8-97531-062-0 02 1 9811-0610 ● ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M4X16 		8-94324-850-0 02 1 0611- ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 0611- ●
119 LINING; CASE
(C) TAI 		8-97530-754-0 01 1 9811-0610 ● ●
119 LINING; CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		1-83579-670-1 01 1 0611- ●
119 LINING; CASE
(A) TAI 		1-83579-670-1 01 1 0611- ●
119 LINING; CASE
(D) TAI 		8-97530-758-0 01 1 9811-0610 ● ●
119 LINING; CASE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI 		1-83579-671-1 01 1 0611- ●
119 LINING; CASE
(B) TAI 		1-83579-671-1 01 1 0611- ●
119 LINING; CASE
(A) TAI 		8-97531-060-0 01 1 9811-0610 ● ●
119 LINING; CASE
A/C MAN CONT(C60) (D) 		1-83579-672-0 01 1 0611- ●
119 LINING; CASE
(D) 		1-83579-672-0 01 1 0611- ●
119 LINING; CASE
(B) TAI 		8-97531-061-0 01 1 9811-0610 ● ●
119 LINING; CASE
A/C MAN CONT(C60) (C) 		1-83579-795-0 01 1 0611- ●
119 LINING; CASE
(C) 		1-83579-795-0 01 1 0611- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
