◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#7521) — 50 parça

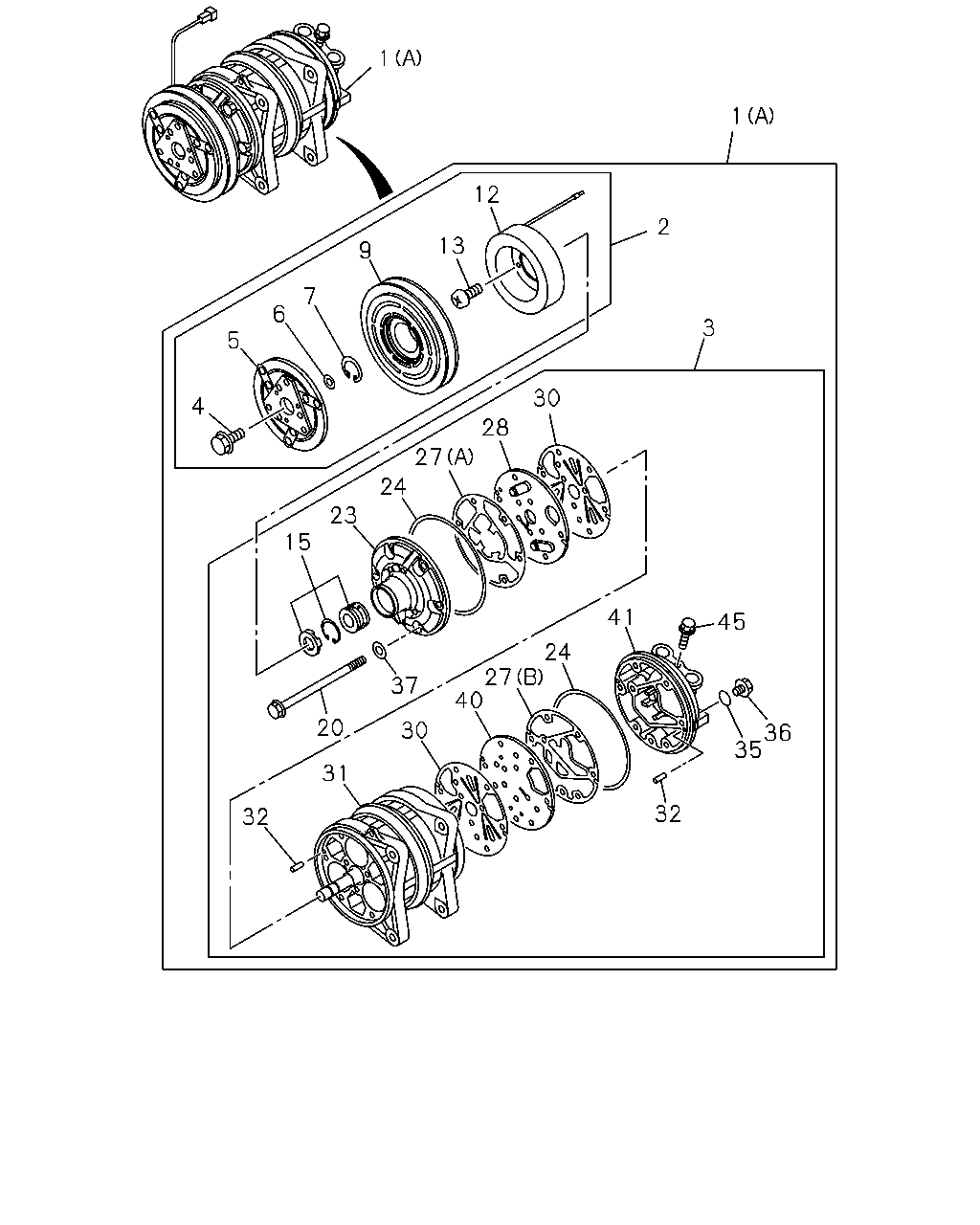

çizim 26520
1 1 12 2 13 9 7 6 3 5 30 4 28 27 24 23 15 41 45 24 27 40 37 20 30 36 35 31 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; A/C
(A) TAI 		8-97530-768-0 01 1 9811-9902 ● ●
1 COMPRESSOR ASM; A/C
(A) TAI 		1-83532-252-1 01 1 9903-0610 ● ●
1 COMPRESSOR ASM; A/C
A/C MAN CONT(C60) (B) 		1-83532-328-0 01 1 0611- ●
1 COMPRESSOR ASM; A/C
(B) 		1-83532-328-0 01 1 0611- ●
2 CLUTCH; MAGNET,A/C 1-83533-037-0 01 1 9811-0610 ● ●
3 COMPRESSOR ASM; A/C
TAI 		1-83532-263-1 01 1 9811-0610 ● ●
4 BOLT; MAGNET CLU
TAI 		8-94164-439-0 01 1 9811-0610 ● ●
5 ARMATURE ASM; MAGNET CLU,A/C 8-97034-788-0 01 1 9811-0610 ● ●
6 SHIM; MAGNET CLU
T=0.1 TAI 		8-94120-721-0 AR 1 9811-0610 ● ●
6 SHIM; MAGNET CLU
T=0.3 TAI 		8-94120-722-0 AR 1 9811-0610 ● ●
6 SHIM; MAGNET CLU
T=0.5 TAI 		8-94120-723-0 AR 1 9811-0610 ● ●
7 RING; SNAP,PULLEY
TAI 		8-94120-724-0 01 1 9811-0610 ● ●
9 PULLEY; MAGNET CLU
TAI 		1-83579-609-1 01 1 9811-0610 ● ●
12 COIL; FIELD,MAGNET CLU 1-83579-593-0 01 1 9811-0204 ● ●
12 COIL; FIELD,MAGNET CLU
TAI 		1-83578-091-0 01 1 0205-0610 ● ●
13 SCREW; COIL FIELD
TAI 		8-94120-727-0 03 1 9811-0610 ● ●
15 SEAL; SHAFT
"R-134A" 		8-97114-217-1 01 1 9811-0204 ● ●
15 SEAL; SHAFT
TAI 		1-83578-090-0 01 1 0205-0610 ● ●
20 BOLT; CMPR 8-97081-394-0 06 1 9811-0204 ● ●
20 BOLT; CMPR
TAI 		8-97233-738-0 06 1 0205-0610 ● ●
23 HEAD; CYL,FRT
"R-134A" 		8-97114-215-0 01 1 9811-0204 ● ●
23 HEAD; CYL,FRT
TAI 		8-97178-401-0 01 1 0205-0610 ● ●
24 GASKET; CMPR
"R-134A" 		8-97081-396-0 02 1 9811-0204 ● ●
24 GASKET; CMPR
TAI 		1-83579-951-0 02 1 0205-0610 ● ●
27 GASKET; CYL HD
(A) "R-134A" 		8-97085-777-0 01 1 9811-0204 ● ●
27 GASKET; CYL HD
(B) TAI 		8-97170-933-0 01 1 0205-0610 ● ●
27 GASKET; CYL HD
(B) "R-134A" 		8-97085-779-0 01 1 9811-0204 ● ●
27 GASKET; CYL HD
(A) TAI 		8-97170-930-0 01 1 0205-0610 ● ●
28 PLATE; VLV,CMPR 8-97135-796-0 01 1 9811-0204 ● ●
28 PLATE; VLV,CMPR
TAI 		8-97170-932-1 01 1 0205-0610 ● ●
30 VALVE; SUCTION 8-97134-755-0 02 1 9811-0610 ● ●
31 CYLINDER & SHAFT ASM; AIR CMPR 8-97138-175-0 01 1 9811-0610 ● ●
32 PIN; CMPR 8-94154-711-0 04 1 9811-0610 ● ●
35 GASKET; PLUG,CYL
"R-134A" 		8-97081-395-0 01 1 9811-0610 ● ●
36 PLUG; CYL 8-94164-473-0 01 1 9811-0610 ● ●
37 GASKET; CMPR 8-94466-678-0 06 1 9811-0204 ● ●
37 GASKET; CMPR
TAI 		8-97233-739-0 06 1 0205-0610 ● ●
40 PLATE; VLV,RR 8-97135-797-0 01 1 9811-0204 ● ●
40 PLATE; VLV,RR
TAI 		8-97170-931-1 01 1 0205-0610 ● ●
41 HEAD; CYL,RR
TAI 		8-97081-405-1 01 1 9811-0610 ● ●
45 BOLT; PLATE TO CYL HD
M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 9811-0204 ● ●
45 BOLT; PLATE TO CYL HD
TAI 		8-97205-574-0 01 1 0205-0610 ● ●

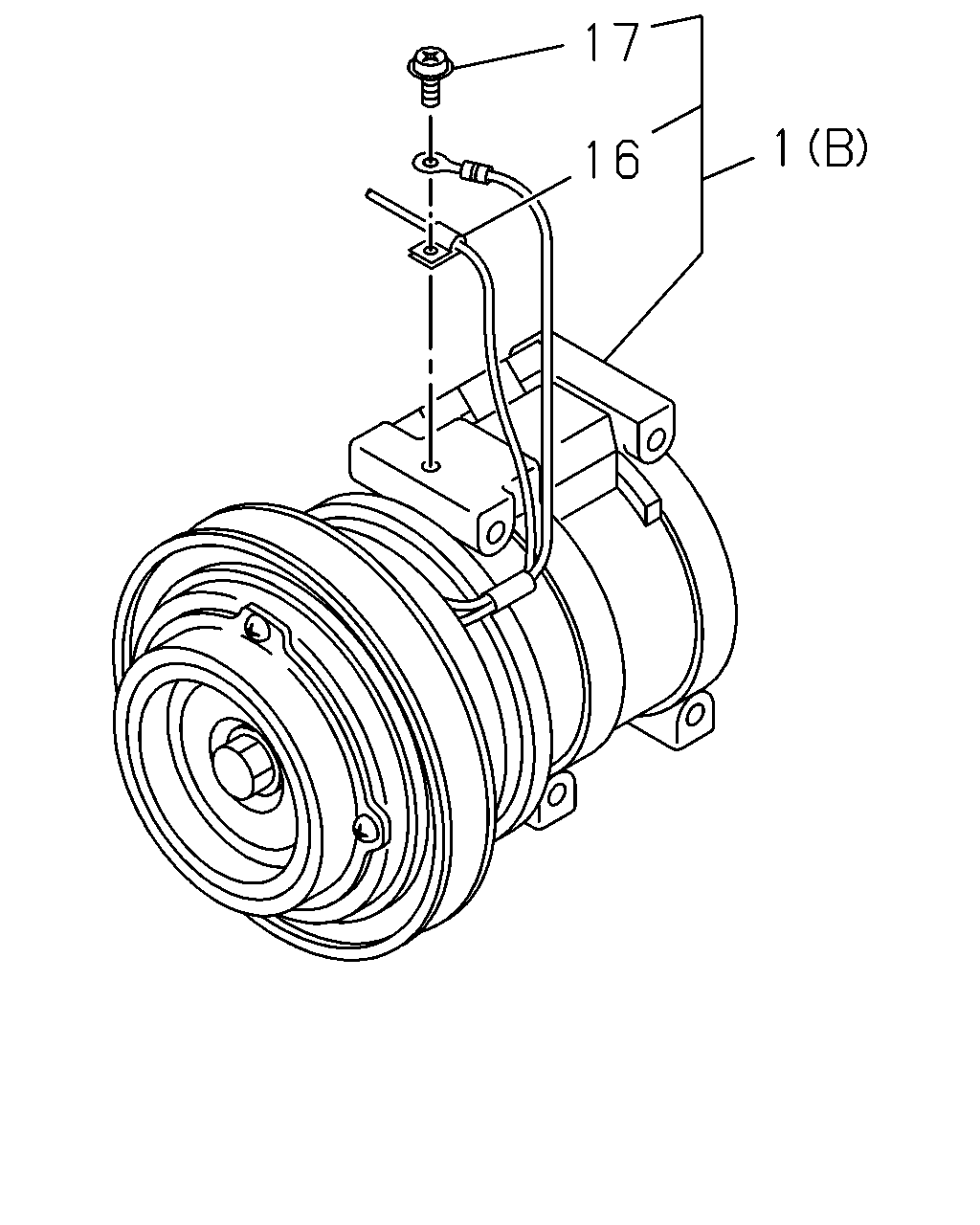

çizim 99180
17 1 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; A/C
(A) TAI 		8-97530-768-0 01 1 9811-9902 ● ●
1 COMPRESSOR ASM; A/C
(A) TAI 		1-83532-252-1 01 1 9903-0610 ● ●
1 COMPRESSOR ASM; A/C
A/C MAN CONT(C60) (B) 		1-83532-328-0 01 1 0611- ●
1 COMPRESSOR ASM; A/C
(B) 		1-83532-328-0 01 1 0611- ●
16 CLIP; WIRE,MAGNET CLU
A/C MAN CONT(C60) 		1-83579-893-0 01 1 0611- ●
16 CLIP; WIRE,MAGNET CLU 1-83579-893-0 01 1 0611- ●
17 SCREW; WIRE CLIP MAGNET CLU
A/C MAN CONT(C60) 		5-81129-130-0 01 1 0611- ●
17 SCREW; WIRE CLIP MAGNET CLU 5-81129-130-0 01 1 0611- ●
