◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#7520) — 76 parça

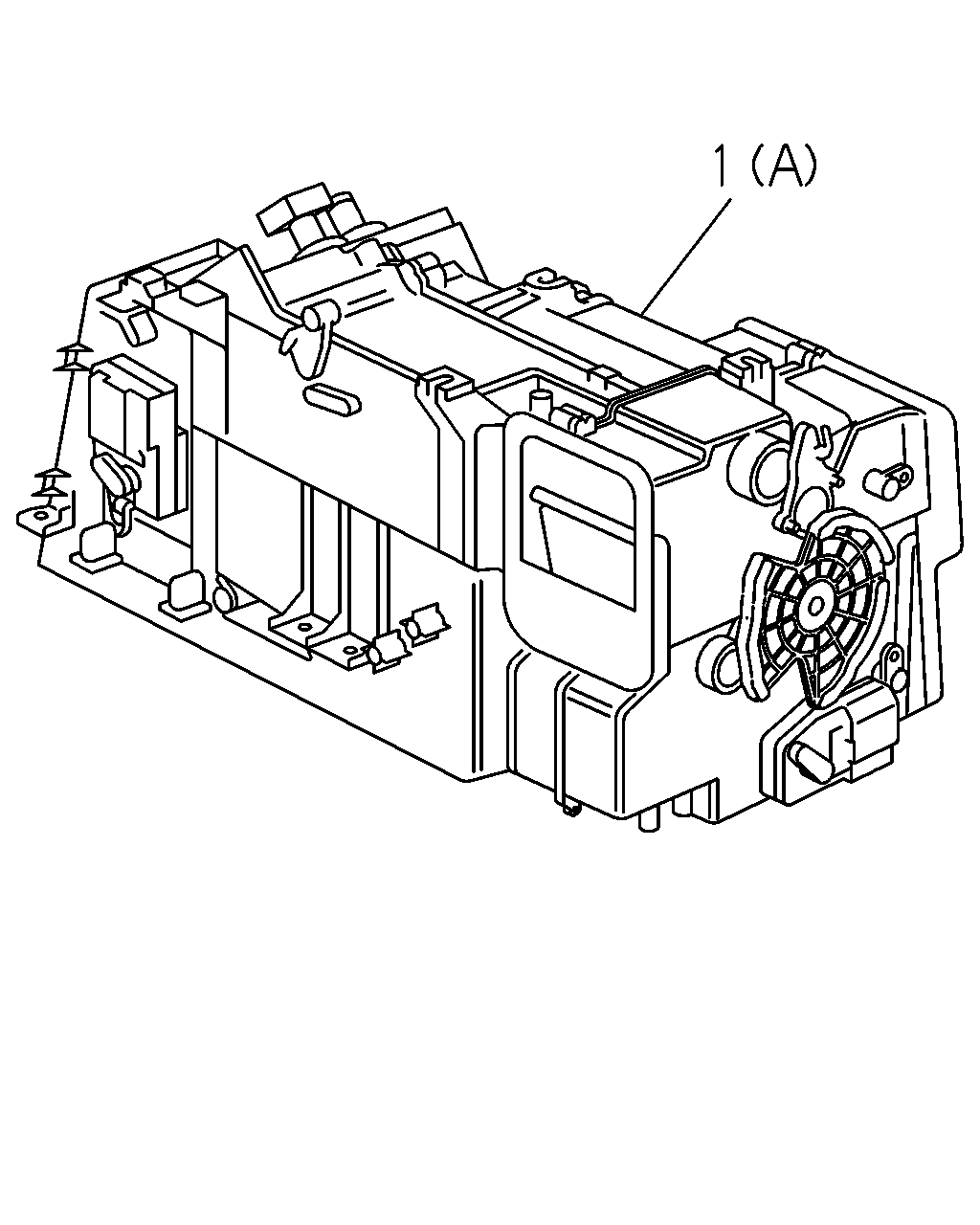

çizim 99177
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
(A) TAI 		8-97530-312-0 01 1 9811-0610 ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		1-83511-137-4 01 1 0611- ●
1 HEATER UNIT
(B) 		1-83511-137-4 01 1 0611- ●

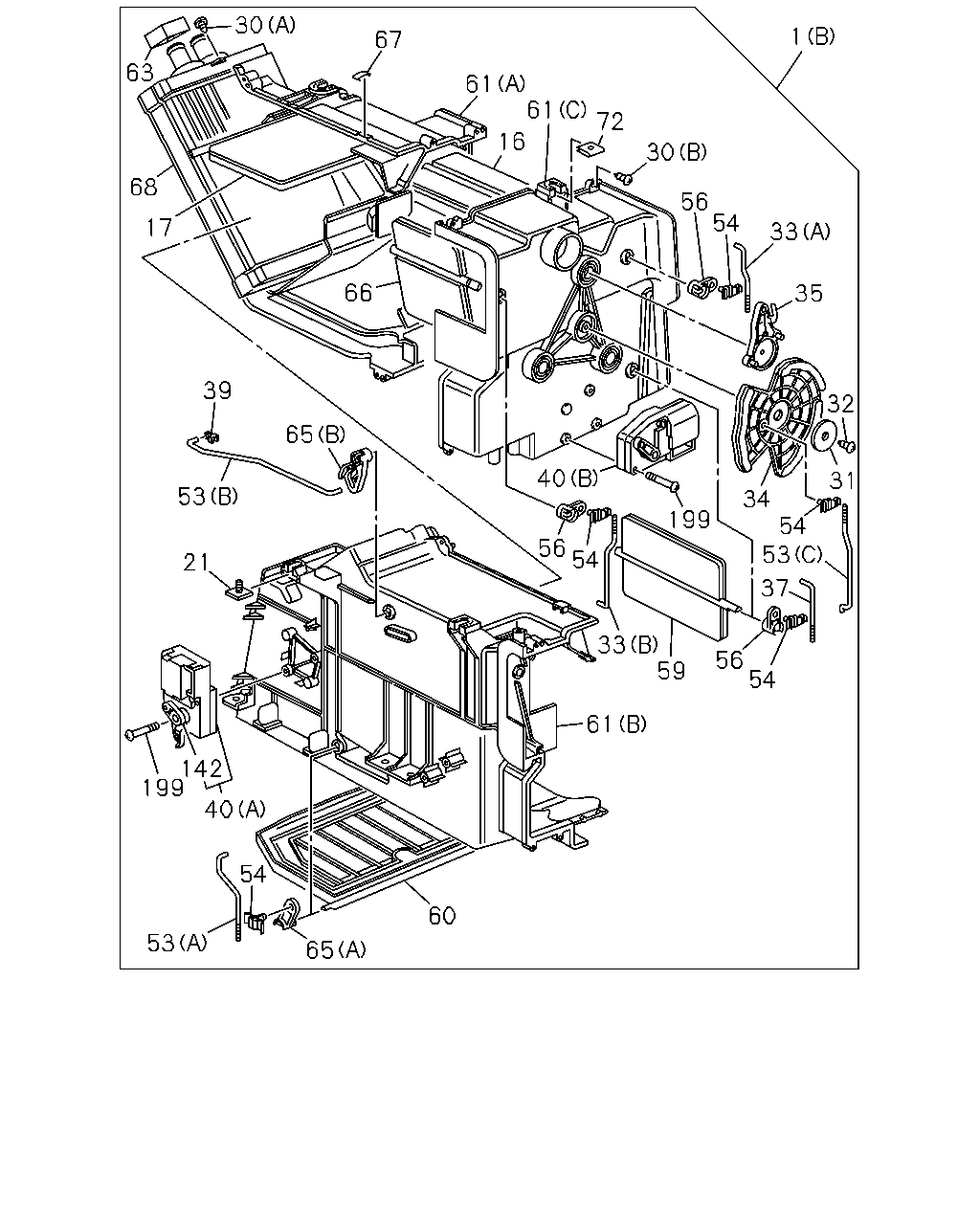

çizim 99232
30 1 67 63 61 61 72 16 30 68 56 54 17 33 66 35 39 32 65 40 31 53 34 54 53 199 56 54 21 37 33 59 56 54 61 142 199 40 54 60 53 65
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
(A) TAI 		8-97530-312-0 01 1 9811-0610 ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		1-83511-137-4 01 1 0611- ●
1 HEATER UNIT
(B) 		1-83511-137-4 01 1 0611- ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83579-789-0 01 1 0611- ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-789-0 01 1 0611- ●
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83579-787-0 01 1 0611- ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-787-0 01 1 0611- ●
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-657-2 02 1 0611- ●
21 BOLT; CASE,HTR UNIT
TAI 		1-83579-657-2 02 1 0611- ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) M4X16 		8-94324-850-0 12 1 0611- ●
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 0611- ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) M5X20 TAI 		9-09829-324-1 01 1 0611- ●
30 SCREW; HTR UNIT
(A) M5X20 TAI 		9-09829-324-1 01 1 0611- ●
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		8-94129-950-0 01 1 0611- ●
31 WASHER; HTR UNIT
TAI 		8-94129-950-0 01 1 0611- ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M5X20 TAI 		9-09829-324-1 01 1 0611- ●
32 SCREW; HTR UNIT
M5X20 TAI 		9-09829-324-1 01 1 0611- ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		1-83579-619-0 01 1 0611- ●
33 ROD; SHUTTER LEVER
(A) TAI 		1-83579-619-0 01 1 0611- ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI 		1-83579-621-0 01 1 0611- ●
33 ROD; SHUTTER LEVER
(B) TAI 		1-83579-621-0 01 1 0611- ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83564-367-0 01 1 0611- ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-367-0 01 1 0611- ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		8-94380-580-0 03 1 0611- ●
35 LEVER; SHUTTER,HTR UNIT 8-94380-580-0 03 1 0611- ●
37 ROD; LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-620-1 01 1 0611- ●
37 ROD; LEVER
TAI 		1-83579-620-1 01 1 0611- ●
39 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83574-136-0 01 1 0611- ●
39 CLIP; HTR UNIT
TAI 		1-83574-136-0 01 1 0611- ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) 		1-83579-792-1 01 1 0611- ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-792-1 01 1 0611- ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		8-97087-574-1 01 1 0611- ●
40 ACTUATOR; HTR UNIT
(B) 		8-97087-574-1 01 1 0611- ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		1-83579-623-0 01 1 0611- ●
53 ROD; SHUTTER LEVER
(A) TAI 		1-83579-623-0 01 1 0611- ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		1-83579-793-0 01 1 0611- ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-793-0 01 1 0611- ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (C) 		1-83579-794-0 01 1 0611- ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-794-0 01 1 0611- ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		8-94248-794-0 05 1 0611- ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0611- ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83564-325-0 03 1 0611- ●
56 LEVER; SHUTTER,HTR UNIT
TAI 		1-83564-325-0 03 1 0611- ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83579-790-0 01 1 0611- ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-790-0 01 1 0611- ●
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83579-788-0 01 1 0611- ●
60 DOOR; MIX,HTR UNIT 1-83579-788-0 01 1 0611- ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) 		1-83564-363-0 01 1 0611- ●
61 CASE; HTR UNIT
(A) 		1-83564-363-0 01 1 0611- ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		1-83564-364-0 01 1 0611- ●
61 CASE; HTR UNIT
(B) 		1-83564-364-0 01 1 0611- ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (C) 		1-83564-365-1 01 1 0611- ●
61 CASE; HTR UNIT
(C) 		1-83564-365-1 01 1 0611- ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-557-0 02 1 0611- ●
63 LINING; HTR UNIT
TAI 		1-83579-557-0 02 1 0611- ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI 		1-83564-328-1 01 1 0611- ●
65 LEVER; MIX,DOOR
(A) TAI 		1-83564-328-1 01 1 0611- ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		1-83564-366-0 01 1 0611- ●
65 LEVER; MIX,DOOR
(B) 		1-83564-366-0 01 1 0611- ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83579-791-0 01 1 0611- ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-791-0 01 1 0611- ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83574-148-0 01 1 0611- ●
67 CLIP; HTR UNIT
TAI 		1-83574-148-0 01 1 0611- ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83562-078-1 01 1 0611- ●
68 CORE; HTR UNIT
TAI 		1-83562-078-1 01 1 0611- ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-83579-659-4 02 1 0611- ●
72 NUT; CASE,HTR UNIT
TAI 		1-83579-659-4 02 1 0611- ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83564-384-0 01 1 0611- ●
142 LEVER; ACTUATOR 1-83564-384-0 01 1 0611- ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83564-385-0 01 1 0611- ●
142 LEVER; ACTUATOR 1-83564-385-0 01 1 0611- ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		8-94348-809-0 04 1 0611- ●
199 SCREW; ACTUATOR
TAI 		8-94348-809-0 04 1 0611- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
