Sayfa 4-50 - Isuzu EPC

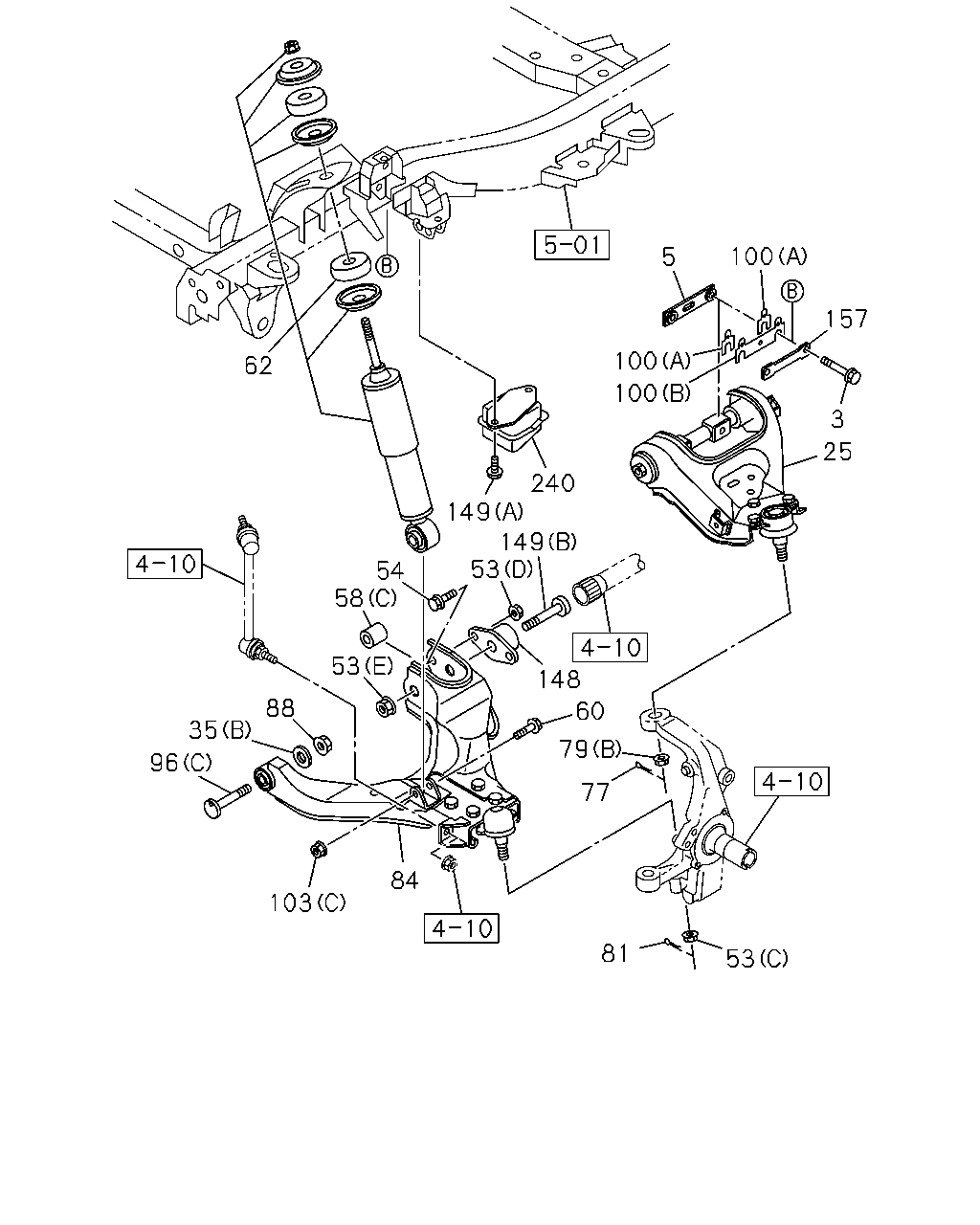

4-50 — FRONT SUSPENSION (#75199) — 377 parça

62 5 157 100 100 3 25 100 240 149 53 54 58 53 88 35 96 149 148 60 79 77 84 103 81 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	06.164 BOLT; UPR LINK TO FRAME	8-97214-816-0	04	1	0610-0809	●	●
3	06.164 BOLT; UPR LINK TO FRAME EXC. HIGH RIDE SUSPENSION(7YC)	8-97214-816-0	04	1	0810-0910	●	●
3	06.164 BOLT; UPR LINK TO FRAME	8-97214-816-0	04	1	0911-	●	●
3	06.164 BOLT; UPR LINK TO FRAME	8-97245-628-0	04	1	0610-0809			●
3	06.164 BOLT; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC)	8-97245-628-0	04	1	0810-0910	●	●
3	06.164 BOLT; UPR LINK TO FRAME	8-97245-628-0	04	1	0810-0910			●
3	06.164 BOLT; UPR LINK TO FRAME	8-97245-628-0	04	1	0911-			●
5	06.164 NUT; UPR LINK TO FRAME 07.529 M14 FLANGE	8-97245-635-0	04	1	0610-0809	●	●
5	06.164 NUT; UPR LINK TO FRAME EXC. HIGH RIDE SUSPENSION(7YC) 07.529 M14 FLANGE	8-97245-635-0	04	1	0810-0910	●	●
5	06.164 NUT; UPR LINK TO FRAME 07.529 M14 FLANGE	8-97245-635-0	04	1	0911-	●	●
5	06.164 NUT; UPR LINK TO FRAME	8-97245-629-0	02	1	0610-0809			●
5	06.164 NUT; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC)	8-97245-629-0	02	1	0810-0910	●	●
5	06.164 NUT; UPR LINK TO FRAME	8-97245-629-0	02	1	0810-0910			●
5	06.164 NUT; UPR LINK TO FRAME	8-97245-629-0	02	1	0911-			●
7	06.174 PIN; FULCRUM,UPR LINK	8-98005-825-0	02	1	0610-0809			●
7	06.174 PIN; FULCRUM,UPR LINK HIGH RIDE SUSPENSION(7YC)	8-98005-825-0	02	1	0810-0910	●	●
7	06.174 PIN; FULCRUM,UPR LINK	8-98005-825-0	02	1	0810-0910			●
7	06.174 PIN; FULCRUM,UPR LINK	8-98005-825-0	02	1	0911-			●
18	07.347 WASHER; CENTERING,S/ABS	8-98005-974-0	02	1	0610-0809			●
18	07.347 WASHER; CENTERING,S/ABS HIGH RIDE SUSPENSION(7YC)	8-98005-974-0	02	1	0810-0910	●	●
18	07.347 WASHER; CENTERING,S/ABS	8-98005-974-0	02	1	0810-0910			●
18	07.347 WASHER; CENTERING,S/ABS	8-98005-974-0	02	1	0911-			●
25	06.168 ARM; UPR CONT	8-98005-837-0	01	1	0610-0809	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-837-0	01	1	0810-0910	●	●
25	06.168 ARM; UPR CONT	8-98005-837-0	01	1	0911-	●	●
25	06.168 ARM; UPR CONT	8-98005-836-0	01	1	0610-0809	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-836-0	01	1	0810-0910	●	●
25	06.168 ARM; UPR CONT	8-98005-836-0	01	1	0911-	●	●
25	06.168 ARM; UPR CONT	8-98005-839-0	01	1	0610-0809			●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-839-0	01	1	0810-0910	●	●
25	06.168 ARM; UPR CONT	8-98005-839-0	01	1	0810-0910			●
25	06.168 ARM; UPR CONT	8-98005-839-0	01	1	0911-			●
25	06.168 ARM; UPR CONT	8-98005-838-0	01	1	0610-0809			●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-838-0	01	1	0810-0910	●	●
25	06.168 ARM; UPR CONT	8-98005-838-0	01	1	0810-0910			●
25	06.168 ARM; UPR CONT	8-98005-838-0	01	1	0911-			●
35	06.170 PLATE; BUSHING SUPPORT 06.164 (A)	8-97214-814-0	04	1	0610-0809	●	●
35	06.170 PLATE; BUSHING SUPPORT EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (A)	8-97214-814-0	04	1	0810-0910	●	●
35	06.170 PLATE; BUSHING SUPPORT 06.164 (A)	8-97214-814-0	04	1	0911-	●	●
35	06.170 PLATE; BUSHING SUPPORT 06.164 (B)	8-97214-721-0	02	1	0610-0809			●
35	06.170 PLATE; BUSHING SUPPORT HIGH RIDE SUSPENSION(7YC) 06.164 (B)	8-97214-721-0	02	1	0810-0910	●	●
35	06.170 PLATE; BUSHING SUPPORT 06.164 (B)	8-97214-721-0	02	1	0810-0910			●
35	06.170 PLATE; BUSHING SUPPORT 06.164 (B)	8-97214-721-0	02	1	0911-			●
53	06.174 NUT; LWR LINK 05.816 (A) M12 FLANGE	0-91180-212-0	08	1	0610-0809	●	●
53	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE	0-91180-212-0	08	1	0810-0910	●	●
53	06.174 NUT; LWR LINK 05.816 (A) M12 FLANGE	0-91180-212-0	08	1	0911-	●	●
53	06.174 NUT; LWR LINK (B) M18 SLOTTED	8-97245-632-0	02	1	0610-0809	●	●
53	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B) M18 SLOTTED	8-97245-632-0	02	1	0810-0910	●	●
53	06.174 NUT; LWR LINK (B) M18 SLOTTED	8-97245-632-0	02	1	0911-	●	●
53	06.174 NUT; LWR LINK (C) M18 SLOTTED	0-91116-518-0	02	1	0610-0809			●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) (C) M18 SLOTTED	0-91116-518-0	02	1	0810-0910	●	●
53	06.174 NUT; LWR LINK (C) M18 SLOTTED	0-91116-518-0	02	1	0810-0910			●
53	06.174 NUT; LWR LINK (C) M18 SLOTTED	0-91116-518-0	02	1	0911-1308			●
53	06.174 NUT; LWR LINK 07.529 (C) M18	0-91110-518-0	02	1	1309-			●
53	06.174 NUT; LWR LINK 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0610-0809			●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0810-0910	●	●
53	06.174 NUT; LWR LINK 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0810-0910			●
53	06.174 NUT; LWR LINK 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0911-			●
53	06.174 NUT; LWR LINK (E) M18 FLANGE	8-97245-634-0	02	1	0610-0809			●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) (E) M18 FLANGE	8-97245-634-0	02	1	0810-0910	●	●
53	06.174 NUT; LWR LINK (E) M18 FLANGE	8-97245-634-0	02	1	0810-0910			●
53	06.174 NUT; LWR LINK (E) M18 FLANGE	8-97245-634-0	02	1	0911-			●
54	06.174 PIN; FULCRUM,LWR LINK	8-97245-660-0	04	1	0610-0809			●
54	06.174 PIN; FULCRUM,LWR LINK HIGH RIDE SUSPENSION(7YC)	8-97245-660-0	04	1	0810-0910	●	●
54	06.174 PIN; FULCRUM,LWR LINK	8-97245-660-0	04	1	0810-0910			●
54	06.174 PIN; FULCRUM,LWR LINK	8-97245-660-0	04	1	0911-			●
58	06.170 BUSHING; LWR LINK (A)	8-97364-174-0	04	1	0610-0809	●	●
58	06.170 BUSHING; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97364-174-0	04	1	0810-0910	●	●
58	06.170 BUSHING; LWR LINK (A)	8-97364-174-0	04	1	0911-	●	●
58	06.170 BUSHING; LWR LINK (B)	8-97364-176-0	02	1	0610-0809			●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC) (B)	8-97364-176-0	02	1	0810-0910	●	●
58	06.170 BUSHING; LWR LINK (B)	8-97364-176-0	02	1	0810-0910			●
58	06.170 BUSHING; LWR LINK (B)	8-97364-176-0	02	1	0911-			●
58	06.170 BUSHING; LWR LINK (C)	8-97364-177-0	02	1	0610-0809			●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC) (C)	8-97364-177-0	02	1	0810-0910	●	●
58	06.170 BUSHING; LWR LINK (C)	8-97364-177-0	02	1	0810-0910			●
58	06.170 BUSHING; LWR LINK (C)	8-97364-177-0	02	1	0911-			●
60	07.347 BOLT; S/ABS TO LWR LINK M14X69 FLANGE	8-97245-641-0	02	1	0610-0809	●	●
60	07.347 BOLT; S/ABS TO LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) M14X69 FLANGE	8-97245-641-0	02	1	0810-0910	●	●
60	07.347 BOLT; S/ABS TO LWR LINK M14X69 FLANGE	8-97245-641-0	02	1	0911-	●	●
60	07.347 BOLT; S/ABS TO LWR LINK M12X60 FLANGE	0-29261-260-0	02	1	0610-0809			●
60	07.347 BOLT; S/ABS TO LWR LINK HIGH RIDE SUSPENSION(7YC) M12X60 FLANGE	0-29261-260-0	02	1	0810-0910	●	●
60	07.347 BOLT; S/ABS TO LWR LINK M12X60 FLANGE	0-29261-260-0	02	1	0810-0910			●
60	07.347 BOLT; S/ABS TO LWR LINK M12X60 FLANGE	0-29261-260-0	02	1	0911-			●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97946-661-0	02	1	0810-0910	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98055-964-0	02	1	0610-0706	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97946-678-0	02	1	0707-0710	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT C24SE ENG(LG1)	8-97946-678-0	02	1	0711-0809	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-678-0	02	1	0810-0910	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97946-678-0	02	1	0911-0911	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98152-164-0	02	1	0911-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98056-028-0	02	1	0610-0706			●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97946-663-0	02	1	0707-0910			●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98152-216-0	02	1	0911-			●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=28	0-81123-028-0	02	1	0610-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 01.540 (A) M8 FLANGE	0-91180-208-0	08	1	0610-0809	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (A) M8 FLANGE	0-91180-208-0	08	1	0810-0910	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 01.540 (A) M8 FLANGE	0-91180-208-0	08	1	0911-	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE (B) M14 SLOTTED	8-97245-624-0	02	1	0610-1212	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.833 (B) M14	0-91110-514-0	02	1	1301-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0610-0809			●
79	06.174 NUT; UPR LINK END TO KNUCKLE HIGH RIDE SUSPENSION(7YC) 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0810-0910	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0810-0910			●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0911-			●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE OD=2.8 L=28	0-81123-028-0	02	1	0610-	●	●	●
84	06.168 ARM; LWR CONT	8-98005-833-0	01	1	0610-0809	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-833-0	01	1	0810-0910	●	●
84	06.168 ARM; LWR CONT	8-98005-833-0	01	1	0911-	●	●
84	06.168 ARM; LWR CONT	8-98005-832-0	01	1	0610-0809	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-832-0	01	1	0810-0910	●	●
84	06.168 ARM; LWR CONT	8-98005-832-0	01	1	0911-	●	●
84	06.168 ARM; LWR CONT	8-98005-835-0	01	1	0610-0809			●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-835-0	01	1	0810-0910	●	●
84	06.168 ARM; LWR CONT	8-98005-835-0	01	1	0810-0910			●
84	06.168 ARM; LWR CONT	8-98005-835-0	01	1	0911-			●
84	06.168 ARM; LWR CONT	8-98005-834-0	01	1	0610-0809			●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-834-0	01	1	0810-0910	●	●
84	06.168 ARM; LWR CONT	8-98005-834-0	01	1	0810-0910			●
84	06.168 ARM; LWR CONT	8-98005-834-0	01	1	0911-			●
88	06.174 NUT; LWR LINK M16 FLANGE	8-97245-631-0	04	1	0610-0809	●	●
88	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) M16 FLANGE	8-97245-631-0	04	1	0810-0910	●	●
88	06.174 NUT; LWR LINK M16 FLANGE	8-97245-631-0	04	1	0911-	●	●
88	06.174 NUT; LWR LINK M16 FLANGE	8-97245-631-0	02	1	0610-0809			●
88	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) M16 FLANGE	8-97245-631-0	02	1	0810-0910	●	●
88	06.174 NUT; LWR LINK M16 FLANGE	8-97245-631-0	02	1	0810-0910			●
88	06.174 NUT; LWR LINK M16 FLANGE	8-97245-631-0	02	1	0911-			●
96	06.174 BOLT; LWR LINK 06.164 (A)	8-97214-813-0	04	1	0610-0809	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (A)	8-97214-813-0	04	1	0810-0910	●	●
96	06.174 BOLT; LWR LINK 06.164 (A)	8-97214-813-0	04	1	0911-1007	●	●
96	06.174 BOLT; LWR LINK (A)	8-97946-369-0	04	1	1008-1305	●	●
96	06.174 BOLT; LWR LINK (A) M16X102 W/PLATE	8-98186-404-0	04	1	1306-	●	●
96	06.174 BOLT; LWR LINK (B) M12X37 FLANGE	8-97245-639-0	08	1	0610-	●	●	●
96	06.174 BOLT; LWR LINK 06.164 (C) M16X95.4	8-97214-719-0	02	1	0610-0809			●
96	06.174 BOLT; LWR LINK HIGH RIDE SUSPENSION(7YC) 06.164 (C) M16X95.4	8-97214-719-0	02	1	0810-0910	●	●
96	06.174 BOLT; LWR LINK 06.164 (C) M16X95.4	8-97214-719-0	02	1	0810-0910			●
96	06.174 BOLT; LWR LINK 06.164 (C) M16X95.4	8-97214-719-0	02	1	0911-			●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=0.40	8-98005-914-0	AR	1	0610-0809			●
100	06.164 SHIM; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC) (A) T=0.40	8-98005-914-0	AR	1	0810-0910	●	●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=0.40	8-98005-914-0	AR	1	0810-0910			●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=0.40	8-98005-914-0	AR	1	0911-			●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=1.60	8-98005-915-0	AR	1	0610-0809			●
100	06.164 SHIM; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC) (A) T=1.60	8-98005-915-0	AR	1	0810-0910	●	●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=1.60	8-98005-915-0	AR	1	0810-0910			●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=1.60	8-98005-915-0	AR	1	0911-			●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=3.20	8-98005-916-0	AR	1	0610-0809			●
100	06.164 SHIM; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC) (A) T=3.20	8-98005-916-0	AR	1	0810-0910	●	●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=3.20	8-98005-916-0	AR	1	0810-0910			●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=3.20	8-98005-916-0	AR	1	0911-			●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=3.20	8-98005-917-0	AR	1	0610-0809			●
100	06.164 SHIM; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC) (B) T=3.20	8-98005-917-0	AR	1	0810-0910	●	●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=3.20	8-98005-917-0	AR	1	0810-0910			●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=3.20	8-98005-917-0	AR	1	0911-			●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=1.60	8-98005-918-0	AR	1	0610-0809			●
100	06.164 SHIM; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC) (B) T=1.60	8-98005-918-0	AR	1	0810-0910	●	●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=1.60	8-98005-918-0	AR	1	0810-0910			●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=1.60	8-98005-918-0	AR	1	0911-			●
103	07.347 NUT; S/ABS TO LWR LINK 07.529 (A) M14 FLANGE	8-97245-635-0	02	1	0610-0809	●	●
103	07.347 NUT; S/ABS TO LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 07.529 (A) M14 FLANGE	8-97245-635-0	02	1	0810-0910	●	●
103	07.347 NUT; S/ABS TO LWR LINK 07.529 (A) M14 FLANGE	8-97245-635-0	02	1	0911-	●	●
103	07.347 NUT; S/ABS TO LWR LINK (B) M10 FLANGE	8-97245-637-0	06	1	0610-0809	●	●
103	07.347 NUT; S/ABS TO LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B) M10 FLANGE	8-97245-637-0	06	1	0810-0910	●	●
103	07.347 NUT; S/ABS TO LWR LINK (B) M10 FLANGE	8-97245-637-0	06	1	0911-	●	●
103	07.347 NUT; S/ABS TO LWR LINK 05.816 (C) M12 FLANGE	0-91180-212-0	02	1	0610-0809			●
103	07.347 NUT; S/ABS TO LWR LINK HIGH RIDE SUSPENSION(7YC) 05.816 (C) M12 FLANGE	0-91180-212-0	02	1	0810-0910	●	●
103	07.347 NUT; S/ABS TO LWR LINK 05.816 (C) M12 FLANGE	0-91180-212-0	02	1	0810-0910			●
103	07.347 NUT; S/ABS TO LWR LINK 05.816 (C) M12 FLANGE	0-91180-212-0	02	1	0911-			●
148	06.170 ARM; LWR LINK	8-97235-902-0	02	1	0610-0809			●
148	06.170 ARM; LWR LINK HIGH RIDE SUSPENSION(7YC)	8-97235-902-0	02	1	0810-0910	●	●
148	06.170 ARM; LWR LINK	8-97235-902-0	02	1	0810-0910			●
148	06.170 ARM; LWR LINK	8-97235-902-0	02	1	0911-			●
149	06.172 BOLT; ARM TO LWR CONT ARM 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0610-	●	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM 06.174 (B)	8-97235-908-0	02	1	0610-0809			●
149	06.172 BOLT; ARM TO LWR CONT ARM HIGH RIDE SUSPENSION(7YC) 06.174 (B)	8-97235-908-0	02	1	0810-0910	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM 06.174 (B)	8-97235-908-0	02	1	0810-0910			●
149	06.172 BOLT; ARM TO LWR CONT ARM 06.174 (B)	8-97235-908-0	02	1	0911-			●
157	06.176 PLATE; UPR LINK TO FRAME	8-98005-876-0	02	1	0610-0809			●
157	06.176 PLATE; UPR LINK TO FRAME HIGH RIDE SUSPENSION(7YC)	8-98005-876-0	02	1	0810-0910	●	●
157	06.176 PLATE; UPR LINK TO FRAME	8-98005-876-0	02	1	0810-0910			●
157	06.176 PLATE; UPR LINK TO FRAME	8-98005-876-0	02	1	0911-			●
162	04.686 NUT; FULCRUM PIN TO UPR ARM 07.529 M14 FLANGE	8-97245-635-0	04	1	0610-0809			●
162	04.686 NUT; FULCRUM PIN TO UPR ARM HIGH RIDE SUSPENSION(7YC) 07.529 M14 FLANGE	8-97245-635-0	04	1	0810-0910	●	●
162	04.686 NUT; FULCRUM PIN TO UPR ARM 07.529 M14 FLANGE	8-97245-635-0	04	1	0810-0910			●
162	04.686 NUT; FULCRUM PIN TO UPR ARM 07.529 M14 FLANGE	8-97245-635-0	04	1	0911-			●
163	06.163 PLATE; FULCRUM PIN,UPR LINK	8-98005-932-0	04	1	0610-0809			●
163	06.163 PLATE; FULCRUM PIN,UPR LINK HIGH RIDE SUSPENSION(7YC)	8-98005-932-0	04	1	0810-0910	●	●
163	06.163 PLATE; FULCRUM PIN,UPR LINK	8-98005-932-0	04	1	0810-0910			●
163	06.163 PLATE; FULCRUM PIN,UPR LINK	8-98005-932-0	04	1	0911-			●
240	07.395 BUMPER; LWR CONT ARM	8-97215-052-0	02	1	0610-0809	●	●
240	07.395 BUMPER; LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-97215-052-0	02	1	0810-0910	●	●
240	07.395 BUMPER; LWR CONT ARM	8-97215-052-0	02	1	0911-	●	●
240	07.395 BUMPER; LWR CONT ARM	8-97234-967-0	01	1	0610-0809			●
240	07.395 BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97234-967-0	01	1	0810-0910	●	●
240	07.395 BUMPER; LWR CONT ARM	8-97234-967-0	01	1	0810-0910			●
240	07.395 BUMPER; LWR CONT ARM	8-97234-967-0	01	1	0911-			●
240	07.395 BUMPER; LWR CONT ARM	8-97234-966-0	01	1	0610-0809			●
240	07.395 BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97234-966-0	01	1	0810-0910	●	●
240	07.395 BUMPER; LWR CONT ARM	8-97234-966-0	01	1	0810-0910			●
240	07.395 BUMPER; LWR CONT ARM	8-97234-966-0	01	1	0911-			●

14 65 17 75 47 17 65 65 16 62 45 25 45 20 21 79 84 58 58 53 96 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	06.174 PIN; FULCRUM,UPR LINK	8-98005-825-0	02	1	0610-0809			●
7	06.174 PIN; FULCRUM,UPR LINK HIGH RIDE SUSPENSION(7YC)	8-98005-825-0	02	1	0810-0910	●	●
7	06.174 PIN; FULCRUM,UPR LINK	8-98005-825-0	02	1	0810-0910			●
7	06.174 PIN; FULCRUM,UPR LINK	8-98005-825-0	02	1	0911-			●
14	07.389 NUT; S/ABS,UPR M12 FLANGE	8-97236-304-0	02	1	0610-0710	●	●
14	07.389 NUT; S/ABS,UPR C24SE ENG(LG1) M12 FLANGE	8-97236-304-0	02	1	0711-0809	●	●
14	07.389 NUT; S/ABS,UPR EXC. HIGH RIDE SUSPENSION(7YC) M12 FLANGE	8-97236-304-0	02	1	0810-0910	●	●
14	07.389 NUT; S/ABS,UPR M12 FLANGE	8-97236-304-0	02	1	0911-	●	●
14	07.389 NUT; S/ABS,UPR 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-0809			●
14	07.389 NUT; S/ABS,UPR HIGH RIDE SUSPENSION(7YC) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-0910	●	●
14	07.389 NUT; S/ABS,UPR 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-0910			●
14	07.389 NUT; S/ABS,UPR 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-			●
16	07.395 COVER; DUST,FRT S/ABS	8-97944-566-0	02	1	0610-0710	●	●
16	07.395 COVER; DUST,FRT S/ABS C24SE ENG(LG1)	8-97944-566-0	02	1	0711-0809	●	●
16	07.395 COVER; DUST,FRT S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-566-0	02	1	0810-0910	●	●
16	07.395 COVER; DUST,FRT S/ABS	8-97944-566-0	02	1	0911-	●	●
17	07.388 BUSHING; RUBBER,S/ABS (A)	8-97236-303-0	02	1	0610-0710	●	●
17	07.388 BUSHING; RUBBER,S/ABS C24SE ENG(LG1) (A)	8-97236-303-0	02	1	0711-0809	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-303-0	02	1	0810-0910	●	●
17	07.388 BUSHING; RUBBER,S/ABS (A)	8-97236-303-0	02	1	0911-	●	●
17	07.388 BUSHING; RUBBER,S/ABS (B)	8-97264-184-0	02	1	0610-0710	●	●
17	07.388 BUSHING; RUBBER,S/ABS C24SE ENG(LG1) (B)	8-97264-184-0	02	1	0711-0809	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97264-184-0	02	1	0810-0910	●	●
17	07.388 BUSHING; RUBBER,S/ABS (B)	8-97264-184-0	02	1	0911-	●	●
17	07.388 BUSHING; RUBBER,S/ABS (C)	8-97120-138-0	04	1	0610-0809			●
17	07.388 BUSHING; RUBBER,S/ABS HIGH RIDE SUSPENSION(7YC) (C)	8-97120-138-0	04	1	0810-0910	●	●
17	07.388 BUSHING; RUBBER,S/ABS (C)	8-97120-138-0	04	1	0810-0910			●
17	07.388 BUSHING; RUBBER,S/ABS (C)	8-97120-138-0	04	1	0911-			●
18	07.347 WASHER; CENTERING,S/ABS	8-98005-974-0	02	1	0610-0809			●
18	07.347 WASHER; CENTERING,S/ABS HIGH RIDE SUSPENSION(7YC)	8-98005-974-0	02	1	0810-0910	●	●
18	07.347 WASHER; CENTERING,S/ABS	8-98005-974-0	02	1	0810-0910			●
18	07.347 WASHER; CENTERING,S/ABS	8-98005-974-0	02	1	0911-			●
20	06.174 BOLT; UPR LINK END TO UPR LINK M8X25 FLANGE	0-28060-825-0	08	1	0610-0809	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK EXC. HIGH RIDE SUSPENSION(7YC) M8X25 FLANGE	0-28060-825-0	08	1	0810-0910	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK M8X25 FLANGE	0-28060-825-0	08	1	0911-	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK	8-97245-636-0	06	1	0610-0809			●
20	06.174 BOLT; UPR LINK END TO UPR LINK HIGH RIDE SUSPENSION(7YC)	8-97245-636-0	06	1	0810-0910	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK	8-97245-636-0	06	1	0810-0910			●
20	06.174 BOLT; UPR LINK END TO UPR LINK	8-97245-636-0	06	1	0911-			●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-98005-827-0	02	1	0610-0809	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-827-0	02	1	0810-0910	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-98005-827-0	02	1	0911-	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-98005-826-0	02	1	0610-0809			●
21	06.168 JOINT ASM; BALL,UPR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-98005-826-0	02	1	0810-0910	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-98005-826-0	02	1	0810-0910			●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-98005-826-0	02	1	0911-			●
25	06.168 ARM; UPR CONT	8-98005-837-0	01	1	0610-0809	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-837-0	01	1	0810-0910	●	●
25	06.168 ARM; UPR CONT	8-98005-837-0	01	1	0911-	●	●
25	06.168 ARM; UPR CONT	8-98005-836-0	01	1	0610-0809	●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-836-0	01	1	0810-0910	●	●
25	06.168 ARM; UPR CONT	8-98005-836-0	01	1	0911-	●	●
25	06.168 ARM; UPR CONT	8-98005-839-0	01	1	0610-0809			●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-839-0	01	1	0810-0910	●	●
25	06.168 ARM; UPR CONT	8-98005-839-0	01	1	0810-0910			●
25	06.168 ARM; UPR CONT	8-98005-839-0	01	1	0911-			●
25	06.168 ARM; UPR CONT	8-98005-838-0	01	1	0610-0809			●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-838-0	01	1	0810-0910	●	●
25	06.168 ARM; UPR CONT	8-98005-838-0	01	1	0810-0910			●
25	06.168 ARM; UPR CONT	8-98005-838-0	01	1	0911-			●
45	06.164 BUSHING; UPR LINK,FRT	8-97364-173-0	04	1	0610-0809	●	●
45	06.164 BUSHING; UPR LINK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97364-173-0	04	1	0810-0910	●	●
45	06.164 BUSHING; UPR LINK,FRT	8-97364-173-0	04	1	0911-	●	●
45	06.164 BUSHING; UPR LINK,FRT	8-97364-175-0	04	1	0610-0809			●
45	06.164 BUSHING; UPR LINK,FRT HIGH RIDE SUSPENSION(7YC)	8-97364-175-0	04	1	0810-0910	●	●
45	06.164 BUSHING; UPR LINK,FRT	8-97364-175-0	04	1	0810-0910			●
45	06.164 BUSHING; UPR LINK,FRT	8-97364-175-0	04	1	0911-			●
47	07.412 SPRING; COIL,FRT SUSP 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97245-069-0	02	1	0810-0910	●	●
47	07.412 SPRING; COIL,FRT SUSP 4JA1-T ENG(LP0)	8-97245-069-0	02	1	0911-	●	●
47	07.412 SPRING; COIL,FRT SUSP	8-97245-065-0	02	1	0610-0710	●	●
47	07.412 SPRING; COIL,FRT SUSP C24SE ENG(LG1)	8-97245-065-0	02	1	0711-0712	●	●
47	07.412 SPRING; COIL,FRT SUSP C24SE ENG(LG1)	8-97946-800-0	02	1	0801-0809	●	●
47	07.412 SPRING; COIL,FRT SUSP C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-800-0	02	1	0810-0910	●	●
47	07.412 SPRING; COIL,FRT SUSP C24SE ENG(LG1)	8-97946-800-0	02	1	0911-	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-98005-874-0	02	1	0610-0809	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-874-0	02	1	0810-0910	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-98005-874-0	02	1	0911-	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-98005-875-0	02	1	0610-0809			●
48	06.174 JOINT ASM; BALL,LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-98005-875-0	02	1	0810-0910	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-98005-875-0	02	1	0810-0910			●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-98005-875-0	02	1	0911-			●
53	06.174 NUT; LWR LINK 05.816 (A) M12 FLANGE	0-91180-212-0	08	1	0610-0809	●	●
53	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 05.816 (A) M12 FLANGE	0-91180-212-0	08	1	0810-0910	●	●
53	06.174 NUT; LWR LINK 05.816 (A) M12 FLANGE	0-91180-212-0	08	1	0911-	●	●
53	06.174 NUT; LWR LINK (B) M18 SLOTTED	8-97245-632-0	02	1	0610-0809	●	●
53	06.174 NUT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (B) M18 SLOTTED	8-97245-632-0	02	1	0810-0910	●	●
53	06.174 NUT; LWR LINK (B) M18 SLOTTED	8-97245-632-0	02	1	0911-	●	●
53	06.174 NUT; LWR LINK (C) M18 SLOTTED	0-91116-518-0	02	1	0610-0809			●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) (C) M18 SLOTTED	0-91116-518-0	02	1	0810-0910	●	●
53	06.174 NUT; LWR LINK (C) M18 SLOTTED	0-91116-518-0	02	1	0810-0910			●
53	06.174 NUT; LWR LINK (C) M18 SLOTTED	0-91116-518-0	02	1	0911-1308			●
53	06.174 NUT; LWR LINK 07.529 (C) M18	0-91110-518-0	02	1	1309-			●
53	06.174 NUT; LWR LINK 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0610-0809			●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0810-0910	●	●
53	06.174 NUT; LWR LINK 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0810-0910			●
53	06.174 NUT; LWR LINK 05.816 (D) M12 FLANGE	0-91180-212-0	12	1	0911-			●
53	06.174 NUT; LWR LINK (E) M18 FLANGE	8-97245-634-0	02	1	0610-0809			●
53	06.174 NUT; LWR LINK HIGH RIDE SUSPENSION(7YC) (E) M18 FLANGE	8-97245-634-0	02	1	0810-0910	●	●
53	06.174 NUT; LWR LINK (E) M18 FLANGE	8-97245-634-0	02	1	0810-0910			●
53	06.174 NUT; LWR LINK (E) M18 FLANGE	8-97245-634-0	02	1	0911-			●
58	06.170 BUSHING; LWR LINK (A)	8-97364-174-0	04	1	0610-0809	●	●
58	06.170 BUSHING; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97364-174-0	04	1	0810-0910	●	●
58	06.170 BUSHING; LWR LINK (A)	8-97364-174-0	04	1	0911-	●	●
58	06.170 BUSHING; LWR LINK (B)	8-97364-176-0	02	1	0610-0809			●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC) (B)	8-97364-176-0	02	1	0810-0910	●	●
58	06.170 BUSHING; LWR LINK (B)	8-97364-176-0	02	1	0810-0910			●
58	06.170 BUSHING; LWR LINK (B)	8-97364-176-0	02	1	0911-			●
58	06.170 BUSHING; LWR LINK (C)	8-97364-177-0	02	1	0610-0809			●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC) (C)	8-97364-177-0	02	1	0810-0910	●	●
58	06.170 BUSHING; LWR LINK (C)	8-97364-177-0	02	1	0810-0910			●
58	06.170 BUSHING; LWR LINK (C)	8-97364-177-0	02	1	0911-			●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97946-661-0	02	1	0810-0910	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98055-964-0	02	1	0610-0706	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97946-678-0	02	1	0707-0710	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT C24SE ENG(LG1)	8-97946-678-0	02	1	0711-0809	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-678-0	02	1	0810-0910	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97946-678-0	02	1	0911-0911	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98152-164-0	02	1	0911-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98056-028-0	02	1	0610-0706			●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97946-663-0	02	1	0707-0910			●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98152-216-0	02	1	0911-			●
65	07.347 WASHER; S/ABS (D)	8-97944-892-0	02	1	0911-	●	●
65	07.347 WASHER; S/ABS (B)	8-98005-971-0	02	1	0610-0710	●	●
65	07.347 WASHER; S/ABS C24SE ENG(LG1) (B)	8-98005-971-0	02	1	0711-0809	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98005-971-0	02	1	0810-0910	●	●
65	07.347 WASHER; S/ABS (B)	8-98005-971-0	02	1	0911-	●	●
65	07.347 WASHER; S/ABS (A)	8-98005-972-0	02	1	0610-0710	●	●
65	07.347 WASHER; S/ABS C24SE ENG(LG1) (A)	8-98005-972-0	02	1	0711-0809	●	●
65	07.347 WASHER; S/ABS EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98005-972-0	02	1	0810-0910	●	●
65	07.347 WASHER; S/ABS (A)	8-98005-972-0	02	1	0911-	●	●
65	07.347 WASHER; S/ABS (C)	8-98005-973-0	04	1	0610-0809			●
65	07.347 WASHER; S/ABS HIGH RIDE SUSPENSION(7YC) (C)	8-98005-973-0	04	1	0810-0910	●	●
65	07.347 WASHER; S/ABS (C)	8-98005-973-0	04	1	0810-0910			●
65	07.347 WASHER; S/ABS (C)	8-98005-973-0	04	1	0911-			●
75	07.380 BRACKET; FRT S/ABS	8-98005-829-0	02	1	0610-0710	●	●
75	07.380 BRACKET; FRT S/ABS C24SE ENG(LG1)	8-98005-829-0	02	1	0711-0809	●	●
75	07.380 BRACKET; FRT S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-829-0	02	1	0810-0910	●	●
75	07.380 BRACKET; FRT S/ABS	8-98005-829-0	02	1	0911-	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 01.540 (A) M8 FLANGE	0-91180-208-0	08	1	0610-0809	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (A) M8 FLANGE	0-91180-208-0	08	1	0810-0910	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 01.540 (A) M8 FLANGE	0-91180-208-0	08	1	0911-	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE (B) M14 SLOTTED	8-97245-624-0	02	1	0610-1212	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.833 (B) M14	0-91110-514-0	02	1	1301-	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0610-0809			●
79	06.174 NUT; UPR LINK END TO KNUCKLE HIGH RIDE SUSPENSION(7YC) 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0810-0910	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0810-0910			●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.347 (C) M10 FLANGE	8-97245-637-0	06	1	0911-			●
84	06.168 ARM; LWR CONT	8-98005-833-0	01	1	0610-0809	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-833-0	01	1	0810-0910	●	●
84	06.168 ARM; LWR CONT	8-98005-833-0	01	1	0911-	●	●
84	06.168 ARM; LWR CONT	8-98005-832-0	01	1	0610-0809	●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-832-0	01	1	0810-0910	●	●
84	06.168 ARM; LWR CONT	8-98005-832-0	01	1	0911-	●	●
84	06.168 ARM; LWR CONT	8-98005-835-0	01	1	0610-0809			●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-835-0	01	1	0810-0910	●	●
84	06.168 ARM; LWR CONT	8-98005-835-0	01	1	0810-0910			●
84	06.168 ARM; LWR CONT	8-98005-835-0	01	1	0911-			●
84	06.168 ARM; LWR CONT	8-98005-834-0	01	1	0610-0809			●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-98005-834-0	01	1	0810-0910	●	●
84	06.168 ARM; LWR CONT	8-98005-834-0	01	1	0810-0910			●
84	06.168 ARM; LWR CONT	8-98005-834-0	01	1	0911-			●
96	06.174 BOLT; LWR LINK 06.164 (A)	8-97214-813-0	04	1	0610-0809	●	●
96	06.174 BOLT; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC) 06.164 (A)	8-97214-813-0	04	1	0810-0910	●	●
96	06.174 BOLT; LWR LINK 06.164 (A)	8-97214-813-0	04	1	0911-1007	●	●
96	06.174 BOLT; LWR LINK (A)	8-97946-369-0	04	1	1008-1305	●	●
96	06.174 BOLT; LWR LINK (A) M16X102 W/PLATE	8-98186-404-0	04	1	1306-	●	●
96	06.174 BOLT; LWR LINK (B) M12X37 FLANGE	8-97245-639-0	08	1	0610-	●	●	●
96	06.174 BOLT; LWR LINK 06.164 (C) M16X95.4	8-97214-719-0	02	1	0610-0809			●
96	06.174 BOLT; LWR LINK HIGH RIDE SUSPENSION(7YC) 06.164 (C) M16X95.4	8-97214-719-0	02	1	0810-0910	●	●
96	06.174 BOLT; LWR LINK 06.164 (C) M16X95.4	8-97214-719-0	02	1	0810-0910			●
96	06.174 BOLT; LWR LINK 06.164 (C) M16X95.4	8-97214-719-0	02	1	0911-			●
162	04.686 NUT; FULCRUM PIN TO UPR ARM 07.529 M14 FLANGE	8-97245-635-0	04	1	0610-0809			●
162	04.686 NUT; FULCRUM PIN TO UPR ARM HIGH RIDE SUSPENSION(7YC) 07.529 M14 FLANGE	8-97245-635-0	04	1	0810-0910	●	●
162	04.686 NUT; FULCRUM PIN TO UPR ARM 07.529 M14 FLANGE	8-97245-635-0	04	1	0810-0910			●
162	04.686 NUT; FULCRUM PIN TO UPR ARM 07.529 M14 FLANGE	8-97245-635-0	04	1	0911-			●
163	06.163 PLATE; FULCRUM PIN,UPR LINK	8-98005-932-0	04	1	0610-0809			●
163	06.163 PLATE; FULCRUM PIN,UPR LINK HIGH RIDE SUSPENSION(7YC)	8-98005-932-0	04	1	0810-0910	●	●
163	06.163 PLATE; FULCRUM PIN,UPR LINK	8-98005-932-0	04	1	0810-0910			●
163	06.163 PLATE; FULCRUM PIN,UPR LINK	8-98005-932-0	04	1	0911-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
