8-52 — PIPING; AIR CONDITIONING (#7519) — 183 parça

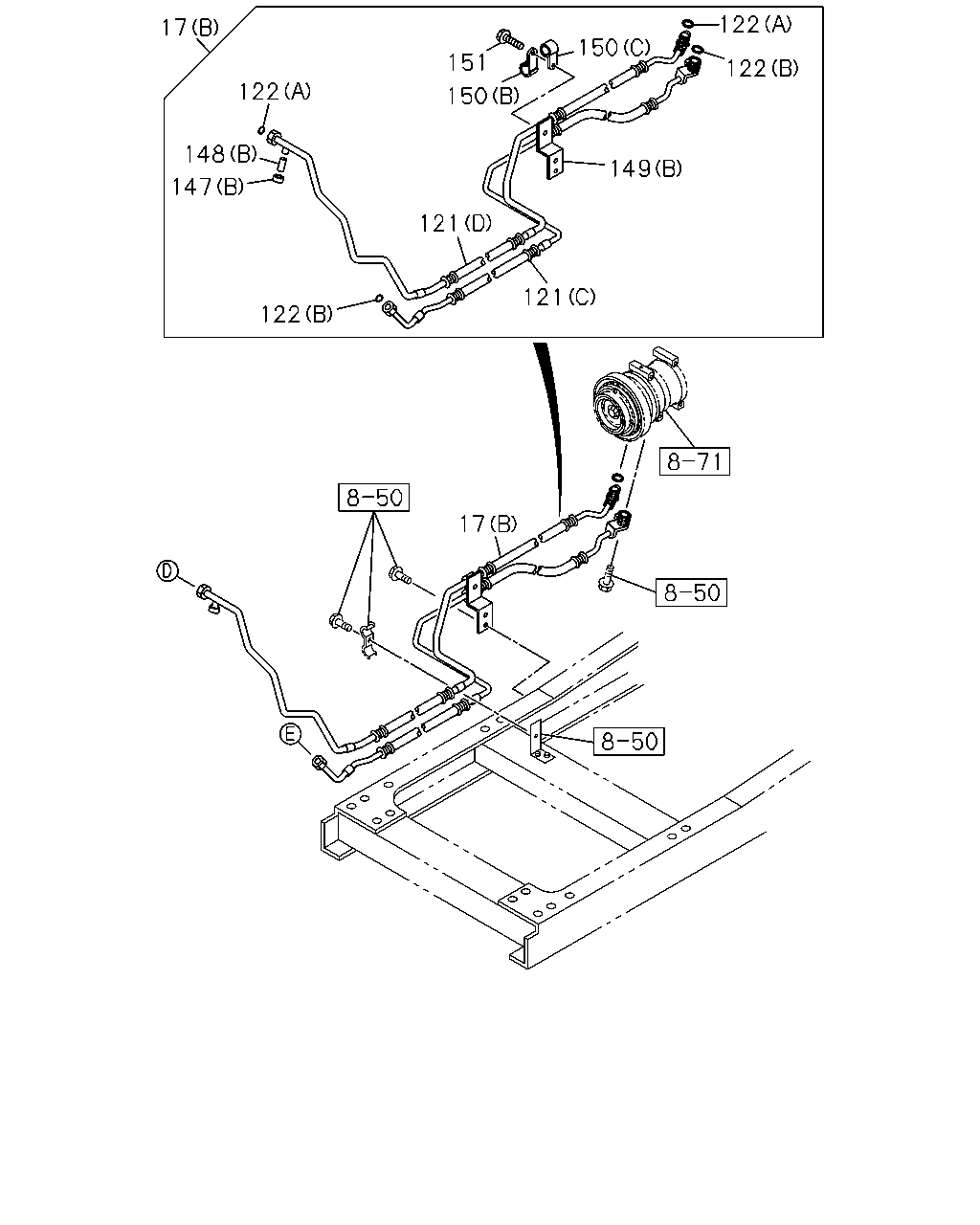

122 17 150 151 122 122 150 148 149 147 121 121 122 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	HOSE; FLEX,CMPR TO PIPE (B)	1-83577-074-0	01	1	0611-	●
17	HOSE; FLEX,CMPR TO PIPE (A) TAI	8-97530-770-1	01	1	9811-0610	●	●
17	HOSE; FLEX,CMPR TO PIPE A/C MAN CONT(C60) (B)	1-83577-024-0	01	1	0611-		●
121	HOSE; COOLER (D)	1-83577-119-0	01	1	0611-	●
121	HOSE; COOLER (C)	1-83577-120-0	01	1	0611-	●
121	HOSE; COOLER (A) TAI	8-97530-741-0	01	1	9811-9905	●	●
121	HOSE; COOLER (B) TAI	8-97530-742-0	01	1	9811-9905	●	●
121	HOSE; COOLER (A) TAI	8-97530-741-0	01	1	9907-0610	●	●
121	HOSE; COOLER A/C MAN CONT(C60) (D)	1-83577-052-0	01	1	0611-		●
121	HOSE; COOLER (B) TAI	8-97530-742-0	01	1	9907-0610	●	●
121	HOSE; COOLER A/C MAN CONT(C60) (C)	1-83577-053-0	01	1	0611-		●
122	GASKET A/C MAN CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	0611-		●
122	GASKET (A) ID=11.7	8-97095-907-0	02	1	0611-	●
122	GASKET A/C MAN CONT(C60) (B) ID=14.5	8-97095-908-0	02	1	0611-		●
122	GASKET (B) ID=14.5	8-97095-908-0	02	1	0611-	●
147	CAP; FLEX HOSE (A) TAI	8-97967-039-0	01	1	9811-9905	●	●
147	CAP; FLEX HOSE (A) TAI	8-97967-039-0	01	1	9907-0610	●	●
147	CAP; FLEX HOSE (B) CAP MARK L	1-83539-331-0	01	1	0611-	●
148	VALVE; FLEX HOSE (A) TAI	8-97967-031-0	01	1	9811-9905	●	●
148	VALVE; FLEX HOSE (A) TAI	8-97967-031-0	01	1	9907-0610	●	●
148	VALVE; FLEX HOSE (B)	8-97095-909-0	01	1	0611-	●
149	BRACKET; COOLER HOSE (B)	1-83573-294-0	01	1	0611-	●
149	BRACKET; COOLER HOSE (A) TAI	8-97530-744-0	01	1	9811-9905	●	●
149	BRACKET; COOLER HOSE (A) TAI	8-97530-744-0	01	1	9907-0610	●	●
149	BRACKET; COOLER HOSE A/C MAN CONT(C60) (B)	1-83573-013-0	01	1	0611-		●
150	CLIP; HOSE A/C MAN CONT(C60) (B)	1-83574-290-0	01	1	0611-		●
150	CLIP; HOSE (B)	1-83574-290-0	01	1	0611-	●
150	CLIP; HOSE (A) TAI	8-97530-760-0	01	1	9811-9905	●	●
150	CLIP; HOSE (A) TAI	8-97530-760-0	01	1	9907-0610	●	●
150	CLIP; HOSE A/C MAN CONT(C60) (C)	1-83574-289-0	01	1	0611-		●
150	CLIP; HOSE (C)	1-83574-289-0	01	1	0611-	●
151	BOLT; CLIP FIX,COOLER HOSE A/C MAN CONT(C60)	1-83539-328-0	01	1	0611-		●
151	BOLT; CLIP FIX,COOLER HOSE	1-83539-328-0	01	1	0611-	●

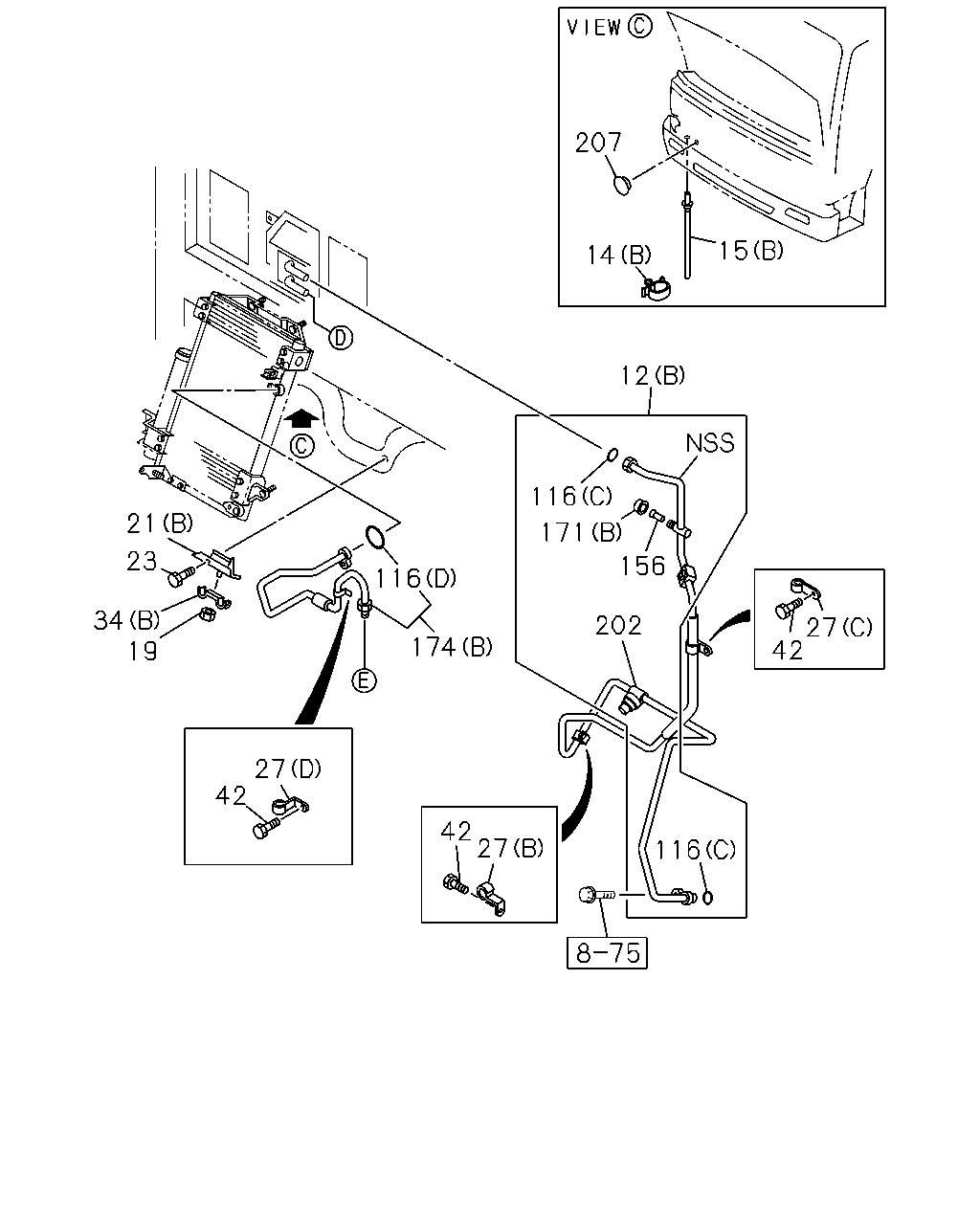

207 15 14 12 116 21 171 23 156 116 34 19 202 27 42 174 27 42 42 27 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	PIPE; COOLER,EVAP TO TANK (A) TAI	8-97530-747-0	01	1	9811-0610	●	●
12	PIPE; COOLER,EVAP TO TANK A/C MAN CONT(C60) (B)	1-83567-875-1	01	1	0611-		●
12	PIPE; COOLER,EVAP TO TANK (B)	1-83567-875-1	01	1	0611-	●
14	CLIP; BAND,EVAP DRAIN HOSE (A) TAI	8-97530-762-0	02	1	9811-0610	●	●
14	CLIP; BAND,EVAP DRAIN HOSE A/C MAN CONT(C60) (B) ID=20 TAI	8-94410-200-0	01	1	0611-		●
14	CLIP; BAND,EVAP DRAIN HOSE (B) ID=20 TAI	8-94410-200-0	01	1	0611-	●
15	HOSE; DRAIN A/C MAN CONT(C60) (B) TAI	1-83572-635-0	01	1	0611-		●
15	HOSE; DRAIN (B) TAI	1-83572-635-0	01	1	0611-	●
15	HOSE; DRAIN (A) TAI	8-97530-761-0	01	1	9811-0610	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41) (B) TAI	1-83572-412-0	01	1	0611-		●
19	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	9811-9902	●	●
19	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	9903-0602	●	●
19	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0603-0610	●	●
19	NUT; CLIP FIX A/C MAN CONT(C60) M8 FLANGE	0-91180-108-0	01	1	0611-		●
19	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0611-	●
21	BRACKET; COOLER HOSE (A) TAI	8-97530-748-1	01	1	9811-0610	●	●
21	BRACKET; COOLER HOSE A/C MAN CONT(C60) (B) TAI	1-83571-928-2	01	1	0611-		●
21	BRACKET; COOLER HOSE (B) TAI	1-83571-928-2	01	1	0611-	●
23	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	9903-0512	●	●
23	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-0610	●	●
23	BOLT; BRKT A/C MAN CONT(C60) M8X20 FLANGE	0-28650-820-0	01	1	0611-		●
23	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0611-	●
27	CLIP; COOLER PIPE A/C MAN CONT(C60) (D) ID=13 H=18 L=20 TAI	1-09700-813-0	01	1	0611-		●
27	CLIP; COOLER PIPE (D) ID=13 H=18 L=20 TAI	1-09700-813-0	01	1	0611-	●
27	CLIP; COOLER PIPE A/C MAN CONT(C60) (B) ID=11 H=20 L=20 TAI	5-09700-351-0	01	1	0611-0707		●
27	CLIP; COOLER PIPE (B) ID=11 H=20 L=20 TAI	5-09700-351-0	01	1	0611-0707	●
27	CLIP; COOLER PIPE A/C MAN CONT(C60) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-		●
27	CLIP; COOLER PIPE (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●
27	CLIP; COOLER PIPE (A) TAI	8-97530-763-0	03	1	9811-0610	●	●
27	CLIP; COOLER PIPE A/C MAN CONT(C60) (C) ID=13 L=20	0-95235-235-0	01	1	0611-		●
27	CLIP; COOLER PIPE (C) ID=13 L=20	0-95235-235-0	01	1	0611-	●
34	CLIP; COOLER PIPE (A) TAI	8-97530-760-0	01	1	9811-0610	●	●
34	CLIP; COOLER PIPE A/C MAN CONT(C60) (B) ID=12.2 & 16.2 TAI	1-83574-190-0	01	1	0611-		●
34	CLIP; COOLER PIPE (B) ID=12.2 & 16.2 TAI	1-83574-190-0	01	1	0611-	●
42	SCREW; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9811-9902	●	●
42	SCREW; CLIP M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	03	1	9903-0610	●	●
42	SCREW; CLIP A/C MAN CONT(C60) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	03	1	0611-		●
42	SCREW; CLIP M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	03	1	0611-	●
42	SCREW; CLIP M8X25 FLANGE	0-28680-825-0	02	1	9811-9902	●	●
116	GASKET; PIPE (A) TAI	8-97967-030-0	02	1	9811-0610	●	●
116	GASKET; PIPE A/C MAN CONT(C60) (C) ID=7.4	8-97095-906-0	02	1	0611-		●
116	GASKET; PIPE (C) ID=7.4	8-97095-906-0	02	1	0611-	●
116	GASKET; PIPE (B) TAI	8-97967-040-0	01	1	9811-0610	●	●
116	GASKET; PIPE A/C MAN CONT(C60) (D) ID=11.7	8-97095-907-0	01	1	0611-		●
116	GASKET; PIPE (D) ID=11.7	8-97095-907-0	01	1	0611-	●
156	VALVE; PIPE TAI	8-97967-031-0	01	1	9811-0610	●	●
156	VALVE; PIPE A/C MAN CONT(C60)	8-97095-909-0	01	1	0611-		●
156	VALVE; PIPE	8-97095-909-0	01	1	0611-	●
171	CAP; PIPE (A) TAI	8-97967-032-0	01	1	9811-0610	●	●
171	CAP; PIPE A/C MAN CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	0611-		●
171	CAP; PIPE (B) CAP MARK H	8-97095-911-0	01	1	0611-	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE (A) TAI	8-97530-746-0	01	1	9811-0610	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE A/C MAN CONT(C60) (B)	1-83567-876-2	01	1	0611-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE (B)	1-83567-876-2	01	1	0611-	●
202	SWITCH; PRESSURE A/C MAN CONT(C60)	1-83564-391-0	01	1	0611-		●
202	SWITCH; PRESSURE	1-83564-391-0	01	1	0611-	●
207	SEAL; FLEX HOSE EXC. A/C MAN CONT(C60) OD=25 BLACK TAI	1-76798-019-0	01	1	0611-		●

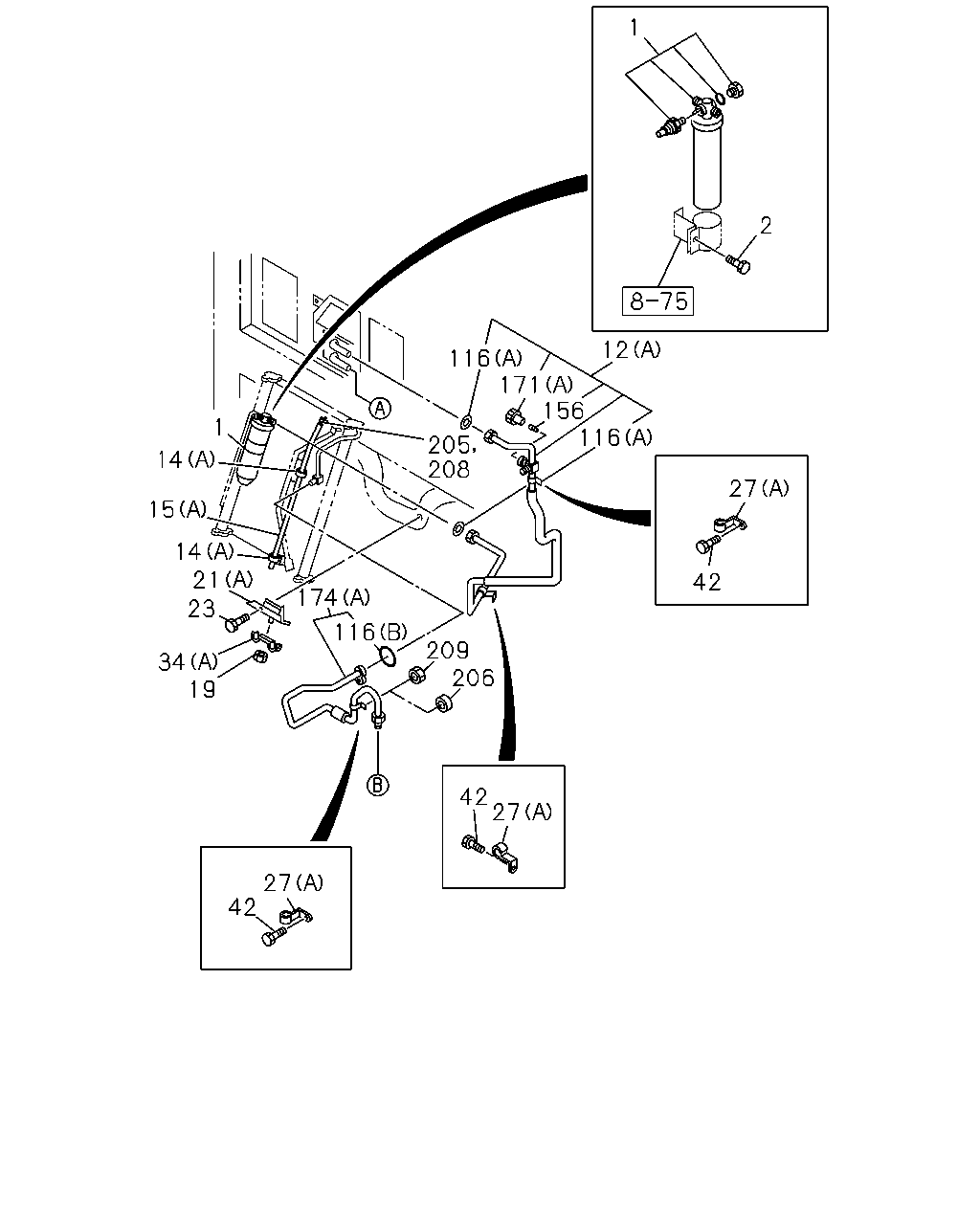

1 2 12 116 171 156 116 205 208 1 14 27 15 14 21 23 42 174 116 209 206 34 19 42 27 27 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; RECEIVER TAI	8-97530-740-0	01	1	9811-0610	●	●
2	BOLT; RECEIVER TANK M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	01	1	9903-0610	●	●
12	PIPE; COOLER,EVAP TO TANK (A) TAI	8-97530-747-0	01	1	9811-0610	●	●
12	PIPE; COOLER,EVAP TO TANK A/C MAN CONT(C60) (B)	1-83567-875-1	01	1	0611-		●
12	PIPE; COOLER,EVAP TO TANK (B)	1-83567-875-1	01	1	0611-	●
14	CLIP; BAND,EVAP DRAIN HOSE (A) TAI	8-97530-762-0	02	1	9811-0610	●	●
14	CLIP; BAND,EVAP DRAIN HOSE A/C MAN CONT(C60) (B) ID=20 TAI	8-94410-200-0	01	1	0611-		●
14	CLIP; BAND,EVAP DRAIN HOSE (B) ID=20 TAI	8-94410-200-0	01	1	0611-	●
15	HOSE; DRAIN A/C MAN CONT(C60) (B) TAI	1-83572-635-0	01	1	0611-		●
15	HOSE; DRAIN (B) TAI	1-83572-635-0	01	1	0611-	●
15	HOSE; DRAIN (A) TAI	8-97530-761-0	01	1	9811-0610	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41) (B) TAI	1-83572-412-0	01	1	0611-		●
19	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	9811-9902	●	●
19	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	9903-0602	●	●
19	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0603-0610	●	●
19	NUT; CLIP FIX A/C MAN CONT(C60) M8 FLANGE	0-91180-108-0	01	1	0611-		●
19	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0611-	●
21	BRACKET; COOLER HOSE (A) TAI	8-97530-748-1	01	1	9811-0610	●	●
21	BRACKET; COOLER HOSE A/C MAN CONT(C60) (B) TAI	1-83571-928-2	01	1	0611-		●
21	BRACKET; COOLER HOSE (B) TAI	1-83571-928-2	01	1	0611-	●
23	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	9903-0512	●	●
23	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-0610	●	●
23	BOLT; BRKT A/C MAN CONT(C60) M8X20 FLANGE	0-28650-820-0	01	1	0611-		●
23	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0611-	●
27	CLIP; COOLER PIPE A/C MAN CONT(C60) (D) ID=13 H=18 L=20 TAI	1-09700-813-0	01	1	0611-		●
27	CLIP; COOLER PIPE (D) ID=13 H=18 L=20 TAI	1-09700-813-0	01	1	0611-	●
27	CLIP; COOLER PIPE A/C MAN CONT(C60) (B) ID=11 H=20 L=20 TAI	5-09700-351-0	01	1	0611-0707		●
27	CLIP; COOLER PIPE (B) ID=11 H=20 L=20 TAI	5-09700-351-0	01	1	0611-0707	●
27	CLIP; COOLER PIPE A/C MAN CONT(C60) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-		●
27	CLIP; COOLER PIPE (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●
27	CLIP; COOLER PIPE (A) TAI	8-97530-763-0	03	1	9811-0610	●	●
27	CLIP; COOLER PIPE A/C MAN CONT(C60) (C) ID=13 L=20	0-95235-235-0	01	1	0611-		●
27	CLIP; COOLER PIPE (C) ID=13 L=20	0-95235-235-0	01	1	0611-	●
34	CLIP; COOLER PIPE (A) TAI	8-97530-760-0	01	1	9811-0610	●	●
34	CLIP; COOLER PIPE A/C MAN CONT(C60) (B) ID=12.2 & 16.2 TAI	1-83574-190-0	01	1	0611-		●
34	CLIP; COOLER PIPE (B) ID=12.2 & 16.2 TAI	1-83574-190-0	01	1	0611-	●
42	SCREW; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9811-9902	●	●
42	SCREW; CLIP M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	03	1	9903-0610	●	●
42	SCREW; CLIP A/C MAN CONT(C60) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	03	1	0611-		●
42	SCREW; CLIP M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	03	1	0611-	●
42	SCREW; CLIP M8X25 FLANGE	0-28680-825-0	02	1	9811-9902	●	●
116	GASKET; PIPE (A) TAI	8-97967-030-0	02	1	9811-0610	●	●
116	GASKET; PIPE A/C MAN CONT(C60) (C) ID=7.4	8-97095-906-0	02	1	0611-		●
116	GASKET; PIPE (C) ID=7.4	8-97095-906-0	02	1	0611-	●
116	GASKET; PIPE (B) TAI	8-97967-040-0	01	1	9811-0610	●	●
116	GASKET; PIPE A/C MAN CONT(C60) (D) ID=11.7	8-97095-907-0	01	1	0611-		●
116	GASKET; PIPE (D) ID=11.7	8-97095-907-0	01	1	0611-	●
156	VALVE; PIPE TAI	8-97967-031-0	01	1	9811-0610	●	●
156	VALVE; PIPE A/C MAN CONT(C60)	8-97095-909-0	01	1	0611-		●
156	VALVE; PIPE	8-97095-909-0	01	1	0611-	●
171	CAP; PIPE (A) TAI	8-97967-032-0	01	1	9811-0610	●	●
171	CAP; PIPE A/C MAN CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	0611-		●
171	CAP; PIPE (B) CAP MARK H	8-97095-911-0	01	1	0611-	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE (A) TAI	8-97530-746-0	01	1	9811-0610	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE A/C MAN CONT(C60) (B)	1-83567-876-2	01	1	0611-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE (B)	1-83567-876-2	01	1	0611-	●
205	CLIP; DRAIN HOSE TAI	8-97530-767-0	01	1	9811-9902	●	●
206	SPACER; PIPE TAI	8-97530-771-0	01	1	9811-9902	●	●
208	CLAMP; DRAIN HOSE TAI	8-97530-767-0	01	1	9903-0610	●	●
209	SPACER M10	9-09111-410-0	01	1	9903-0512	●	●
209	SPACER M10	0-91111-510-0	01	1	0601-0610	●	●

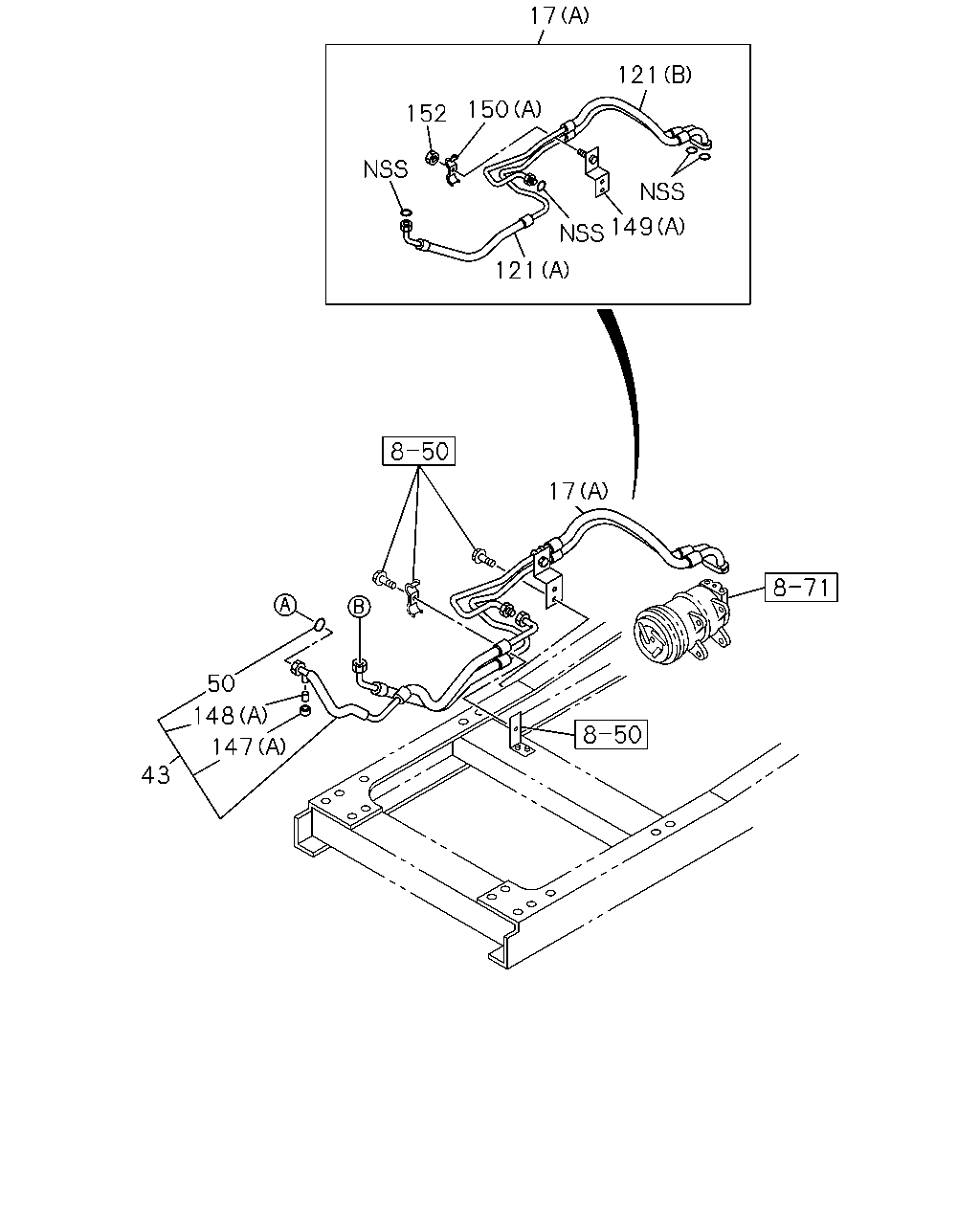

17 121 150 152 149 121 17 50 148 147 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	HOSE; FLEX,CMPR TO PIPE (B)	1-83577-074-0	01	1	0611-	●
17	HOSE; FLEX,CMPR TO PIPE (A) TAI	8-97530-770-1	01	1	9811-0610	●	●
17	HOSE; FLEX,CMPR TO PIPE A/C MAN CONT(C60) (B)	1-83577-024-0	01	1	0611-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR TAI	8-97530-743-1	01	1	9811-0610	●	●
50	GASKET; FLEX HOSE,A/C TAI	8-97967-038-0	02	1	9811-9906	●	●
50	GASKET; FLEX HOSE,A/C TAI	8-97967-038-0	02	1	9907-0610	●	●
121	HOSE; COOLER (D)	1-83577-119-0	01	1	0611-	●
121	HOSE; COOLER (C)	1-83577-120-0	01	1	0611-	●
121	HOSE; COOLER (A) TAI	8-97530-741-0	01	1	9811-9905	●	●
121	HOSE; COOLER (B) TAI	8-97530-742-0	01	1	9811-9905	●	●
121	HOSE; COOLER (A) TAI	8-97530-741-0	01	1	9907-0610	●	●
121	HOSE; COOLER A/C MAN CONT(C60) (D)	1-83577-052-0	01	1	0611-		●
121	HOSE; COOLER (B) TAI	8-97530-742-0	01	1	9907-0610	●	●
121	HOSE; COOLER A/C MAN CONT(C60) (C)	1-83577-053-0	01	1	0611-		●
147	CAP; FLEX HOSE (A) TAI	8-97967-039-0	01	1	9811-9905	●	●
147	CAP; FLEX HOSE (A) TAI	8-97967-039-0	01	1	9907-0610	●	●
147	CAP; FLEX HOSE (B) CAP MARK L	1-83539-331-0	01	1	0611-	●
148	VALVE; FLEX HOSE (A) TAI	8-97967-031-0	01	1	9811-9905	●	●
148	VALVE; FLEX HOSE (A) TAI	8-97967-031-0	01	1	9907-0610	●	●
148	VALVE; FLEX HOSE (B)	8-97095-909-0	01	1	0611-	●
149	BRACKET; COOLER HOSE (B)	1-83573-294-0	01	1	0611-	●
149	BRACKET; COOLER HOSE (A) TAI	8-97530-744-0	01	1	9811-9905	●	●
149	BRACKET; COOLER HOSE (A) TAI	8-97530-744-0	01	1	9907-0610	●	●
149	BRACKET; COOLER HOSE A/C MAN CONT(C60) (B)	1-83573-013-0	01	1	0611-		●
150	CLIP; HOSE A/C MAN CONT(C60) (B)	1-83574-290-0	01	1	0611-		●
150	CLIP; HOSE (B)	1-83574-290-0	01	1	0611-	●
150	CLIP; HOSE (A) TAI	8-97530-760-0	01	1	9811-9905	●	●
150	CLIP; HOSE (A) TAI	8-97530-760-0	01	1	9907-0610	●	●
150	CLIP; HOSE A/C MAN CONT(C60) (C)	1-83574-289-0	01	1	0611-		●
150	CLIP; HOSE (C)	1-83574-289-0	01	1	0611-	●
152	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9811-9905	●	●
152	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9907-0610	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
