Sayfa 3-58 - Isuzu EPC

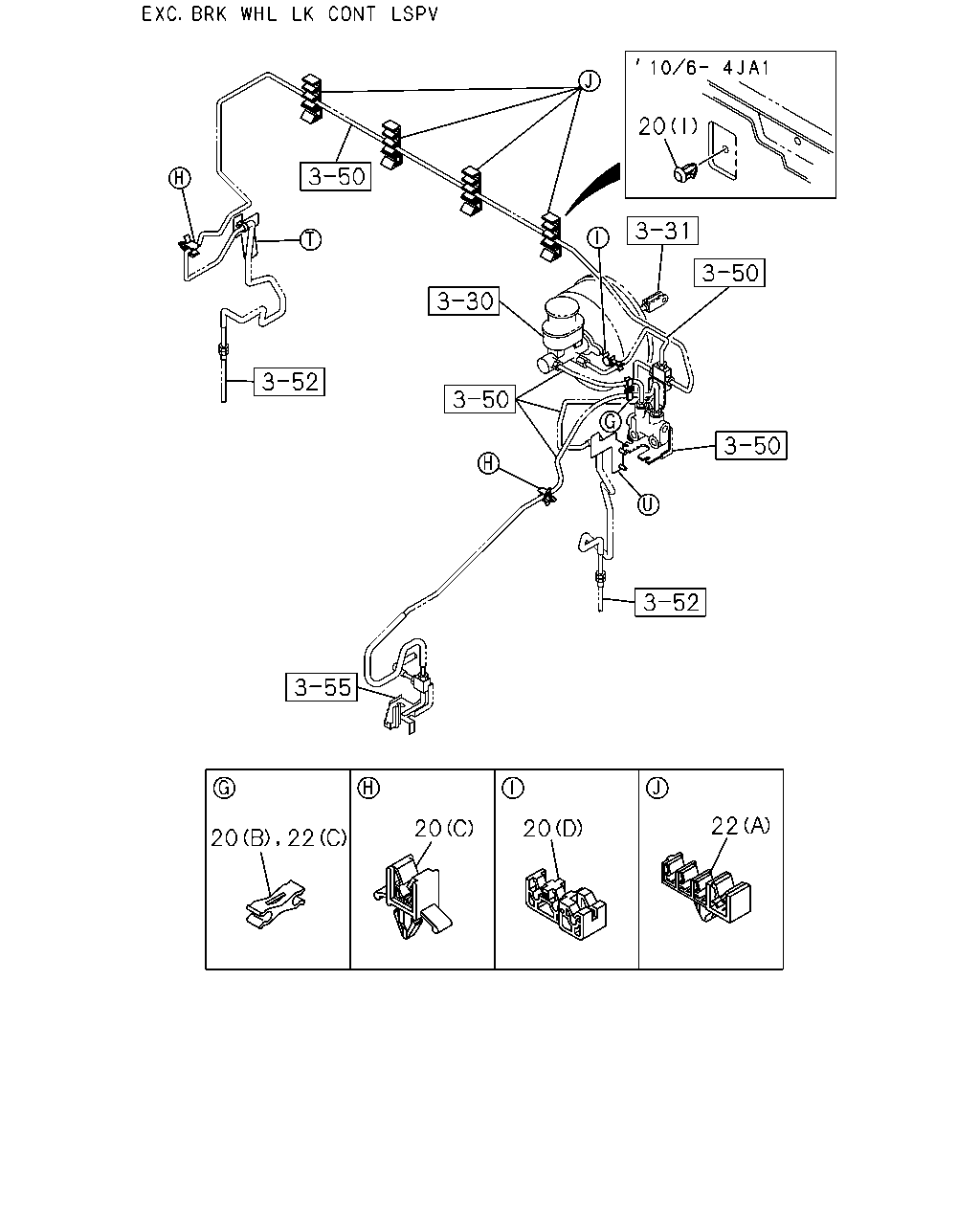

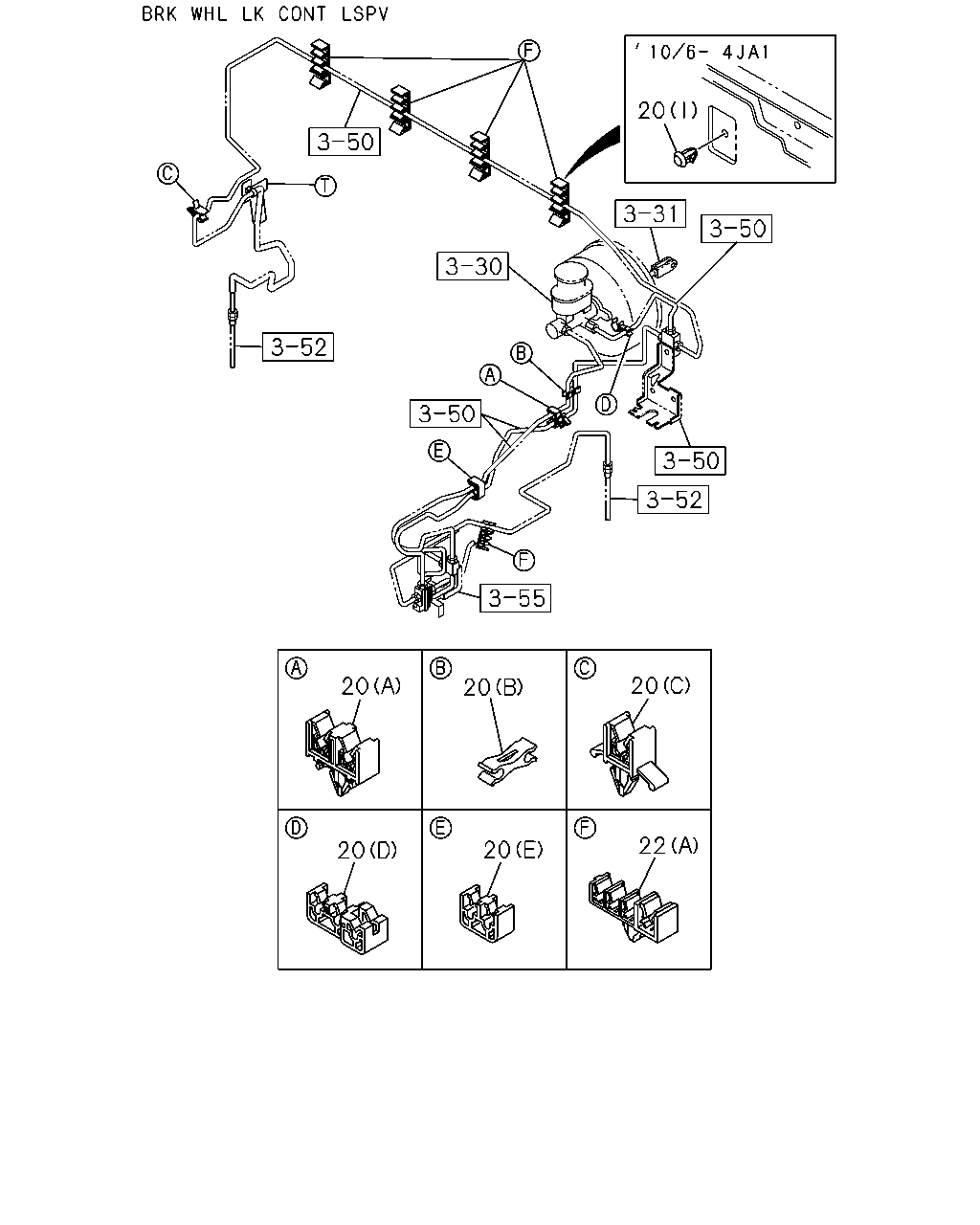

3-58 — FIXING PARTS; OIL PIPING (#75182) — 232 parça

20 22 20 20 20 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	04.686 CLIP; BRK PIPE 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 16.085 (I)	8-97310-401-0	01	1	1006-	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=4.76	8-97300-443-0	02	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76	8-97300-443-0	02	1	0911-	●	●
20	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0810-	●	●	●
20	04.686 CLIP; BRK PIPE 04.685 (F) ID=4.76X3	8-97216-721-1	02	1	0610-0710	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) 04.685 (F) ID=4.76X3	8-97216-721-1	02	1	0711-0809	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3	8-97216-721-1	02	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3	8-97216-721-1	02	1	0911-	●	●
20	04.686 CLIP; BRK PIPE 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0711-0809	●	●	●
20	04.686 CLIP; BRK PIPE 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0810-	●	●	●
20	04.686 CLIP; BRK PIPE 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0711-0809	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0810-0910	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0810-0910	●	●	●
20	04.686 CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0810-0910			●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0911-	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0911-	●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0911-			●
20	04.686 CLIP; BRK PIPE 03.162 (H) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) 03.162 (H) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0711-0809	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0810-	●	●	●
20	04.686 CLIP; BRK PIPE (E) ID=6.8X2	8-97251-122-0	01	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) (E) ID=6.8X2	8-97251-122-0	01	1	0711-0809	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2	8-97251-122-0	01	1	0810-	●	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	02	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) (G) ID=6.8X2	8-97251-124-0	02	1	0711-0809	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) ID=4.76	8-97300-443-0	01	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C) ID=4.76	8-97300-443-0	01	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) (C) ID=4.76	8-97300-443-0	01	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (C) ID=4.76	8-97300-443-0	01	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76	8-97300-443-0	01	1	0810-0910			●
20	04.686 CLIP; BRK PIPE (C) ID=4.76	8-97300-443-0	01	1	0810-0910			●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C) ID=4.76	8-97300-443-0	01	1	0911-	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76	8-97300-443-0	01	1	0911-	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76	8-97300-443-0	01	1	0911-			●
20	04.686 CLIP; BRK PIPE (C) ID=4.76	8-97300-443-0	01	1	0911-			●
20	04.686 CLIP; BRK PIPE 03.162 (D) ID=8.4 & 6.8X2	8-97251-127-0	01	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE 03.162 (D) ID=8.4 & 6.8X2	8-97251-127-0	01	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) 03.162 (D) ID=8.4 & 6.8X2	8-97251-127-0	01	1	0711-0809	●	●	●
20	04.686 CLIP; BRK PIPE 03.162 (D) ID=8.4 & 6.8X2	8-97251-127-0	01	1	0711-0809	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) 03.162 (D) ID=8.4 & 6.8X2	8-97251-127-0	01	1	0711-0809			●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 03.162 (D) ID=8.4 & 6.8X2	8-97251-127-0	01	1	0810-	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 03.162 (D) ID=8.4 & 6.8X2	8-97251-127-0	01	1	0810-	●	●	●
20	04.686 CLIP; BRK PIPE (C) ID=4.76	8-97300-443-0	01	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) (C) ID=4.76	8-97300-443-0	01	1	0711-0809	●	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	02	1	0810-	●	●	●
20	04.686 CLIP; BRK PIPE 04.685 (F) ID=4.76X3	8-97216-721-1	01	1	0610-0710			●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) 04.685 (F) ID=4.76X3	8-97216-721-1	01	1	0711-0809			●
20	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) 04.685 (F) ID=4.76X3	8-97216-721-1	01	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3	8-97216-721-1	01	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3	8-97216-721-1	01	1	0810-0910			●
20	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3	8-97216-721-1	01	1	0911-	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3	8-97216-721-1	01	1	0911-			●
20	04.686 CLIP; BRK PIPE (E) ID=6.8X2	8-97251-122-0	02	1	0610-0710			●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) (E) ID=6.8X2	8-97251-122-0	02	1	0711-0809			●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2	8-97251-122-0	02	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2	8-97251-122-0	02	1	0810-0910			●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2	8-97251-122-0	02	1	0911-			●
22	04.686 CLIP; PIPE TO FRAME EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 04.868 (C) ID=4.6X2	8-94241-454-0	01	1	1011-	●	●	●
22	04.686 CLIP; PIPE TO FRAME 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3	8-97201-752-0	03	1	1006-	●	●	●
22	04.686 CLIP; PIPE TO FRAME 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3	8-97249-904-0	04	1	0810-	●	●	●
22	04.686 CLIP; PIPE TO FRAME EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) 16.065 (B) ID=9	5-09707-027-0	02	1	0810-0910	●	●
22	04.686 CLIP; PIPE TO FRAME EXC. BRK WHL LK CONT LSPV<JR9> 16.065 (B) ID=9	5-09707-027-0	02	1	0911-	●	●
22	04.686 CLIP; PIPE TO FRAME 16.065 (B) ID=9	5-09707-027-0	01	1	0610-0809	●	●
22	04.686 CLIP; PIPE TO FRAME BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (B) ID=9	5-09707-027-0	01	1	0810-0910	●	●
22	04.686 CLIP; PIPE TO FRAME BRK WHL LK CONT LSPV<JR9> 16.065 (B) ID=9	5-09707-027-0	01	1	0911-	●	●
22	04.686 CLIP; PIPE TO FRAME (A) ID=10 & 4.76X3	8-97201-752-0	04	1	0610-0809	●	●	●
22	04.686 CLIP; PIPE TO FRAME EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3	8-97201-752-0	04	1	0810-1005	●	●	●
22	04.686 CLIP; PIPE TO FRAME C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3	8-97201-752-0	04	1	1006-	●	●	●
68	04.686 BRACKET; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98006-970-0	01	1	0810-	●	●	●
68	04.686 BRACKET; CLIP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) (F)	8-98036-122-0	01	1	0810-0910	●	●
68	04.686 BRACKET; CLIP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. BRK WHL LK CONT LSPV<JR9> (F)	8-98036-122-0	01	1	0911-	●	●
68	04.686 BRACKET; CLIP 4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) (E)	8-98034-935-0	01	1	0810-0910	●	●
68	04.686 BRACKET; CLIP 4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> (E)	8-98034-935-0	01	1	0911-	●	●
68	04.686 BRACKET; CLIP 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-661-0	01	1	0810-0910	●	●
68	04.686 BRACKET; CLIP 4JA1-T ENG(LP0) (C)	8-97944-661-0	01	1	0911-	●	●
68	04.686 BRACKET; CLIP (A)	8-97944-663-0	01	1	0610-0710	●	●
68	04.686 BRACKET; CLIP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) (A)	8-97944-663-0	01	1	0711-0809	●	●
68	04.686 BRACKET; CLIP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97944-663-0	01	1	0810-0910	●	●
68	04.686 BRACKET; CLIP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) (A)	8-97944-663-0	01	1	0911-	●	●
68	04.686 BRACKET; CLIP (B)	8-97944-655-0	01	1	0610-0809	●	●	●
68	04.686 BRACKET; CLIP BRK WHL LK CONT LSPV<JR9> (B)	8-97944-655-0	01	1	0810-	●	●	●
77	04.686 NUT; BRKT,OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0810-0910	●	●	●
77	04.686 NUT; BRKT,OIL PIPE 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0810-0910	●	●
77	04.686 NUT; BRKT,OIL PIPE C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0810-0910	●	●
77	04.686 NUT; BRKT,OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-	●	●	●
77	04.686 NUT; BRKT,OIL PIPE 4JA1-T ENG(LP0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-	●	●
77	04.686 NUT; BRKT,OIL PIPE C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. BRK WHL LK CONT LSPV<JR9> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-	●	●
77	04.686 NUT; BRKT,OIL PIPE 01.540 (A) M6 FLANGE	0-91180-206-0	01	1	0610-0710	●	●
77	04.686 NUT; BRKT,OIL PIPE C24SE ENG(LG1) 01.540 (A) M6 FLANGE	0-91180-206-0	01	1	0711-0809	●	●
77	04.686 NUT; BRKT,OIL PIPE C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (A) M6 FLANGE	0-91180-206-0	01	1	0810-0910	●	●
77	04.686 NUT; BRKT,OIL PIPE C24SE ENG(LG1) 01.540 (A) M6 FLANGE	0-91180-206-0	01	1	0911-	●	●
79	04.686 BOLT; CLIP,OIL PIPE 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0610-0710	●	●	●
79	04.686 BOLT; CLIP,OIL PIPE 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0610-0710	●	●
79	04.686 BOLT; CLIP,OIL PIPE 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0711-0809	●	●	●
79	04.686 BOLT; CLIP,OIL PIPE C24SE ENG(LG1) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0711-0809	●	●
79	04.686 BOLT; CLIP,OIL PIPE BRK WHL LK CONT LSPV<JR9> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0810-0910	●	●	●
79	04.686 BOLT; CLIP,OIL PIPE C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0810-0910	●	●
79	04.686 BOLT; CLIP,OIL PIPE BRK WHL LK CONT LSPV<JR9> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0911-	●	●	●
79	04.686 BOLT; CLIP,OIL PIPE C24SE ENG(LG1) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0911-	●	●
79	04.686 BOLT; CLIP,OIL PIPE 07.874 (A) M6X22 W/PL WASHER	8-97012-072-0	02	1	0610-0710	●	●	●
79	04.686 BOLT; CLIP,OIL PIPE C24SE ENG(LG1) 07.874 (A) M6X22 W/PL WASHER	8-97012-072-0	02	1	0711-0906	●	●	●
79	04.686 BOLT; CLIP,OIL PIPE C24SE ENG(LG1) 03.162 (A) M6X22 W/PL WASHER	8-98136-167-0	02	1	0907-	●	●	●
93	04.686 CLIP; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 (B) OD=25	8-94279-810-0	01	1	0810-	●	●	●
93	04.686 CLIP; BRKT 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) 16.800 (A) OD=18	8-94269-290-0	01	1	0810-0910	●	●
93	04.686 CLIP; BRKT C24SE ENG(LG1) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) 16.800 (A) OD=18	8-94269-290-0	01	1	0810-0910	●	●
93	04.686 CLIP; BRKT 4JA1-T ENG(LP0) 16.800 (A) OD=18	8-94269-290-0	01	1	0911-	●	●
93	04.686 CLIP; BRKT C24SE ENG(LG1) EXC. BRK WHL LK CONT LSPV<JR9> 16.800 (A) OD=18	8-94269-290-0	01	1	0911-	●	●
120	04.686 PROTECTOR; HEAT (B)	8-97263-520-0	01	1	0610-0710	●	●
120	04.686 PROTECTOR; HEAT C24SE ENG(LG1) (B)	8-97263-520-0	01	1	0711-0809	●	●
120	04.686 PROTECTOR; HEAT C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97263-520-0	01	1	0810-0910	●	●
120	04.686 PROTECTOR; HEAT C24SE ENG(LG1) (B)	8-97263-520-1	01	1	0911-	●	●
120	04.686 PROTECTOR; HEAT (A)	8-97249-914-0	01	1	0610-0710	●	●	●
120	04.686 PROTECTOR; HEAT C24SE ENG(LG1) (A)	8-97249-914-0	01	1	0711-	●	●	●

20 20 20 20 22 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	04.686 CLIP; BRK PIPE 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 16.085 (I)	8-97310-401-0	01	1	1006-	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=4.76	8-97300-443-0	02	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76	8-97300-443-0	02	1	0911-	●	●
20	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0810-	●	●	●
20	04.686 CLIP; BRK PIPE 04.685 (F) ID=4.76X3	8-97216-721-1	02	1	0610-0710	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) 04.685 (F) ID=4.76X3	8-97216-721-1	02	1	0711-0809	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3	8-97216-721-1	02	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3	8-97216-721-1	02	1	0911-	●	●
20	04.686 CLIP; BRK PIPE 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0711-0809	●	●	●
20	04.686 CLIP; BRK PIPE 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0810-	●	●	●
20	04.686 CLIP; BRK PIPE 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0711-0809	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0810-0910	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0810-0910	●	●	●
20	04.686 CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0810-0910			●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0911-	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0911-	●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2	8-97249-905-0	01	1	0911-			●
20	04.686 CLIP; BRK PIPE 03.162 (H) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) 03.162 (H) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0711-0809	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0810-	●	●	●
20	04.686 CLIP; BRK PIPE (E) ID=6.8X2	8-97251-122-0	01	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) (E) ID=6.8X2	8-97251-122-0	01	1	0711-0809	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2	8-97251-122-0	01	1	0810-	●	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	02	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) (G) ID=6.8X2	8-97251-124-0	02	1	0711-0809	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) ID=4.76	8-97300-443-0	01	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C) ID=4.76	8-97300-443-0	01	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) (C) ID=4.76	8-97300-443-0	01	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (C) ID=4.76	8-97300-443-0	01	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76	8-97300-443-0	01	1	0810-0910			●
20	04.686 CLIP; BRK PIPE (C) ID=4.76	8-97300-443-0	01	1	0810-0910			●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C) ID=4.76	8-97300-443-0	01	1	0911-	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76	8-97300-443-0	01	1	0911-	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76	8-97300-443-0	01	1	0911-			●
20	04.686 CLIP; BRK PIPE (C) ID=4.76	8-97300-443-0	01	1	0911-			●
20	04.686 CLIP; BRK PIPE 03.162 (D) ID=8.4 & 6.8X2	8-97251-127-0	01	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE 03.162 (D) ID=8.4 & 6.8X2	8-97251-127-0	01	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) 03.162 (D) ID=8.4 & 6.8X2	8-97251-127-0	01	1	0711-0809	●	●	●
20	04.686 CLIP; BRK PIPE 03.162 (D) ID=8.4 & 6.8X2	8-97251-127-0	01	1	0711-0809	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) 03.162 (D) ID=8.4 & 6.8X2	8-97251-127-0	01	1	0711-0809			●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 03.162 (D) ID=8.4 & 6.8X2	8-97251-127-0	01	1	0810-	●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 03.162 (D) ID=8.4 & 6.8X2	8-97251-127-0	01	1	0810-	●	●	●
20	04.686 CLIP; BRK PIPE (C) ID=4.76	8-97300-443-0	01	1	0610-0710	●	●	●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) (C) ID=4.76	8-97300-443-0	01	1	0711-0809	●	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	02	1	0810-	●	●	●
20	04.686 CLIP; BRK PIPE 04.685 (F) ID=4.76X3	8-97216-721-1	01	1	0610-0710			●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) 04.685 (F) ID=4.76X3	8-97216-721-1	01	1	0711-0809			●
20	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) 04.685 (F) ID=4.76X3	8-97216-721-1	01	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3	8-97216-721-1	01	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3	8-97216-721-1	01	1	0810-0910			●
20	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3	8-97216-721-1	01	1	0911-	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3	8-97216-721-1	01	1	0911-			●
20	04.686 CLIP; BRK PIPE (E) ID=6.8X2	8-97251-122-0	02	1	0610-0710			●
20	04.686 CLIP; BRK PIPE C24SE ENG(LG1) (E) ID=6.8X2	8-97251-122-0	02	1	0711-0809			●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2	8-97251-122-0	02	1	0810-0910	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2	8-97251-122-0	02	1	0810-0910			●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2	8-97251-122-0	02	1	0911-			●
22	04.686 CLIP; PIPE TO FRAME EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 04.868 (C) ID=4.6X2	8-94241-454-0	01	1	1011-	●	●	●
22	04.686 CLIP; PIPE TO FRAME 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3	8-97201-752-0	03	1	1006-	●	●	●
22	04.686 CLIP; PIPE TO FRAME 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3	8-97249-904-0	04	1	0810-	●	●	●
22	04.686 CLIP; PIPE TO FRAME EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) 16.065 (B) ID=9	5-09707-027-0	02	1	0810-0910	●	●
22	04.686 CLIP; PIPE TO FRAME EXC. BRK WHL LK CONT LSPV<JR9> 16.065 (B) ID=9	5-09707-027-0	02	1	0911-	●	●
22	04.686 CLIP; PIPE TO FRAME 16.065 (B) ID=9	5-09707-027-0	01	1	0610-0809	●	●
22	04.686 CLIP; PIPE TO FRAME BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (B) ID=9	5-09707-027-0	01	1	0810-0910	●	●
22	04.686 CLIP; PIPE TO FRAME BRK WHL LK CONT LSPV<JR9> 16.065 (B) ID=9	5-09707-027-0	01	1	0911-	●	●
22	04.686 CLIP; PIPE TO FRAME (A) ID=10 & 4.76X3	8-97201-752-0	04	1	0610-0809	●	●	●
22	04.686 CLIP; PIPE TO FRAME EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3	8-97201-752-0	04	1	0810-1005	●	●	●
22	04.686 CLIP; PIPE TO FRAME C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3	8-97201-752-0	04	1	1006-	●	●	●
68	04.686 BRACKET; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98006-970-0	01	1	0810-	●	●	●
68	04.686 BRACKET; CLIP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) (F)	8-98036-122-0	01	1	0810-0910	●	●
68	04.686 BRACKET; CLIP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. BRK WHL LK CONT LSPV<JR9> (F)	8-98036-122-0	01	1	0911-	●	●
68	04.686 BRACKET; CLIP 4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) (E)	8-98034-935-0	01	1	0810-0910	●	●
68	04.686 BRACKET; CLIP 4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> (E)	8-98034-935-0	01	1	0911-	●	●
68	04.686 BRACKET; CLIP 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-661-0	01	1	0810-0910	●	●
68	04.686 BRACKET; CLIP 4JA1-T ENG(LP0) (C)	8-97944-661-0	01	1	0911-	●	●
68	04.686 BRACKET; CLIP (A)	8-97944-663-0	01	1	0610-0710	●	●
68	04.686 BRACKET; CLIP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) (A)	8-97944-663-0	01	1	0711-0809	●	●
68	04.686 BRACKET; CLIP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97944-663-0	01	1	0810-0910	●	●
68	04.686 BRACKET; CLIP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) (A)	8-97944-663-0	01	1	0911-	●	●
68	04.686 BRACKET; CLIP (B)	8-97944-655-0	01	1	0610-0809	●	●	●
68	04.686 BRACKET; CLIP BRK WHL LK CONT LSPV<JR9> (B)	8-97944-655-0	01	1	0810-	●	●	●
77	04.686 NUT; BRKT,OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0810-0910	●	●	●
77	04.686 NUT; BRKT,OIL PIPE 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0810-0910	●	●
77	04.686 NUT; BRKT,OIL PIPE C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0810-0910	●	●
77	04.686 NUT; BRKT,OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-	●	●	●
77	04.686 NUT; BRKT,OIL PIPE 4JA1-T ENG(LP0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-	●	●
77	04.686 NUT; BRKT,OIL PIPE C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. BRK WHL LK CONT LSPV<JR9> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-	●	●
77	04.686 NUT; BRKT,OIL PIPE 01.540 (A) M6 FLANGE	0-91180-206-0	01	1	0610-0710	●	●
77	04.686 NUT; BRKT,OIL PIPE C24SE ENG(LG1) 01.540 (A) M6 FLANGE	0-91180-206-0	01	1	0711-0809	●	●
77	04.686 NUT; BRKT,OIL PIPE C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (A) M6 FLANGE	0-91180-206-0	01	1	0810-0910	●	●
77	04.686 NUT; BRKT,OIL PIPE C24SE ENG(LG1) 01.540 (A) M6 FLANGE	0-91180-206-0	01	1	0911-	●	●
79	04.686 BOLT; CLIP,OIL PIPE 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0610-0710	●	●	●
79	04.686 BOLT; CLIP,OIL PIPE 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0610-0710	●	●
79	04.686 BOLT; CLIP,OIL PIPE 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0711-0809	●	●	●
79	04.686 BOLT; CLIP,OIL PIPE C24SE ENG(LG1) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0711-0809	●	●
79	04.686 BOLT; CLIP,OIL PIPE BRK WHL LK CONT LSPV<JR9> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0810-0910	●	●	●
79	04.686 BOLT; CLIP,OIL PIPE C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0810-0910	●	●
79	04.686 BOLT; CLIP,OIL PIPE BRK WHL LK CONT LSPV<JR9> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0911-	●	●	●
79	04.686 BOLT; CLIP,OIL PIPE C24SE ENG(LG1) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0911-	●	●
79	04.686 BOLT; CLIP,OIL PIPE 07.874 (A) M6X22 W/PL WASHER	8-97012-072-0	02	1	0610-0710	●	●	●
79	04.686 BOLT; CLIP,OIL PIPE C24SE ENG(LG1) 07.874 (A) M6X22 W/PL WASHER	8-97012-072-0	02	1	0711-0906	●	●	●
79	04.686 BOLT; CLIP,OIL PIPE C24SE ENG(LG1) 03.162 (A) M6X22 W/PL WASHER	8-98136-167-0	02	1	0907-	●	●	●
93	04.686 CLIP; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 (B) OD=25	8-94279-810-0	01	1	0810-	●	●	●
93	04.686 CLIP; BRKT 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) 16.800 (A) OD=18	8-94269-290-0	01	1	0810-0910	●	●
93	04.686 CLIP; BRKT C24SE ENG(LG1) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDESUSPENSION(7YC) 16.800 (A) OD=18	8-94269-290-0	01	1	0810-0910	●	●
93	04.686 CLIP; BRKT 4JA1-T ENG(LP0) 16.800 (A) OD=18	8-94269-290-0	01	1	0911-	●	●
93	04.686 CLIP; BRKT C24SE ENG(LG1) EXC. BRK WHL LK CONT LSPV<JR9> 16.800 (A) OD=18	8-94269-290-0	01	1	0911-	●	●
120	04.686 PROTECTOR; HEAT (B)	8-97263-520-0	01	1	0610-0710	●	●
120	04.686 PROTECTOR; HEAT C24SE ENG(LG1) (B)	8-97263-520-0	01	1	0711-0809	●	●
120	04.686 PROTECTOR; HEAT C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97263-520-0	01	1	0810-0910	●	●
120	04.686 PROTECTOR; HEAT C24SE ENG(LG1) (B)	8-97263-520-1	01	1	0911-	●	●
120	04.686 PROTECTOR; HEAT (A)	8-97249-914-0	01	1	0610-0710	●	●	●
120	04.686 PROTECTOR; HEAT C24SE ENG(LG1) (A)	8-97249-914-0	01	1	0711-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
