◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#7518) — 130 parça

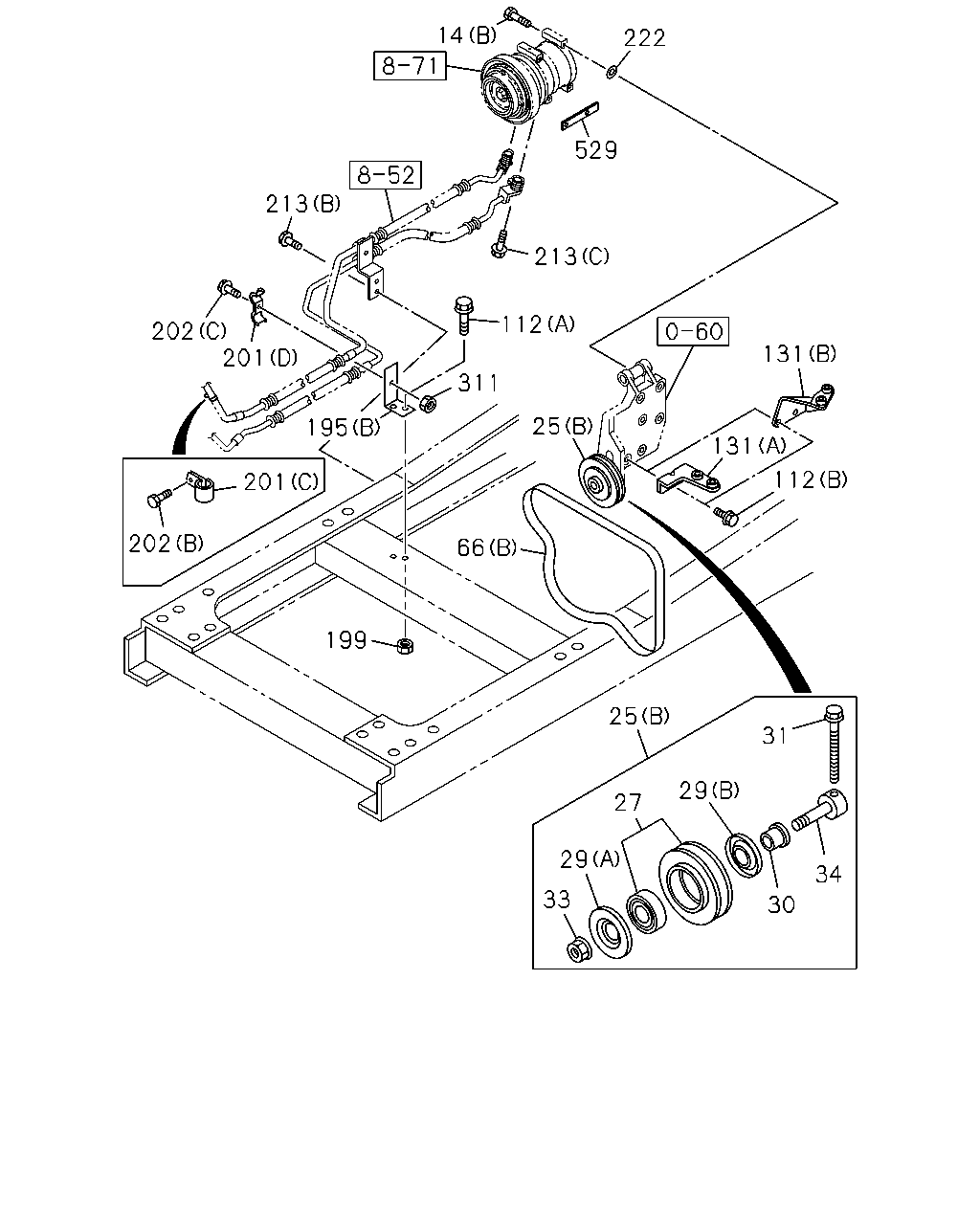

çizim 26388
14 222 529 213 213 112 202 201 131 311 195 131 25 112 201 202 66 199 25 31 29 27 29 34 33 30
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
(A) M10X43 FLANGE TAI 		0-28681-043-0 02 1 9811-9902 ● ●
14 BOLT; CMPR
(A) M10X35 FLANGE 		0-28681-035-0 02 1 9903-0512 ● ●
14 BOLT; CMPR
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0601-0610 ● ●
14 BOLT; CMPR
(A) M10X45 FLANGE 		0-28051-045-0 02 1 0601-0610 ● ●
14 BOLT; CMPR
A/C MAN CONT(C60) (B) M8X78 W/LK WASHER 		5-09000-228-1 04 1 0611- ●
14 BOLT; CMPR
(B) M8X78 W/LK WASHER 		5-09000-228-1 04 1 0611- ●
25 PULLEY ASM; IDLER,CMPR
(A) TAI 		8-97530-736-0 01 1 9811-9902 ● ●
25 PULLEY ASM; IDLER,CMPR
A/C MAN CONT(C60) (B) 		8-97605-079-0 01 1 0611- ●
25 PULLEY ASM; IDLER,CMPR
(B) 		8-97605-079-0 01 1 0611- ●
27 PULLEY; IDLE,A/C
A/C MAN CONT(C60) 		8-97605-323-0 01 1 0611- ●
27 PULLEY; IDLE,A/C 8-97605-323-0 01 1 0611- ●
29 COVER; DUST,IDLE PULLEY
A/C MAN CONT(C60) (B) 		8-97605-330-0 01 1 0611- ●
29 COVER; DUST,IDLE PULLEY
(B) 		8-97605-330-0 01 1 0611- ●
29 COVER; DUST,IDLE PULLEY
A/C MAN CONT(C60) (A) 		8-97605-329-0 01 1 0611- ●
29 COVER; DUST,IDLE PULLEY
(A) 		8-97605-329-0 01 1 0611- ●
30 COLLAR; IDLE PULLEY
A/C MAN CONT(C60) 		8-97605-328-0 01 1 0611- ●
30 COLLAR; IDLE PULLEY 8-97605-328-0 01 1 0611- ●
31 BOLT; ADJ,IDLE PULLEY
A/C MAN CONT(C60) 		8-97605-325-0 01 1 0611- ●
31 BOLT; ADJ,IDLE PULLEY 8-97605-325-0 01 1 0611- ●
33 NUT; IDLER PULLEY
A/C MAN CONT(C60) 		8-97605-326-0 01 1 0611- ●
33 NUT; IDLER PULLEY 8-97605-326-0 01 1 0611- ●
34 SHAFT; IDLE PULLEY
A/C MAN CONT(C60) 		8-97605-327-0 01 1 0611- ●
34 SHAFT; IDLE PULLEY 8-97605-327-0 01 1 0611- ●
66 BELT; A/C CMPR
(A) L=1110 TAI 		8-97530-769-0 01 1 9811-9902 ● ●
66 BELT; A/C CMPR
A/C MAN CONT(C60) (B) L=1114 		8-97605-102-0 01 1 0611- ●
66 BELT; A/C CMPR
(B) L=1114 		8-97605-102-0 01 1 0611- ●
112 BOLT; STAY
(B) M8X16 FLANGE 		0-28080-816-0 02 1 9811-0512 ● ●
112 BOLT; STAY
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0601-0610 ● ●
112 BOLT; STAY
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0611- ● ●
112 BOLT; STAY
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9811-0512 ● ●
112 BOLT; STAY
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0610 ● ●
112 BOLT; STAY
A/C MAN CONT(C60) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0611- ●
112 BOLT; STAY
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0611- ●
131 STAY; CMPR BRKT
(B) 		8-97601-869-1 01 1 0611- ●
131 STAY; CMPR BRKT
(A) 		8-94393-451-0 01 1 9811-0610 ● ●
131 STAY; CMPR BRKT
(A) 		8-94393-451-0 01 1 0611- ●
195 STAY; CLIP
(A) TAI 		8-97530-745-0 01 1 9811-0610 ● ●
195 STAY; CLIP
A/C MAN CONT(C60) (B) TAI 		1-83571-896-0 01 1 0611- ●
195 STAY; CLIP
(B) TAI 		1-83571-896-0 01 1 0611- ●
199 NUT
M8 FLANGE 		0-91150-108-0 04 1 9811-9902 ● ●
199 NUT
M8 FLANGE 		0-91150-108-0 02 1 9903-0602 ● ●
199 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ● ●
199 NUT
A/C MAN CONT(C60) M8 FLANGE 		0-91180-108-0 02 1 0611- ●
199 NUT
M8 FLANGE 		0-91180-108-0 02 1 0611- ●
201 CLIP; HOSE,CMPR TO EVAP
(A) TAI 		8-97530-760-0 01 1 9811-0610 ● ●
201 CLIP; HOSE,CMPR TO EVAP
A/C MAN CONT(C60) (C) ID=19 L=20 		0-95235-836-0 01 1 0611- ●
201 CLIP; HOSE,CMPR TO EVAP
(C) ID=19 L=20 		0-95235-836-0 01 1 0611- ●
201 CLIP; HOSE,CMPR TO EVAP
(B) TAI 		8-97530-765-0 01 1 9811-0610 ● ●
201 CLIP; HOSE,CMPR TO EVAP
A/C MAN CONT(C60) (D) ID=12.2 & 16.2 TAI 		1-83574-190-0 01 1 0611- ●
201 CLIP; HOSE,CMPR TO EVAP
(D) ID=12.2 & 16.2 TAI 		1-83574-190-0 01 1 0611- ●
202 BOLT; CLIP,FLEX HOSE
A/C MAN CONT(C60) (C) M8X20 FLANGE 		0-28650-820-0 01 1 0611- ●
202 BOLT; CLIP,FLEX HOSE
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0611- ●
202 BOLT; CLIP,FLEX HOSE
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0512 ● ●
202 BOLT; CLIP,FLEX HOSE
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0610 ● ●
202 BOLT; CLIP,FLEX HOSE
A/C MAN CONT(C60) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0611- ●
202 BOLT; CLIP,FLEX HOSE
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0611- ●
213 BOLT; FLEX HOSE TO CMPR
A/C MAN CONT(C60) (C) M6X25 FLANGE 		0-28050-625-0 02 1 0611-0611 ●
213 BOLT; FLEX HOSE TO CMPR
A/C MAN CONT(C60) (C) M6X25 FLANGE 		0-28050-625-0 02 1 0611- ●
213 BOLT; FLEX HOSE TO CMPR
(C) M6X25 FLANGE 		0-28050-625-0 02 1 0611- ●
213 BOLT; FLEX HOSE TO CMPR
(A) M10X35 FLANGE 		0-28681-035-0 02 1 9811-9902 ● ●
213 BOLT; FLEX HOSE TO CMPR
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9903-0512 ● ●
213 BOLT; FLEX HOSE TO CMPR
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0610 ● ●
213 BOLT; FLEX HOSE TO CMPR
A/C MAN CONT(C60) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0611- ●
213 BOLT; FLEX HOSE TO CMPR
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0611- ●
222 GASKET; CONNECTOR
A/C MAN CONT(C60) ID=8.2 		8-94312-733-0 02 1 0611- ●
222 GASKET; CONNECTOR
ID=8.2 		8-94312-733-0 02 1 0611- ●
311 NUT; HOSE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9811-9902 ● ●
311 NUT; HOSE CLIP
M6 FLANGE 		0-91150-106-0 01 1 9903-0602 ● ●
311 NUT; HOSE CLIP
M6 FLANGE 		0-91180-106-0 01 1 0603-0610 ● ●
311 NUT; HOSE CLIP
A/C MAN CONT(C60) M8 FLANGE 		0-91180-108-0 01 1 0611- ●
311 NUT; HOSE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0611- ●
529 SPACER
A/C MAN CONT(C60) 		1-83573-271-0 01 1 0611- ●
529 SPACER 1-83573-271-0 01 1 0611- ●

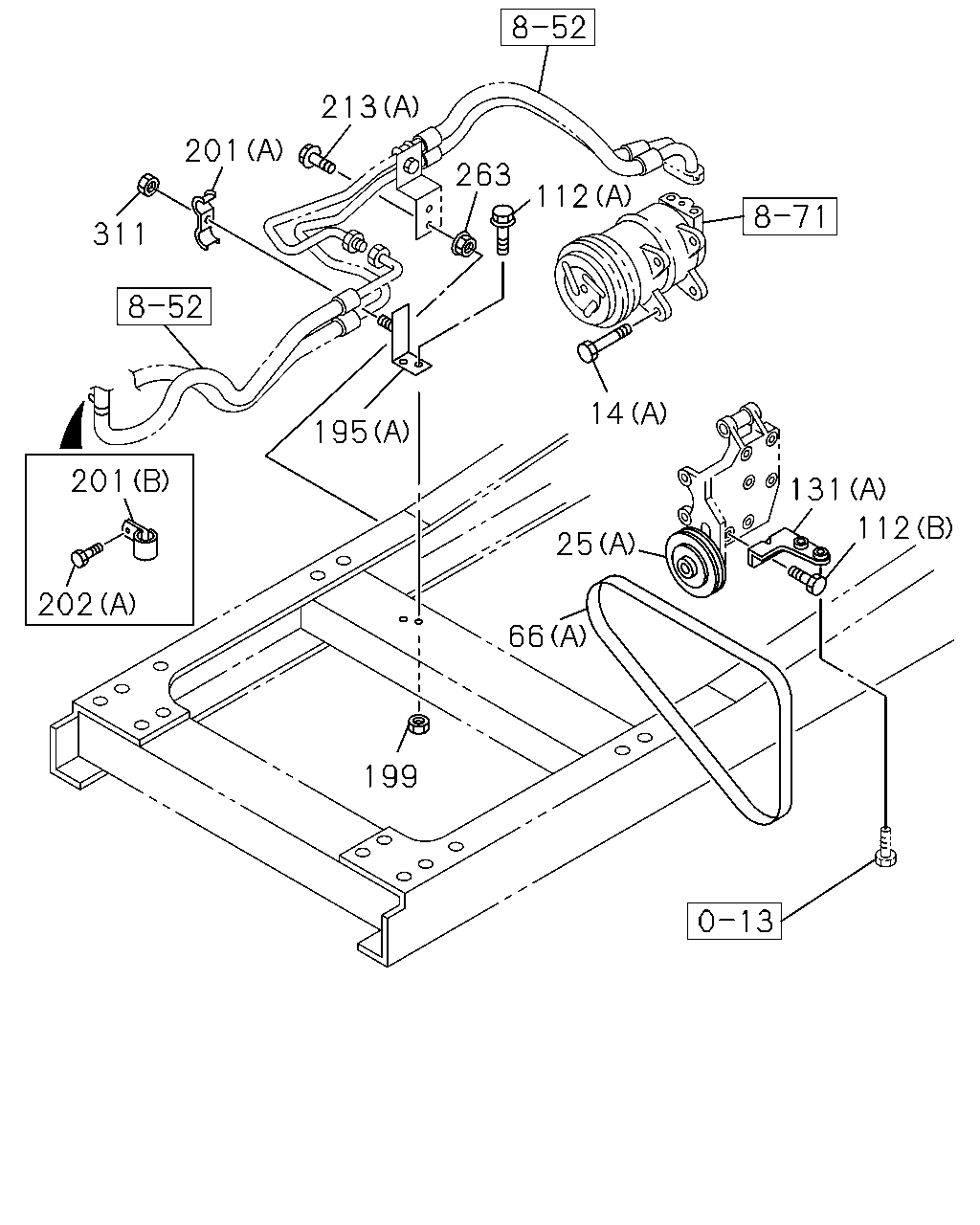

çizim 26521
213 201 263 112 311 14 195 131 201 112 25 202 66 199
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
(A) M10X43 FLANGE TAI 		0-28681-043-0 02 1 9811-9902 ● ●
14 BOLT; CMPR
(A) M10X35 FLANGE 		0-28681-035-0 02 1 9903-0512 ● ●
14 BOLT; CMPR
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0601-0610 ● ●
14 BOLT; CMPR
(A) M10X45 FLANGE 		0-28051-045-0 02 1 0601-0610 ● ●
14 BOLT; CMPR
A/C MAN CONT(C60) (B) M8X78 W/LK WASHER 		5-09000-228-1 04 1 0611- ●
14 BOLT; CMPR
(B) M8X78 W/LK WASHER 		5-09000-228-1 04 1 0611- ●
25 PULLEY ASM; IDLER,CMPR
(A) TAI 		8-97530-736-0 01 1 9811-9902 ● ●
25 PULLEY ASM; IDLER,CMPR
A/C MAN CONT(C60) (B) 		8-97605-079-0 01 1 0611- ●
25 PULLEY ASM; IDLER,CMPR
(B) 		8-97605-079-0 01 1 0611- ●
66 BELT; A/C CMPR
(A) L=1110 TAI 		8-97530-769-0 01 1 9811-9902 ● ●
66 BELT; A/C CMPR
A/C MAN CONT(C60) (B) L=1114 		8-97605-102-0 01 1 0611- ●
66 BELT; A/C CMPR
(B) L=1114 		8-97605-102-0 01 1 0611- ●
112 BOLT; STAY
(B) M8X16 FLANGE 		0-28080-816-0 02 1 9811-0512 ● ●
112 BOLT; STAY
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0601-0610 ● ●
112 BOLT; STAY
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0611- ● ●
112 BOLT; STAY
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9811-0512 ● ●
112 BOLT; STAY
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0610 ● ●
112 BOLT; STAY
A/C MAN CONT(C60) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0611- ●
112 BOLT; STAY
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0611- ●
131 STAY; CMPR BRKT
(B) 		8-97601-869-1 01 1 0611- ●
131 STAY; CMPR BRKT
(A) 		8-94393-451-0 01 1 9811-0610 ● ●
131 STAY; CMPR BRKT
(A) 		8-94393-451-0 01 1 0611- ●
195 STAY; CLIP
(A) TAI 		8-97530-745-0 01 1 9811-0610 ● ●
195 STAY; CLIP
A/C MAN CONT(C60) (B) TAI 		1-83571-896-0 01 1 0611- ●
195 STAY; CLIP
(B) TAI 		1-83571-896-0 01 1 0611- ●
199 NUT
M8 FLANGE 		0-91150-108-0 04 1 9811-9902 ● ●
199 NUT
M8 FLANGE 		0-91150-108-0 02 1 9903-0602 ● ●
199 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ● ●
199 NUT
A/C MAN CONT(C60) M8 FLANGE 		0-91180-108-0 02 1 0611- ●
199 NUT
M8 FLANGE 		0-91180-108-0 02 1 0611- ●
201 CLIP; HOSE,CMPR TO EVAP
(A) TAI 		8-97530-760-0 01 1 9811-0610 ● ●
201 CLIP; HOSE,CMPR TO EVAP
A/C MAN CONT(C60) (C) ID=19 L=20 		0-95235-836-0 01 1 0611- ●
201 CLIP; HOSE,CMPR TO EVAP
(C) ID=19 L=20 		0-95235-836-0 01 1 0611- ●
201 CLIP; HOSE,CMPR TO EVAP
(B) TAI 		8-97530-765-0 01 1 9811-0610 ● ●
201 CLIP; HOSE,CMPR TO EVAP
A/C MAN CONT(C60) (D) ID=12.2 & 16.2 TAI 		1-83574-190-0 01 1 0611- ●
201 CLIP; HOSE,CMPR TO EVAP
(D) ID=12.2 & 16.2 TAI 		1-83574-190-0 01 1 0611- ●
202 BOLT; CLIP,FLEX HOSE
A/C MAN CONT(C60) (C) M8X20 FLANGE 		0-28650-820-0 01 1 0611- ●
202 BOLT; CLIP,FLEX HOSE
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0611- ●
202 BOLT; CLIP,FLEX HOSE
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0512 ● ●
202 BOLT; CLIP,FLEX HOSE
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0610 ● ●
202 BOLT; CLIP,FLEX HOSE
A/C MAN CONT(C60) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0611- ●
202 BOLT; CLIP,FLEX HOSE
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0611- ●
213 BOLT; FLEX HOSE TO CMPR
A/C MAN CONT(C60) (C) M6X25 FLANGE 		0-28050-625-0 02 1 0611-0611 ●
213 BOLT; FLEX HOSE TO CMPR
A/C MAN CONT(C60) (C) M6X25 FLANGE 		0-28050-625-0 02 1 0611- ●
213 BOLT; FLEX HOSE TO CMPR
(C) M6X25 FLANGE 		0-28050-625-0 02 1 0611- ●
213 BOLT; FLEX HOSE TO CMPR
(A) M10X35 FLANGE 		0-28681-035-0 02 1 9811-9902 ● ●
213 BOLT; FLEX HOSE TO CMPR
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9903-0512 ● ●
213 BOLT; FLEX HOSE TO CMPR
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0610 ● ●
213 BOLT; FLEX HOSE TO CMPR
A/C MAN CONT(C60) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0611- ●
213 BOLT; FLEX HOSE TO CMPR
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0611- ●
263 NUT; FLEX HOSE
M8 FLANGE 		0-91150-108-0 02 1 9903-0602 ● ●
263 NUT; FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ● ●
311 NUT; HOSE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9811-9902 ● ●
311 NUT; HOSE CLIP
M6 FLANGE 		0-91150-106-0 01 1 9903-0602 ● ●
311 NUT; HOSE CLIP
M6 FLANGE 		0-91180-106-0 01 1 0603-0610 ● ●
311 NUT; HOSE CLIP
A/C MAN CONT(C60) M8 FLANGE 		0-91180-108-0 01 1 0611- ●
311 NUT; HOSE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0611- ●
