3-05 — REAR WHEEL BRAKE (#75172) — 128 parça

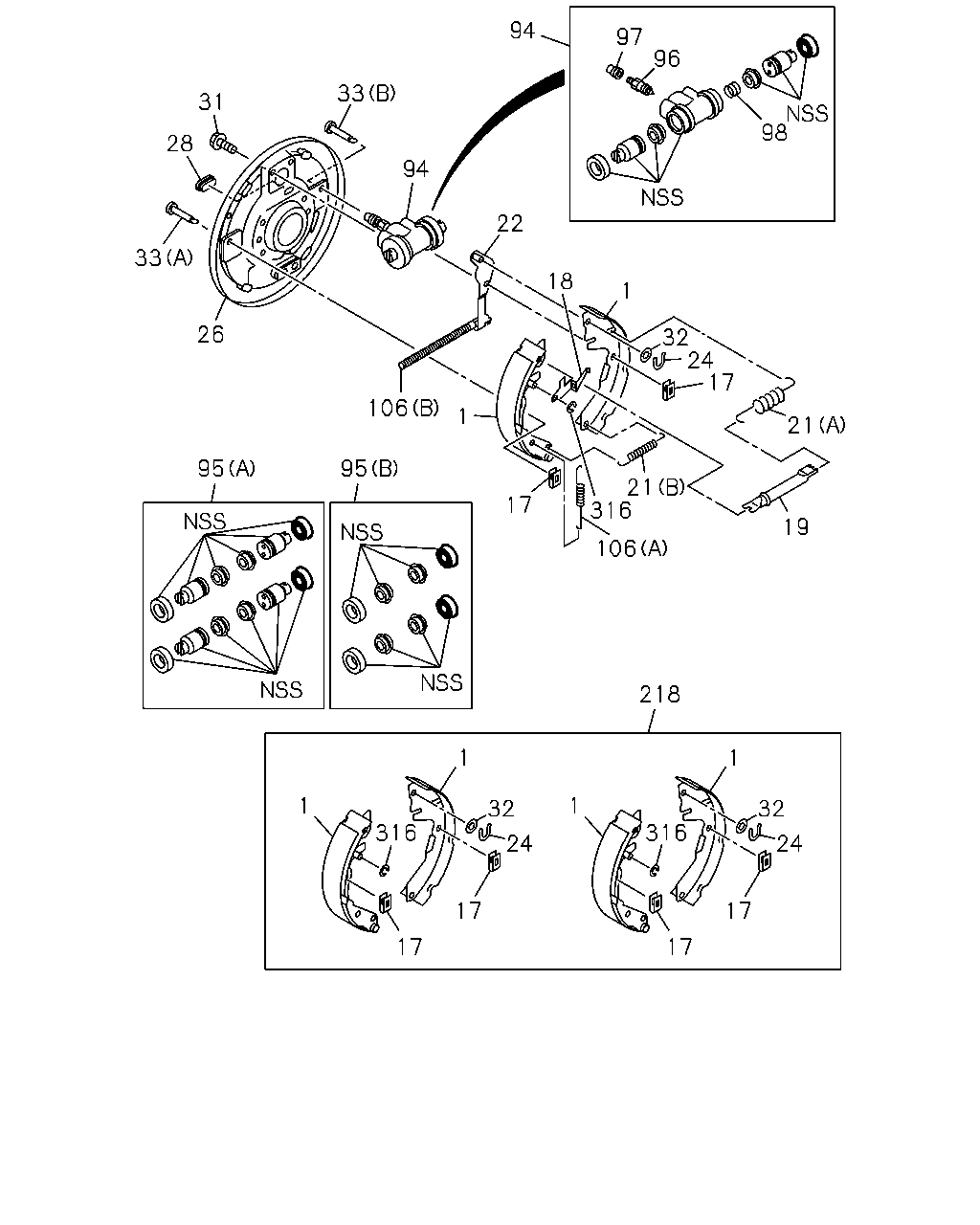

çizim 185473
17 316 17 24 32 1 1 218 32 24 17 17 316 1 1 95 95 106 17 106 19 21 316 1 1 32 17 21 24 18 22 98 96 97 94 33 94 31 28 33 26
BalonParca AdiParca NoAdetTipApplied Date A B C
1 05.017 SHOE; BRK,RR
TRAILING 		8-97302-635-1 02 1 0610-0809 ● ●
1 05.017 SHOE; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC) TRAILING 		8-97302-635-1 02 1 0810-0910 ● ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97302-635-1 02 1 0911- ● ●
1 05.017 SHOE; BRK,RR
LEADING 		8-98007-959-0 01 1 0610-0809 ● ●
1 05.017 SHOE; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC) LEADING 		8-98007-959-0 01 1 0810-0910 ● ●
1 05.017 SHOE; BRK,RR
LEADING 		8-98007-959-0 01 1 0911- ● ●
1 05.017 SHOE; BRK,RR
LEADING 		8-98007-958-0 01 1 0610-0809 ● ●
1 05.017 SHOE; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC) LEADING 		8-98007-958-0 01 1 0810-0910 ● ●
1 05.017 SHOE; BRK,RR
LEADING 		8-98007-958-0 01 1 0911- ● ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97351-921-1 02 1 0610-0809 ●
1 05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC) TRAILING 		8-97351-921-1 02 1 0810-0910 ● ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97351-921-1 02 1 0810-0910 ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97351-921-1 02 1 0911- ●
1 05.017 SHOE; BRK,RR
LEADING 		8-98007-963-0 01 1 0610-0809 ●
1 05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC) LEADING 		8-98007-963-0 01 1 0810-0910 ● ●
1 05.017 SHOE; BRK,RR
LEADING 		8-98007-963-0 01 1 0810-0910 ●
1 05.017 SHOE; BRK,RR
LEADING 		8-98007-963-0 01 1 0911- ●
1 05.017 SHOE; BRK,RR
LEADING 		8-98007-962-0 01 1 0610-0809 ●
1 05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC) LEADING 		8-98007-962-0 01 1 0810-0910 ● ●
1 05.017 SHOE; BRK,RR
LEADING 		8-98007-962-0 01 1 0810-0910 ●
1 05.017 SHOE; BRK,RR
LEADING 		8-98007-962-0 01 1 0911- ●
17 04.043 SPRING; SHOE HOLD DOWN 8-97301-510-0 04 1 0610- ● ● ●
18 05.103 LEVER; AUTO ADJ 8-98007-997-0 01 1 0610- ● ● ●
18 05.103 LEVER; AUTO ADJ 8-98007-996-0 01 1 0610- ● ● ●
19 05.110 ADJUSTER; RR BRK 8-98007-978-0 01 1 0610-0809 ● ●
19 05.110 ADJUSTER; RR BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98007-978-0 01 1 0810-0910 ● ●
19 05.110 ADJUSTER; RR BRK 8-98007-978-0 01 1 0911- ● ●
19 05.110 ADJUSTER; RR BRK 8-98007-977-0 01 1 0610-0809 ● ●
19 05.110 ADJUSTER; RR BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98007-977-0 01 1 0810-0910 ● ●
19 05.110 ADJUSTER; RR BRK 8-98007-977-0 01 1 0911- ● ●
19 05.110 ADJUSTER; RR BRK 8-98007-980-0 01 1 0610-0809 ●
19 05.110 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION(7YC) 		8-98007-980-0 01 1 0810-0910 ● ●
19 05.110 ADJUSTER; RR BRK 8-98007-980-0 01 1 0810-0910 ●
19 05.110 ADJUSTER; RR BRK 8-98007-980-0 01 1 0911- ●
19 05.110 ADJUSTER; RR BRK 8-98007-979-0 01 1 0610-0809 ●
19 05.110 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION(7YC) 		8-98007-979-0 01 1 0810-0910 ● ●
19 05.110 ADJUSTER; RR BRK 8-98007-979-0 01 1 0810-0910 ●
19 05.110 ADJUSTER; RR BRK 8-98007-979-0 01 1 0911- ●
21 05.026 SPRING; SHOE,RET
(A) 		8-98008-001-0 02 1 0610-0809 ● ●
21 05.026 SPRING; SHOE,RET
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-001-0 02 1 0810-0910 ● ●
21 05.026 SPRING; SHOE,RET
(A) 		8-98008-001-0 02 1 0911- ● ●
21 05.026 SPRING; SHOE,RET
(B) 		8-98008-002-0 02 1 0610- ● ● ●
21 05.026 SPRING; SHOE,RET
(A) 		8-98008-005-0 02 1 0610-0809 ●
21 05.026 SPRING; SHOE,RET
HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-005-0 02 1 0810-0910 ● ●
21 05.026 SPRING; SHOE,RET
(A) 		8-98008-005-0 02 1 0810-0910 ●
21 05.026 SPRING; SHOE,RET
(A) 		8-98008-005-0 02 1 0911- ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-98007-965-0 01 1 0610-0809 ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98007-965-0 01 1 0810-0910 ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-98007-965-0 01 1 0911- ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-98007-964-0 01 1 0610-0809 ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98007-964-0 01 1 0810-0910 ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-98007-964-0 01 1 0911- ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-98007-967-0 01 1 0610-0809 ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION(7YC) 		8-98007-967-0 01 1 0810-0910 ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-98007-967-0 01 1 0810-0910 ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-98007-967-0 01 1 0911- ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-98007-966-0 01 1 0610-0809 ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION(7YC) 		8-98007-966-0 01 1 0810-0910 ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-98007-966-0 01 1 0810-0910 ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-98007-966-0 01 1 0911- ●
24 05.158 RETAINER; PARKING BRK 8-97301-493-0 02 1 0610- ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97301-476-1 01 1 0610-0809 ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97301-476-1 01 1 0810-0910 ● ●
26 05.001 PLATE; BACK,RR BRK 8-97301-476-1 01 1 0911- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97301-474-1 01 1 0610-0809 ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97301-474-1 01 1 0810-0910 ● ●
26 05.001 PLATE; BACK,RR BRK 8-97301-474-1 01 1 0911- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97301-515-1 01 1 0610-0809 ●
26 05.001 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION(7YC) 		8-97301-515-1 01 1 0810-0910 ● ●
26 05.001 PLATE; BACK,RR BRK 8-97301-515-1 01 1 0810-0910 ●
26 05.001 PLATE; BACK,RR BRK 8-97301-515-1 01 1 0911- ●
26 05.001 PLATE; BACK,RR BRK 8-97301-514-1 01 1 0610-0809 ●
26 05.001 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION(7YC) 		8-97301-514-1 01 1 0810-0910 ● ●
26 05.001 PLATE; BACK,RR BRK 8-97301-514-1 01 1 0810-0910 ●
26 05.001 PLATE; BACK,RR BRK 8-97301-514-1 01 1 0911- ●
28 05.117 COVER; ADJ HOLE 8-97301-477-0 04 1 0610- ● ● ●
31 04.665 BOLT; RR WHEEL CYL 8-98008-015-0 04 1 0610- ● ● ●
32 05.056 WASHER; LK 8-97301-492-0 02 1 0610- ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
(A) 		8-97301-509-0 04 1 0610- ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
(B) 		8-98008-034-0 02 1 0610- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97301-478-0 02 1 0610-0809 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97301-478-0 02 1 0810-0910 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97301-478-0 02 1 0911- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97319-300-0 02 1 0610-0809 ●
94 04.665 CYLINDER; WHEEL,RR BRK
HIGH RIDE SUSPENSION(7YC) 		8-97319-300-0 02 1 0810-0910 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97319-300-0 02 1 0810-0910 ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97319-300-0 02 1 0911- ●
95 04.665 CUP SET; RR WHEEL CYL
(B) WO/PISTON 		5-87832-246-0 01 1 1008- ● ●
95 04.665 CUP SET; RR WHEEL CYL
(B) WO/PISTON 		5-87832-247-0 01 1 1008- ●
95 04.665 CUP SET; RR WHEEL CYL
(A) W/PISTON 		5-87832-026-0 01 1 0610-0809 ● ●
95 04.665 CUP SET; RR WHEEL CYL
EXC. HIGH RIDE SUSPENSION(7YC) (A) W/PISTON 		5-87832-026-0 01 1 0810-0910 ● ●
95 04.665 CUP SET; RR WHEEL CYL
(A) W/PISTON 		5-87832-026-0 01 1 0911- ● ●
95 04.665 CUP SET; RR WHEEL CYL
(A) W/PISTON 		5-87832-068-0 01 1 0610-0809 ●
95 04.665 CUP SET; RR WHEEL CYL
HIGH RIDE SUSPENSION(7YC) (A) W/PISTON 		5-87832-068-0 01 1 0810-0910 ● ●
95 04.665 CUP SET; RR WHEEL CYL
(A) W/PISTON 		5-87832-068-0 01 1 0810-0910 ●
95 04.665 CUP SET; RR WHEEL CYL
(A) W/PISTON 		5-87832-068-0 01 1 0911- ●
96 04.666 SCREW; BLEEDER,RR BRK 8-97301-484-0 02 1 0610- ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-97301-485-0 02 1 0610- ● ● ●
98 04.669 SPRING; RR WHEEL CYL 8-97301-483-0 02 1 0610- ● ● ●
106 05.107 SPRING; ADJ LEVER
(B) 		8-98009-796-0 02 1 0610-0809 ● ●
106 05.107 SPRING; ADJ LEVER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98009-796-0 02 1 0810-0910 ● ●
106 05.107 SPRING; ADJ LEVER
(B) 		8-98009-796-0 02 1 0911- ● ●
106 05.107 SPRING; ADJ LEVER
(A) 		8-98008-004-0 01 1 0610-0809 ● ●
106 05.107 SPRING; ADJ LEVER
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-004-0 01 1 0810-0910 ● ●
106 05.107 SPRING; ADJ LEVER
(A) 		8-98008-004-0 01 1 0911- ● ●
106 05.107 SPRING; ADJ LEVER
(A) 		8-98008-003-0 01 1 0610-0809 ● ●
106 05.107 SPRING; ADJ LEVER
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-003-0 01 1 0810-0910 ● ●
106 05.107 SPRING; ADJ LEVER
(A) 		8-98008-003-0 01 1 0911- ● ●
106 05.107 SPRING; ADJ LEVER
(B) 		8-98009-797-0 02 1 0610-0809 ●
106 05.107 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC) (B) 		8-98009-797-0 02 1 0810-0910 ● ●
106 05.107 SPRING; ADJ LEVER
(B) 		8-98009-797-0 02 1 0810-0910 ●
106 05.107 SPRING; ADJ LEVER
(B) 		8-98009-797-0 02 1 0911- ●
106 05.107 SPRING; ADJ LEVER
(A) 		8-98008-007-0 01 1 0610-0809 ●
106 05.107 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-007-0 01 1 0810-0910 ● ●
106 05.107 SPRING; ADJ LEVER
(A) 		8-98008-007-0 01 1 0810-0910 ●
106 05.107 SPRING; ADJ LEVER
(A) 		8-98008-007-0 01 1 0911- ●
106 05.107 SPRING; ADJ LEVER
(A) 		8-98008-006-0 01 1 0610-0809 ●
106 05.107 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-006-0 01 1 0810-0910 ● ●
106 05.107 SPRING; ADJ LEVER
(A) 		8-98008-006-0 01 1 0810-0910 ●
106 05.107 SPRING; ADJ LEVER
(A) 		8-98008-006-0 01 1 0911- ●
218 05.017 SHOE KIT; BRK,RR 8-98018-035-0 01 1 0610-0809 ● ●
218 05.017 SHOE KIT; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98018-035-0 01 1 0810-0910 ● ●
218 05.017 SHOE KIT; BRK,RR 8-98018-035-0 01 1 0911- ● ●
218 05.017 SHOE KIT; BRK,RR 8-98018-036-0 01 1 0610-0809 ●
218 05.017 SHOE KIT; BRK,RR
HIGH RIDE SUSPENSION(7YC) 		8-98018-036-0 01 1 0810-0910 ● ●
218 05.017 SHOE KIT; BRK,RR 8-98018-036-0 01 1 0810-0910 ●
218 05.017 SHOE KIT; BRK,RR 8-98018-036-0 01 1 0911- ●
316 05.125 RING; SNAP 8-97330-511-0 02 1 0610- ● ● ●
