2-66 — MANUAL TRANSFER GEAR; OUTPUT (#75170) — 66 parça

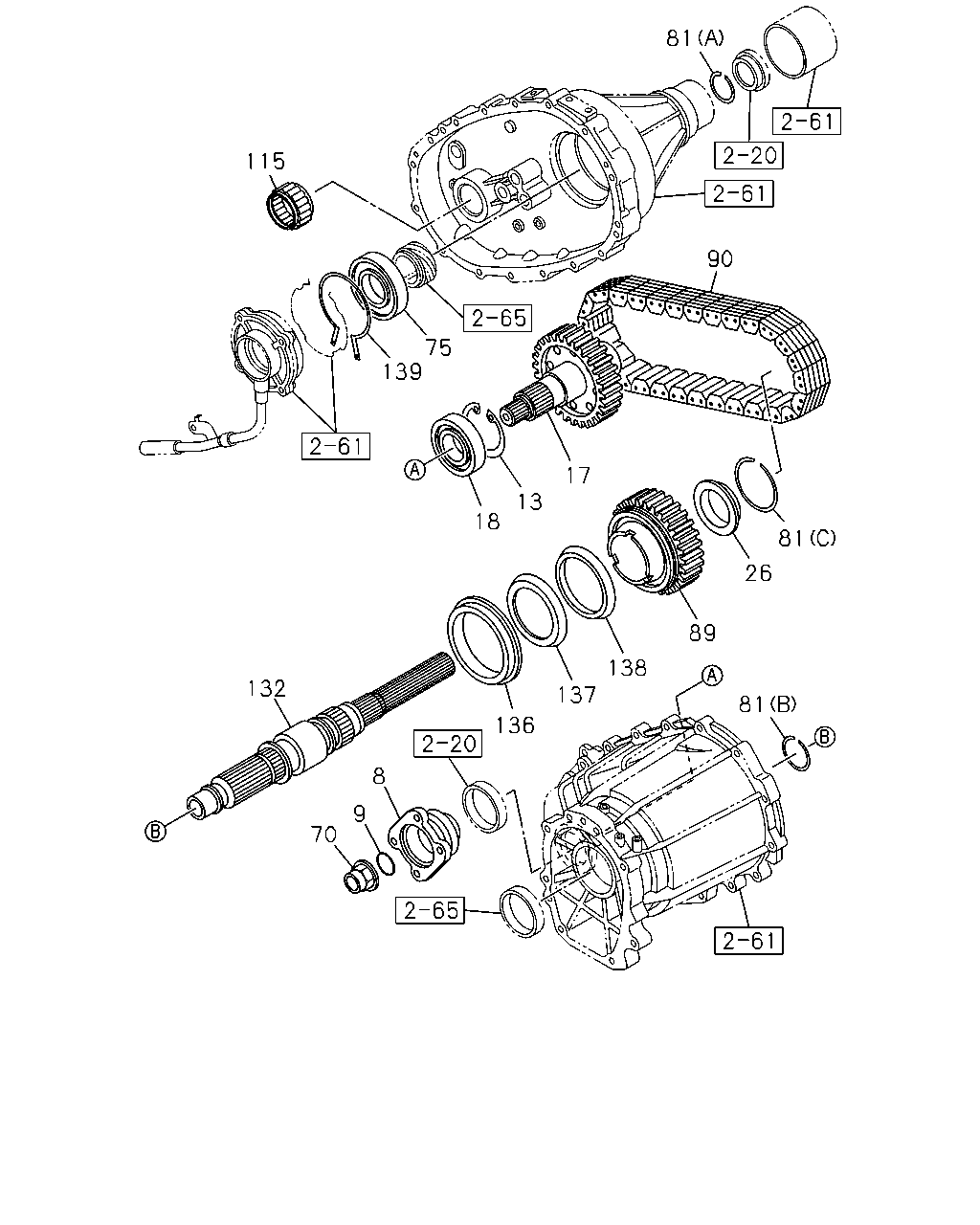

çizim 426264
81 115 90 75 139 17 13 18 81 26 89 138 137 136 8 9 132 70 81
BalonParca AdiParca NoAdetTipApplied Date
8 04.535 FLANGE; OUTPUT 8-97319-825-2 01 1 0610-0710
8 04.535 FLANGE; OUTPUT
C24SE ENG(LG1) 		8-97319-825-2 01 1 0711-0809
8 04.535 FLANGE; OUTPUT
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 		8-97319-825-2 01 1 0810-
9 04.164 GASKET; SHAFT
04.552 ID=29.7 OD=36.1 		8-94483-035-0 01 1 0610-0710
9 04.164 GASKET; SHAFT
C24SE ENG(LG1) 04.552 ID=29.7 OD=36.1 		8-94483-035-0 01 1 0711-0809
9 04.164 GASKET; SHAFT
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 04.552 ID=29.7 OD=36.1 		8-94483-035-0 01 1 0810-
13 04.545 RING; SNAP,OUTPUT,FRT
ID=67 		8-97305-402-0 01 1 0610-0710
13 04.545 RING; SNAP,OUTPUT,FRT
C24SE ENG(LG1) ID=67 		8-97305-402-0 01 1 0711-0809
13 04.545 RING; SNAP,OUTPUT,FRT
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) ID=67 		8-97305-402-0 01 1 0810-
17 04.555 SHAFT; OUTPUT 8-97231-853-0 01 1 0610-0710
17 04.555 SHAFT; OUTPUT
C24SE ENG(LG1) 		8-97231-853-0 01 1 0711-0809
17 04.555 SHAFT; OUTPUT
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 		8-97231-853-0 01 1 0810-
18 04.520 BEARING; BALL,OUTPUT,FRT
NSK 		8-94422-172-1 01 1 0610-0710
18 04.520 BEARING; BALL,OUTPUT,FRT
C24SE ENG(LG1) NSK 		8-94422-172-1 01 1 0711-0809
18 04.520 BEARING; BALL,OUTPUT,FRT
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) NSK 		8-94422-172-1 01 1 0810-
26 04.533 WASHER; THRUST 8-97239-774-0 01 1 0610-0710
26 04.533 WASHER; THRUST
C24SE ENG(LG1) 		8-97239-774-0 01 1 0711-0809
26 04.533 WASHER; THRUST
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 		8-97239-774-0 01 1 0810-
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
M36 FLANGE 		8-97358-603-0 01 1 0610-0710
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
C24SE ENG(LG1) M36 FLANGE 		8-97358-603-0 01 1 0711-0809
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) M36 FLANGE 		8-97358-603-0 01 1 0810-
75 04.520 BEARING; BALL,RR OUTPUT 8-97234-737-0 01 1 0610-0710
75 04.520 BEARING; BALL,RR OUTPUT
C24SE ENG(LG1) 		8-97234-737-0 01 1 0711-0809
75 04.520 BEARING; BALL,RR OUTPUT
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 		8-97234-737-0 01 1 0810-
81 04.545 RING; SNAP
(A) T=1.9 		8-97305-404-1 01 1 0610-0710
81 04.545 RING; SNAP
C24SE ENG(LG1) (A) T=1.9 		8-97305-404-1 01 1 0711-0809
81 04.545 RING; SNAP
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) (A) T=1.9 		8-97305-404-1 01 1 0810-
81 04.545 RING; SNAP
(B) T=1.4 		8-97305-405-0 01 1 0610-0710
81 04.545 RING; SNAP
C24SE ENG(LG1) (B) T=1.4 		8-97305-405-0 01 1 0711-0809
81 04.545 RING; SNAP
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) (B) T=1.4 		8-97305-405-0 01 1 0810-
81 04.545 RING; SNAP
(C) T=2.15 RED 		8-97305-407-0 01 1 0610-0710
81 04.545 RING; SNAP
C24SE ENG(LG1) (C) T=2.15 RED 		8-97305-407-0 01 1 0711-0809
81 04.545 RING; SNAP
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) (C) T=2.15 RED 		8-97305-407-0 01 1 0810-
81 04.545 RING; SNAP
(C) T=2.10 NON COLOR 		8-97305-408-0 01 1 0610-0710
81 04.545 RING; SNAP
C24SE ENG(LG1) (C) T=2.10 NON COLOR 		8-97305-408-0 01 1 0711-0809
81 04.545 RING; SNAP
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) (C) T=2.10 NON COLOR 		8-97305-408-0 01 1 0810-
81 04.545 RING; SNAP
(C) T=2.05 BLUE 		8-97305-409-0 01 1 0610-0710
81 04.545 RING; SNAP
C24SE ENG(LG1) (C) T=2.05 BLUE 		8-97305-409-0 01 1 0711-0809
81 04.545 RING; SNAP
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) (C) T=2.05 BLUE 		8-97305-409-0 01 1 0810-
81 04.545 RING; SNAP
(C) T=2.00 WHITE 		8-97305-410-0 01 1 0610-0710
81 04.545 RING; SNAP
C24SE ENG(LG1) (C) T=2.00 WHITE 		8-97305-410-0 01 1 0711-0809
81 04.545 RING; SNAP
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) (C) T=2.00 WHITE 		8-97305-410-0 01 1 0810-
89 04.535 SPROCKET; DRIVE
Z=48 		8-98013-525-0 01 1 0610-0710
89 04.535 SPROCKET; DRIVE
C24SE ENG(LG1) Z=48 		8-98013-525-0 01 1 0711-0809
89 04.535 SPROCKET; DRIVE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) Z=48 		8-98013-525-0 01 1 0810-
90 04.535 CHAIN; DRIVE 8-97323-177-0 01 1 0610-0710
90 04.535 CHAIN; DRIVE
C24SE ENG(LG1) 		8-97323-177-0 01 1 0711-0809
90 04.535 CHAIN; DRIVE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 		8-97323-177-0 01 1 0810-
115 04.520 BEARING; NEEDLE 8-97234-747-0 01 1 0610-0710
115 04.520 BEARING; NEEDLE
C24SE ENG(LG1) 		8-97234-747-0 01 1 0711-0809
115 04.520 BEARING; NEEDLE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 		8-97234-747-0 01 1 0810-
132 05.544 SHAFT; MAIN,TRANSFER 8-97231-833-3 01 1 0610-0710
132 05.544 SHAFT; MAIN,TRANSFER
C24SE ENG(LG1) 		8-97231-833-3 01 1 0711-0809
132 05.544 SHAFT; MAIN,TRANSFER
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 		8-97231-833-3 01 1 0810-
136 04.545 BLOCK RING; 2-4
04.383 Z=48 		8-94363-054-1 01 1 0610-0710
136 04.545 BLOCK RING; 2-4
C24SE ENG(LG1) 04.383 Z=48 		8-94363-054-1 01 1 0711-0809
136 04.545 BLOCK RING; 2-4
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 04.383 Z=48 		8-94363-054-1 01 1 0810-
137 04.545 RING; OUTSIDE,2-4
04.383 OD=90.0 		8-94363-055-1 01 1 0610-0710
137 04.545 RING; OUTSIDE,2-4
C24SE ENG(LG1) 04.383 OD=90.0 		8-94363-055-1 01 1 0711-0809
137 04.545 RING; OUTSIDE,2-4
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 04.383 OD=90.0 		8-94363-055-1 01 1 0810-
138 04.545 RING; INSIDE,2-4
04.383 OD=95.8 		8-94363-056-0 01 1 0610-0710
138 04.545 RING; INSIDE,2-4
C24SE ENG(LG1) 04.383 OD=95.8 		8-94363-056-0 01 1 0711-0809
138 04.545 RING; INSIDE,2-4
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 04.383 OD=95.8 		8-94363-056-0 01 1 0810-
139 04.545 RING; RETAINING,RR OUTPUT
ID=76 		8-97305-012-0 01 1 0610-0710
139 04.545 RING; RETAINING,RR OUTPUT
C24SE ENG(LG1) ID=76 		8-97305-012-0 01 1 0711-0809
139 04.545 RING; RETAINING,RR OUTPUT
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) ID=76 		8-97305-012-0 01 1 0810-
