8-45 — HEATER PIPING (#7517) — 54 parça

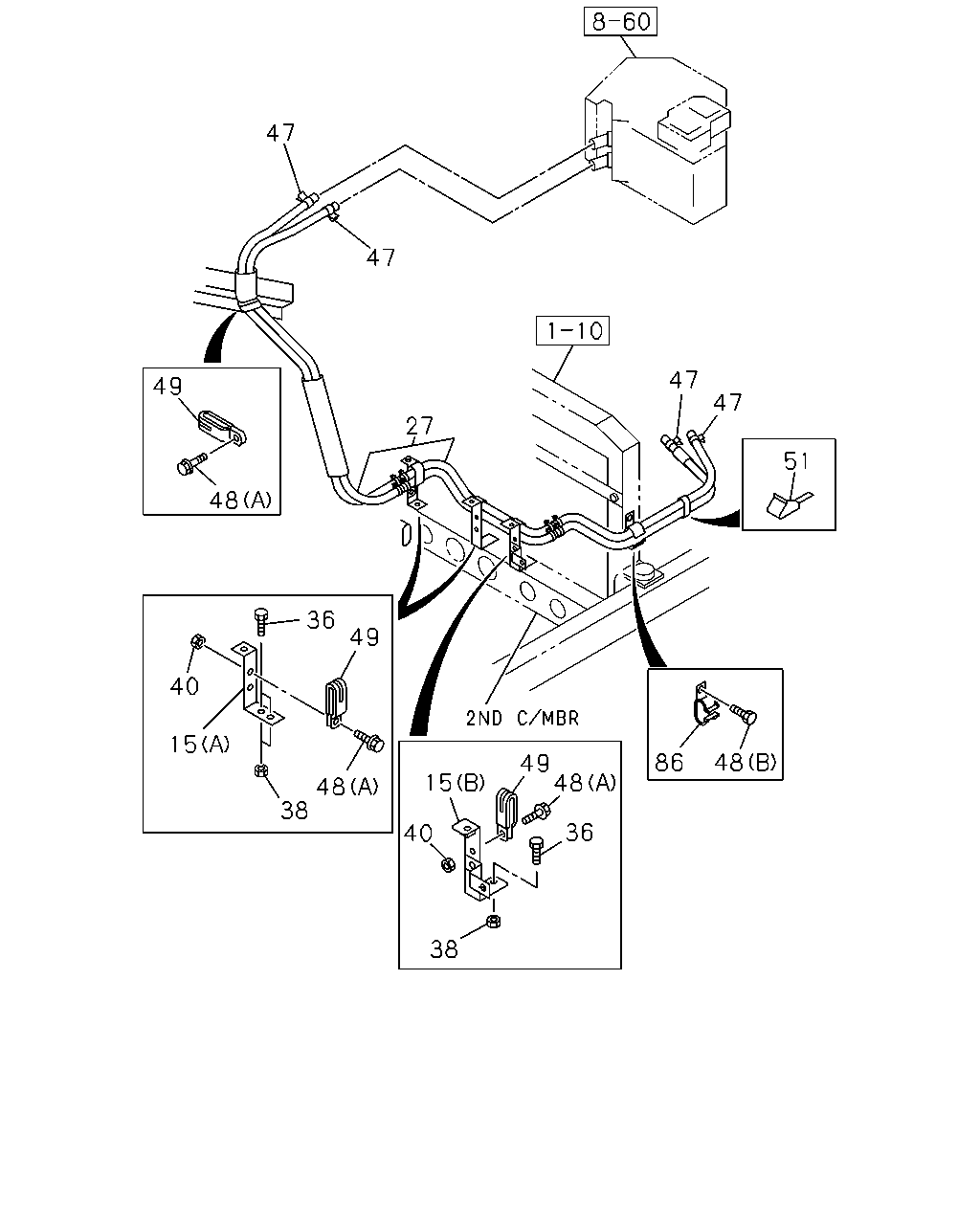

çizim 26517
47 47 47 49 47 27 51 48 36 49 40 15 48 86 49 48 15 48 38 36 40 38
BalonParca AdiParca NoAdetTipApplied Date A B
15 BRACKET; WATER HOSE
(A) 		1-83571-927-1 02 1 9811-9906 ● ●
15 BRACKET; WATER HOSE
(A) 		1-83571-927-1 01 1 9907-9908 ● ●
15 BRACKET; WATER HOSE
(A) 		1-83571-927-1 02 1 9909-0002 ● ●
15 BRACKET; WATER HOSE
(A) 		1-83571-927-1 02 1 0003-0610 ●
15 BRACKET; WATER HOSE
(A) 		1-83571-927-1 03 1 0611- ●
15 BRACKET; WATER HOSE
(B) 		1-83573-111-1 01 1 9907-0610 ● ●
15 BRACKET; WATER HOSE
(A) 		1-83571-927-1 01 1 0003-0610 ●
15 BRACKET; WATER HOSE
(A) 		1-83571-927-1 02 1 0611- ●
15 BRACKET; WATER HOSE
(A) 		1-83573-145-0 01 1 0003- ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
TAI 		8-97530-319-1 01 1 9811-9906 ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
TAI 		8-97530-662-1 01 1 9907-0610 ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83565-850-1 01 1 0611- ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE 1-83565-850-1 01 1 0611- ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 9811-9908 ● ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 06 1 9909-0512 ● ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 06 1 0601- ● ●
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9811-9908 ● ●
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 06 1 9909-0602 ● ●
38 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
40 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9811-9908 ● ●
40 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9909-0602 ● ●
40 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603-0610 ● ●
40 NUT; CLIP
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M8 FLANGE 		0-91180-108-0 03 1 0611- ●
40 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0611- ●
47 CLAMP; WATER HOSE,HTR
ID=22 TAI 		8-94382-401-0 04 1 9811-0610 ● ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) ID=22 TAI 		8-94382-401-0 04 1 0611- ●
47 CLAMP; WATER HOSE,HTR
ID=22 TAI 		8-94382-401-0 04 1 0611- ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 03 1 9811-9901 ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9902-9906 ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 05 1 9907-9908 ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9909-0512 ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0610 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) M8X20 FLANGE 		0-28650-820-0 06 1 0611- ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28650-820-0 06 1 0611- ●
48 BOLT; CLIP FIX
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9811-0610 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0611- ●
48 BOLT; CLIP FIX
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0611- ●
48 BOLT; CLIP FIX
(B) M8X20 FLANGE 		0-28680-820-0 04 1 9909-0512 ● ●
48 BOLT; CLIP FIX
(B) M8X20 FLANGE 		0-28650-820-0 04 1 0601-0610 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) M8X16 FLANGE 		0-28050-816-0 01 1 0611- ●
48 BOLT; CLIP FIX
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0611- ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 03 1 9811-9901 ● ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 04 1 9902-9906 ● ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 05 1 9907-9908 ● ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 02 1 9909-0610 ● ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) ID=24X2 L=25 		1-09700-710-0 06 1 0611- ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 06 1 0611- ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 04 1 9909-0610 ● ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) ID=24 L=32 		1-09700-766-1 01 1 0611- ●
49 CLIP; WATER HOSE,HTR
ID=24 L=32 		1-09700-766-1 01 1 0611- ●
51 CLIP; WATER HOSE,HTR
L=170 		1-83574-139-0 02 1 9811-0610 ● ●
86 CLIP; HTR HOSE 1-83571-049-1 01 1 9811-0610 ● ●
86 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-83571-049-1 01 1 0611- ●
86 CLIP; HTR HOSE 1-83571-049-1 01 1 0611- ●
