2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#75169) — 49 parça

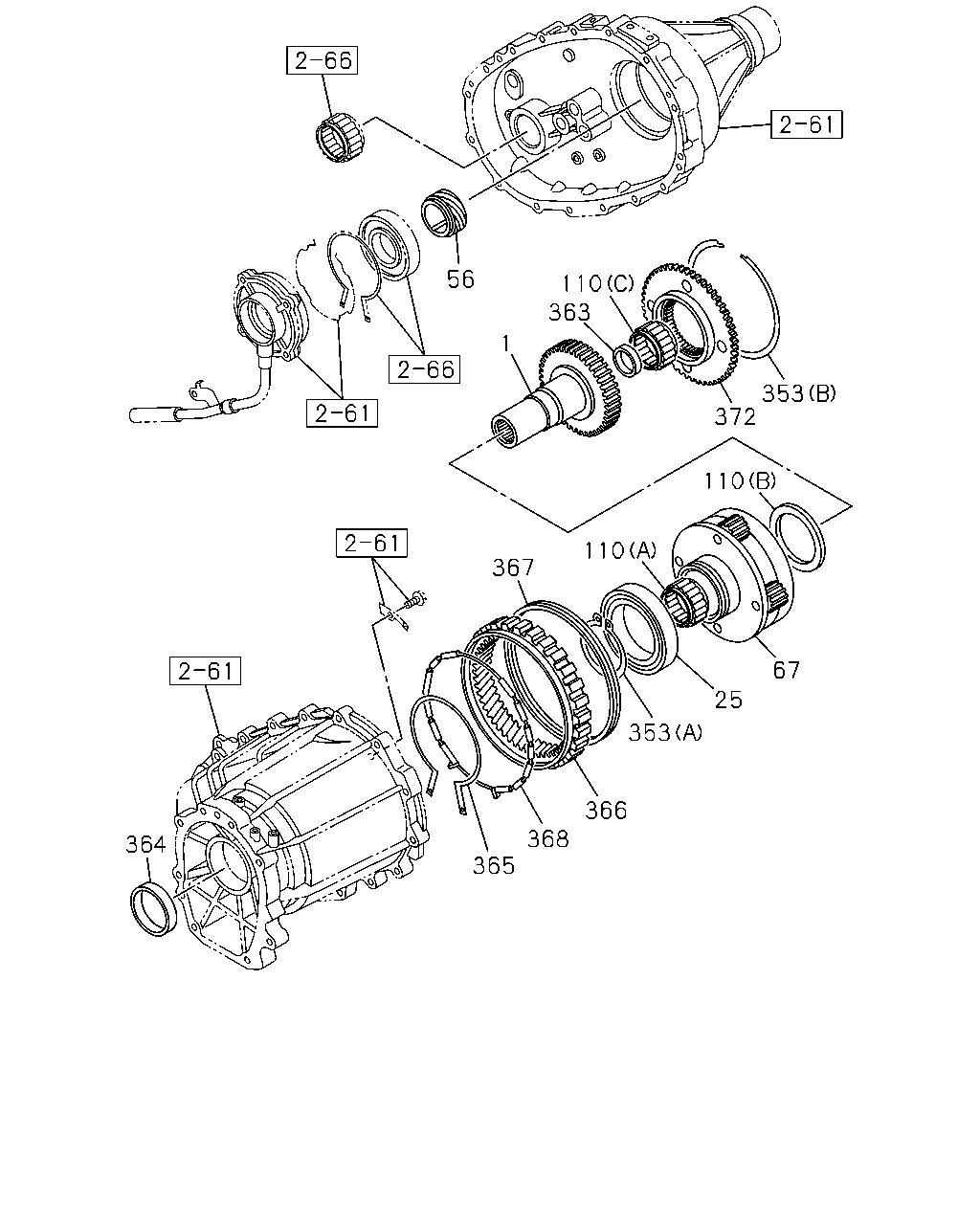

çizim 426261
56 110 363 1 367 364 365 368 366 353 25 67 110 110 372 353
BalonParca AdiParca NoAdetTipApplied Date
1 04.162 SHAFT; GEAR,INPUT 8-97373-467-0 01 1 0610-0710
1 04.162 SHAFT; GEAR,INPUT
C24SE ENG(LG1) 		8-97373-467-0 01 1 0711-0809
1 04.162 SHAFT; GEAR,INPUT
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 		8-97373-467-0 01 1 0810-
25 04.164 BEARING; BALL,INPUT SHAFT
NSK 		8-97234-735-0 01 1 0610-0710
25 04.164 BEARING; BALL,INPUT SHAFT
C24SE ENG(LG1) NSK 		8-97234-735-0 01 1 0711-0809
25 04.164 BEARING; BALL,INPUT SHAFT
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) NSK 		8-97234-735-0 01 1 0810-
56 04.343 GEAR; SPD DRIVE,TRANSFER
Z=5 		8-97238-580-0 01 1 0610-0710
56 04.343 GEAR; SPD DRIVE,TRANSFER
C24SE ENG(LG1) Z=5 		8-97238-580-0 01 1 0711-0809
56 04.343 GEAR; SPD DRIVE,TRANSFER
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) Z=5 		8-97238-580-0 01 1 0810-
67 04.532 CARRIER; TRANSFER 8-97252-987-1 01 1 0610-0710
67 04.532 CARRIER; TRANSFER
C24SE ENG(LG1) 		8-97252-987-1 01 1 0711-0809
67 04.532 CARRIER; TRANSFER
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 		8-97252-987-1 01 1 0810-1001
67 04.532 CARRIER; TRANSFER
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 		8-98158-116-0 01 1 1002-
110 04.532 BEARING; NEEDLE
(A) 		8-97234-739-0 01 1 0610-0710
110 04.532 BEARING; NEEDLE
C24SE ENG(LG1) (A) 		8-97234-739-0 01 1 0711-0809
110 04.532 BEARING; NEEDLE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) (A) 		8-97234-739-0 01 1 0810-
110 04.532 BEARING; NEEDLE
(B) 		8-97234-741-0 01 1 0610-0710
110 04.532 BEARING; NEEDLE
C24SE ENG(LG1) (B) 		8-97234-741-0 01 1 0711-0809
110 04.532 BEARING; NEEDLE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) (B) 		8-97234-741-0 01 1 0810-
110 04.532 BEARING; NEEDLE
(C) 		8-97234-743-0 01 1 0610-0710
110 04.532 BEARING; NEEDLE
C24SE ENG(LG1) (C) 		8-97234-743-0 01 1 0711-0809
110 04.532 BEARING; NEEDLE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) (C) 		8-97234-743-0 01 1 0810-
353 04.545 RING; SNAP,CARRIER
(A) ID=65.5 		8-97305-403-0 01 1 0610-0710
353 04.545 RING; SNAP,CARRIER
C24SE ENG(LG1) (A) ID=65.5 		8-97305-403-0 01 1 0711-0809
353 04.545 RING; SNAP,CARRIER
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) (A) ID=65.5 		8-97305-403-0 01 1 0810-
353 04.545 RING; SNAP,CARRIER
(B) ID=137 		8-97305-406-0 01 1 0610-0710
353 04.545 RING; SNAP,CARRIER
C24SE ENG(LG1) (B) ID=137 		8-97305-406-0 01 1 0711-0809
353 04.545 RING; SNAP,CARRIER
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) (B) ID=137 		8-97305-406-0 01 1 0810-
363 04.545 CAP; SEAL,INPUT SHAFT 8-97238-725-0 01 1 0610-0710
363 04.545 CAP; SEAL,INPUT SHAFT
C24SE ENG(LG1) 		8-97238-725-0 01 1 0711-0809
363 04.545 CAP; SEAL,INPUT SHAFT
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 		8-97238-725-0 01 1 0810-
364 04.545 SEAL; OIL,COVER,INPUT
04.510 NOK 		8-97238-999-0 01 1 0610-0710
364 04.545 SEAL; OIL,COVER,INPUT
C24SE ENG(LG1) 04.510 NOK 		8-97238-999-0 01 1 0711-0809
364 04.545 SEAL; OIL,COVER,INPUT
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 04.510 NOK 		8-97238-999-0 01 1 0810-
365 04.545 RING; RETAINING,OUTER INPUT
ID=97 		8-97305-010-1 01 1 0610-0710
365 04.545 RING; RETAINING,OUTER INPUT
C24SE ENG(LG1) ID=97 		8-97305-010-1 01 1 0711-0809
365 04.545 RING; RETAINING,OUTER INPUT
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) ID=97 		8-97305-010-1 01 1 0810-
366 04.532 GEAR; INTERNAL,HIGH-LOW
Z=27 		8-97231-831-2 01 1 0610-0710
366 04.532 GEAR; INTERNAL,HIGH-LOW
C24SE ENG(LG1) Z=27 		8-97231-831-2 01 1 0711-0809
366 04.532 GEAR; INTERNAL,HIGH-LOW
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) Z=27 		8-97231-831-2 01 1 0810-
367 04.545 RING; RETAINING,SPIRAL TYPE
ID=162 OD=176 		8-97247-459-0 01 1 0610-0710
367 04.545 RING; RETAINING,SPIRAL TYPE
C24SE ENG(LG1) ID=162 OD=176 		8-97247-459-0 01 1 0711-0809
367 04.545 RING; RETAINING,SPIRAL TYPE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) ID=162 OD=176 		8-97247-459-0 01 1 0810-
368 04.545 RING; DAMPER,TRANSFER
ID=168.4 OD=178 		8-97320-914-0 01 1 0610-0710
368 04.545 RING; DAMPER,TRANSFER
C24SE ENG(LG1) ID=168.4 OD=178 		8-97320-914-0 01 1 0711-0809
368 04.545 RING; DAMPER,TRANSFER
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) ID=168.4 OD=178 		8-97320-914-0 01 1 0810-
372 04.162 TEETH; DOG,PLANETARY
01.462 Z=56 		8-97358-244-0 01 1 0610-0710
372 04.162 TEETH; DOG,PLANETARY
C24SE ENG(LG1) 01.462 Z=56 		8-97358-244-0 01 1 0711-0809
372 04.162 TEETH; DOG,PLANETARY
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 01.462 Z=56 		8-97358-244-0 01 1 0810-
