Sayfa 2-60 - Isuzu EPC

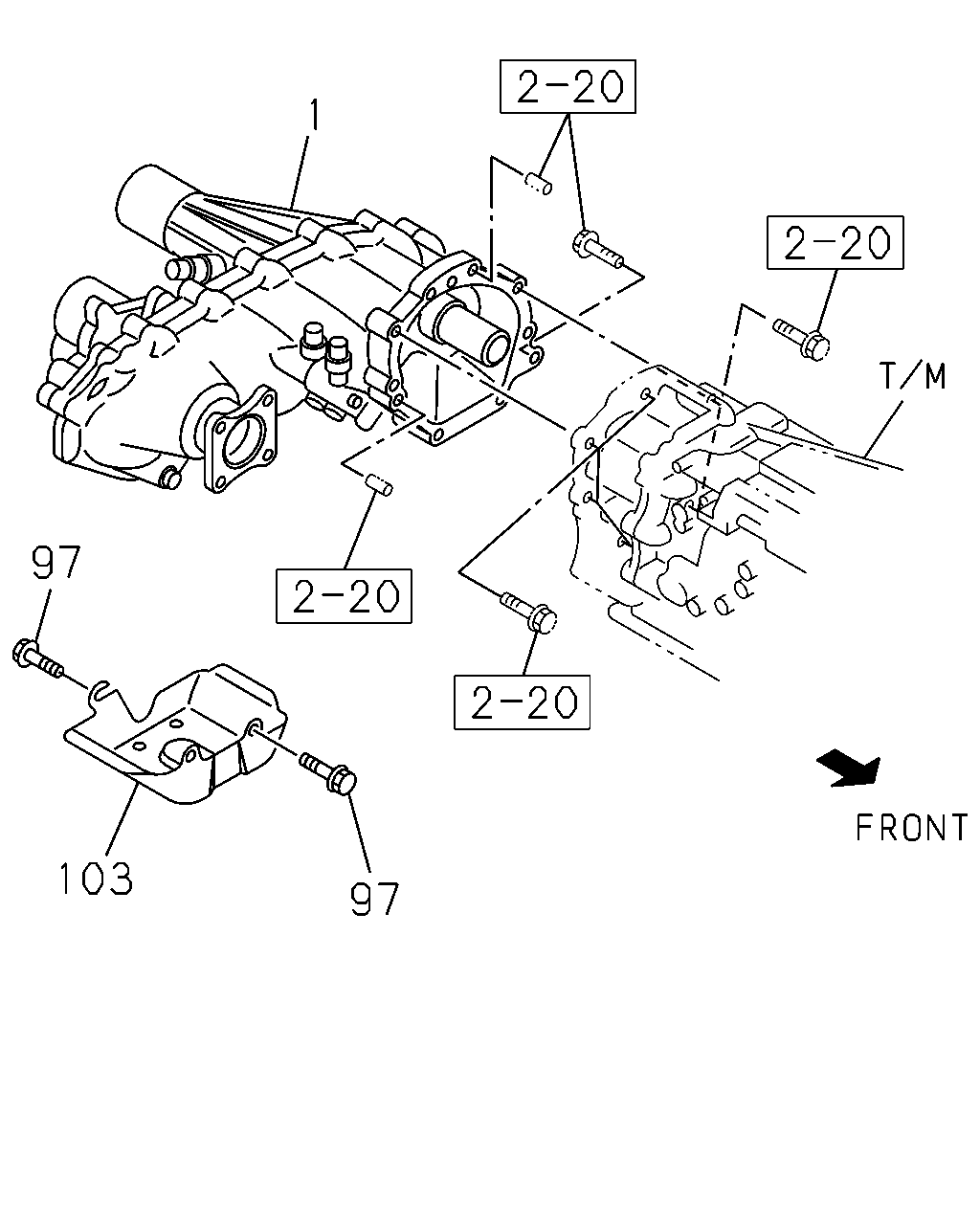

2-60 — TRANSFER (#75166) — 6 parça

1 97 103 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.505 TRANSFER ASM 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3)	8-98028-761-0	01	1	0810-	●	●	●
1	04.505 TRANSFER ASM	8-98028-763-0	01	1	0610-0710			●
1	04.505 TRANSFER ASM C24SE ENG(LG1)	8-98028-763-0	01	1	0711-0809			●
1	04.505 TRANSFER ASM C24SE ENG(LG1) FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3)	8-98028-763-0	01	1	0810-			●
97	04.512 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0610-			●
103	04.510 GUARD; TRANSFER	8-97234-751-0	01	1	0610-			●
