2-25 — SPEEDOMETER DRIVEN GEAR (#75161) — 47 parça

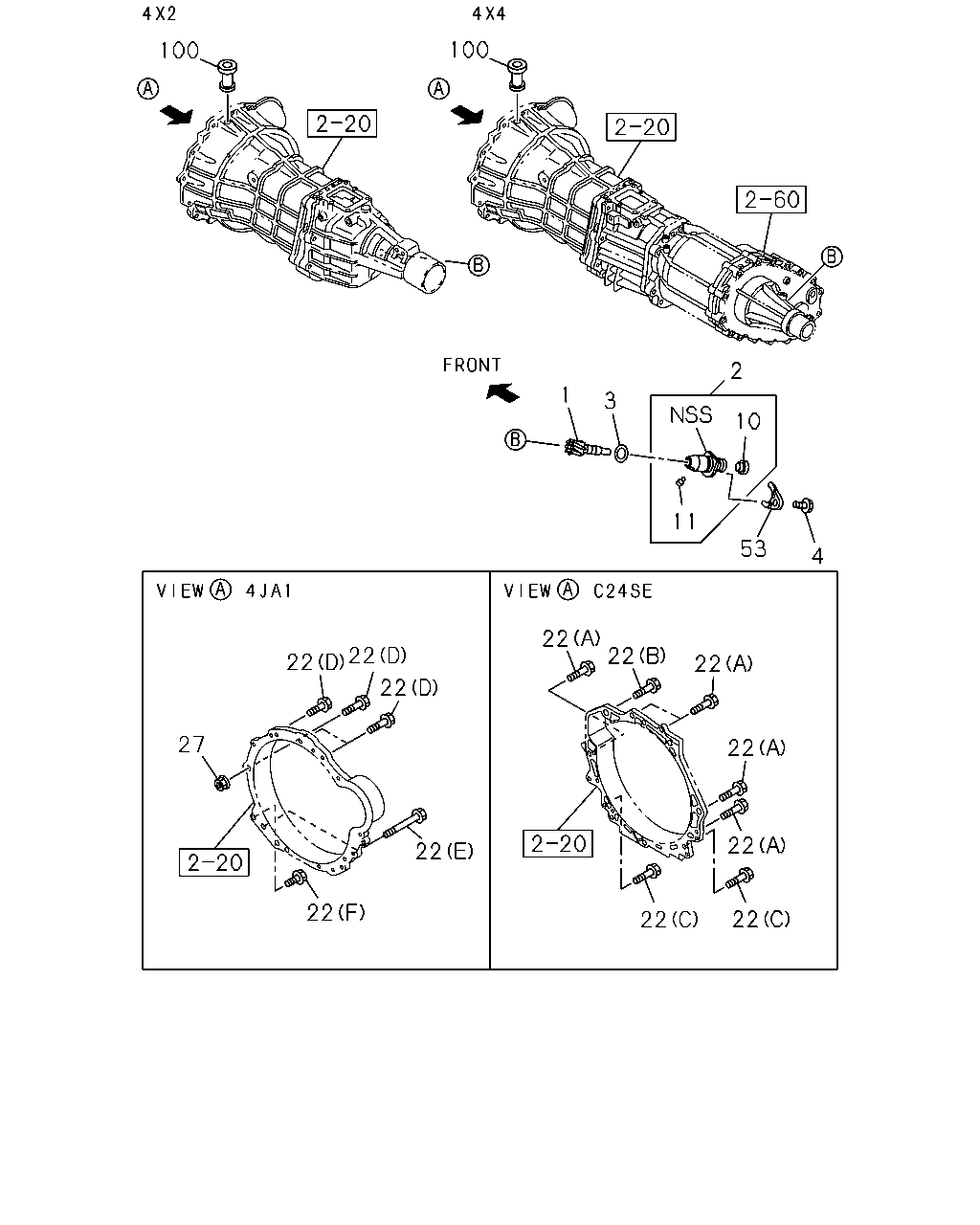

çizim 109843
100 100 2 1 3 10 11 53 4 22 22 22 22 22 22 27 22 22 22 22 22 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 43/10(GY2) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195 R15C(QZO) Z=19 		8-94473-303-2 01 1 1111- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16 ALS(QCQ) Z=17 		8-97012-085-2 01 1 0810-0910 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=18 		8-97012-086-2 01 1 0810-1101 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195 R15C(QZO) Z=18 		8-97012-086-2 01 1 1102- ●
1 04.337 GEAR; DRIVEN,SPD
4X4 CREW CAB(TFS*W*) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17 		8-97238-587-2 01 1 0810- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) Z=17 		8-94473-307-2 01 1 0610-0710 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=17 		8-94473-307-2 01 1 0711-0809 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=17 		8-94473-307-2 01 1 0810-1101 ● ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195 R15C(QZO) Z=17 		8-94473-307-2 01 1 1102- ● ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) Z=16 		8-94473-308-2 01 1 0610-0710 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16 		8-94473-308-2 01 1 0711-0809 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16 ALS(QCQ) Z=18 		8-94473-304-2 01 1 0810-0910 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=18 		8-94473-304-2 01 1 0810-0910 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=18 		8-94473-304-2 01 1 0911-1101 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195 R15C(QZO) Z=18 		8-94473-304-2 01 1 1102- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) Z=16 		8-97238-588-0 01 1 0610-0710 ●
1 04.337 GEAR; DRIVEN,SPD
4X4 CREW CAB(TFS*W*) Z=16 		8-97238-588-0 01 1 0711-0809 ●
1 04.337 GEAR; DRIVEN,SPD
4X4 CREW CAB(TFS*W*) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16 ALS(QCQ) Z=16 		8-97238-588-0 01 1 0810- ●
1 04.337 GEAR; DRIVEN,SPD
4X4 CREW CAB(TFS*W*) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) Z=16 		8-97238-588-0 01 1 0810- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-94463-608-4 01 1 0810- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2(TFB***) 		8-97021-133-4 01 1 0610- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4(TFS***) 		8-97305-454-1 01 1 0610- ●
3 04.338 GASKET; BUSHING
ID=21.7 OD=28.7 		9-09921-100-0 01 1 0610-0809 ●
3 04.338 GASKET; BUSHING
ID=21.7 OD=28.7 		9-09921-100-0 01 1 0810- ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0810- ●
4 04.338 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE 		0-28050-820-0 01 1 0610- ●
10 04.338 SEAL; OIL,DRIVE GEAR
NOK 		8-97131-328-1 01 1 0610-0809 ●
10 04.338 SEAL; OIL,DRIVE GEAR
NOK 		8-97131-328-1 01 1 0810- ● ●
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV 8-94446-571-1 01 1 0610-0809 ●
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV 8-94446-571-1 01 1 0810- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1-T ENG(LP0) 04.510 (H) M10X35 FLANGE 		0-28051-035-0 02 1 0810- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1-T ENG(LP0) (I) M10X40 FLANGE 		0-28051-040-0 03 1 0810- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1-T ENG(LP0) (J) M10X45 FLANGE 		0-28051-045-0 01 1 0810- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1-T ENG(LP0) (G) M12X35 FLANGE 		0-28051-235-0 01 1 0810- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1-T ENG(LP0) (D) M10X40 FLANGE 		0-28051-040-0 04 1 0810- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1-T ENG(LP0) (E) M10X60 FLANGE 		0-28051-060-0 02 1 0810- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1-T ENG(LP0) (F) M12X40 FLANGE 		0-28051-240-0 01 1 0810- ●
22 00.685 BOLT; TRANS CASE TO ENG
(A) M12X45 FLANGE 		0-28151-245-0 05 1 0610-0710 ●
22 00.685 BOLT; TRANS CASE TO ENG
C24SE ENG(LG1) (A) M12X45 FLANGE 		0-28151-245-0 05 1 0711- ●
22 00.685 BOLT; TRANS CASE TO ENG
(B) M12X60 FLANGE 		0-28151-260-0 01 1 0610-0710 ●
22 00.685 BOLT; TRANS CASE TO ENG
C24SE ENG(LG1) (B) M12X60 FLANGE 		0-28151-260-0 01 1 0711- ●
22 00.685 BOLT; TRANS CASE TO ENG
(C) M8X40 FLANGE 		0-28650-840-0 02 1 0610-0710 ●
22 00.685 BOLT; TRANS CASE TO ENG
C24SE ENG(LG1) (C) M8X40 FLANGE 		0-28650-840-0 02 1 0711- ●
27 00.685 NUT; CLU HSG TO TRANS
4JA1-T ENG(LP0) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0810- ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 0610-0703 ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-98035-572-0 01 1 0704- ●
100 02.510 PLUG; HOLE
4JA1-T ENG(LP0) 		8-97318-961-0 01 1 0610- ●
