1 |
04.003 TRANSMISSION ASM; MANUAL
4X2(TFB***)
4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/10(GY2)
FRT&RR 215/70R15C DUNLOP TIRE(CWP),
FRT&RR215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195
R15C(QZO)
|
8-98150-141-0 |
01 |
1 |
1111- |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4X4(TFS***)
|
8-98132-795-0 |
01 |
1 |
0810-1004 |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4X4(TFS***)
|
8-98150-159-0 |
01 |
1 |
1005- |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JA1-T ENG(LP0)
|
8-98132-792-0 |
01 |
1 |
0810-1004 |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JA1-T ENG(LP0)
|
8-98150-156-0 |
01 |
1 |
1005-1007 |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4X4(TFS***)
4JA1-T ENG(LP0)
|
8-98150-156-0 |
01 |
1 |
1008- |
● |
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JA1-T ENG(LP0)
|
8-98132-751-0 |
01 |
1 |
0810-0902 |
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JA1-T ENG(LP0)
|
8-98132-752-0 |
01 |
1 |
0903-1004 |
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JA1-T ENG(LP0)
|
8-98150-117-0 |
01 |
1 |
1005- |
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4X2(TFB***)
|
8-98036-609-0 |
01 |
1 |
0610-0710 |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4X2(TFB***)
|
8-98087-266-0 |
01 |
1 |
0711-0809 |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4X2(TFB***)
|
8-98132-779-0 |
01 |
1 |
0810-1004 |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4X2(TFB***)
|
8-98150-143-0 |
01 |
1 |
1005- |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4X4(TFS***)
|
8-98036-622-0 |
01 |
1 |
0610-0710 |
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4X4(TFS***)
|
8-98087-280-0 |
01 |
1 |
0711-0809 |
● |
|
| |
13 |
04.302 SUPPORT; SHIFT FORK
L=47.5
|
8-97072-827-0 |
01 |
1 |
0610-0809 |
● |
|
| |
13 |
04.302 SUPPORT; SHIFT FORK
L=47.5
|
8-97072-827-0 |
01 |
1 |
0810- |
● |
● |
| |
14 |
04.302 WASHER; LK,SUPPORT
03.634
ID=12.2
|
0-91510-512-0 |
01 |
1 |
0610- |
● |
|
| |
16 |
04.105 PLUG; SHIFT ROD
OD=14
|
8-97358-601-0 |
02 |
1 |
0610-0809 |
● |
|
| |
16 |
04.105 PLUG; SHIFT ROD
OD=14
|
8-97358-601-0 |
02 |
1 |
0810- |
● |
● |
| |
17 |
04.105 STUD; STARTER SETTING
01.453
M6X12 L=21
|
0-41010-612-0 |
02 |
1 |
0610-0809 |
● |
|
| |
17 |
04.105 STUD; STARTER SETTING
C24SE ENG(LG1)
01.453
M6X12 L=21
|
0-41010-612-0 |
02 |
1 |
0810- |
● |
|
| |
24 |
00.797 COVER; CHECK HOLE,DUST
4JA1-T ENG(LP0)
06.868
|
8-94156-700-0 |
01 |
1 |
0903- |
|
● |
| |
24 |
00.797 COVER; CHECK HOLE,DUST
06.868
|
8-94156-700-0 |
01 |
1 |
0610-0809 |
● |
|
| |
24 |
00.797 COVER; CHECK HOLE,DUST
06.868
|
8-94156-700-0 |
01 |
1 |
0810-0902 |
● |
● |
| |
24 |
00.797 COVER; CHECK HOLE,DUST
06.868
|
8-94156-700-0 |
01 |
1 |
0903- |
● |
|
| |
28 |
04.356 COVER; FRT,TRANS CASE
4JA1-T ENG(LP0)
|
8-97116-796-0 |
01 |
1 |
0810- |
|
● |
| |
28 |
04.356 COVER; FRT,TRANS CASE
4JA1-T ENG(LP0)
|
8-97104-676-0 |
01 |
1 |
0810- |
● |
|
| |
28 |
04.356 COVER; FRT,TRANS CASE
|
8-97108-066-1 |
01 |
1 |
0610-0809 |
● |
|
| |
28 |
04.356 COVER; FRT,TRANS CASE
C24SE ENG(LG1)
|
8-97108-066-1 |
01 |
1 |
0810- |
● |
|
| |
29 |
04.356 BOLT; FRT COVER
M8X22 FLANGE
|
8-97365-376-0 |
06 |
1 |
0610-0809 |
● |
|
| |
29 |
04.356 BOLT; FRT COVER
M8X22 FLANGE
|
8-97365-376-0 |
06 |
1 |
0810- |
● |
● |
| |
33 |
04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
4JA1-T ENG(LP0)
04.354
NOK
|
8-94326-441-0 |
01 |
1 |
0810-1208 |
|
● |
| |
33 |
04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
4JA1-T ENG(LP0)
NOK
|
8-97947-838-0 |
01 |
1 |
1209- |
|
● |
| |
33 |
04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
TKK
|
8-97046-698-0 |
01 |
1 |
0610-0809 |
● |
|
| |
33 |
04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
TKK
|
8-97046-698-0 |
01 |
1 |
0810-1110 |
● |
|
| |
33 |
04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
TKK
|
8-97046-698-0 |
01 |
1 |
1111- |
● |
● |
| |
33 |
04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
NOK
|
8-97046-699-3 |
01 |
1 |
0610-0809 |
● |
|
| |
33 |
04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
NOK
|
8-97046-699-3 |
01 |
1 |
0810-1110 |
● |
|
| |
33 |
04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
NOK
|
8-97046-699-3 |
01 |
1 |
1111- |
● |
● |
| |
39 |
04.311 PLATE; DETENT SPR
|
8-98035-571-0 |
01 |
1 |
0610-0809 |
● |
|
| |
39 |
04.311 PLATE; DETENT SPR
|
8-98035-571-0 |
01 |
1 |
0810- |
● |
● |
| |
40 |
04.311 GASKET; DETENT SPR PLATE
ALSO INCLUDED IN GASKET SET(M/T).
4JA1-T ENG(LP0)
|
8-94473-947-0 |
01 |
1 |
0810- |
|
● |
| |
40 |
04.311 GASKET; DETENT SPR PLATE
ALSO INCLUDED IN GASKET SET(M/T).
|
8-97083-600-1 |
01 |
1 |
0610- |
● |
|
| |
41 |
04.311 SPRING; DETENT BALL
4JA1-T ENG(LP0)
L=25.6
|
8-94435-336-0 |
03 |
1 |
0810- |
|
● |
| |
41 |
04.311 SPRING; DETENT BALL
L=26.8
|
8-94320-193-0 |
03 |
1 |
0610- |
● |
|
| |
42 |
04.311 BALL; DETENT,GEAR SHIFT
|
8-94435-335-0 |
03 |
1 |
0610-0809 |
● |
|
| |
42 |
04.311 BALL; DETENT,GEAR SHIFT
|
8-94435-335-0 |
03 |
1 |
0810- |
● |
● |
| |
43 |
04.311 BOLT; PLATE TO PLATE
4JA1-T ENG(LP0)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0810- |
|
● |
| |
43 |
04.311 BOLT; PLATE TO PLATE
04.356
M8X22 FLANGE
|
8-97365-376-0 |
02 |
1 |
0610- |
● |
|
| |
45 |
04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=17
|
8-97115-712-0 |
01 |
1 |
0610-0809 |
● |
|
| |
45 |
04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=17
|
8-97115-712-0 |
01 |
1 |
0810- |
● |
● |
| |
47 |
04.510 GASKET; FILLER PLUG,TRANSFER CAS
4X4(TFS***)
04.105
ID=17
|
8-97115-712-0 |
01 |
1 |
0610- |
● |
|
| |
49 |
04.510 STUD; TRANSFER CASE
4X4(TFS***)
M10X27 L=43.5
|
8-98035-677-0 |
01 |
1 |
0610- |
● |
|
| |
50 |
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
|
8-97115-712-0 |
01 |
1 |
0610-0809 |
● |
|
| |
50 |
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
4X4(TFS***)
ID=17
|
8-97115-712-0 |
01 |
1 |
0610-0809 |
● |
|
| |
50 |
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
|
8-97115-712-0 |
01 |
1 |
0810- |
● |
● |
| |
50 |
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
4X4(TFS***)
ID=17
|
8-97115-712-0 |
01 |
1 |
0810- |
● |
|
| |

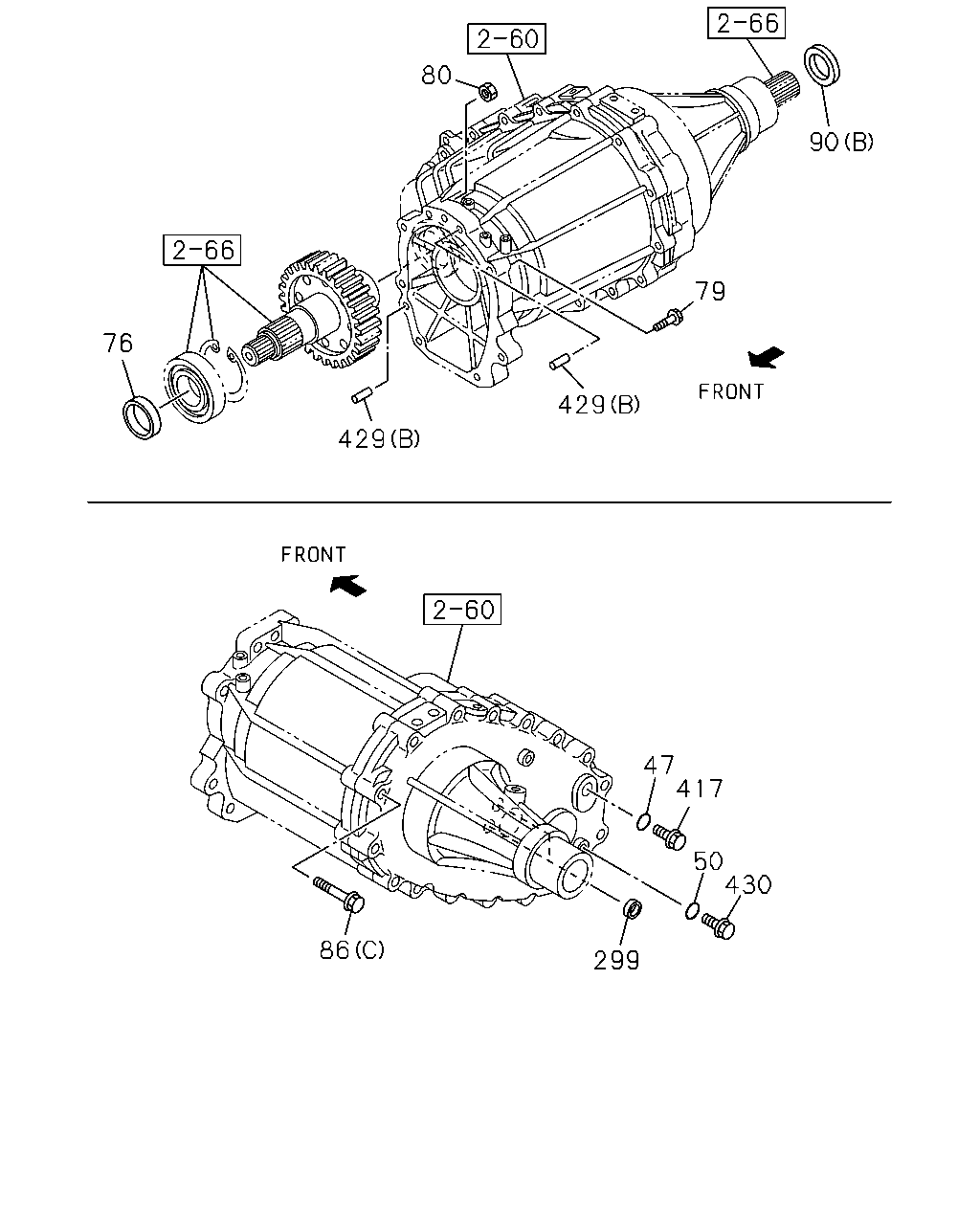

76 |
04.510 SEAL; OIL,TRANSFER CASE
4X4(TFS***)
NOK
|
8-97238-999-0 |
01 |
1 |
0610- |
● |
|
| |
79 |
04.510 BOLT; TRANSFER CASE
4X4(TFS***)
M10X35 FLANGE
|
0-28051-035-0 |
06 |
1 |
0610- |
● |
|
| |
80 |
04.510 NUT; TRANSFER CASE
4X4(TFS***)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0610- |
● |
|
| |
86 |
04.317 BOLT; RR COVER
(B)
M10X18 M10X55 L=86.8
|
8-97305-468-0 |
05 |
1 |
0610-0809 |
● |
|
| |
86 |
04.317 BOLT; RR COVER
(B)
M10X18 M10X55 L=86.8
|
8-97305-468-0 |
05 |
1 |
0810- |
● |
● |
| |
86 |
04.317 BOLT; RR COVER
(A)
M10X55 FLANGE
|
8-98035-672-0 |
03 |
1 |
0610-0809 |
● |
|
| |
86 |
04.317 BOLT; RR COVER
(A)
M10X55 FLANGE
|
8-98035-672-0 |
03 |
1 |
0810- |
● |
● |
| |
86 |
04.317 BOLT; RR COVER
4X4(TFS***)
09.173
(C)
M8X45 FLANGE
|
0-28050-845-0 |
16 |
1 |
0610- |
● |
|
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
4JA1-T ENG(LP0)
(B)
NOK
|
8-97947-840-0 |
01 |
1 |
1209- |
|
● |
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
(B)
NOK
|
8-97046-705-3 |
01 |
1 |
0610-0710 |
● |
|
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
C24SE ENG(LG1)
(B)
NOK
|
8-97046-705-3 |
01 |
1 |
0711-0809 |
● |
|
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
(B)
NOK
|
8-97046-705-3 |
01 |
1 |
0810-1208 |
● |
● |
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
(B)
NOK
|
8-97046-705-3 |
01 |
1 |
1209- |
● |
|
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
4X4(TFS***)
04.510
(A)
TKK
|
8-97046-700-0 |
01 |
1 |
0610- |
● |
|
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
4X4(TFS***)
04.510
(A)
NOK
|
8-97046-701-2 |
01 |
1 |
0610- |
● |
|
| |
102 |
04.412 RETAINER; BRG UPR,MAINSHAFT
|
8-97138-673-0 |
01 |
1 |
0610- |
● |
|
| |
113 |
04.358 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
4JA1-T ENG(LP0)
|
8-97113-190-0 |
01 |
1 |
0810- |
|
● |
| |
113 |
04.358 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
|
8-97083-589-0 |
01 |
1 |
0610- |
● |
|
| |
114 |
04.105 RING; SNAP,BALL BRG
4JA1-T ENG(LP0)
04.422
(A)
ID=49.6
|
5-09589-004-0 |
01 |
1 |
0810- |
|
● |
| |
114 |
04.105 RING; SNAP,BALL BRG
4JA1-T ENG(LP0)
04.412
(B)
ID=71.7
|
5-09589-005-0 |
01 |
1 |
0810- |
|
● |
| |
299 |
04.317 PLUG; SHIFTER ROD
4X4(TFS***)
04.105
OD=14
|
8-97358-601-0 |
02 |
1 |
0610- |
● |
|
| |
316 |
04.105 MAGNET; TRANS CASE
|
8-94249-524-2 |
01 |
1 |
0610- |
● |
|
| |
414 |
04.317 COVER; DUST,RR COVER
4X2(TFB***)
|
8-98027-802-0 |
01 |
1 |
0610-0809 |
● |
|
| |
414 |
04.317 COVER; DUST,RR COVER
4X2(TFB***)
|
8-98027-802-0 |
01 |
1 |
0810- |
● |
● |
| |
417 |
04.105 PLUG; OIL FILLER,TRANS
|
8-97365-373-0 |
01 |
1 |
0610-0809 |
● |
|
| |
417 |
04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***)
|
8-97365-373-0 |
01 |
1 |
0610-0809 |
● |
|
| |
417 |
04.105 PLUG; OIL FILLER,TRANS
|
8-97365-373-0 |
01 |
1 |
0810- |
● |
● |
| |
417 |
04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***)
|
8-97365-373-0 |
01 |
1 |
0810- |
● |
|
| |
421 |
04.317 COVER; RR,TRANS
4JA1-T ENG(LP0)
|
8-98014-389-0 |
01 |
1 |
0810-1105 |
|
● |
| |
421 |
04.317 COVER; RR,TRANS
4JA1-T ENG(LP0)
|
8-98193-595-0 |
01 |
1 |
1106- |
|
● |
| |
421 |
04.317 COVER; RR,TRANS
4X2(TFB***)
|
8-98014-386-0 |
01 |
1 |
0610-1202 |
● |
|
| |
421 |
04.317 COVER; RR,TRANS
4X2(TFB***)
|
8-98191-921-0 |
01 |
1 |
1203- |
● |
|
| |
421 |
04.317 COVER; RR,TRANS
4X4(TFS***)
|
8-97301-224-2 |
01 |
1 |
0610- |
● |
|
| |
429 |
04.105 PIN; STRAIGHT
4X4(TFS***)
04.510
(B)
OD=10 L=20
|
8-97135-423-0 |
02 |
1 |
0610- |
● |
|
| |
429 |
04.105 PIN; STRAIGHT
(A)
OD=10 L=40
|
5-09740-018-1 |
02 |
1 |
0610-0809 |
● |
|
| |
429 |
04.105 PIN; STRAIGHT
(A)
OD=10 L=40
|
5-09740-018-1 |
02 |
1 |
0810- |
● |
● |
| |
430 |
04.105 PLUG; OIL DRAIN
|
8-97365-374-0 |
01 |
1 |
0610-0809 |
● |
|
| |
430 |
04.105 PLUG; OIL DRAIN
4X4(TFS***)
|
8-97365-374-0 |
01 |
1 |
0610-0809 |
● |
|
| |
430 |
04.105 PLUG; OIL DRAIN
|
8-97365-374-0 |
01 |
1 |
0810- |
● |
● |
| |
430 |
04.105 PLUG; OIL DRAIN
4X4(TFS***)
|
8-97365-374-0 |
01 |
1 |
0810- |
● |
|
| |
435 |
04.103 CASE; TRANS
4JA1-T ENG(LP0)
|
8-97330-878-0 |
01 |
1 |
0810- |
|
● |
| |
435 |
04.103 CASE; TRANS
4JA1-T ENG(LP0)
|
8-98047-232-0 |
01 |
1 |
0810-1004 |
● |
|
| |
435 |
04.103 CASE; TRANS
4JA1-T ENG(LP0)
|
8-98162-753-0 |
01 |
1 |
1005- |
● |
|
| |
435 |
04.103 CASE; TRANS
|
8-98047-238-0 |
01 |
1 |
0610-0809 |
● |
|
| |
435 |
04.103 CASE; TRANS
C24SE ENG(LG1)
|
8-98047-238-0 |
01 |
1 |
0810- |
● |
|
| |
455 |
04.008 SCREW; BRG RET
M8X22
|
8-98035-654-0 |
04 |
1 |
0610- |
● |
|
