8-40 — HEATER SYSTEM (#7516) — 62 parça

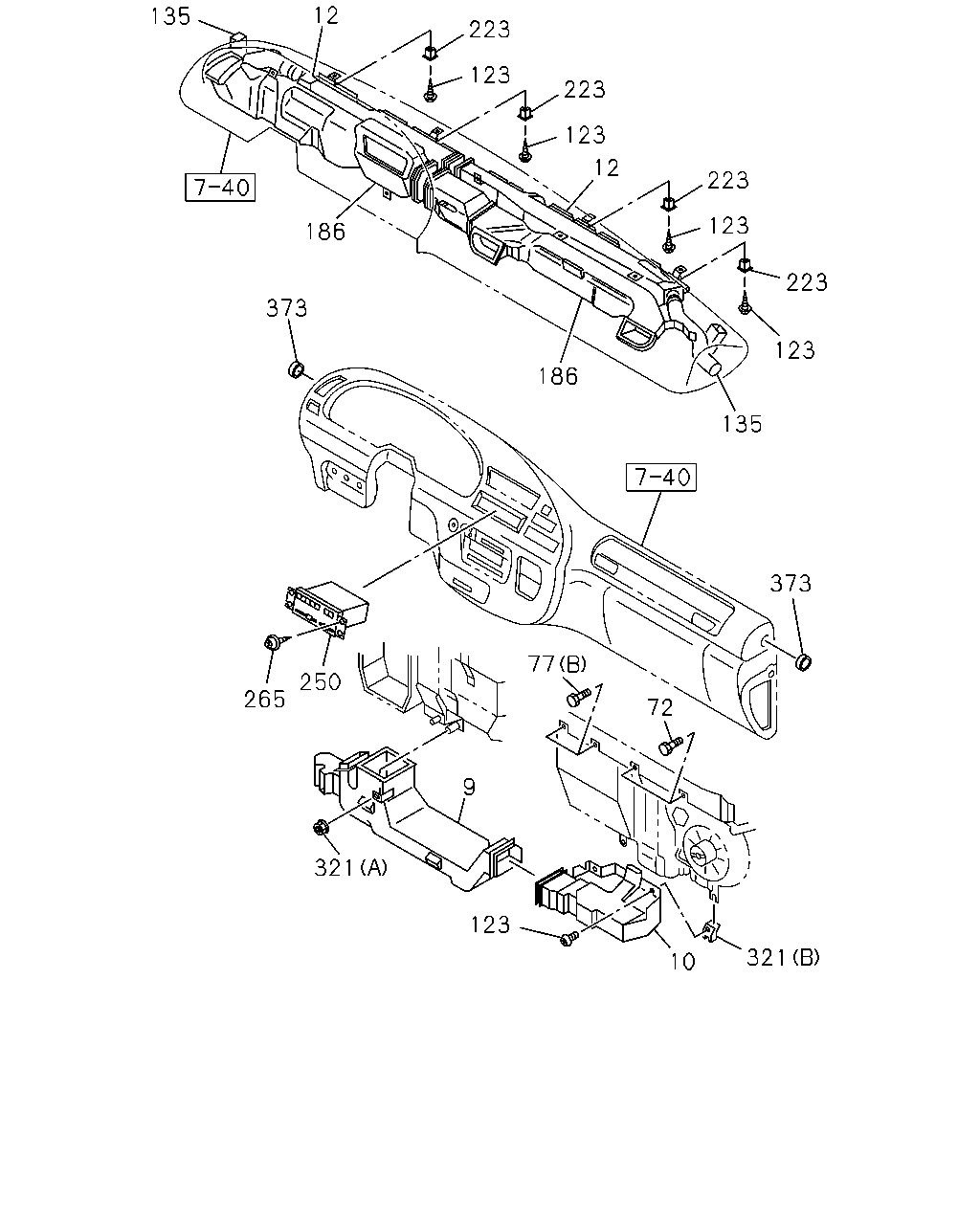

12 135 223 123 223 123 12 223 123 186 223 373 123 186 135 373 77 250 265 72 9 321 123 321 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	DUCT; HTR AIR,FOOT CENTER	1-76378-377-3	01	1	9811-0006	●	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-431-2	01	1	0007-0610	●	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-445-0	01	1	0611-	●	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-368-2	01	1	9811-	●	●
12	NOZZLE; DEFROSTER	1-76378-360-2	01	1	9811-	●	●
12	NOZZLE; DEFROSTER	1-76378-359-2	01	1	9811-	●	●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9811-	●	●
77	BOLT; HTR UNIT (A) M6X16 TAI	1-09980-598-1	02	1	9811-	●	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9811-	●	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M5X14 TAI	8-94279-325-0	08	1	0611-	●
123	SCREW; DUCT M5X14 TAI	8-94279-325-0	10	1	0611-		●
123	SCREW; DUCT M5X14 TAI	8-94279-325-0	10	1	9811-0610	●	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M5X14 TAI	8-94279-325-0	02	1	0611-	●
135	HOSE; DEFROSTER	1-76378-364-3	01	1	9811-	●	●
135	HOSE; DEFROSTER	1-76378-363-2	01	1	9811-	●	●
186	DUCT; VENTILATOR	1-76378-362-4	01	1	9811-	●	●
186	DUCT; VENTILATOR	1-76378-361-3	01	1	9811-	●	●
223	GROMMET; SCREW TAI	8-94279-084-2	04	1	9811-0610	●	●
223	GROMMET; SCREW HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI	8-94279-084-2	04	1	0611-	●
223	GROMMET; SCREW TAI	8-94279-084-2	04	1	0611-		●
250	CONTROL ASM; A/C	1-83543-033-2	01	1	9811-9909	●	●
250	CONTROL ASM; A/C TAI	1-83543-050-0	01	1	9910-0610	●	●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI	1-83543-050-0	01	1	0611-	●
250	CONTROL ASM; A/C TAI	1-83543-050-0	01	1	0611-		●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9811-0604	●	●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74160-620-0	02	1	0605-	●	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91150-106-0	01	1	9811-0602	●	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91180-106-0	01	1	0603-0610	●	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) M6 FLANGE	0-91180-106-0	01	1	0611-	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91180-106-0	01	1	0611-		●
321	NUT; DUCT FIX (B) M5 TAI	1-09984-150-0	01	1	9811-0409	●	●
321	NUT; DUCT FIX (B) M5	1-09984-196-0	01	1	0410-0610	●	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) M5	1-09984-196-0	01	1	0611-	●
321	NUT; DUCT FIX (B) M5	1-09984-196-0	01	1	0611-		●
373	RUBBER; JOINT TAI	1-76378-291-0	02	1	9811-	●	●

250 459 460 461 461

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
250	CONTROL ASM; A/C	1-83543-033-2	01	1	9811-9909	●	●
250	CONTROL ASM; A/C TAI	1-83543-050-0	01	1	9910-0610	●	●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI	1-83543-050-0	01	1	0611-	●
250	CONTROL ASM; A/C TAI	1-83543-050-0	01	1	0611-		●
459	PANEL; CONTROL ASM,A/C TAI	1-83549-013-0	01	1	9907-0610	●	●
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI	1-83549-013-0	01	1	0611-	●
459	PANEL; CONTROL ASM,A/C TAI	1-83549-013-0	01	1	0611-		●
460	SWITCH; CONTROL ASM,A/C TAI	1-82489-006-0	01	1	9907-0610	●	●
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI	1-82489-006-0	01	1	0611-	●
460	SWITCH; CONTROL ASM,A/C TAI	1-82489-006-0	01	1	0611-		●
461	KNOB; CONTROL ASM,A/C (B) TAI	1-83549-015-0	01	1	9907-0610	●	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI	1-83549-015-0	01	1	0611-	●
461	KNOB; CONTROL ASM,A/C (B) TAI	1-83549-015-0	01	1	0611-		●
461	KNOB; CONTROL ASM,A/C (A) TAI	1-83549-016-0	01	1	9907-0610	●	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) TAI	1-83549-016-0	01	1	0611-	●
461	KNOB; CONTROL ASM,A/C (A) TAI	1-83549-016-0	01	1	0611-		●

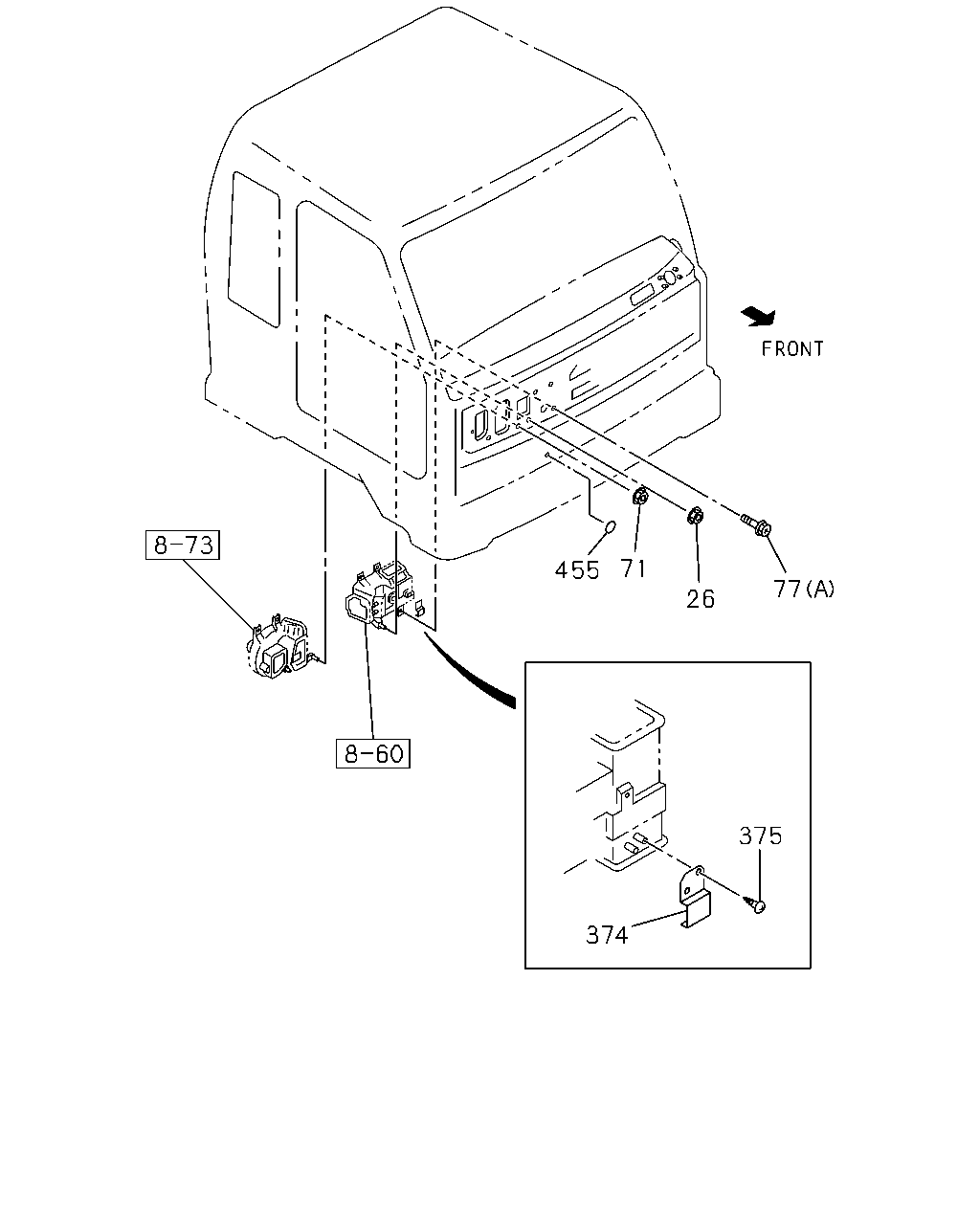

71 455 77 26 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; HTR M6 FLANGE W/RUBBER TAI	1-09984-180-0	02	1	9811-	●	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER TAI	1-09984-180-0	04	1	9811-	●	●
77	BOLT; HTR UNIT (A) M6X16 TAI	1-09980-598-1	02	1	9811-	●	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9811-	●	●
374	HOLDER; DUCT TAI	1-76398-012-1	01	1	9811-0610	●	●
374	HOLDER; DUCT HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI	1-76398-012-1	01	1	0611-	●
374	HOLDER; DUCT TAI	1-76398-012-1	01	1	0611-		●
375	SCREW; HOLDER M5X14 TAI	8-94279-325-0	02	1	9811-0610	●	●
375	SCREW; HOLDER HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M5X14 TAI	8-94279-325-0	02	1	0611-	●
375	SCREW; HOLDER M5X14 TAI	8-94279-325-0	02	1	0611-		●
455	SEAL; CLIP HOLE EXC. HEATER & DEFROSTER(C41),A/C MAN CONT(C60) OD=25 BLACK TAI	1-76798-019-0	01	1	0611-	●
