◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#7515) — 75 parça

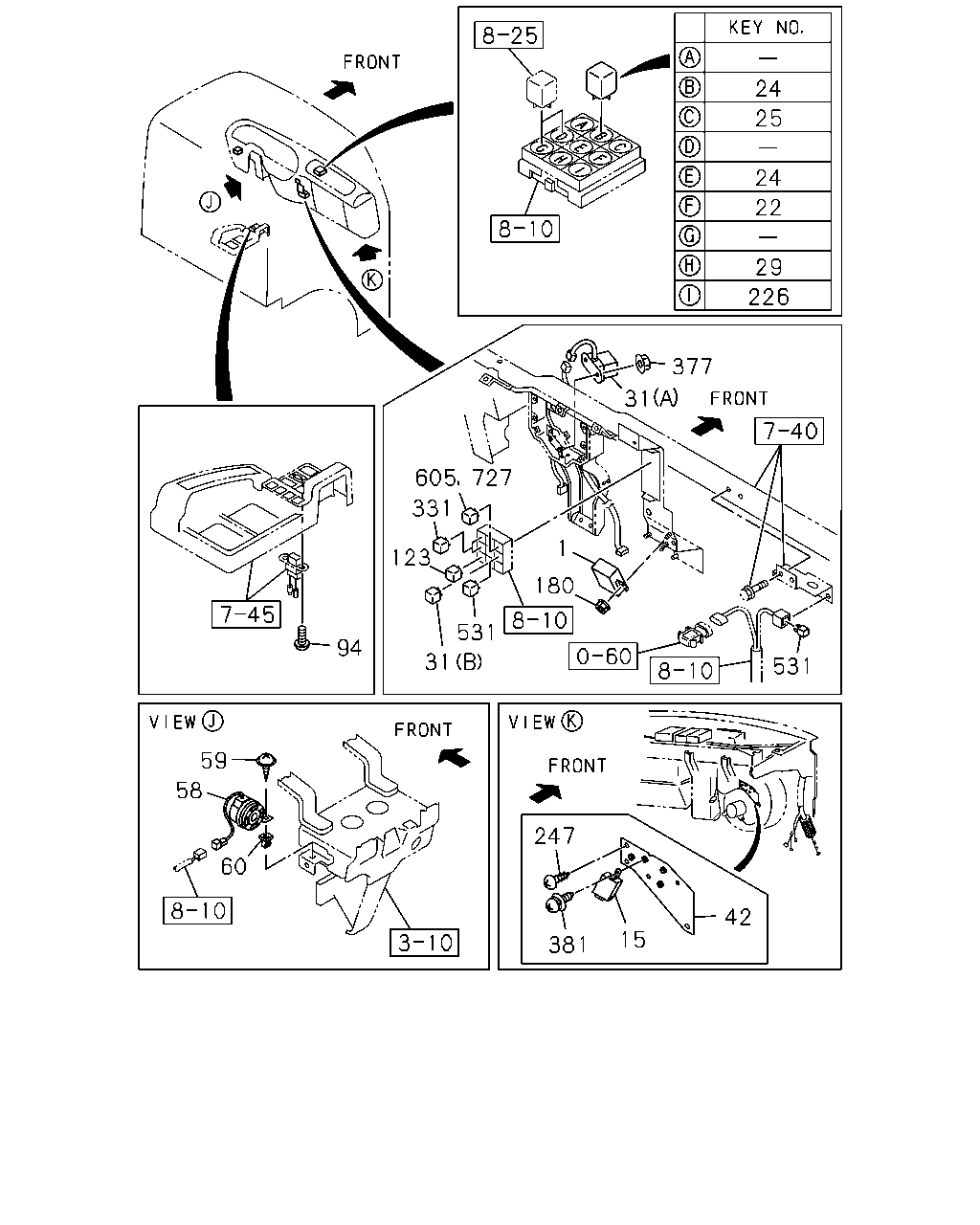

çizim 26389
24 25 24 22 29 226 377 31 605 727 331 1 123 180 531 94 31 531 59 58 247 60 42 15 381
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 1-83470-060-1 01 1 9811- ● ●
15 RELAY; STOP & TAIL WARNING
24V,25WX2,10WX2 TAI 		1-82550-299-0 01 1 9811-0610 ● ●
22 RELAY; STOP LAMP
24V 12.5A JIDECO TAI 		8-97062-815-1 01 1 9811-0111 ● ●
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
24 RELAY; LIGHTING
24V 12.5A JIDECO TAI 		8-97062-815-1 02 1 9811-0111 ● ●
24 RELAY; LIGHTING
24V 12.5A MATSUSHITA 		8-97262-933-0 02 1 0112- ● ●
25 RELAY; TAIL LAMP
24V 12.5A JIDECO TAI 		8-97062-815-1 01 1 9811-0111 ● ●
25 RELAY; TAIL LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
29 RELAY; HORN
24V 12.5A JIDECO TAI 		8-97062-815-1 01 1 9811-0111 ● ●
29 RELAY; HORN
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V TAI 		1-82550-187-1 01 1 0611- ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0611- ●
42 BRACKET; RELAY 1-82699-866-1 01 1 9811-0610 ● ●
58 BUZZER; AIR PRESSURE WARNING
NIKKO 		1-83460-056-0 01 1 9811-0610 ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO 		1-83460-075-0 01 1 0611-0612 ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO 		8-98069-859-0 01 1 0701- ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO 		1-83460-074-0 01 1 9904-9907 ● ●
58 BUZZER; AIR PRESSURE WARNING
EXC. NIKKO<Y70> METRO TAI 		1-83460-074-1 01 1 9908-0610 ● ●
59 SCREW; BUZZER
M5X14 TAI 		8-94279-325-0 01 1 0611-0611 ●
59 SCREW; BUZZER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811-0604 ● ●
59 SCREW; BUZZER
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605- ● ●
60 GROMMET; SCREW,BUZZER
D=8.6X7.7 L=7.5 TAI 		8-94279-078-0 01 1 9811- ● ●
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 9811-9906 ● ●
123 RELAY; HTR
24V 12.5A JIDECO TAI 		8-97062-815-1 01 1 9811-0111 ● ●
123 RELAY; HTR
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0610 ● ●
123 RELAY; HTR
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0611- ●
123 RELAY; HTR
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0611- ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 9811-0602 ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
226 RELAY; EXH BRK
24V 12.5A JIDECO TAI 		8-97062-815-1 01 1 9811-0111 ● ●
226 RELAY; EXH BRK
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0610 ● ●
247 SCREW; BRKT
M5X14 TAI 		8-94279-325-0 02 1 9811-0610 ● ●
331 RELAY; A/C
TAI 		8-97530-757-0 02 1 9811-0610 ● ●
331 RELAY; A/C
A/C MAN CONT(C60) 24V 12.5A MATSUSHITA 		8-97262-933-0 02 1 0611- ●
331 RELAY; A/C
24V 12.5A MATSUSHITA 		8-97262-933-0 02 1 0611- ●
377 NUT; RELAY
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 02 1 0611- ●
381 SCREW; RELAY
M5X16 W/LK&PL WASHER TAI 		8-94279-400-0 01 1 9811-0610 ● ●
531 RELAY; MAIN
24V 12.5A JIDECO TAI 		8-97062-815-1 01 1 9907-0111 ● ●
531 RELAY; MAIN
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0610 ● ●
531 RELAY; MAIN
24V 		1-82550-308-1 01 1 0611- ● ●
605 RELAY; PCV
24V 12.5A JIDECO TAI 		8-97062-815-1 01 1 9907-0111 ● ●
605 RELAY; PCV
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0610 ● ●
727 RELAY; START CUT
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0611- ● ●

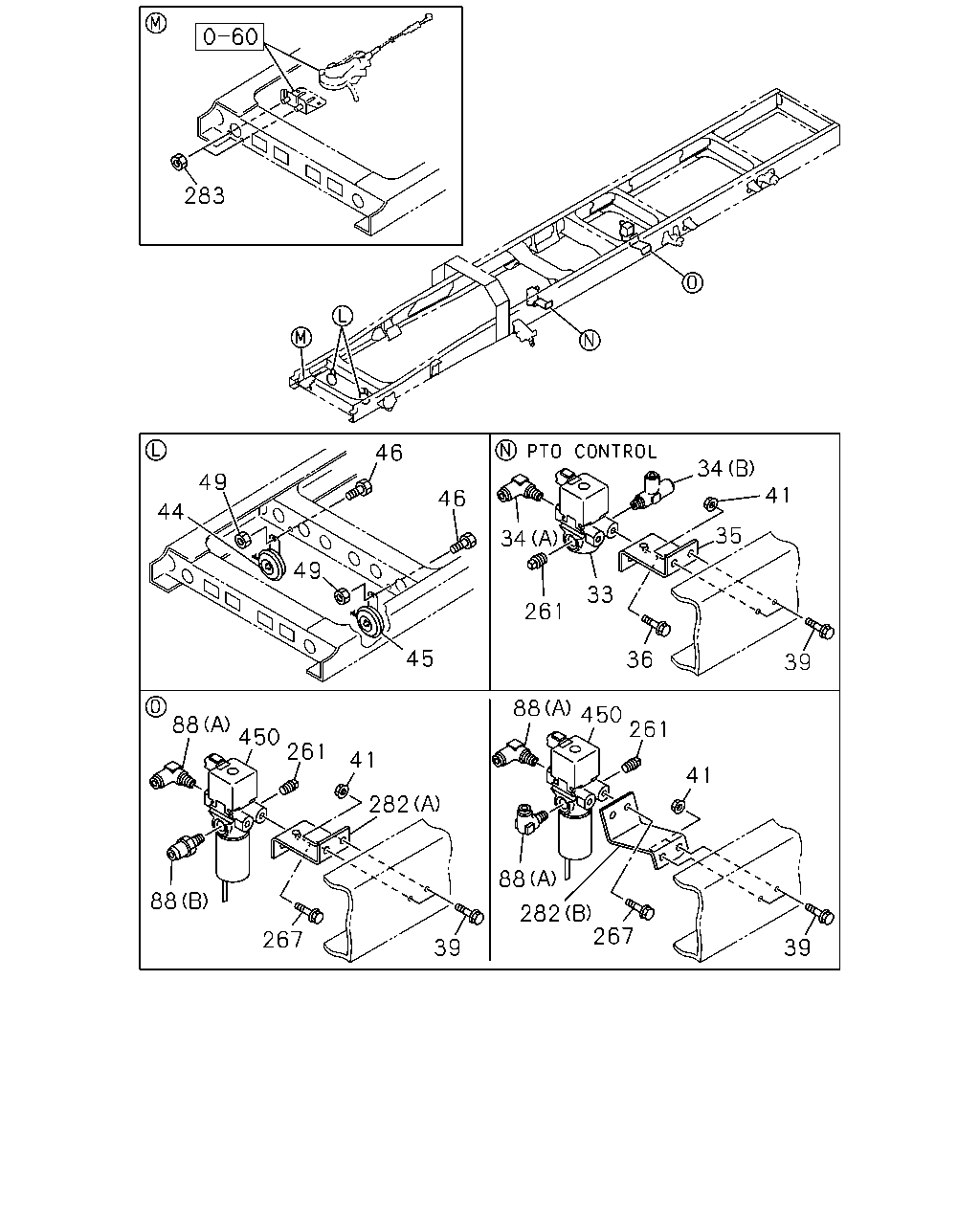

çizim 26950
283 46 34 49 41 46 44 35 34 49 33 261 45 36 39 88 450 261 88 450 261 41 41 282 88 88 282 267 267 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
33 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> 		1-82563-871-2 01 1 0611- ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0611- ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0611- ●
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> 		1-47471-374-1 01 1 0611- ●
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0611- ●
39 BOLT; BRKT,MAG VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0611- ● ●
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X30 FLANGE 		0-28650-830-0 02 1 0611- ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0611- ● ●
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0611- ●
44 HORN; HIGH NOTE
TAI 		8-97530-255-0 01 1 9811-0106 ● ●
44 HORN; HIGH NOTE 1-83410-061-1 01 1 0107-0110 ● ●
44 HORN; HIGH NOTE
TAI 		8-97531-279-0 01 1 0111-0610 ● ●
44 HORN; HIGH NOTE 1-83410-061-1 01 1 0611- ● ●
45 HORN; LOW NOTE
TAI 		8-97530-256-0 01 1 9811-0106 ● ●
45 HORN; LOW NOTE 1-83410-062-1 01 1 0107-0110 ● ●
45 HORN; LOW NOTE
TAI 		8-97531-278-0 01 1 0111-0610 ● ●
45 HORN; LOW NOTE 1-83410-062-1 01 1 0611- ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 9811-0512 ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 9811-0602 ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0611- ● ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0611- ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0611- ●
88 CONNECTOR; MAG VLV
(B) DIN8 R1/4 STRAIGHT TAI 		1-09660-963-0 01 1 0611- ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0611- ● ●
261 PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 0611- ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0611- ● ●
282 BRACKET; MAG VLV
(B) 		1-47471-360-0 01 1 0611- ●
282 BRACKET; MAG VLV
(A) 		1-47471-374-1 01 1 0611- ●
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9811-9906 ● ●
450 VALVE; MAG 8-97376-939-3 01 1 0611- ● ●
