0-65 — STARTER (#75138) — 40 parça

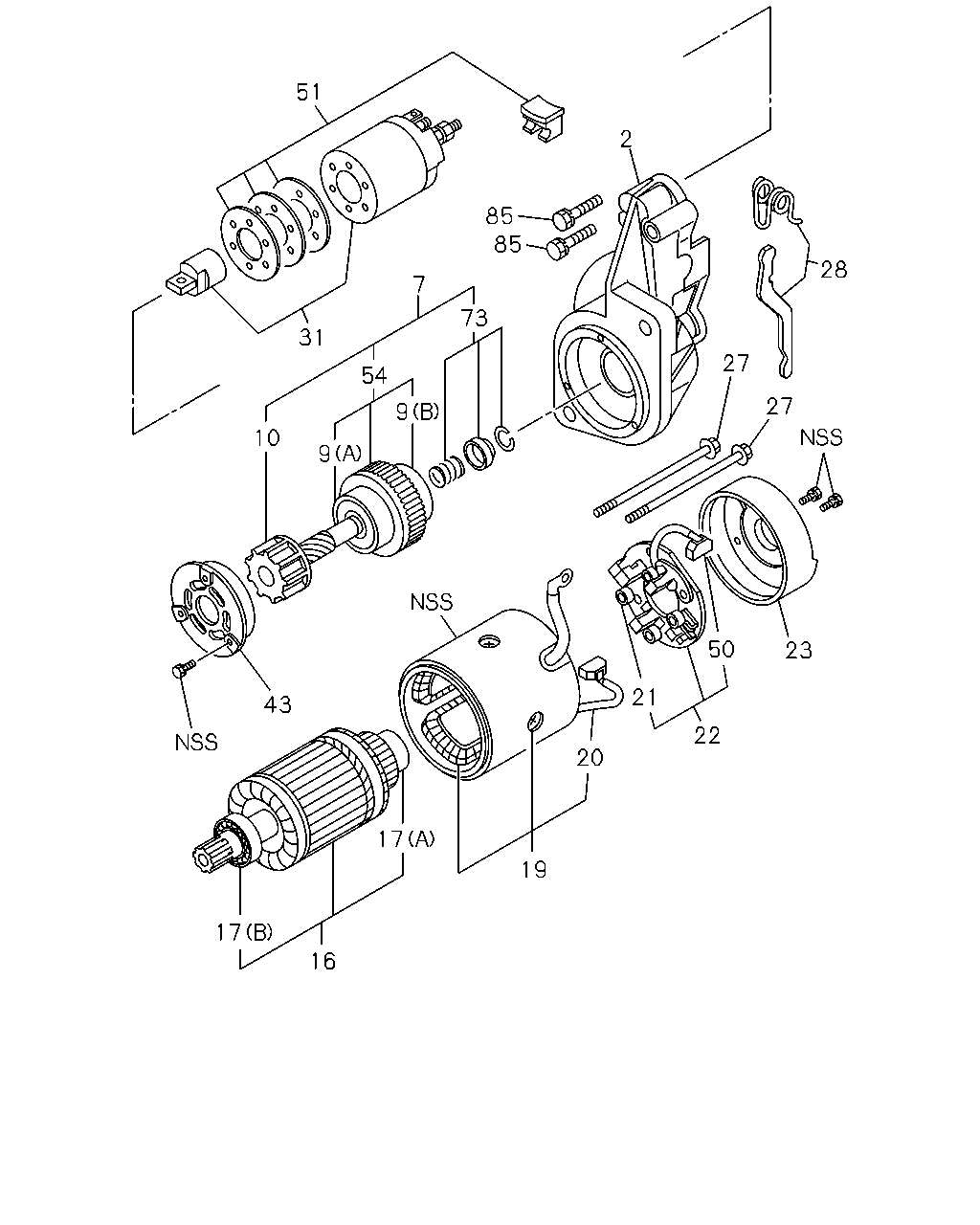

çizim 443167
51 31 7 85 85 2 73 54 9 9 10 43 17 16 17 19 20 21 22 50 23 27 27 28
BalonParca AdiParca NoAdetTipApplied Date
2 02.085 CASE; PINION,STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-92143-364-0 01 1 -
2 02.085 CASE; PINION,STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-97941-668-0 01 1 -
3 02.083 METAL; PINION CASE STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-92140-484-0 02 1 -
7 02.086 CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-92145-123-0 01 1 -
7 02.086 CLUTCH ASM; PINION,STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-97941-664-0 01 1 -
9 02.083 BEARING; GEAR SHAFT STARTER
(A) ASM PART: B = 8-98028-198-0, 98028198 		8-97941-659-0 01 1 -
9 02.083 BEARING; GEAR SHAFT STARTER
(B) ASM PART: B = 8-98028-198-0, 98028198 		8-97941-660-0 01 1 -
10 02.086 SHAFT; GEAR STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-97130-189-1 01 1 -
16 02.043 ARMATURE; STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-92143-322-0 01 1 -
16 02.043 ARMATURE; STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-97941-656-0 01 1 -
17 02.083 BEARING; ARMATURE,STARTER
(A) ASM PART: B = 8-98028-198-0, 98028198 		8-97941-657-0 01 1 -
17 02.083 BEARING; ARMATURE,STARTER
(B) ASM PART: B = 8-98028-198-0, 98028198 		8-97941-658-0 01 1 -
19 02.049 COIL; FIELD,STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-92145-122-0 01 1 -
19 02.049 COIL; FIELD,STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-97357-783-1 01 1 -
20 02.051 BRUSH; (+),STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-97112-557-0 02 1 -
21 02.053 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-92143-333-0 01 1 -
21 02.053 SPRING; BRUSH HOLDER STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-94242-064-0 04 1 -
22 02.051 HOLDER; BRUSH STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-92143-326-0 01 1 -
22 02.051 HOLDER; BRUSH STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-97941-663-0 01 1 -
23 02.067 COVER; RR COVER STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-92143-327-0 01 1 -
23 02.067 COVER; RR COVER STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-97227-901-0 01 1 -
27 02.077 BOLT; THROUGH,STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-92143-353-0 02 1 -
27 02.077 BOLT; THROUGH,STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-97262-497-0 02 1 -
28 02.108 LEVER; SHIFT,STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-92140-255-0 01 1 -
28 02.108 LEVER; SHIFT,STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-97941-670-0 01 1 -
31 02.100 SWITCH; ENGAGE STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-92143-366-0 01 1 -
31 02.100 SWITCH; ENGAGE STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-97365-923-1 01 1 -
37 02.083 METAL; RR COVER STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-90141-625-0 01 1 -
40 02.049 COVER; DUST,RR COVER,STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-92143-328-0 01 1 -
43 02.086 RETAINER; PINION STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-97941-669-0 01 1 -
50 02.051 BRUSH; (-),STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-97112-557-0 02 1 -
51 02.104 COVER SET; DUST ENGAGE SW STARTE
ASM PART: B = 8-98028-198-0, 98028198 		8-97941-671-0 01 1 -
54 02.086 CLUTCH; PINION,STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-93170-383-0 01 1 -
54 02.086 CLUTCH; PINION,STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-97941-665-0 01 1 -
73 02.063 STOPPER SET; PINION
ASM PART: B = 8-98028-198-0, 98028198 		8-94228-450-0 01 1 -
79 02.055 HOLDER; SHIFT LEVER
ASM PART: A = 8-92065-921-0, 92065921 		8-92143-365-0 01 1 -
85 02.102 BOLT; ENGAGE SW FIX,STARTER
ASM PART: B = 8-98028-198-0, 98028198 		8-97941-672-0 02 1 -
95 02.051 BRUSH ASM; STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-92143-329-0 01 1 -
122 02.041 REPAIR KIT; STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-92143-334-0 01 1 -
138 02.041 SEAL; STARTER
ASM PART: A = 8-92065-921-0, 92065921 		8-92143-350-0 01 1 -
