0-60 — ENGINE ELECTRICAL CONTROL PARTS (#75136) — 101 parça

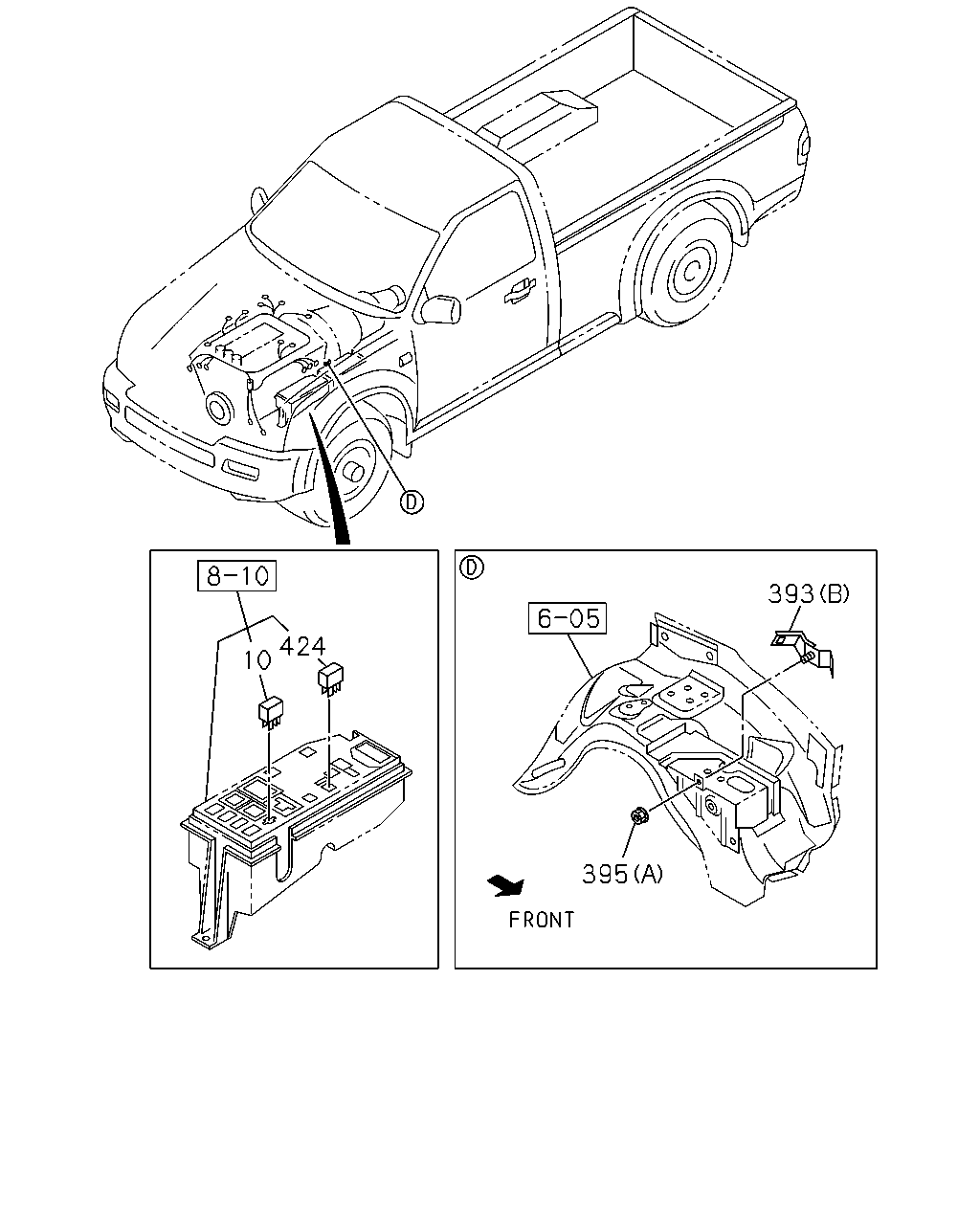

çizim 73331
393 424 10 395
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0810- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0610-1009 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92067-925-0 01 1 1010- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0810- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0810- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97360-782-1 01 1 0610- ●
4 02.042 BOLT; STARTER
(C) M12X60 FLANGE 		0-28051-260-0 02 1 0810- ●
4 02.042 BOLT; STARTER
(A) M10X25 FLANGE 		0-28151-025-0 01 1 0610- ●
4 02.042 BOLT; STARTER
(B) 		8-11073-352-0 01 1 0610- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0810- ●
10 02.100 RELAY; STARTER
EMISSION SYSTEM R15-04<K75> 12V YAZAKI 		8-98146-837-0 01 1 0810- ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0610-0809 ●
10 02.100 RELAY; STARTER
EURO1 SPECIFICATION<NT1> 02.575 12V OMRON 		8-98005-407-0 01 1 0810- ●
10 02.100 RELAY; STARTER
09.778 12V YAZAKI 		8-97309-293-0 01 1 0711-0809 ●
10 02.100 RELAY; STARTER
EURO1 SPECIFICATION<NT1> 09.778 12V YAZAKI 		8-97309-293-0 01 1 0810- ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28056-013-0 01 1 0810- ●
16 02.277 BOLT; GEN
(A) 		8-11098-091-0 01 1 0610- ●
16 02.277 BOLT; GEN
(B) 		8-92138-526-0 01 1 0610- ●
19 02.277 BRACKET; GEN 8-92063-352-0 01 1 0610- ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 0810- ●
22 09.008 BOLT; GEN 8-92066-080-0 01 1 0610- ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0810- ●
23 02.277 NUT; GEN
06.672 M10 FLANGE 		0-91280-210-0 01 1 0610- ●
24 02.277 BOLT; GEN BRKT
(B) M10X70 W/LK WASHER 		0-50041-070-0 02 1 0810-0909 ●
24 02.277 BOLT; GEN BRKT
17.185 (B) M10X70 W/LK WASHER 		0-50541-070-0 02 1 0910- ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0810- ●
24 02.277 BOLT; GEN BRKT
(C) 		8-11090-683-0 02 1 0610- ●
31 02.251 CLIP; HIGH TENSION CABLE
(A) 		8-02965-736-0 01 1 0610-1009 ●
31 02.251 CLIP; HIGH TENSION CABLE
(B) 		8-90320-343-0 01 1 0610- ●
31 02.251 CLIP; HIGH TENSION CABLE
(C) 		8-90320-344-0 01 1 0610- ●
31 02.251 CLIP; HIGH TENSION CABLE
(D) 		8-90320-345-0 01 1 0610- ●
31 02.251 CLIP; HIGH TENSION CABLE
(E) 		8-90341-384-0 01 1 0610- ●
33 02.170 COIL ASM; IGN 8-01104-039-0 01 1 0610-1009 ●
33 02.170 COIL ASM; IGN 8-93363-483-0 01 1 1010- ●
35 02.183 BRACKET; IGN COIL 8-92064-829-0 01 1 0610- ●
37 02.559 BOLT; IGN COIL
02.500 		8-92065-435-0 03 1 0610- ●
46 02.510 RELAY; GLOW PLUG
EMISSION SYSTEM R15-04<K75> 02.100 12V YAZAKI 		8-98146-837-0 01 1 0810- ●
53 02.240 CABLE; IGN PLUG
(A) 		8-92066-027-0 01 1 0610- ●
53 02.240 CABLE; IGN PLUG
(B) 		8-92066-028-0 01 1 0610- ●
53 02.240 CABLE; IGN PLUG
(C) 		8-92066-029-0 01 1 0610- ●
53 02.240 CABLE; IGN PLUG
(D) 		8-92066-030-0 01 1 0610- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0810- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0810- ●
97 01.150 SWITCH; THERMO,EGR CONT
4X2(TFB***) EURO1 SPECIFICATION<NT1> 		8-94457-511-0 01 1 0810- ●
97 01.150 SWITCH; THERMO,EGR CONT
4X4 CREW CAB(TFS*W*) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> 		8-94457-511-0 01 1 0810- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0810- ●
106 01.150 SWITCH; THERMO,AIR
4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 CREW CAB LONG(TFS6WF) EURO1 SPECIFICATION<NT1> 		8-97043-749-0 01 1 0810- ●
110 01.251 BRACKET; THERMO SW CONNECTOR
4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 CREW CAB LONG(TFS6WF) EURO1 SPECIFICATION<NT1> 		8-97351-380-0 01 1 0810- ●
111 01.251 BOLT; SWITCH BRKT
4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 CREW CAB LONG(TFS6WF) EURO1 SPECIFICATION<NT1> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0810- ●
112 01.251 NUT; SWITCH BRKT
4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 CREW CAB LONG(TFS6WF) EURO1 SPECIFICATION<NT1> 00.785 M16 		0-91111-516-0 01 1 0810- ●
124 01.150 SENSOR; OXYGEN 8-25327-985-0 01 1 0610-0809 ●
124 01.150 SENSOR; OXYGEN
EURO1 SPECIFICATION<NT1> 		8-25327-985-0 01 1 0810- ●
130 02.510 CONTROLLER; EGR
4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 CREW CAB LONG(TFS6WF) EURO1 SPECIFICATION<NT1> 		8-97332-298-1 01 1 0810- ●
133 02.500 BOLT; EGR CONTROLLER
4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 CREW CAB LONG(TFS6WF) EURO1 SPECIFICATION<NT1> 09.171 M6X16 FLANGE 		0-28450-616-0 02 1 0810- ●
254 02.277 NUT; GEN BRKT
02.275 		8-92066-081-1 01 1 0610- ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-12146-312-0 01 1 0610-1009 ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-15326-386-0 01 1 1010- ●
260 01.150 SENSOR; WATER TEMP
(A) 		8-92063-893-0 01 1 0610- ●
294 02.042 INSULATOR; SPACER
(A) 		8-92065-516-0 04 1 0610- ●
294 02.042 INSULATOR; SPACER
02.510 (B) 		8-92065-517-0 04 1 0610- ●
309 02.510 TIMER; AFTER GLOW,QOS 8-97361-319-3 01 1 0810- ●
377 02.183 BRACKET; HIGH TENSION CABLE
(A) 		8-90460-630-0 01 1 0610- ●
377 02.183 BRACKET; HIGH TENSION CABLE
(B) 		8-90460-631-0 01 1 0610- ●
377 02.183 BRACKET; HIGH TENSION CABLE
(C) 		8-90493-625-0 01 1 0610- ●
385 02.183 BOLT; BRKT,IGN COIL
03.670 (A) 		8-11041-103-0 01 1 0610-1009 ●
385 02.183 BOLT; BRKT,IGN COIL
(B) 		8-11094-881-0 01 1 0610- ●
385 02.183 BOLT; BRKT,IGN COIL
(C) 		8-92138-664-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98050-823-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98050-827-0 01 1 0810- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-167-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-829-0 01 1 0610- ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-98049-362-0 01 1 0810- ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610-0809 ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0810- ● ●
417 02.420 CLIP 8-92138-212-0 01 1 0610-1009 ●
417 02.420 CLIP 8-90044-312-0 01 1 1010- ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0610-0710 ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0711-0809 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0810- ●
424 02.510 RELAY; SAFETY,STARTER
EMISSION SYSTEM R15-04<K75> 02.485 12V YAZAKI 		8-97309-292-0 01 1 0810- ●
424 02.510 RELAY; SAFETY,STARTER
4X4 CREW CAB(TFS*W*) 02.575 OR 12V OMRON 		8-98005-407-0 01 1 0610-0710 ● ●
539 02.510 SCREW; SENSOR 8-90280-051-0 03 1 0610- ●
601 03.670 NUT; UNIT
03.901 (A) 		8-11013-127-0 02 1 0610- ●
601 03.670 NUT; UNIT
02.042 (B) M6 		8-11094-425-0 04 1 0610- ●
606 03.680 BRACKET; CONT UNIT 8-92066-169-0 01 1 0610- ●
613 03.670 CONTROL UNIT; ENG 8-09387-459-0 01 1 0610-0809 ●
613 03.670 CONTROL UNIT; ENG
EURO1 SPECIFICATION<NT1> 		8-09387-459-0 01 1 0810- ●
640 02.510 BOLT; BRKT,QOS GLOW TIMER
09.171 M6X16 FLANGE 		0-28450-616-0 02 1 0810- ●
644 02.510 RELAY; COLD START DEVICE
EMISSION SYSTEM R15-04<K75> 02.485 12V YAZAKI 		8-97309-292-0 01 1 0810- ●
711 02.510 WASHER; PL,CONT UNIT
00.206 		8-90220-983-0 04 1 0610- ●
748 02.500 BOLT; CONT UNIT
(A) 		8-92065-435-0 04 1 0610- ●
748 02.500 BOLT; CONT UNIT
(B) 		8-92138-695-0 02 1 0610-0611 ●
748 02.500 BOLT; CONT UNIT
(B) 		8-98064-521-0 02 1 0612- ●
766 02.363 GASKET; SENSOR 8-10473-965-0 01 1 0610- ●
782 02.510 BOLT; SENSOR 8-11093-881-0 01 1 0610- ●
812 02.510 ROTOR; SENSOR 8-90265-094-0 01 1 0610- ●
828 02.277 SHACKLE; GEN 8-92066-079-0 01 1 0610- ●
829 02.510 BOLT; SHACKLE
01.516 M8X20 FLANGE 		8-11097-731-0 01 1 0610-1009 ●
829 02.510 BOLT; SHACKLE
01.153 		8-11090-684-0 02 1 1010- ●
832 02.510 SENSOR; CRANK ANGLE & ENG SPD 8-10456-597-0 01 1 0610- ●
876 02.500 SPACER; CONT UNIT 8-92065-515-0 04 1 0610- ●
