◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51100 - TFR/S GM MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#75131) — 50 parça

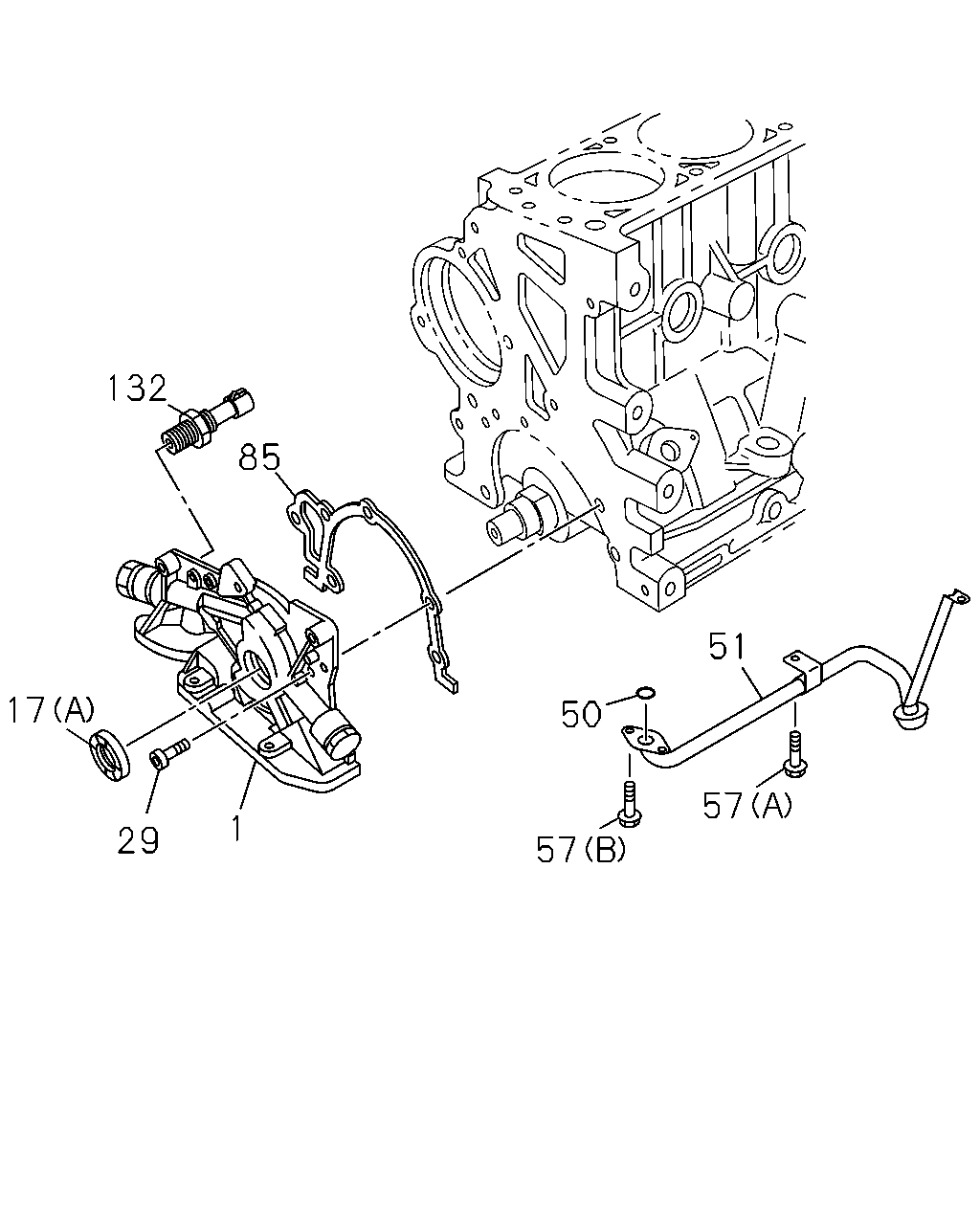

çizim 64228
132 85 51 17 50 57 1 29 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.652 PUMP ASM; OIL 8-97385-985-0 01 1 0810- ●
1 01.652 PUMP ASM; OIL 8-24406-585-0 01 1 0610-1009 ●
1 01.652 PUMP ASM; OIL 8-93287-137-0 01 1 1010- ●
7 01.657 BOLT; COVER,OIL PUMP 8-11085-861-0 05 1 0610-1009 ●
17 01.657 SEAL; OIL,OIL PUMP
(B) 		8-11096-531-0 01 1 0610-1009 ●
17 01.657 SEAL; OIL,OIL PUMP
(A) 		8-90183-572-0 01 1 0610- ●
25 01.609 PLUG; OIL PUMP 8-90501-549-0 01 1 0610-1009 ●
29 01.652 BOLT; OIL PUMP
03.275 M8X25 FLANGE 		0-28050-825-0 02 1 0810- ●
29 01.652 BOLT; OIL PUMP 8-11084-962-0 06 1 0610- ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM 8-90500-908-0 01 1 0610- ●
51 01.519 STRAINER & PIPE ASM; OIL
4X2(TFB***) 		8-92065-493-0 01 1 0610- ●
51 01.519 STRAINER & PIPE ASM; OIL
4X4(TFS***) 		8-92065-525-0 01 1 0610- ●
57 01.531 BOLT; OIL PIPE
01.780 (A) 		8-11096-921-0 02 1 0610- ●
57 01.531 BOLT; OIL PIPE
(B) 		8-92064-465-0 02 1 0610-1009 ●
57 01.531 BOLT; OIL PIPE
(B) 		8-11055-131-0 02 1 1010- ●
68 01.609 WASHER; RELIEF VLV 8-11093-042-0 01 1 0610-1009 ●
85 01.655 GASKET; OIL PUMP 8-90573-825-0 01 1 0610- ●
105 01.855 CONNECTOR; OIL FILTER 8-90412-159-0 01 1 0610-1009 ●
119 01.639 PLUG; RELIEF VLV 8-03448-834-0 01 1 0610-1009 ●
120 01.639 SPRING; RELIEF VLV 8-90501-547-0 01 1 0610-1009 ●
128 01.609 BALL; BYPASS VLV,OIL PUMP 8-11055-689-0 01 1 0610-1009 ●
129 01.609 PLUNGER; RELIEF VLV 8-24402-723-0 01 1 0610-1009 ●
130 01.609 SLEEVE; OIL PUMP 8-90351-709-0 02 1 0610- ●
131 01.609 SPRING; BYPASS VLV,OIL PUMP
00.293 		8-90136-113-0 01 1 0610-1009 ●
132 01.800 SWITCH; OIL PRESSURE 8-90336-039-0 01 1 0610-1009 ●
132 01.800 SWITCH; OIL PRESSURE 8-93318-082-0 01 1 1010- ●
çizim 185471
1 29 1 45 2 5 121 19 35 42 49 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.652 PUMP ASM; OIL 8-97385-985-0 01 1 0810- ●
1 01.652 PUMP ASM; OIL 8-24406-585-0 01 1 0610-1009 ●
1 01.652 PUMP ASM; OIL 8-93287-137-0 01 1 1010- ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 0810- ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 0810- ●
7 01.657 BOLT; COVER,OIL PUMP 8-11085-861-0 05 1 0610-1009 ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 0810- ●
25 01.609 PLUG; OIL PUMP 8-90501-549-0 01 1 0610-1009 ●
29 01.652 BOLT; OIL PUMP
03.275 M8X25 FLANGE 		0-28050-825-0 02 1 0810- ●
29 01.652 BOLT; OIL PUMP 8-11084-962-0 06 1 0610- ●
35 01.657 COVER; OIL PUMP 8-97203-876-0 01 1 0810- ●
42 01.656 STRAINER; OIL,OIL PUMP
01.657 		8-97089-824-0 01 1 0810- ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 0810- ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.275 (B) M8X25 FLANGE 		0-28050-825-0 02 1 0810- ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.162 (A) M8X35 FLANGE 		0-28050-835-0 02 1 0810- ●
68 01.609 WASHER; RELIEF VLV 8-11093-042-0 01 1 0610-1009 ●
105 01.855 CONNECTOR; OIL FILTER 8-90412-159-0 01 1 0610-1009 ●
119 01.639 PLUG; RELIEF VLV 8-03448-834-0 01 1 0610-1009 ●
120 01.639 SPRING; RELIEF VLV 8-90501-547-0 01 1 0610-1009 ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 0810- ●
128 01.609 BALL; BYPASS VLV,OIL PUMP 8-11055-689-0 01 1 0610-1009 ●
129 01.609 PLUNGER; RELIEF VLV 8-24402-723-0 01 1 0610-1009 ●
130 01.609 SLEEVE; OIL PUMP 8-90351-709-0 02 1 0610- ●
131 01.609 SPRING; BYPASS VLV,OIL PUMP
00.293 		8-90136-113-0 01 1 0610-1009 ●
