◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#7513) — 31 parça

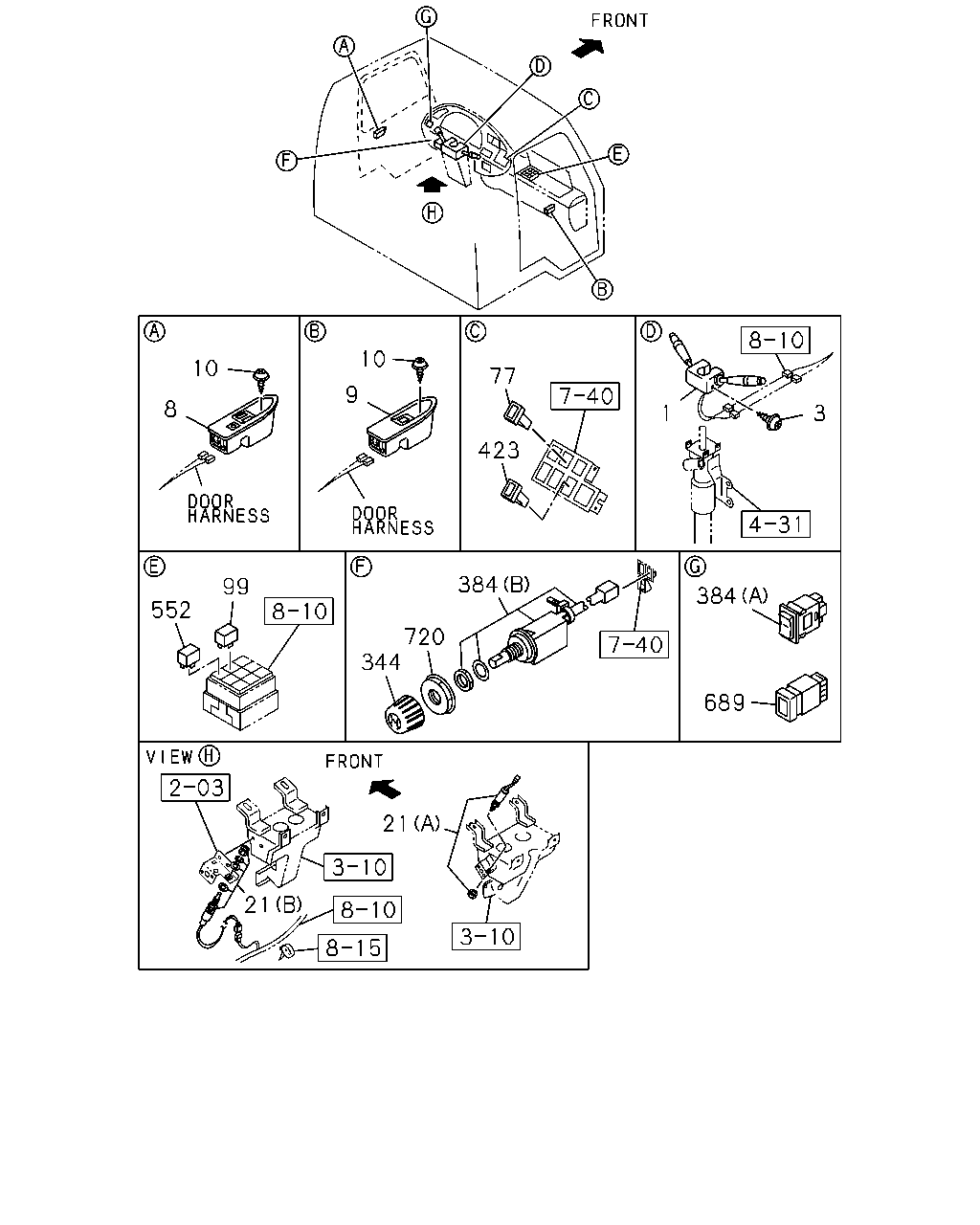

çizim 26559
10 10 77 9 8 3 1 423 384 99 384 552 720 344 689 21 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 1-82360-405-4 01 1 9811-0103 ● ●
1 SWITCH; COMB 1-82360-647-0 01 1 0104-0312 ● ●
1 SWITCH; COMB 1-82360-734-0 01 1 0401- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9811-0604 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ● ●
8 SWITCH; POWER WINDOW
DRIVER 		1-82380-157-3 01 1 9811-0610 ● ●
8 SWITCH; POWER WINDOW
DRIVER 		1-82380-157-3 01 1 0611-0611 ●
8 SWITCH; POWER WINDOW
DRIVER 		1-82380-157-4 01 1 0611- ● ●
9 SWITCH; POWER WINDOW
PASSENGER 		1-82380-158-3 01 1 9811-0610 ● ●
9 SWITCH; POWER WINDOW
PASSENGER 		1-82380-158-3 01 1 0611-0611 ●
9 SWITCH; POWER WINDOW
PASSENGER 		1-82380-158-3 01 1 0611- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9811-0604 ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ● ●
21 SWITCH; CLU
(B) 		1-82380-114-1 01 1 9811-9906 ● ●
21 SWITCH; CLU
(A) 		1-82440-116-1 01 1 9907-0608 ● ●
21 SWITCH; CLU
(A) 		1-82440-126-1 01 1 0609- ● ●
77 SWITCH; PTO
PTO CONTROL<SV6> TAI 		1-82340-403-0 01 1 0611- ●
99 RELAY; FOG LAMP
24V 12.5A JIDECO TAI 		8-97062-815-1 01 1 9811-0111 ● ●
99 RELAY; FOG LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
344 KNOB; SW,IDLE 8-98013-420-0 01 1 0611- ● ●
384 SWITCH; IDLING CONT,ELEC
(A) 		1-82350-213-1 01 1 9907-0610 ● ●
384 SWITCH; IDLING CONT,ELEC
(B) 		8-98013-418-0 01 1 0611- ● ●
423 SWITCH; ENG WARMING 1-82340-697-0 01 1 0611- ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A JIDECO TAI 		8-97062-815-1 01 1 9811-0111 ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
689 SWITCH; DPD 1-82340-693-0 01 1 0611- ● ●
720 HOLDER; SW,IDLE 8-97352-127-0 01 1 0611- ● ●
çizim 99119
257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 01 1 9811- ● ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9811-9906 ● ●
30 SCREW; DOOR SW
M5X11 TAI 		1-09981-536-1 01 1 9907- ● ●
257 COVER; HOLE,SW
TAI 		8-94229-914-1 01 1 9811- ● ●
