0-33 — FAN AND FAN BELT (#75124) — 20 parça

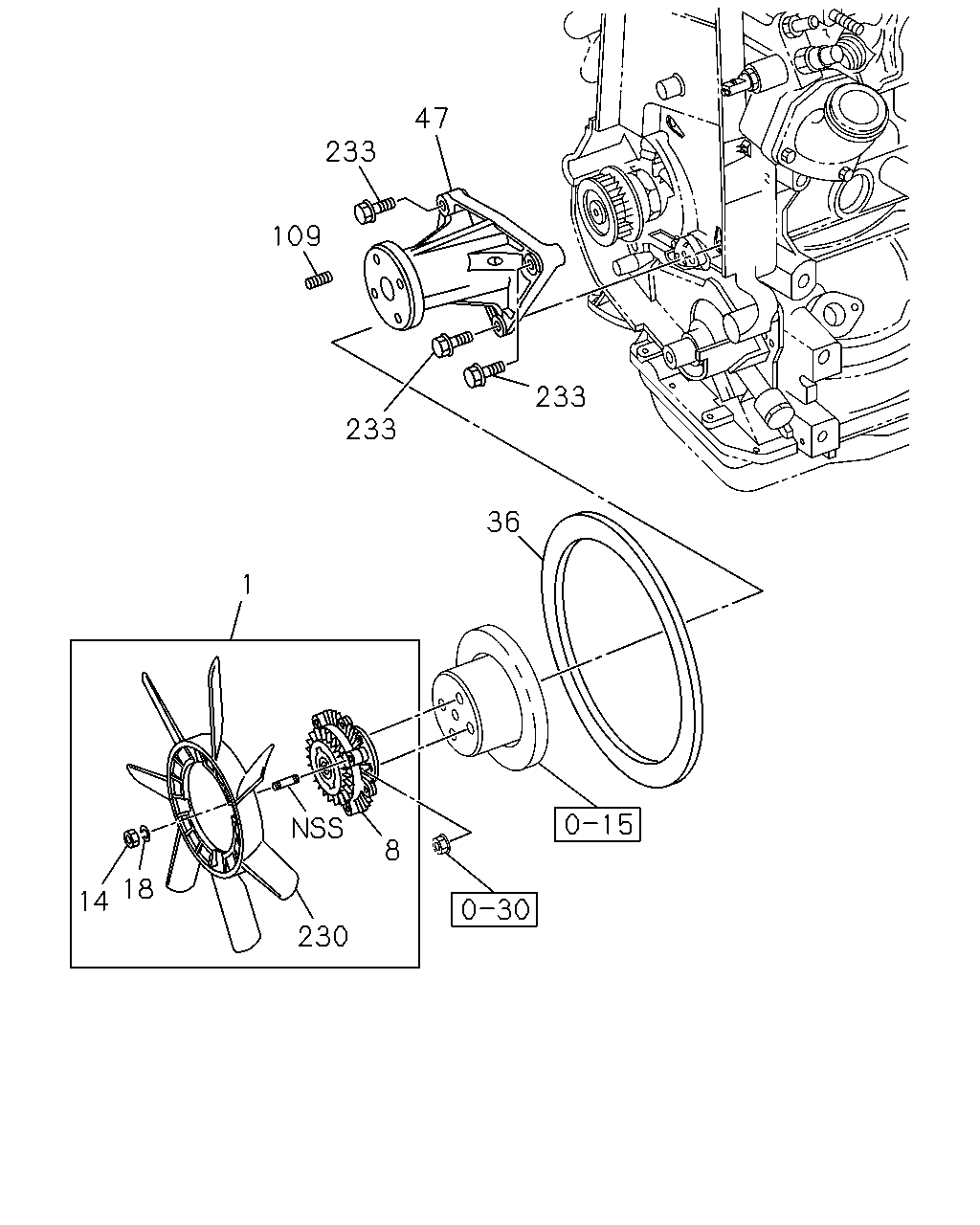

çizim 60991
47 233 109 233 233 36 1 8 18 14 230
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0810- ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 0610- ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0810- ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0610- ●
14 01.062 NUT; FAN TO CLU 8-98012-835-0 04 1 0810- ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0610- ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 0610- ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0810- ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 0610- ●
47 01.060 BRACKET; FAN 8-92064-194-0 01 1 0610- ●
71 02.317 BOLT; ADJ PLATE,GEN
02.277 (B) M8X40 FLANGE 		0-28050-840-0 01 1 0810- ●
71 02.317 BOLT; ADJ PLATE,GEN
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0810- ●
80 02.317 PLATE; ADJ
02.277 		8-97306-546-0 01 1 0810- ●
109 01.062 STUD; FAN CLU 8-92064-389-0 04 1 1010- ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0810- ●
175 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 0810- ●
230 01.055 FAN; COOLING 8-97921-857-1 01 1 0810- ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 0610- ●
233 01.060 BOLT; FAN BRKT 8-11082-931-0 03 1 0610-1009 ●
233 01.060 BOLT; FAN BRKT 8-93299-090-0 03 1 1010- ●
