0-32 — WATER PIPING; ENGINE (#75123) — 31 parça

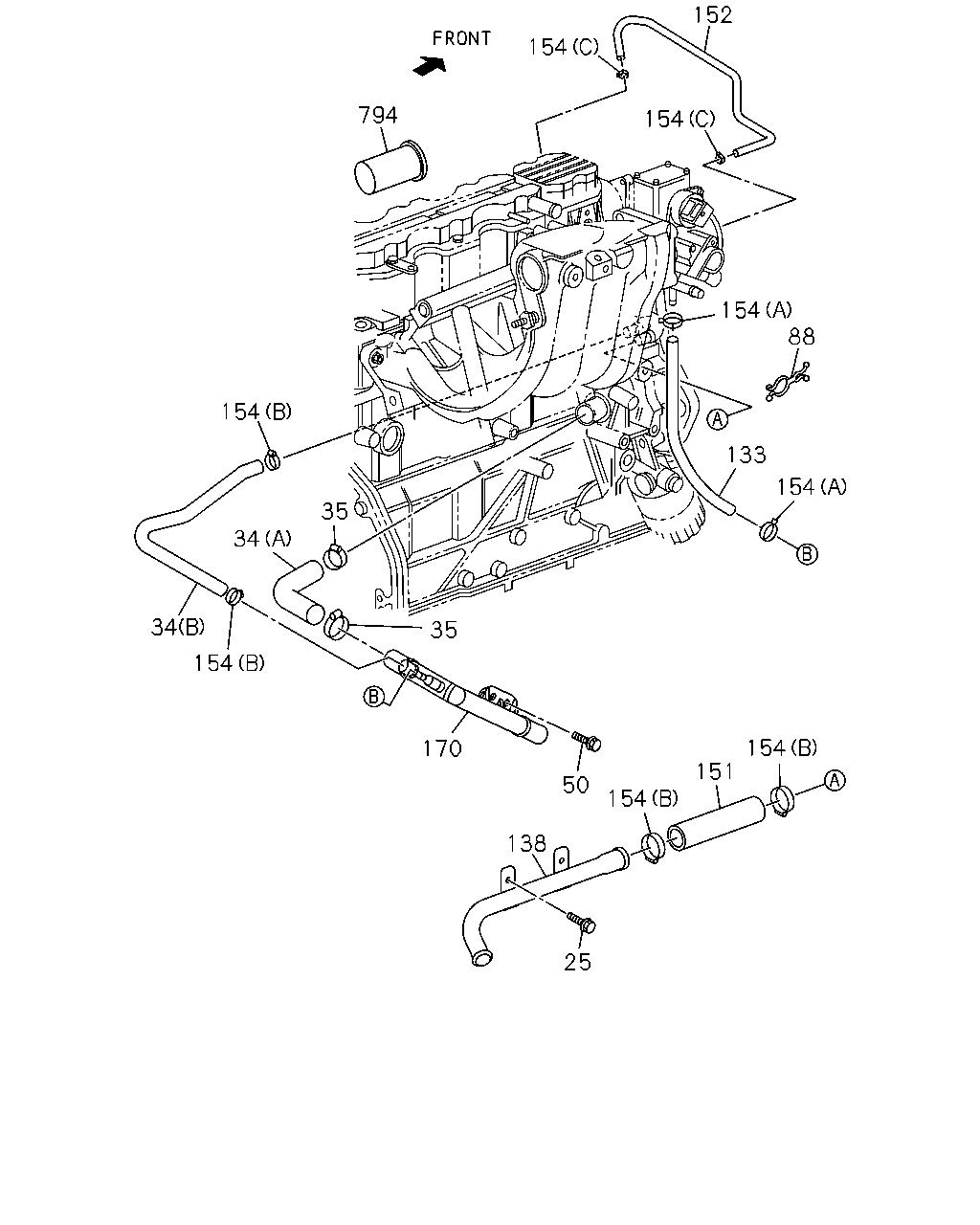

çizim 44134
152 154 794 154 154 88 154 133 154 35 34 34 35 154 154 170 151 50 154 138 25
BalonParca AdiParca NoAdetTipApplied Date A B
3 01.540 HOSE; WATER,OIL COOLER 8-97354-155-1 01 1 0810- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE 8-97354-122-1 01 1 0810- ●
10 01.153 PIPE; SUCTION 8-97381-633-0 01 1 0810- ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3 		8-94174-537-0 01 1 0810- ●
16 01.097 BOLT; INL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 0810-0909 ●
16 01.097 BOLT; INL PIPE
00.206 M8X20 W/LK WASHER 		0-50540-820-0 01 1 0910- ●
17 01.153 BOLT; SUCTION PIPE
00.206 M8X50 W/LK WASHER 		0-50540-850-0 02 1 0810- ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-3 01 1 0810- ●
25 01.251 BOLT; WATER PIPE
03.670 		8-11041-103-0 02 1 0610-1009 ●
25 01.251 BOLT; WATER PIPE
00.004 		8-93298-987-0 02 1 1010- ●
34 01.242 HOSE; RUBBER,WATER PIPE
(A) 		8-92066-042-0 01 1 0610- ●
34 01.242 HOSE; RUBBER,WATER PIPE
(B) 		8-92066-241-0 01 1 0610- ●
35 01.242 CLIP; RUBBER HOSE
01.153 		8-92138-529-0 02 1 0610- ●
50 01.153 BOLT; WATER PIPE INL 8-11090-684-0 02 1 0610-1009 ●
50 01.153 BOLT; WATER PIPE INL
02.277 		8-11090-683-0 02 1 1010- ●
88 01.097 CLIP; HOSE,HTR
08.846 ID=22 		8-94382-401-0 02 1 0810-0907 ●
88 01.097 CLIP; HOSE,HTR 8-92063-869-0 01 1 0610- ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-246-0 01 1 0810- ●
133 03.276 HOSE; WATER,T/V 8-92064-835-0 01 1 0610- ●
138 01.251 PIPE; WATER 8-92065-499-0 01 1 0610- ●
151 01.153 HOSE; WATER OUTLET 8-92063-463-0 01 1 0610- ●
152 01.153 HOSE; WATER INL 8-92063-652-0 01 1 0610- ●
154 01.153 CLIP; WATER HOSE
01.166 (C) 		8-90467-195-0 02 1 0610-1009 ●
154 01.153 CLIP; WATER HOSE
03.417 (C) 		8-90467-904-0 02 1 1010- ●
154 01.153 CLIP; WATER HOSE
(B) 		8-90467-519-0 04 1 0610-1009 ●
154 01.153 CLIP; WATER HOSE
(B) 		8-92138-648-0 04 1 1010- ●
154 01.153 CLIP; WATER HOSE
(A) 		8-92138-530-0 02 1 0610-1009 ●
170 01.159 PIPE; WATER,INL 8-92063-653-0 01 1 0610- ●
790 01.097 CAP 8-94414-688-0 02 1 0909- ●
790 01.097 CAP 8-94414-688-0 02 1 0810-0907 ●
794 03.276 CONNECTOR; WATER HOSE 8-90572-544-0 01 1 0610- ●
