◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51100 - TFR/S GM MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#75121) — 12 parça

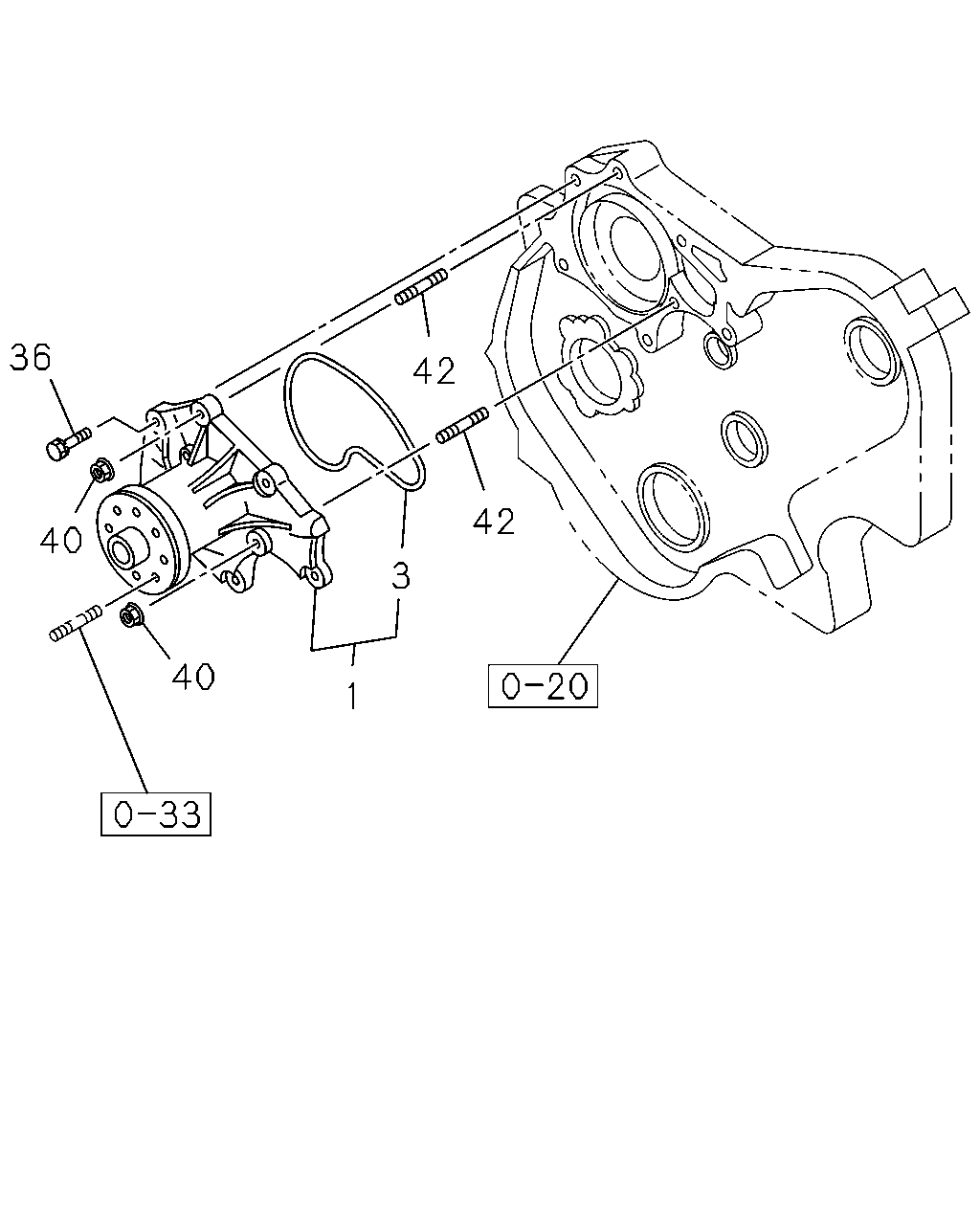

çizim 319333
36 40 42 40 1 3 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.069 PUMP ASM; WATER,W/GASKET 8-97105-012-5 01 1 0810- ●
2 01.069 PUMP ASM; WATER 8-92064-391-0 01 1 0610-1009 ●
2 01.069 PUMP ASM; WATER 8-93284-725-0 01 1 1010- ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94178-081-1 01 1 0810- ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER 		5-09000-084-1 05 1 0810- ●
36 00.386 BOLT; WATER PUMP TO C/BL 8-92065-461-0 03 1 0610-1009 ●
36 00.386 BOLT; WATER PUMP TO C/BL 8-93376-830-0 03 1 1010- ●
40 07.874 NUT; WATER PUMP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0810- ●
41 01.062 NUT; PULLEY
M8 FLANGE 		0-91180-108-0 04 1 0610- ●
42 01.073 STUD; WATER PUMP
M8X22 L=34 		0-41010-822-0 02 1 0810- ●
104 01.079 GASKET; WATER PUMP 8-90322-506-0 01 1 0610-1009 ●
104 01.079 GASKET; WATER PUMP 8-92213-729-0 01 1 1010- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
