◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#7512) — 227 parça

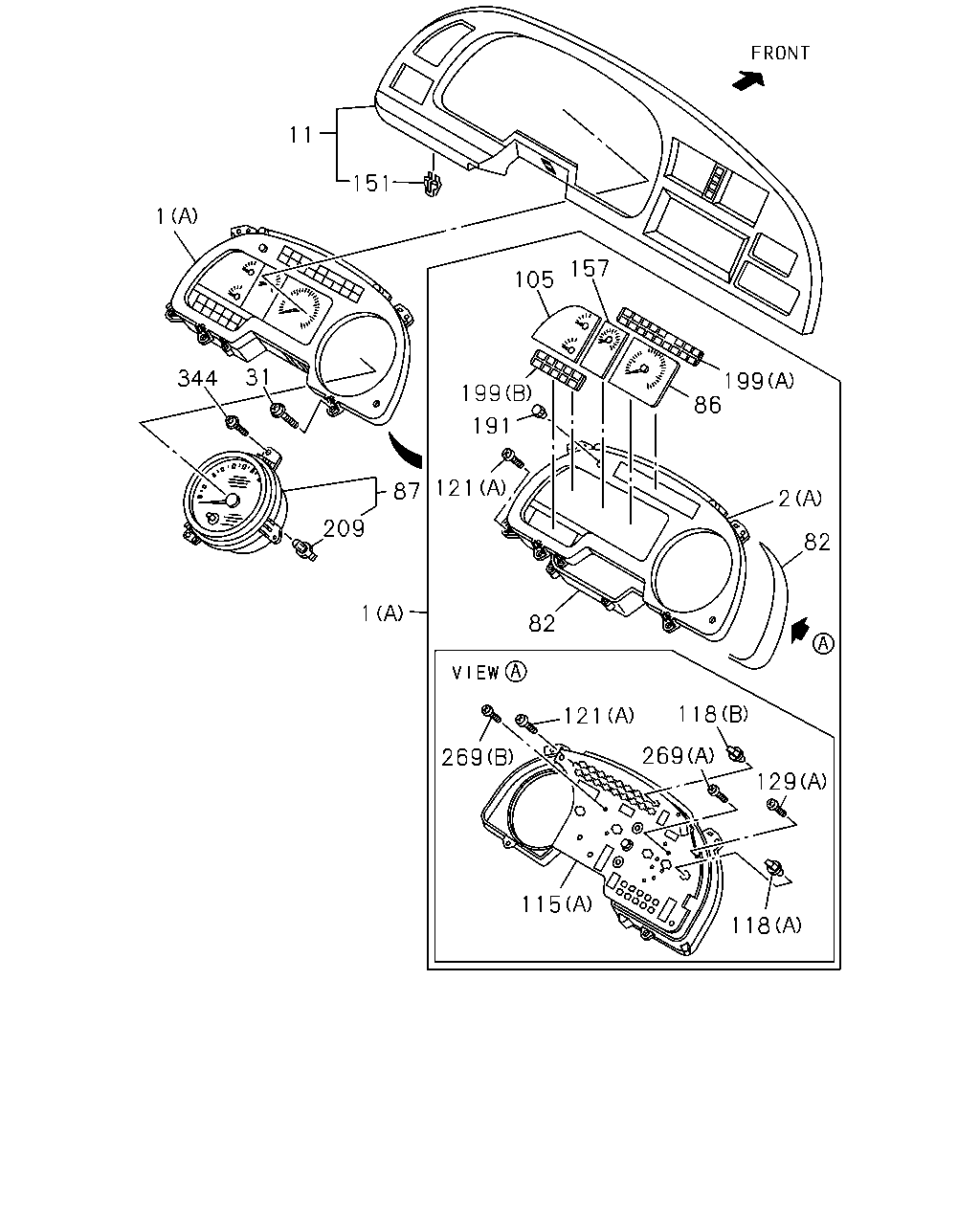

çizim 26005
11 151 1 157 105 31 344 199 86 199 191 121 87 2 209 82 1 82 118 121 269 269 129 115 118
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
(A) 		1-83114-964-0 01 1 9811-9906 ● ●
1 METER COMPL; CLUSTER
(B) TAI 		8-97530-317-0 01 1 9907-0610 ● ●
1 METER COMPL; CLUSTER
(C) 		8-98047-063-0 01 1 0611- ● ●
2 PANEL; CLUSTER
(B) TAI 		1-83119-651-0 01 1 0611- ● ●
2 PANEL; CLUSTER
(A) 		1-83119-499-0 01 1 9811-9906 ● ●
2 PANEL; CLUSTER
(A) TAI 		8-97531-131-0 01 1 9907-0610 ● ●
2 PANEL; CLUSTER
(A) TAI 		1-83119-644-0 01 1 0611- ● ●
11 CLUSTER ASM; METER 1-72418-022-7 01 1 9811- ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9811-0604 ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 9811-9906 ● ●
82 CASE ASM; CLUSTER METER
TAI 		8-97531-132-0 01 1 9907-0610 ● ●
82 CASE ASM; CLUSTER METER
TAI 		1-83119-653-0 01 1 0611- ● ●
86 TACHOMETER; CLUSTER METER 1-83120-566-0 01 1 9811-9906 ● ●
86 TACHOMETER; CLUSTER METER
TAI 		8-97531-133-0 01 1 9907-0610 ● ●
86 TACHOMETER; CLUSTER METER 1-83120-911-0 01 1 0611- ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 		1-83120-850-0 01 1 0611- ●
87 SPEEDOMETER 1-83120-490-1 01 1 9811-9906 ● ●
87 SPEEDOMETER
TAI 		8-97530-318-0 01 1 9907-9907 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-274-0 01 1 9811-9906 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
TAI 		8-97531-135-0 01 1 9907-0610 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
TAI 		1-83180-281-0 01 1 0611- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(A) 		1-83189-304-0 01 1 9811-9906 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(A) TAI 		8-97531-142-0 01 1 9907-0610 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(A) 		1-83189-387-0 01 1 0611- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(B) TAI 		8-97531-143-0 01 1 9907-0610 ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET TAI 		1-82194-061-0 04 1 9811-9906 ● ●
118 BULB; CLUSTER METER
(A) TAI 		8-97531-136-0 04 1 9907-0610 ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET TAI 		1-82194-061-0 03 1 0611- ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET TAI 		1-82194-062-0 15 1 9811-9906 ● ●
118 BULB; CLUSTER METER
(B) TAI 		8-97531-137-0 13 1 9907-0610 ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET TAI 		1-82194-062-0 28 1 0611- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING TAI 		1-83119-442-0 05 1 0611- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING TAI 		1-83119-676-0 02 1 0611- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING TAI 		1-83119-442-0 08 1 9811-9906 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) TAI 		8-97531-138-0 08 1 9907-0610 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(D) M3 TAPPING TAI 		1-83119-084-0 01 1 0611- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(C) M3 TAPPING TAI 		1-83119-657-0 09 1 0611- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING TAI 		1-83119-675-0 06 1 0611- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-052-0 10 1 9811-9906 ● ●
151 CLIP; METER CLUSTER 8-97853-939-4 10 1 9811-9812 ● ●
151 CLIP; METER CLUSTER
TAI 		8-97217-066-0 10 1 9901- ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-178-0 01 1 9811-9906 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
TAI 		8-97531-134-0 01 1 9907-0610 ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-217-0 01 1 0611- ● ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 9811-9906 ● ●
191 KNOB; BULB CHECK
TAI 		8-97531-144-0 01 1 9907-0610 ● ●
191 KNOB; BULB CHECK
TAI 		1-83119-672-0 01 1 0611- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-943-0 01 1 0611- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 9811-9906 ● ●
199 LENS; WARNING LAMP
(A) TAI 		8-97531-140-0 01 1 9907-0610 ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-942-0 01 1 0611- ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-526-0 01 1 9811-9906 ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET TAI 		1-82194-061-0 01 1 0611- ●
209 BULB; SPEEDOMETER
24V 3W GREEN SOCKET TAI 		1-82194-061-0 02 1 9811-9906 ● ●
209 BULB; SPEEDOMETER
TAI 		8-97531-130-0 01 1 9907-9907 ● ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 03 1 9811-9906 ● ●
269 SCREW; METER CLUSTER
(B) TAI 		8-97531-139-0 11 1 9907-0610 ● ●
269 SCREW; METER CLUSTER
(C) M3 TAI 		1-83119-273-0 02 1 0611- ● ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 06 1 9811-9906 ● ●
269 SCREW; METER CLUSTER
(A) TAI 		8-97531-141-0 01 1 9907-0610 ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9811-0604 ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ●

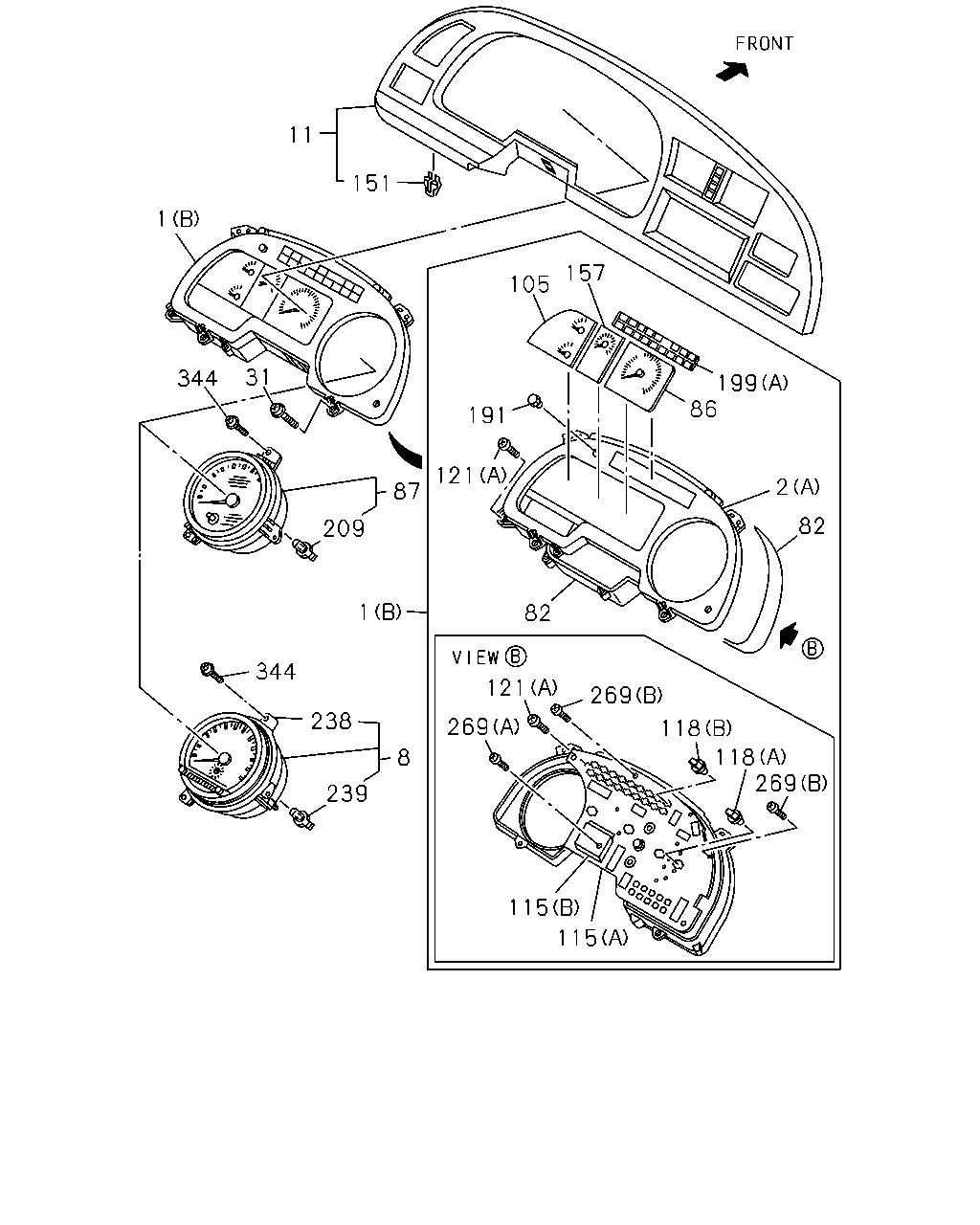

çizim 26522
11 151 1 157 105 31 344 199 86 191 121 2 87 82 209 1 82 344 121 269 238 269 118 118 269 8 239 115 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
(A) 		1-83114-964-0 01 1 9811-9906 ● ●
1 METER COMPL; CLUSTER
(B) TAI 		8-97530-317-0 01 1 9907-0610 ● ●
1 METER COMPL; CLUSTER
(C) 		8-98047-063-0 01 1 0611- ● ●
2 PANEL; CLUSTER
(B) TAI 		1-83119-651-0 01 1 0611- ● ●
2 PANEL; CLUSTER
(A) 		1-83119-499-0 01 1 9811-9906 ● ●
2 PANEL; CLUSTER
(A) TAI 		8-97531-131-0 01 1 9907-0610 ● ●
2 PANEL; CLUSTER
(A) TAI 		1-83119-644-0 01 1 0611- ● ●
8 TACHOGRAPH; CLUSTER METER 1-83120-857-0 01 1 9908-0610 ● ●
8 TACHOGRAPH; CLUSTER METER 1-83120-857-0 01 1 0611- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-857-0 01 1 0611- ●
11 CLUSTER ASM; METER 1-72418-022-7 01 1 9811- ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9811-0604 ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 9811-9906 ● ●
82 CASE ASM; CLUSTER METER
TAI 		8-97531-132-0 01 1 9907-0610 ● ●
82 CASE ASM; CLUSTER METER
TAI 		1-83119-653-0 01 1 0611- ● ●
86 TACHOMETER; CLUSTER METER 1-83120-566-0 01 1 9811-9906 ● ●
86 TACHOMETER; CLUSTER METER
TAI 		8-97531-133-0 01 1 9907-0610 ● ●
86 TACHOMETER; CLUSTER METER 1-83120-911-0 01 1 0611- ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 		1-83120-850-0 01 1 0611- ●
87 SPEEDOMETER 1-83120-490-1 01 1 9811-9906 ● ●
87 SPEEDOMETER
TAI 		8-97530-318-0 01 1 9907-9907 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-274-0 01 1 9811-9906 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
TAI 		8-97531-135-0 01 1 9907-0610 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
TAI 		1-83180-281-0 01 1 0611- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(A) 		1-83189-304-0 01 1 9811-9906 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(A) TAI 		8-97531-142-0 01 1 9907-0610 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(A) 		1-83189-387-0 01 1 0611- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(B) TAI 		8-97531-143-0 01 1 9907-0610 ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET TAI 		1-82194-061-0 04 1 9811-9906 ● ●
118 BULB; CLUSTER METER
(A) TAI 		8-97531-136-0 04 1 9907-0610 ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET TAI 		1-82194-061-0 03 1 0611- ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET TAI 		1-82194-062-0 15 1 9811-9906 ● ●
118 BULB; CLUSTER METER
(B) TAI 		8-97531-137-0 13 1 9907-0610 ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET TAI 		1-82194-062-0 28 1 0611- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING TAI 		1-83119-442-0 05 1 0611- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING TAI 		1-83119-676-0 02 1 0611- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING TAI 		1-83119-442-0 08 1 9811-9906 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) TAI 		8-97531-138-0 08 1 9907-0610 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(D) M3 TAPPING TAI 		1-83119-084-0 01 1 0611- ● ●
151 CLIP; METER CLUSTER 8-97853-939-4 10 1 9811-9812 ● ●
151 CLIP; METER CLUSTER
TAI 		8-97217-066-0 10 1 9901- ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-178-0 01 1 9811-9906 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
TAI 		8-97531-134-0 01 1 9907-0610 ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-217-0 01 1 0611- ● ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 9811-9906 ● ●
191 KNOB; BULB CHECK
TAI 		8-97531-144-0 01 1 9907-0610 ● ●
191 KNOB; BULB CHECK
TAI 		1-83119-672-0 01 1 0611- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-943-0 01 1 0611- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 9811-9906 ● ●
199 LENS; WARNING LAMP
(A) TAI 		8-97531-140-0 01 1 9907-0610 ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-942-0 01 1 0611- ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-526-0 01 1 9811-9906 ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET TAI 		1-82194-061-0 01 1 0611- ●
209 BULB; SPEEDOMETER
24V 3W GREEN SOCKET TAI 		1-82194-061-0 02 1 9811-9906 ● ●
209 BULB; SPEEDOMETER
TAI 		8-97531-130-0 01 1 9907-9907 ● ●
238 PANEL; TACHOGRAPH
TAI 		1-83129-311-0 01 1 9908-0610 ● ●
238 PANEL; TACHOGRAPH
TAI 		1-83129-311-0 01 1 0611- ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> TAI 		1-83129-311-0 01 1 0611- ●
239 BULB; TACHOGRAPH
24V 1.4W TAI 		5-82194-034-0 03 1 9908-0610 ● ●
239 BULB; TACHOGRAPH
24V 1.4W TAI 		5-82194-034-0 03 1 0611- ●
239 BULB; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 24V 1.4W TAI 		5-82194-034-0 03 1 0611- ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 03 1 9811-9906 ● ●
269 SCREW; METER CLUSTER
(B) TAI 		8-97531-139-0 11 1 9907-0610 ● ●
269 SCREW; METER CLUSTER
(C) M3 TAI 		1-83119-273-0 02 1 0611- ● ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 06 1 9811-9906 ● ●
269 SCREW; METER CLUSTER
(A) TAI 		8-97531-141-0 01 1 9907-0610 ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9811-0604 ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ●
çizim 26671
52 48 49 307 58 50 51 56 58
BalonParca AdiParca NoAdetTipApplied Date A B
48 SENSOR; BOOST 1-81531-011-0 01 1 9907-0610 ● ●
49 BRACKET; SENSOR 1-47478-380-0 01 1 9907-0610 ● ●
50 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9907-0512 ● ●
50 BOLT; FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601-0610 ● ●
51 NUT; FIX
M8 FLANGE 		0-91150-108-0 02 1 9907-0602 ● ●
51 NUT; FIX
M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ● ●
52 BOLT; SENSOR
M6X16 FLANGE 		0-28680-616-0 02 1 9907-0512 ● ●
52 BOLT; SENSOR
M6X16 FLANGE 		0-28650-616-0 02 1 0601-0610 ● ●
56 HOSE; NIPPLE TO SENSOR
L=300 SERVICED BY L=3000 		0-04740-300-0 01 1 0103-0610 ●
56 HOSE; NIPPLE TO SENSOR
L=330 SERVICED BY L=3000 		0-04740-300-0 01 1 9907-0102 ● ●
56 HOSE; NIPPLE TO SENSOR
L=330 SERVICED BY L=3000 		0-04740-300-0 01 1 0103-0610 ●
58 CLIP; HOSE
ID=7.8 		8-94246-958-0 02 1 9907-0610 ● ●
307 NUT
M6 FLANGE 		0-91150-106-0 02 1 9907-0602 ● ●
307 NUT
M6 FLANGE 		0-91180-106-0 02 1 0603-0610 ● ●

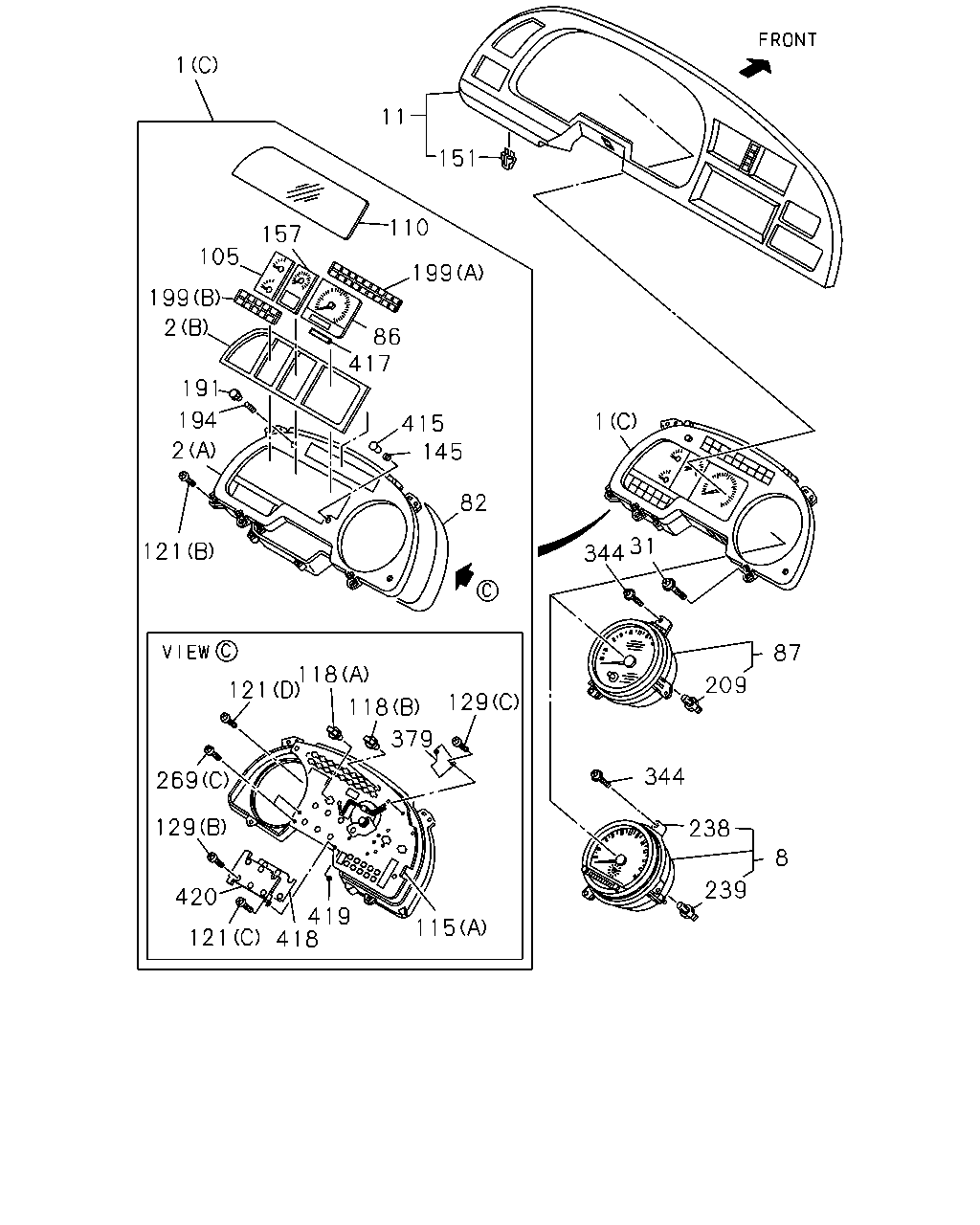

çizim 99178
1 11 151 110 157 105 199 199 2 86 417 191 194 1 415 145 2 82 31 344 121 87 118 121 209 129 118 379 344 269 129 238 8 239 420 419 418 115 121
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
(A) 		1-83114-964-0 01 1 9811-9906 ● ●
1 METER COMPL; CLUSTER
(B) TAI 		8-97530-317-0 01 1 9907-0610 ● ●
1 METER COMPL; CLUSTER
(C) 		8-98047-063-0 01 1 0611- ● ●
2 PANEL; CLUSTER
(B) TAI 		1-83119-651-0 01 1 0611- ● ●
2 PANEL; CLUSTER
(A) 		1-83119-499-0 01 1 9811-9906 ● ●
2 PANEL; CLUSTER
(A) TAI 		8-97531-131-0 01 1 9907-0610 ● ●
2 PANEL; CLUSTER
(A) TAI 		1-83119-644-0 01 1 0611- ● ●
8 TACHOGRAPH; CLUSTER METER 1-83120-857-0 01 1 9908-0610 ● ●
8 TACHOGRAPH; CLUSTER METER 1-83120-857-0 01 1 0611- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-857-0 01 1 0611- ●
11 CLUSTER ASM; METER 1-72418-022-7 01 1 9811- ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9811-0604 ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 9811-9906 ● ●
82 CASE ASM; CLUSTER METER
TAI 		8-97531-132-0 01 1 9907-0610 ● ●
82 CASE ASM; CLUSTER METER
TAI 		1-83119-653-0 01 1 0611- ● ●
86 TACHOMETER; CLUSTER METER 1-83120-566-0 01 1 9811-9906 ● ●
86 TACHOMETER; CLUSTER METER
TAI 		8-97531-133-0 01 1 9907-0610 ● ●
86 TACHOMETER; CLUSTER METER 1-83120-911-0 01 1 0611- ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 		1-83120-850-0 01 1 0611- ●
87 SPEEDOMETER 1-83120-490-1 01 1 9811-9906 ● ●
87 SPEEDOMETER
TAI 		8-97530-318-0 01 1 9907-9907 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-274-0 01 1 9811-9906 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
TAI 		8-97531-135-0 01 1 9907-0610 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
TAI 		1-83180-281-0 01 1 0611- ● ●
110 GLASS; CLUSTER METER
TAI 		1-83119-646-0 01 1 0611- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(A) 		1-83189-304-0 01 1 9811-9906 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(A) TAI 		8-97531-142-0 01 1 9907-0610 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(A) 		1-83189-387-0 01 1 0611- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(B) TAI 		8-97531-143-0 01 1 9907-0610 ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET TAI 		1-82194-061-0 04 1 9811-9906 ● ●
118 BULB; CLUSTER METER
(A) TAI 		8-97531-136-0 04 1 9907-0610 ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET TAI 		1-82194-061-0 03 1 0611- ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET TAI 		1-82194-062-0 15 1 9811-9906 ● ●
118 BULB; CLUSTER METER
(B) TAI 		8-97531-137-0 13 1 9907-0610 ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET TAI 		1-82194-062-0 28 1 0611- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING TAI 		1-83119-442-0 05 1 0611- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING TAI 		1-83119-676-0 02 1 0611- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING TAI 		1-83119-442-0 08 1 9811-9906 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) TAI 		8-97531-138-0 08 1 9907-0610 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(D) M3 TAPPING TAI 		1-83119-084-0 01 1 0611- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(C) M3 TAPPING TAI 		1-83119-657-0 09 1 0611- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING TAI 		1-83119-675-0 06 1 0611- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-052-0 10 1 9811-9906 ● ●
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER
TAI 		1-83119-680-0 01 1 0611- ● ●
151 CLIP; METER CLUSTER 8-97853-939-4 10 1 9811-9812 ● ●
151 CLIP; METER CLUSTER
TAI 		8-97217-066-0 10 1 9901- ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-178-0 01 1 9811-9906 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
TAI 		8-97531-134-0 01 1 9907-0610 ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-217-0 01 1 0611- ● ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 9811-9906 ● ●
191 KNOB; BULB CHECK
TAI 		8-97531-144-0 01 1 9907-0610 ● ●
191 KNOB; BULB CHECK
TAI 		1-83119-672-0 01 1 0611- ● ●
194 SPRING; BULB CHECK KNOB
TAI 		1-83119-673-0 01 1 0611- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-943-0 01 1 0611- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 9811-9906 ● ●
199 LENS; WARNING LAMP
(A) TAI 		8-97531-140-0 01 1 9907-0610 ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-942-0 01 1 0611- ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-526-0 01 1 9811-9906 ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET TAI 		1-82194-061-0 01 1 0611- ●
209 BULB; SPEEDOMETER
24V 3W GREEN SOCKET TAI 		1-82194-061-0 02 1 9811-9906 ● ●
209 BULB; SPEEDOMETER
TAI 		8-97531-130-0 01 1 9907-9907 ● ●
238 PANEL; TACHOGRAPH
TAI 		1-83129-311-0 01 1 9908-0610 ● ●
238 PANEL; TACHOGRAPH
TAI 		1-83129-311-0 01 1 0611- ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> TAI 		1-83129-311-0 01 1 0611- ●
239 BULB; TACHOGRAPH
24V 1.4W TAI 		5-82194-034-0 03 1 9908-0610 ● ●
239 BULB; TACHOGRAPH
24V 1.4W TAI 		5-82194-034-0 03 1 0611- ●
239 BULB; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 24V 1.4W TAI 		5-82194-034-0 03 1 0611- ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 03 1 9811-9906 ● ●
269 SCREW; METER CLUSTER
(B) TAI 		8-97531-139-0 11 1 9907-0610 ● ●
269 SCREW; METER CLUSTER
(C) M3 TAI 		1-83119-273-0 02 1 0611- ● ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 06 1 9811-9906 ● ●
269 SCREW; METER CLUSTER
(A) TAI 		8-97531-141-0 01 1 9907-0610 ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9811-0604 ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ●
379 CIRCUIT; DROP
TAI 		1-83189-369-0 01 1 0611- ● ●
415 KNOB; TRIP,METER
TAI 		1-83119-674-0 01 1 0611- ● ●
417 DISPLAY; ODO & TRIP,METER
TAI 		1-83119-671-0 01 1 0611- ● ●
418 CIRCUIT; CONTROL,METER 8-98045-370-0 01 1 0611- ● ●
419 SPACER; CIRCUIT,METER
TAI 		1-83119-678-0 02 1 0611- ● ●
420 HEAT SINK; METER
TAI 		1-83119-679-0 01 1 0611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
