Isuzu WW
▶
PICKUP
▶
TFR
▶
51100 - TFR/S GM MIDDLE EAST
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶

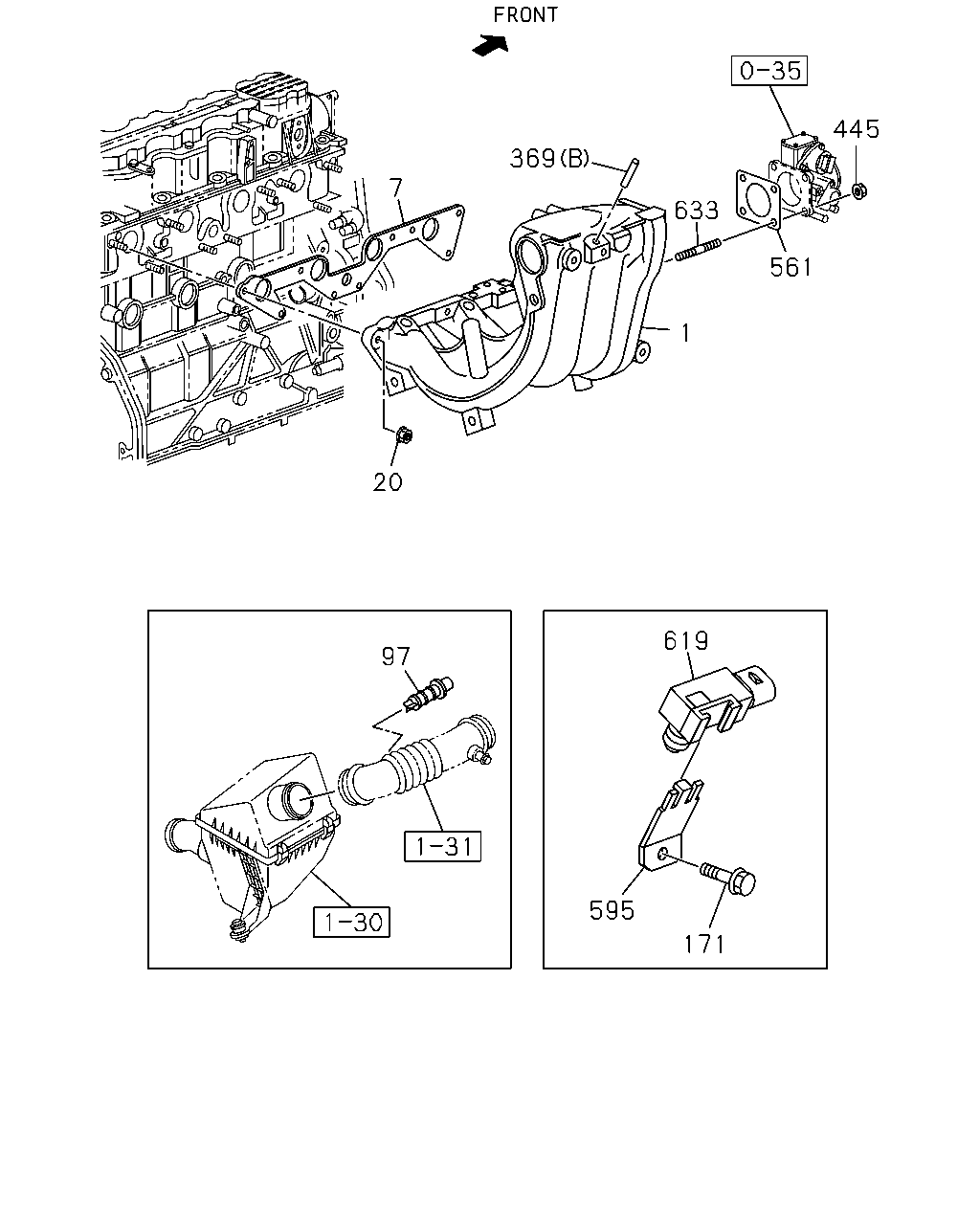

0-25 — INLET MANIFOLD
(#75118) — 51 parça
Tümü
A - 4JA1-T ENG
B - C24SE ENG
◀
[025A] '10/10- C24SE (25 parça)
[025A] 4JA1-T (26 parça)
▶
445
369
7
633
561
1
20
619
97
595
171
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75>
8-97350-916-0
01
1
0810-
●
1
03.265 MANIFOLD; INL
4X2(TFB***) EURO1 SPECIFICATION<NT1>
8-97253-952-0
01
1
0810-
●
1
03.265 MANIFOLD; INL
4X4 CREW CAB(TFS*W*) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1>
8-97253-952-0
01
1
0810-
●
1
03.265 MANIFOLD; INL
8-92066-733-0
01
1
0610-1009
●
1
03.265 MANIFOLD; INL
8-92065-503-0
01
1
1010-
●
7
03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97301-838-1
01
1
0810-
●
7
03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-92060-514-0
01
1
0610-1009
●
7
03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-93255-173-0
01
1
1010-
●
20
03.275 NUT; INL MANIF
04.634 M8 FLANGE
8-97581-233-0
02
1
0810-
●
20
03.275 NUT; INL MANIF
03.604
8-11082-413-0
09
1
0610-1009
●
20
03.275 NUT; INL MANIF
8-93252-009-0
09
1
1010-
●
97
03.682 SENSOR; INTAKE,AIR TEMPERATURE
8-12160-244-0
01
1
0610-
●
167
03.265 PLUG; INL MANIF
8-92066-322-0
01
1
0610-1009
●
171
02.559 BOLT; BRKT
02.510
8-11093-971-0
01
1
0610-
●
326
02.559 BOLT; CLIP,HARNESS
02.510
8-11093-971-0
01
1
0610-1009
●
369
02.559 CONNECTOR; BOOST SWITCH
(B)
8-92065-407-0
01
1
0610-
●
369
02.559 CONNECTOR; BOOST SWITCH
(A)
8-92066-317-0
01
1
0610-1009
●
445
03.275 NUT; THROTTLE BODY TO MANIF
02.042 M6
8-11094-425-0
04
1
0610-
●
465
02.559 CLIP; HARNESS,INL MANIF
8-92065-417-0
01
1
0610-1009
●
561
03.724 GASKET; TB
8-92060-513-0
01
1
0610-
●
595
02.559 BRACKET; MAP SENSOR
8-92065-524-0
01
1
0610-
●
619
01.150 SENSOR; MAP
03.320
8-16212-460-0
01
1
0610-1009
●
619
01.150 SENSOR; MAP
8-12614-970-0
01
1
1010-
●
633
03.275 STUD; THROTTLE BODY
8-11075-291-0
04
1
0610-1009
●
633
03.275 STUD; THROTTLE BODY
8-92139-049-0
04
1
1010-
●
53
185
52
61
62
61
769
260
491
1
7
13
27
20
1
13
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.265 MANIFOLD; INL
EMISSION SYSTEM R15-04<K75>
8-97350-916-0
01
1
0810-
●
1
03.265 MANIFOLD; INL
4X2(TFB***) EURO1 SPECIFICATION<NT1>
8-97253-952-0
01
1
0810-
●
1
03.265 MANIFOLD; INL
4X4 CREW CAB(TFS*W*) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1>
8-97253-952-0
01
1
0810-
●
1
03.265 MANIFOLD; INL
8-92066-733-0
01
1
0610-1009
●
1
03.265 MANIFOLD; INL
8-92065-503-0
01
1
1010-
●
7
03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97301-838-1
01
1
0810-
●
7
03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-92060-514-0
01
1
0610-1009
●
7
03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-93255-173-0
01
1
1010-
●
13
03.275 BOLT; INL MANIF
M8X25 FLANGE
0-28050-825-0
04
1
0810-
●
13
03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE
0-28050-830-0
02
1
0810-
●
20
03.275 NUT; INL MANIF
04.634 M8 FLANGE
8-97581-233-0
02
1
0810-
●
20
03.275 NUT; INL MANIF
03.604
8-11082-413-0
09
1
0610-1009
●
20
03.275 NUT; INL MANIF
8-93252-009-0
09
1
1010-
●
27
03.275 STUD; INL MANIF
M8X25 L=37
0-41010-825-0
02
1
0810-
●
52
01.097 PIPE; INL
8-97916-935-1
01
1
0810-0911
●
52
01.097 PIPE; INL
8-97942-925-0
01
1
0912-
●
53
03.602 BOLT; INL PIPE
09.171 M8X30 W/LK WASHER
0-50540-830-0
02
1
0810-
●
61
03.273 CLIP; CONNECTOR HOSE
ID=65-82
8-97131-942-0
02
1
0810-
●
62
03.265 HOSE; CONNECTOR
8-94386-164-2
01
1
0810-
●
167
03.265 PLUG; INL MANIF
8-92066-322-0
01
1
0610-1009
●
185
03.273 RUBBER; MTG,INL MANIF,UPR
8-94434-927-0
02
1
0810-
●
260
03.278 CAP; RUBBER
01.780 ID=4
8-94217-809-0
01
1
0810-0911
●
326
02.559 BOLT; CLIP,HARNESS
02.510
8-11093-971-0
01
1
0610-1009
●
465
02.559 CLIP; HARNESS,INL MANIF
8-92065-417-0
01
1
0610-1009
●
491
01.152 CLIP; CONNECTOR
03.278
8-97031-674-0
01
1
0810-0911
●
769
03.273 RUBBER; MTG,INL MANIF,LWR
ID=11 OD=24 T=4.5
8-97384-128-0
02
1
0810-
●
