◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51100 - TFR/S GM MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#75115) — 103 parça

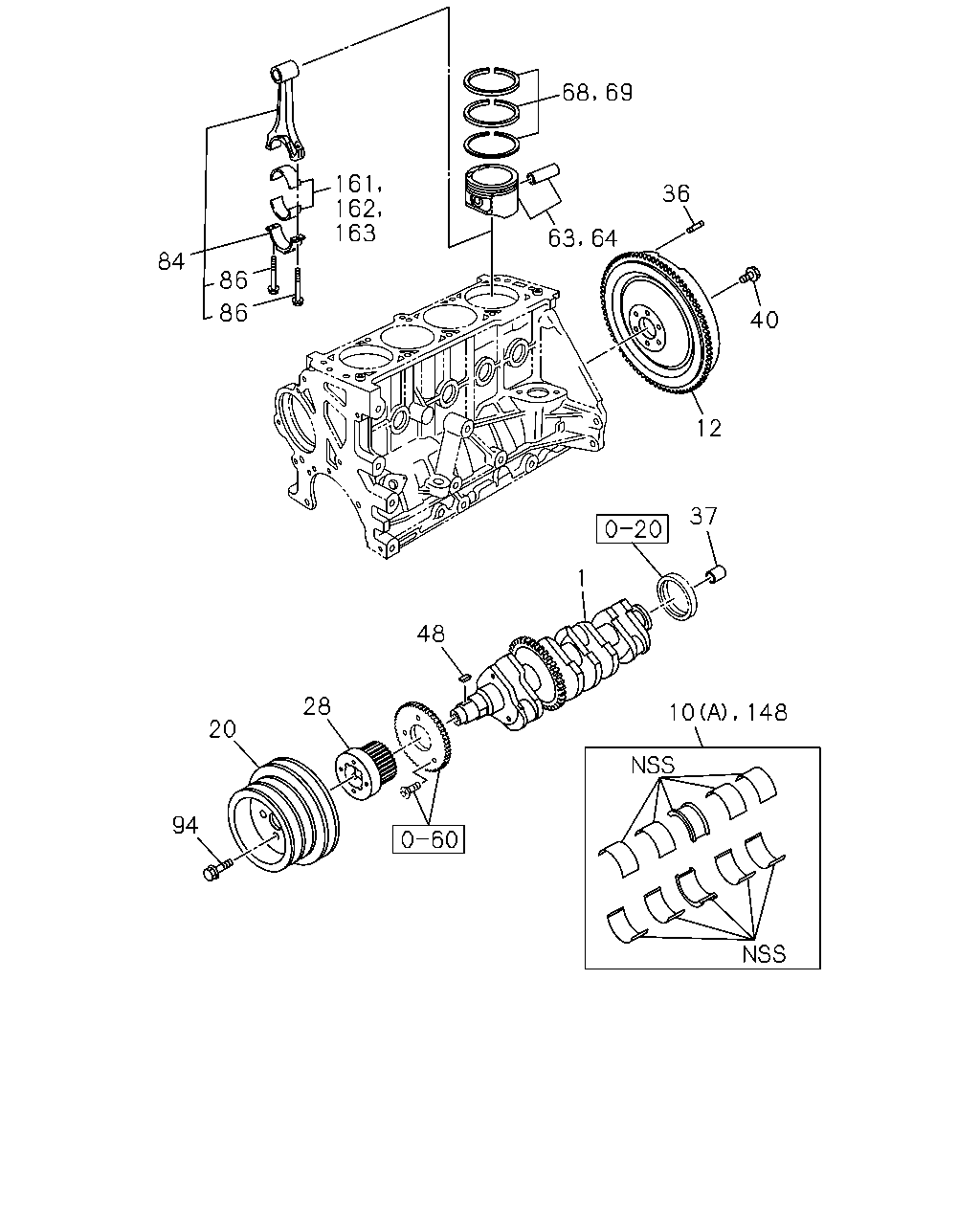

çizim 38197
161 162 163 36 84 86 86 40 12 37 1 48 28 10 148 20 94 68 69 63 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.646 CRANKSHAFT 8-97249-041-0 01 1 0810-0905 ●
1 00.646 CRANKSHAFT 8-97190-927-1 01 1 0906- ●
1 00.646 CRANKSHAFT 8-93281-999-0 01 1 0610- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GRADE 5 		8-97387-970-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GRADE 4 		8-97387-971-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GRADE 3 		8-97387-972-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GRADE 2 		8-97387-973-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GRADE 1 		8-97387-974-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(A) 		8-92066-633-0 01 1 0610- ●
12 00.666 FLYWHEEL 8-94172-529-1 01 1 0810- ●
12 00.666 FLYWHEEL 8-90466-547-0 01 1 0610- ●
20 00.659 DAMPER; CR/SHF 8-92063-589-0 01 1 0610- ●
28 00.728 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0810- ●
28 00.728 GEAR; CR/SHF 8-90411-766-0 01 1 0610- ●
36 00.862 PIN; FLYWHEEL 8-92061-816-0 03 1 0610-1009 ●
36 00.862 PIN; FLYWHEEL 8-90322-716-0 03 1 1010- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 0810- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT 8-90105-743-0 01 1 0610- ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0810- ●
40 00.669 BOLT; FLYWHEEL 8-90285-303-0 06 1 0610-1009 ●
40 00.669 BOLT; FLYWHEEL 8-93288-625-0 06 1 1010- ●
48 00.662 KEY; WOODRUFF,CR/SHF 8-11010-612-0 01 1 0610- ●
63 00.629 PISTON
GRADE=AX 		8-97942-985-0 04 1 0810- ●
63 00.629 PISTON
GRADE=CX 		8-97942-986-0 04 1 0810- ●
63 00.629 PISTON 8-93292-774-0 04 1 0610-1009 ●
63 00.629 PISTON 8-92061-386-0 04 1 1010- ●
64 00.629 PISTON; O/S=0.50 8-93282-455-0 04 1 0610-1009 ●
64 00.629 PISTON; O/S=0.50 8-92061-702-0 04 1 1010- ●
67 00.629 PISTON; O/S=0.25 8-93282-453-0 04 1 0610-1009 ●
68 00.643 RING SET; PISTON,STANDARD 8-97319-087-1 04 1 0810- ●
68 00.643 RING SET; PISTON,STANDARD 8-92066-631-0 01 1 0610-1009 ●
68 00.643 RING SET; PISTON,STANDARD 8-92029-793-0 01 1 1010- ●
69 00.643 RING SET; PISTON,O/S=0.50
OVSI=0.50 		8-92066-632-0 01 1 1008-1009 ●
69 00.643 RING SET; PISTON,O/S=0.50 8-92029-795-0 01 1 1010- ●
69 00.643 RING SET; PISTON,O/S=0.50 8-92066-632-0 01 1 0610-1009 ●
84 00.603 ROD ASM; CONN 8-98012-611-2 04 1 0810- ●
84 00.603 ROD ASM; CONN 8-90530-169-0 04 1 0610- ●
86 00.623 BOLT; CONNROD
M11X59 		5-12235-009-0 08 1 0810- ●
86 00.623 BOLT; CONNROD 8-90281-736-0 08 1 0610- ●
94 00.659 BOLT; DAMPER
02.183 		8-11094-881-0 04 1 0610- ●
148 00.094 METAL SET; CRANKSHAFT,U/S
UNSI=0.25 		8-92066-634-0 01 1 0610-1009 ●
148 00.094 METAL SET; CRANKSHAFT,U/S 8-93295-033-0 01 1 1010- ●
148 00.094 METAL SET; CRANKSHAFT,U/S
UNSI=0.50 		8-92066-635-0 01 1 0610-1009 ●
161 00.616 METAL KIT; CONN ROD,STANDARD
00.094 		8-92028-817-0 01 1 0610- ●
162 00.616 METAL KIT; CONN ROD,U/S=0.25
00.094 		8-92028-818-0 01 1 0610- ●
163 00.616 METAL KIT; CONN ROD,U/S=0.50
00.094 		8-92028-819-0 01 1 0610- ●
çizim 38369
68 63 83 126 84 126 73 88 86 85 42 42 10 10 10 10 10 12 35 37 38 40 1 31 28 56 14 43 61 62
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.646 CRANKSHAFT 8-97249-041-0 01 1 0810-0905 ●
1 00.646 CRANKSHAFT 8-97190-927-1 01 1 0906- ●
1 00.646 CRANKSHAFT 8-93281-999-0 01 1 0610- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GRADE 5 		8-97387-970-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GRADE 4 		8-97387-971-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GRADE 3 		8-97387-972-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GRADE 2 		8-97387-973-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(B) GRADE 1 		8-97387-974-0 05 1 0810- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
(A) 		8-92066-633-0 01 1 0610- ●
12 00.666 FLYWHEEL 8-94172-529-1 01 1 0810- ●
12 00.666 FLYWHEEL 8-90466-547-0 01 1 0610- ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 0810- ●
28 00.728 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0810- ●
28 00.728 GEAR; CR/SHF 8-90411-766-0 01 1 0610- ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		8-94201-641-0 01 1 0810- ●
35 00.673 GEAR; RING
Z=135 		8-90136-995-0 01 1 0711-1009 ●
35 00.673 GEAR; RING
Z=108 		8-94419-602-1 01 1 0810- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
00.649 NSK 		9-00090-679-0 01 1 0810- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT 8-90105-743-0 01 1 0610- ●
38 00.862 WASHER; FLYWHEEL
00.669 		8-94133-970-1 01 1 0810-1005 ●
38 00.862 WASHER; FLYWHEEL 8-98171-700-0 01 1 1006- ●
40 00.669 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0810- ●
40 00.669 BOLT; FLYWHEEL 8-90285-303-0 06 1 0610-1009 ●
40 00.669 BOLT; FLYWHEEL 8-93288-625-0 06 1 1010- ●
42 00.095 WASHER; THRUST,CR/SHF 8-97383-751-0 02 1 0810- ●
42 00.095 WASHER; THRUST,CR/SHF 8-90156-055-0 01 1 0610-1009 ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-98138-817-0 01 1 1004-1004 ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 0810- ●
56 00.659 PULLEY; CR/SHF DAMPER
3-GROOVE 		8-97306-533-5 01 1 0810- ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE 		8-94146-638-2 01 1 0810- ●
61 00.659 PULLEY; FAN DRIVE
01.062 		8-92064-197-0 01 1 0610- ●
62 01.060 NUT; FAN PULLEY
07.829 M6 FLANGE 		5-09440-004-0 04 1 0810- ●
63 00.629 PISTON
GRADE=AX 		8-97942-985-0 04 1 0810- ●
63 00.629 PISTON
GRADE=CX 		8-97942-986-0 04 1 0810- ●
63 00.629 PISTON 8-93292-774-0 04 1 0610-1009 ●
63 00.629 PISTON 8-92061-386-0 04 1 1010- ●
67 00.629 PISTON; O/S=0.25 8-93282-453-0 04 1 0610-1009 ●
68 00.643 RING SET; PISTON,STANDARD 8-97319-087-1 04 1 0810- ●
68 00.643 RING SET; PISTON,STANDARD 8-92066-631-0 01 1 0610-1009 ●
68 00.643 RING SET; PISTON,STANDARD 8-92029-793-0 01 1 1010- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 0810- ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94454-479-0 04 1 0810- ●
84 00.603 ROD ASM; CONN 8-98012-611-2 04 1 0810- ●
84 00.603 ROD ASM; CONN 8-90530-169-0 04 1 0610- ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97352-889-0 04 1 0810- ●
86 00.623 BOLT; CONNROD
M11X59 		5-12235-009-0 08 1 0810- ●
86 00.623 BOLT; CONNROD 8-90281-736-0 08 1 0610- ●
88 00.623 NUT; CONNROD
00.626 M11 		5-09409-016-0 08 1 0810- ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. ID=33.9 		8-94133-969-0 08 1 0810- ●

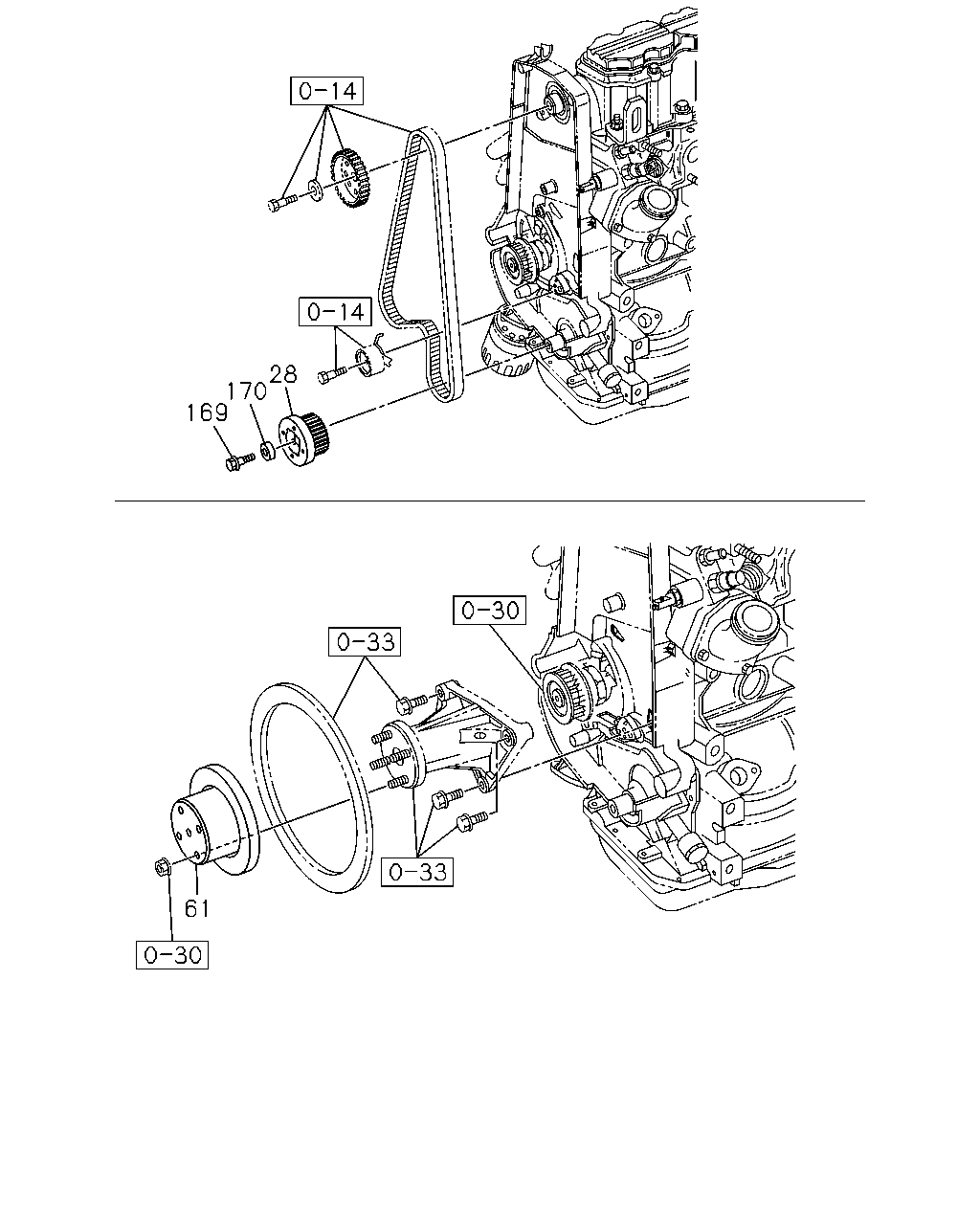

çizim 185469
28 170 169 61
BalonParca AdiParca NoAdetTipApplied Date A B
28 00.728 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0810- ●
28 00.728 GEAR; CR/SHF 8-90411-766-0 01 1 0610- ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE 		8-94146-638-2 01 1 0810- ●
61 00.659 PULLEY; FAN DRIVE
01.062 		8-92064-197-0 01 1 0610- ●
67 00.629 PISTON; O/S=0.25 8-93282-453-0 04 1 0610-1009 ●
169 00.659 BOLT; GEAR TO CRANKSHAFT 8-11085-932-0 01 1 0610- ●
170 00.659 WASHER; GEAR TO CRANKSHAFT 8-92023-395-0 01 1 0610-1009 ●
170 00.659 WASHER; GEAR TO CRANKSHAFT 8-93271-884-0 01 1 1010- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
