◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51100 - TFR/S GM MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#75112) — 49 parça

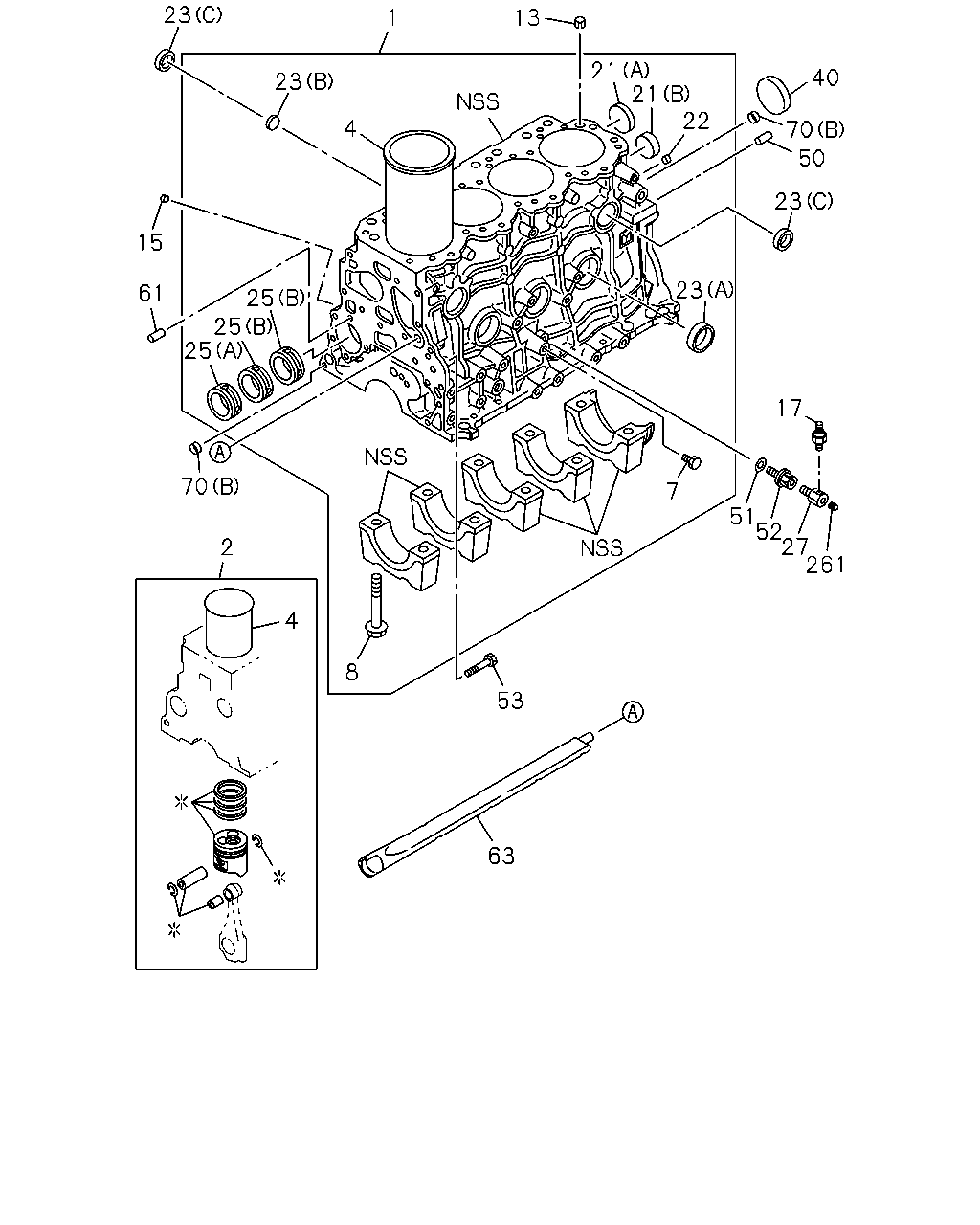

çizim 443030
23 23 1 4 13 21 21 22 40 70 23 50 23 51 52 27 17 261 53 7 15 61 25 25 25 70 2 4 8 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.033 BLOCK ASM; CYL 8-97374-139-1 01 1 0810- ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87814-401-2 04 1 0810- ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87814-402-2 04 1 0810- ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87814-403-2 04 1 0810- ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87814-404-2 04 1 0810- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-691-0 04 1 0810- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-692-0 04 1 0810- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-693-0 04 1 0810- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-694-0 04 1 0810- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-695-0 04 1 0810- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-696-0 04 1 0810- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-697-0 04 1 0810- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-698-0 04 1 0810- ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0810- ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0810- ●
8 00.056 BOLT; BRG CAP 8-90502-412-0 10 1 0610- ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0810- ●
13 00.293 DOWEL; C/BL TO HD 8-90353-654-0 02 1 0610- ●
15 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 03 1 0810- ●
17 01.800 SWITCH; OIL PRESSURE 9-82720-209-3 01 1 0810- ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0810- ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0810- ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 0810- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 03 1 0810- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 0810- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 0810- ●
25 00.539 METAL; CM/SHF
(B) 		8-97378-147-0 02 1 0810- ●
25 00.539 METAL; CM/SHF
(A) 		8-97378-148-0 01 1 0810- ●
27 01.531 NIPPLE; OIL GALLERY 8-98005-299-1 01 1 0810- ●
40 00.034 CUP; SEALING,C/BL RR
00.253 OD=56 		8-94250-514-1 01 1 0810- ●
50 00.685 PIN; STRAIGHT,RR PLATE
08.939 OD=10 L=32 		9-08161-032-0 01 1 0810- ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 0810- ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 0810- ●
53 00.862 BOLT; REAMER
00.683 M10X52 		9-09806-020-0 01 1 0810- ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 0810- ●
63 01.153 DUCT; WATER,C/BL 8-94419-436-2 01 1 0810- ●
70 00.034 CUP; SEALING,FRT & RR
00.253 (B) OD=16 		5-11129-006-0 02 1 0810- ●
70 00.034 CUP; SEALING,FRT & RR
(A) OD=34 		8-11056-093-0 07 1 0610- ●
70 00.034 CUP; SEALING,FRT & RR
(A) OD=36 		8-11070-803-0 07 1 0610-1009 ●
93 00.206 DOWEL; RET TO C/BL
(A) 		8-90108-591-0 02 1 0610-1009 ●
93 00.206 DOWEL; RET TO C/BL
(A) 		8-90351-708-0 02 1 1010- ●
93 00.206 DOWEL; RET TO C/BL
01.609 (B) 		8-90351-709-0 02 1 0610-1009 ●
93 00.206 DOWEL; RET TO C/BL
(B) 		8-90096-047-0 02 1 1010- ●
221 01.531 PLUG; OIL GALLERY 8-11056-321-0 04 1 0610- ●
261 00.034 PLUG; OIL PRESS UNIT
01.531 PT1/8 		1-09605-050-0 01 1 0810- ●
333 03.682 SENSOR; KNOCK 8-10456-669-0 01 1 0610- ●
401 00.724 BOLT; SENSOR 8-92063-265-0 01 1 0610- ●
403 01.519 GUIDE; GALLERY 8-90501-712-0 01 1 0610- ●
460 00.034 SEAL; CYL BLOCK 8-97163-071-0 01 1 0610- ●
