◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51100 - TFR/S GM MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#75111) — 101 parça

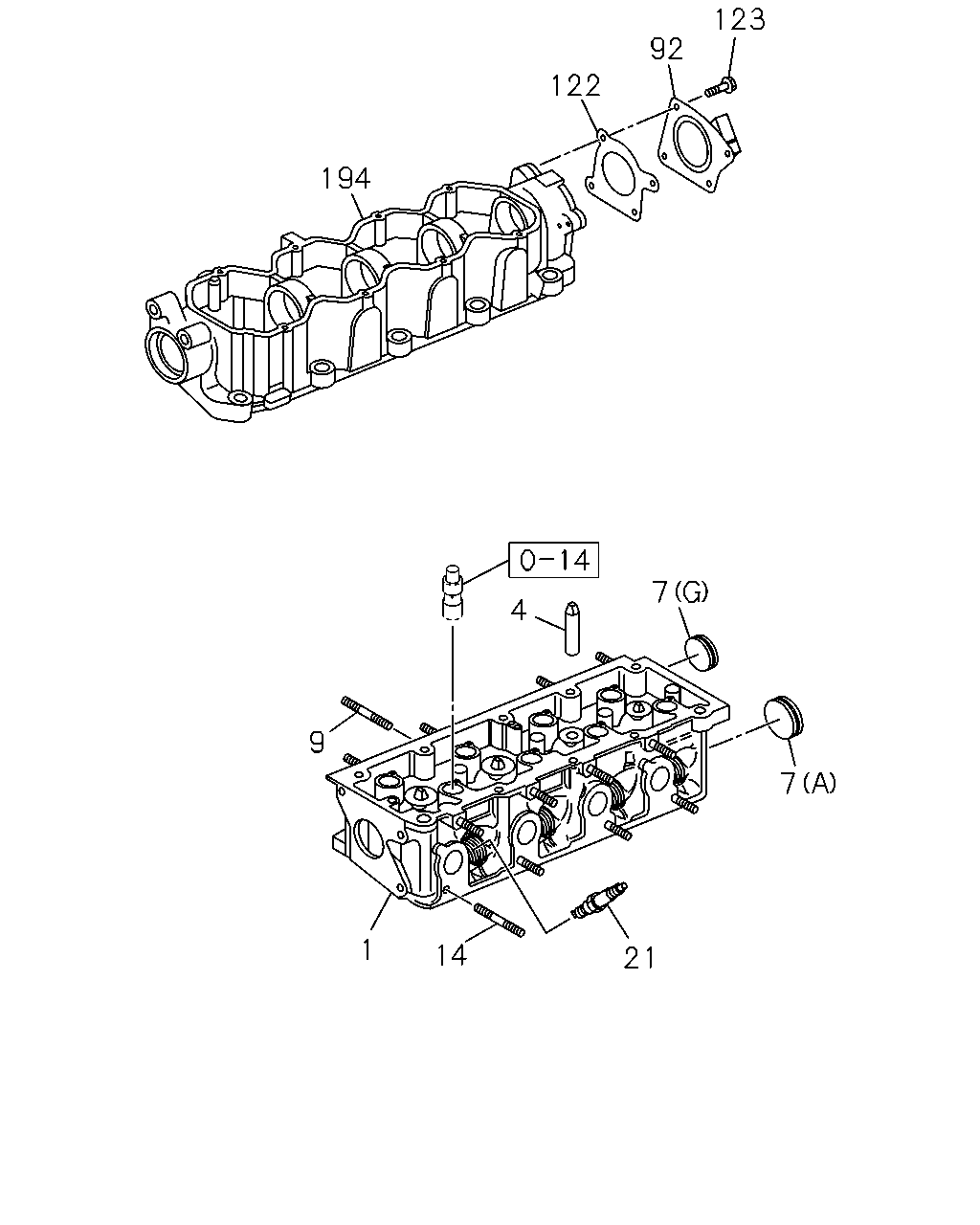

çizim 20377
123 92 122 194 7 4 9 7 1 14 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL 8-94431-520-5 01 1 0810- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0610-1009 ●
1 00.269 HEAD ASM; CYL 8-93381-263-0 01 1 1010- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0810- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0610- ●
4 00.283 GUIDE; VLV
OVSI 		8-90108-700-0 08 1 0610-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=45 		1-09600-005-2 01 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=12.3 		5-09600-013-0 05 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=16 		5-11129-006-0 03 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 07 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 0610-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(G) 		8-11047-651-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 0610-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) 		8-94646-298-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 0610-1009 ●
9 03.275 STUD; INL MANIF 8-92066-276-0 09 1 0610-1009 ●
9 03.275 STUD; INL MANIF 8-90106-924-0 09 1 1010- ●
14 03.275 STUD; EXH MANIF 8-92066-276-0 08 1 0610-1009 ●
14 03.275 STUD; EXH MANIF 8-90106-924-0 08 1 1010- ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 0610-1009 ●
21 02.270 PLUG; SPARK 8-93206-675-0 04 1 1010- ●
45 00.293 VALVE; OIL RELIEF,CYL HD 8-90136-113-0 01 1 0610-1009 ●
74 01.531 PLUG; OIL GALLERY 8-11095-511-0 01 1 0610-1009 ●
92 00.206 COVER; CM/SHF,CYL HD 8-92063-831-0 01 1 0610- ●
122 00.206 GASKET; COVER 8-92062-158-0 01 1 0610-1009 ●
122 00.206 GASKET; COVER 8-90572-268-0 01 1 1010- ●
123 00.206 BOLT; COVER 8-11027-991-0 04 1 0610-1009 ●
123 00.206 BOLT; COVER 8-93298-898-0 04 1 1010- ●
194 00.349 CARRIER; CAM SHAFT 8-92066-103-0 01 1 0610-1009 ●
194 00.349 CARRIER; CAM SHAFT 8-93369-422-0 01 1 1010- ●

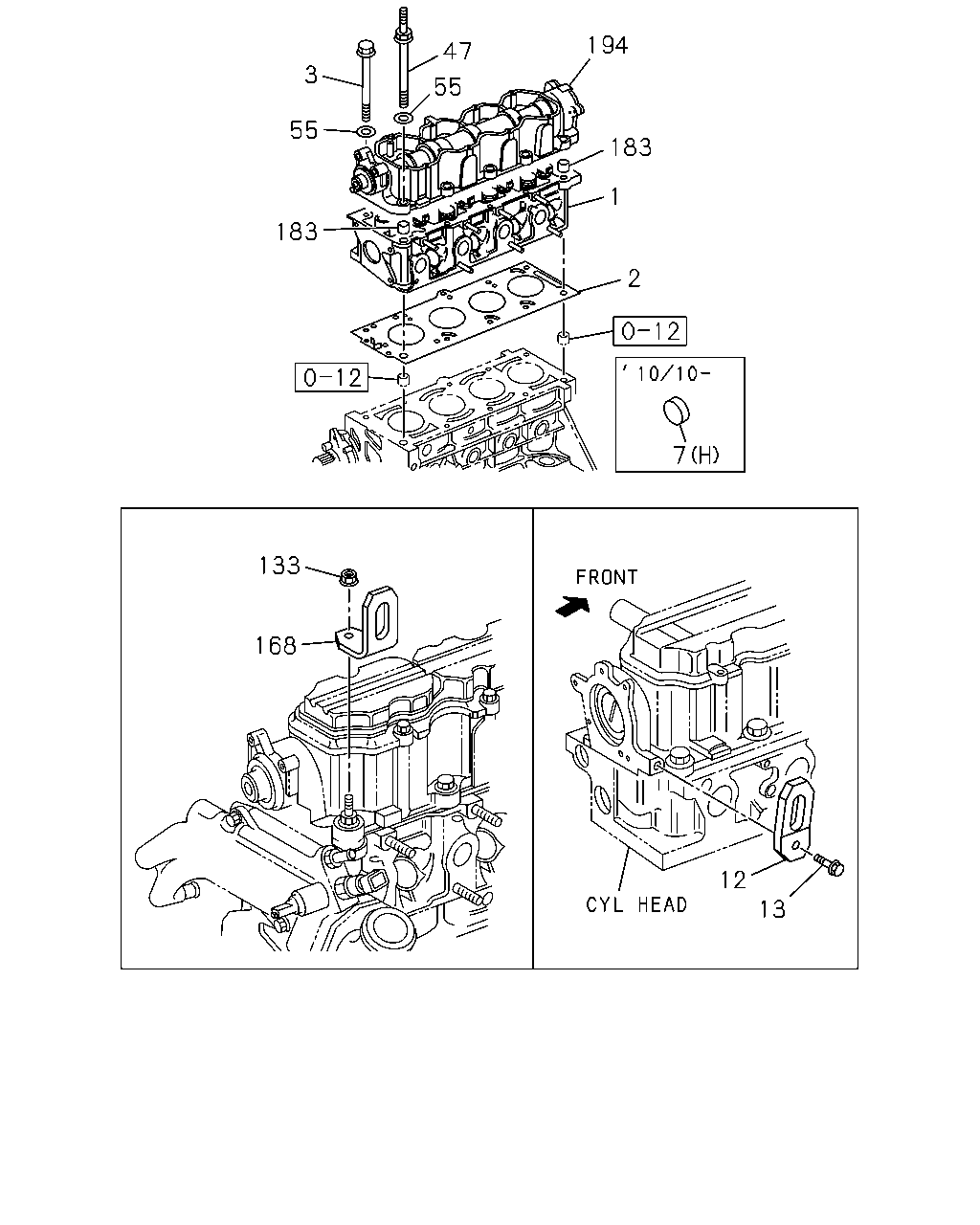

çizim 27723
194 47 3 55 55 183 1 183 2 7 133 168 12 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL 8-94431-520-5 01 1 0810- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0610-1009 ●
1 00.269 HEAD ASM; CYL 8-93381-263-0 01 1 1010- ●
2 00.289 GASKET; CYL HD
T=1.60 1-NOTCH 		8-97350-318-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
T=1.65 2-NOTCH 		8-97350-319-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
T=1.70 3-NOTCH 		8-97350-320-0 01 1 0810- ●
2 00.289 GASKET; CYL HD 8-93282-665-0 01 1 0610- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0810- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 0610-1009 ●
3 00.293 BOLT; CYL HD TO BLOCK 8-93294-943-0 07 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=45 		1-09600-005-2 01 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=12.3 		5-09600-013-0 05 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=16 		5-11129-006-0 03 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 07 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 0610-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(G) 		8-11047-651-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 0610-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) 		8-94646-298-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 0610-1009 ●
12 00.004 HANGER; ENG,RR 8-90156-902-0 01 1 0610- ●
13 00.004 BOLT; HANGER
03.670 		8-11041-103-0 01 1 0610-1009 ●
13 00.004 BOLT; HANGER 8-93298-987-0 01 1 1010- ●
45 00.293 VALVE; OIL RELIEF,CYL HD 8-90136-113-0 01 1 0610-1009 ●
47 00.413 STUD; CYL HD 8-92061-632-0 01 1 0610-1009 ●
47 00.413 STUD; CYL HD 8-10031-214-0 03 1 1010- ●
55 00.004 WASHER; PL,CYL HD TO BLOCK 8-90325-497-0 10 1 0610-1009 ●
55 00.004 WASHER; PL,CYL HD TO BLOCK 8-90144-297-0 10 1 1010- ●
74 01.531 PLUG; OIL GALLERY 8-11095-511-0 01 1 0610-1009 ●
133 00.004 NUT; HANGER 8-92066-006-0 01 1 0610-1009 ●
133 00.004 NUT; HANGER 8-93251-957-0 01 1 1010- ●
168 00.004 HANGER; ENG,FRT 8-90323-004-0 01 1 0610-1009 ●
168 00.004 HANGER; ENG,FRT 8-92065-449-0 01 1 1010- ●
183 00.206 DOWEL; CYL HEAD
00.293 		8-90353-654-0 02 1 0610- ●
194 00.349 CARRIER; CAM SHAFT 8-92066-103-0 01 1 0610-1009 ●
194 00.349 CARRIER; CAM SHAFT 8-93369-422-0 01 1 1010- ●

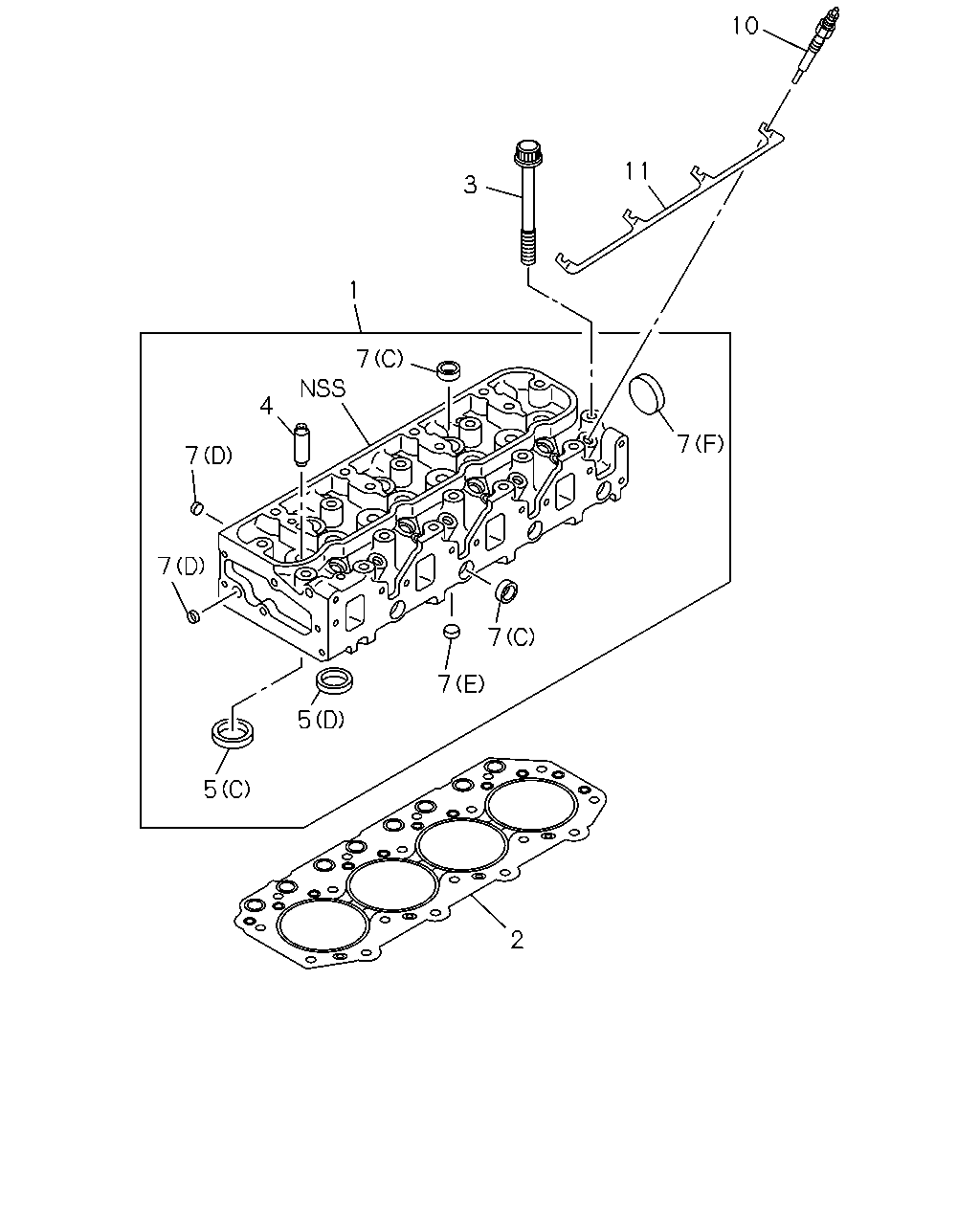

çizim 28151
10 11 3 1 7 4 7 7 7 7 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL 8-94431-520-5 01 1 0810- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0610-1009 ●
1 00.269 HEAD ASM; CYL 8-93381-263-0 01 1 1010- ●
2 00.289 GASKET; CYL HD
T=1.60 1-NOTCH 		8-97350-318-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
T=1.65 2-NOTCH 		8-97350-319-0 01 1 0810- ●
2 00.289 GASKET; CYL HD
T=1.70 3-NOTCH 		8-97350-320-0 01 1 0810- ●
2 00.289 GASKET; CYL HD 8-93282-665-0 01 1 0610- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0810- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 0610-1009 ●
3 00.293 BOLT; CYL HD TO BLOCK 8-93294-943-0 07 1 1010- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0810- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0610- ●
4 00.283 GUIDE; VLV
OVSI 		8-90108-700-0 08 1 0610-1009 ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=41.2 		8-97231-228-0 04 1 0810- ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=36.7 		8-97231-229-0 04 1 0810- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-90233-708-0 04 1 0610-1009 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-90233-709-0 04 1 0610-1009 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-90233-712-0 04 1 0610-1009 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-713-0 04 1 0610-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=45 		1-09600-005-2 01 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=12.3 		5-09600-013-0 05 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=16 		5-11129-006-0 03 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 07 1 0810- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 0610-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(G) 		8-11047-651-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 0610-1009 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) 		8-94646-298-0 01 1 1010- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 0610-1009 ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 0810- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 0810- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0810- ●
45 00.293 VALVE; OIL RELIEF,CYL HD 8-90136-113-0 01 1 0610-1009 ●
74 01.531 PLUG; OIL GALLERY 8-11095-511-0 01 1 0610-1009 ●
