◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#75106) — 33 parça

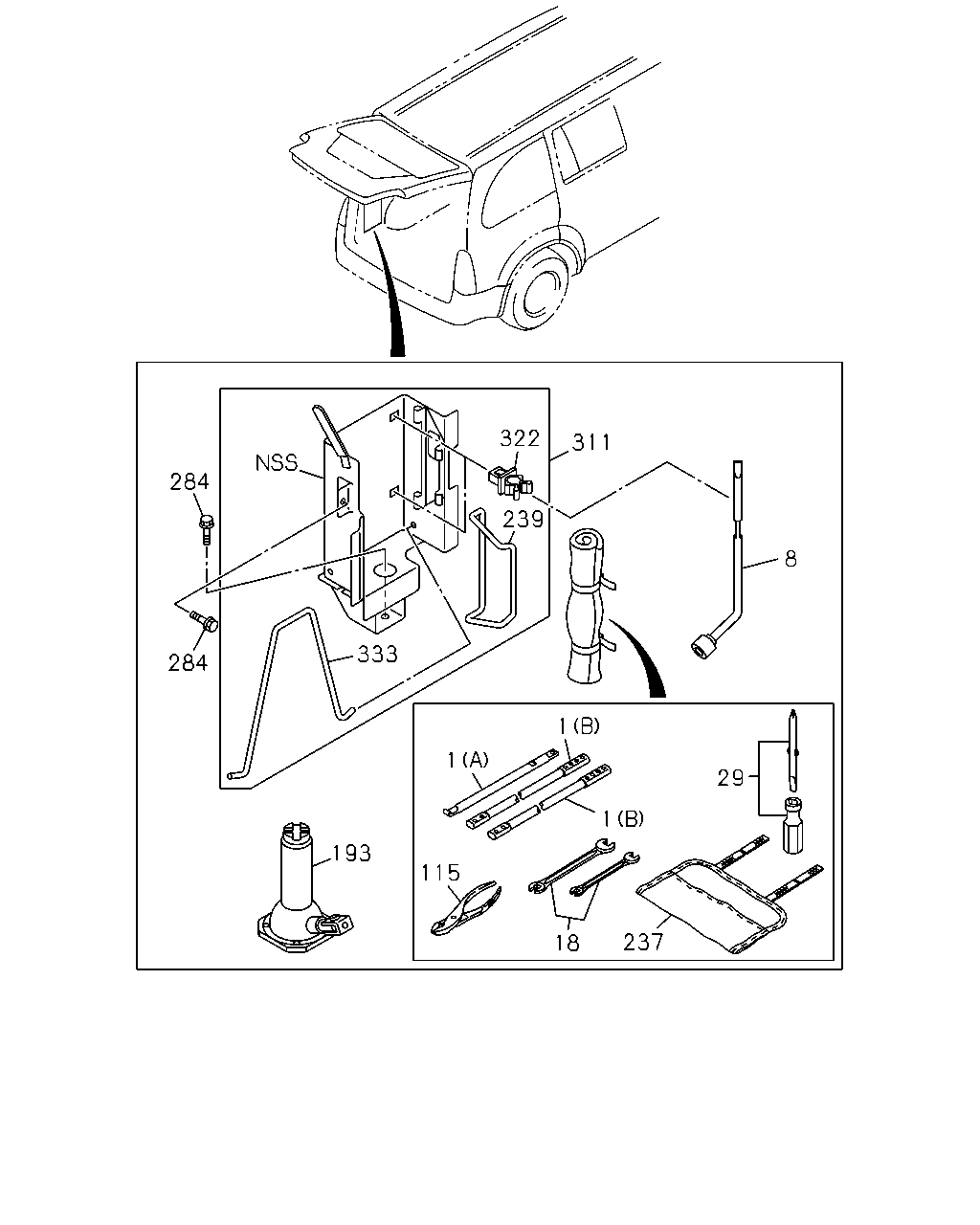

çizim 118717
322 311 284 239 8 333 284 1 1 29 1 193 115 237 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
(A) 		8-97215-330-0 01 1 0503-0508 ●
1 HANDLE; SPARE TIRE CARRIER
(A) 		8-97215-330-0 01 1 0509- ● ●
1 HANDLE; SPARE TIRE CARRIER
(B) 		8-97215-332-0 02 1 0503-0508 ●
1 HANDLE; SPARE TIRE CARRIER
(B) 		8-97215-332-0 02 1 0509- ● ●
8 WRENCH; WHEEL 8-97217-790-0 01 1 0503-0508 ●
8 WRENCH; WHEEL 8-97217-790-0 01 1 0509-0606 ● ●
8 WRENCH; WHEEL
L=19 		8-98027-834-0 01 1 0607- ● ●
18 WRENCH KIT 8-97248-884-0 01 1 0503-0508 ●
18 WRENCH KIT 8-97248-884-0 01 1 0509-0606 ● ●
18 WRENCH KIT
8X10,12X14 		8-97945-273-0 01 1 0607- ● ●
29 DRIVER; SCREW 8-97248-870-0 01 1 0503-0508 ●
29 DRIVER; SCREW 8-97248-870-0 01 1 0509-0606 ● ●
29 DRIVER; SCREW 8-98027-833-0 01 1 0607- ● ●
115 PLIER 8-97248-869-0 01 1 0503-0508 ●
115 PLIER 8-97248-869-0 01 1 0509-0606 ● ●
115 PLIER 8-98027-832-0 01 1 0607-0912 ● ●
115 PLIER 8-98099-659-0 01 1 1001- ● ●
193 JACK ASM 8-97217-788-1 01 1 0503-0508 ●
193 JACK ASM 8-97217-788-1 01 1 0509- ● ●
237 BAG; TOOL 8-97248-885-1 01 1 0503-0508 ●
237 BAG; TOOL 8-97248-885-1 01 1 0509-0606 ● ●
237 BAG; TOOL 8-97945-395-0 01 1 0607- ● ●
239 BAND; TOOL BAG 8-97943-462-0 01 1 0503-0508 ●
239 BAND; TOOL BAG 8-97943-462-0 01 1 0509- ● ●
284 BOLT; TOOL BOX
M6X18 		8-94408-386-1 03 1 0503-0508 ●
284 BOLT; TOOL BOX
M6X18 		8-94408-386-1 03 1 0509-0611 ● ●
284 BOLT; TOOL BOX
M6X18 W/PL WASHER 		8-98049-086-0 03 1 0612- ● ●
311 BOX ASM; TOOL 8-97943-459-1 01 1 0503-0508 ●
311 BOX ASM; TOOL 8-97943-459-1 01 1 0509- ● ●
322 CLIP; WRENCH HANDLE 8-97264-782-0 03 1 0503-0508 ●
322 CLIP; WRENCH HANDLE 8-97264-782-0 03 1 0509- ● ●
333 ROD; JACK 8-97943-461-0 01 1 0503-0508 ●
333 ROD; JACK 8-97943-461-0 01 1 0509- ● ●
