◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#75105) — 64 parça

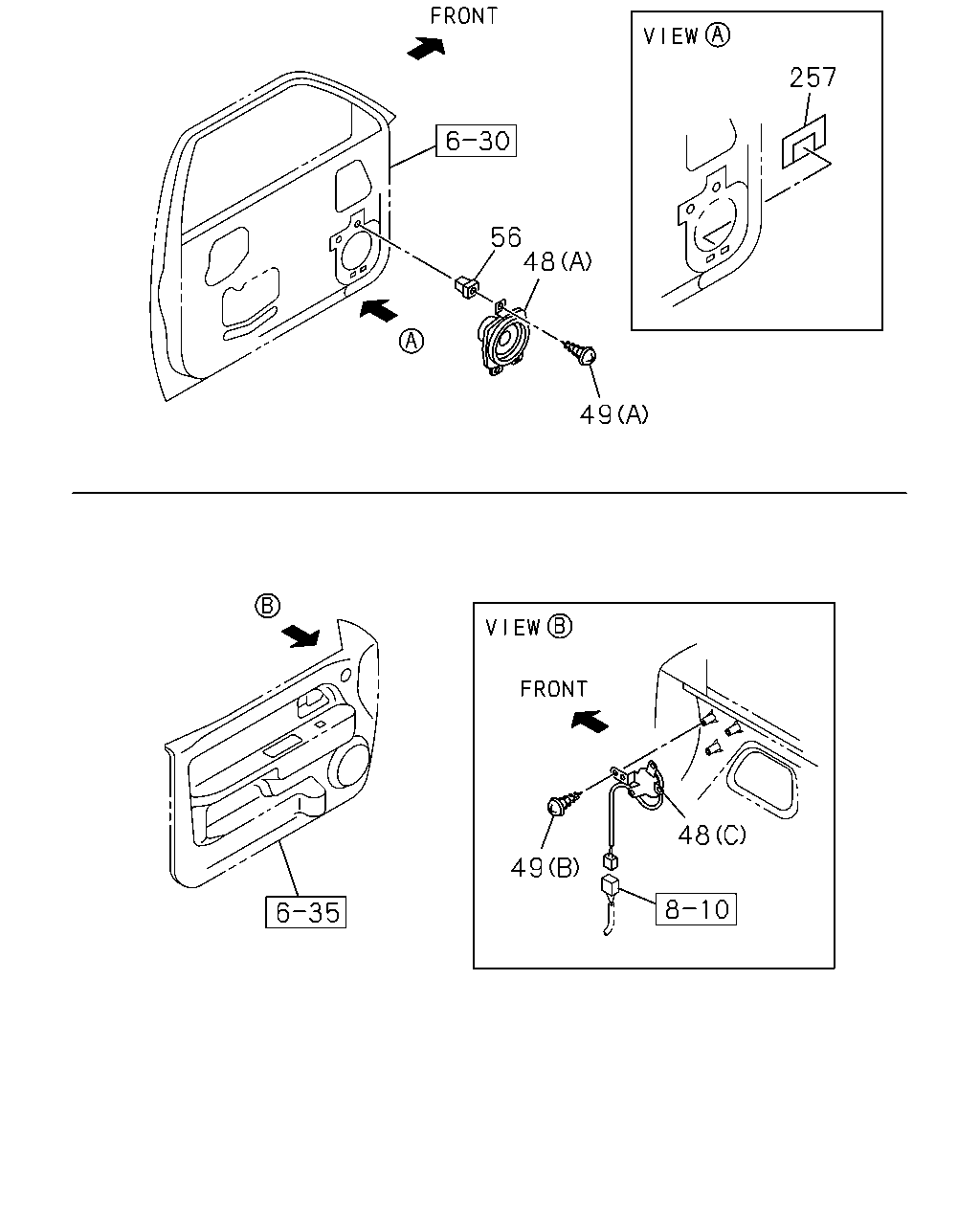

çizim 118695
257 56 48 49 48 49
BalonParca AdiParca NoAdetTipApplied Date A B
48 SPEAKER; AUDIO
(A) 		8-97357-982-0 02 1 0503-0508 ●
48 SPEAKER; AUDIO
(A) 		8-97357-982-0 02 1 0509-0606 ● ●
48 SPEAKER; AUDIO
(A) 		8-98035-069-0 02 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(A) 		8-98273-210-0 02 1 1405- ● ●
48 SPEAKER; AUDIO
(B) 		8-97374-934-0 02 1 0503-0508 ●
48 SPEAKER; AUDIO
(B) 		8-97374-934-0 02 1 0509-0606 ● ●
48 SPEAKER; AUDIO
(B) 		8-98035-070-0 02 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(B) 		8-98273-207-0 02 1 1405- ● ●
48 SPEAKER; AUDIO
(C) 		8-97238-543-0 01 1 0503-0508 ●
48 SPEAKER; AUDIO
(C) 		8-97238-543-0 01 1 0509-0606 ● ●
48 SPEAKER; AUDIO
(C) 		8-98035-075-0 01 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(C) 		8-98273-205-0 01 1 1405- ● ●
48 SPEAKER; AUDIO
(C) 		8-97259-628-0 01 1 0503-0508 ●
48 SPEAKER; AUDIO
(C) 		8-97259-628-0 01 1 0509-0606 ● ●
48 SPEAKER; AUDIO
(C) 		8-98035-071-0 01 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(C) 		8-98273-204-0 01 1 1405- ● ●
49 SCREW; SPEAKER
(A) M5X14 		8-94152-495-0 04 1 0503-0508 ●
49 SCREW; SPEAKER
(A) M5X14 		8-94152-495-0 04 1 0509- ● ●
49 SCREW; SPEAKER
(B) M4X10 		9-93497-410-0 06 1 0503-0508 ●
49 SCREW; SPEAKER
(B) M4X10 		9-93497-410-0 06 1 0509-0606 ● ●
49 SCREW; SPEAKER
(B) M4X10 		0-34218-410-0 06 1 0607- ● ●
56 NUT; SPEAKER,RADIO OR STEREO 8-94152-494-0 04 1 0503-0508 ●
56 NUT; SPEAKER,RADIO OR STEREO 8-94152-494-0 04 1 0509- ● ●
257 SEAL; SPEAKER 8-97328-113-0 02 1 0503-0508 ●
257 SEAL; SPEAKER 8-97328-113-0 02 1 0509- ● ●

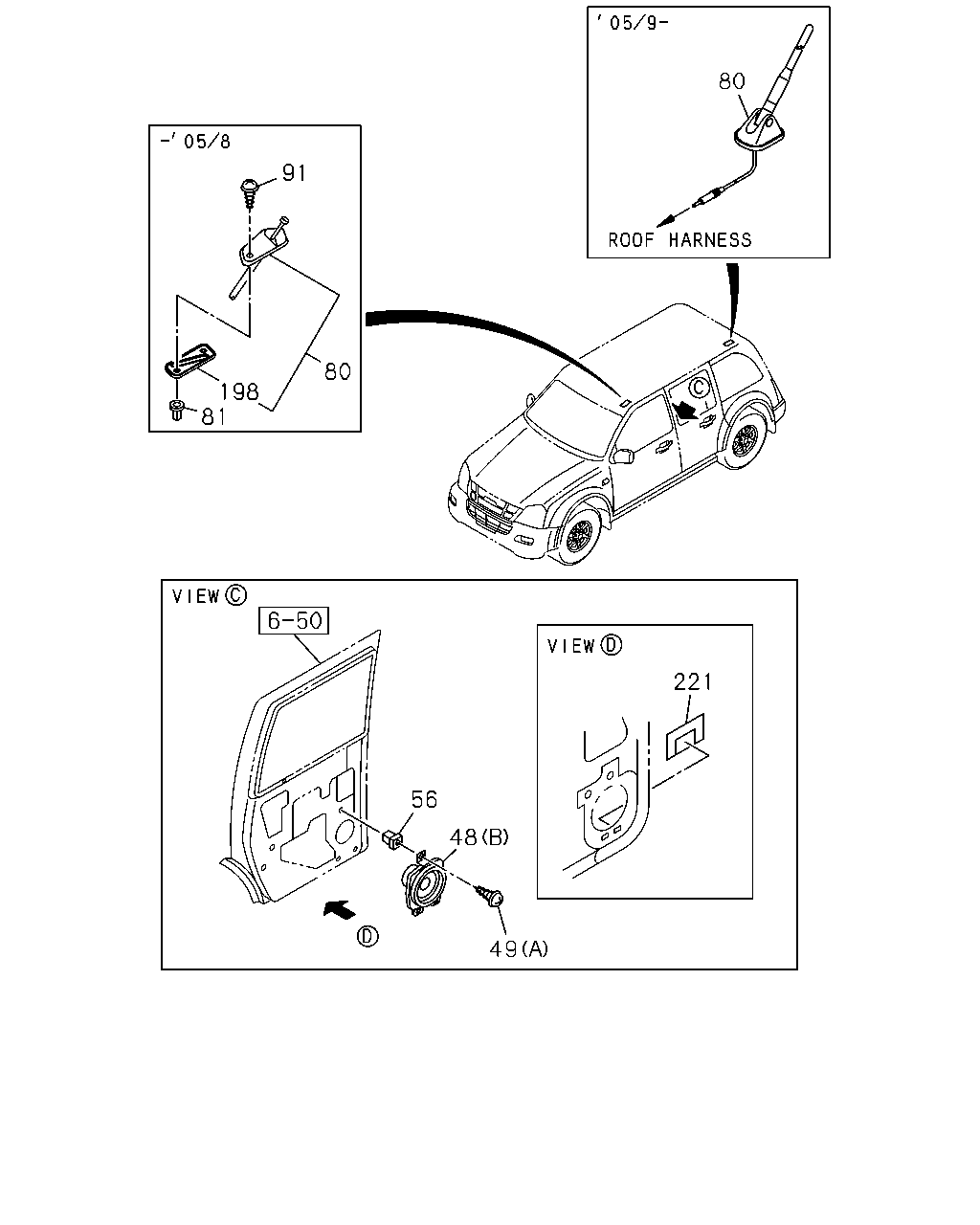

çizim 118714
80 91 80 198 81 221 56 48 49
BalonParca AdiParca NoAdetTipApplied Date A B
48 SPEAKER; AUDIO
(A) 		8-97357-982-0 02 1 0503-0508 ●
48 SPEAKER; AUDIO
(A) 		8-97357-982-0 02 1 0509-0606 ● ●
48 SPEAKER; AUDIO
(A) 		8-98035-069-0 02 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(A) 		8-98273-210-0 02 1 1405- ● ●
48 SPEAKER; AUDIO
(B) 		8-97374-934-0 02 1 0503-0508 ●
48 SPEAKER; AUDIO
(B) 		8-97374-934-0 02 1 0509-0606 ● ●
48 SPEAKER; AUDIO
(B) 		8-98035-070-0 02 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(B) 		8-98273-207-0 02 1 1405- ● ●
48 SPEAKER; AUDIO
(C) 		8-97238-543-0 01 1 0503-0508 ●
48 SPEAKER; AUDIO
(C) 		8-97238-543-0 01 1 0509-0606 ● ●
48 SPEAKER; AUDIO
(C) 		8-98035-075-0 01 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(C) 		8-98273-205-0 01 1 1405- ● ●
48 SPEAKER; AUDIO
(C) 		8-97259-628-0 01 1 0503-0508 ●
48 SPEAKER; AUDIO
(C) 		8-97259-628-0 01 1 0509-0606 ● ●
48 SPEAKER; AUDIO
(C) 		8-98035-071-0 01 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(C) 		8-98273-204-0 01 1 1405- ● ●
49 SCREW; SPEAKER
(A) M5X14 		8-94152-495-0 04 1 0503-0508 ●
49 SCREW; SPEAKER
(A) M5X14 		8-94152-495-0 04 1 0509- ● ●
49 SCREW; SPEAKER
(B) M4X10 		9-93497-410-0 06 1 0503-0508 ●
49 SCREW; SPEAKER
(B) M4X10 		9-93497-410-0 06 1 0509-0606 ● ●
49 SCREW; SPEAKER
(B) M4X10 		0-34218-410-0 06 1 0607- ● ●
56 NUT; SPEAKER,RADIO OR STEREO 8-94152-494-0 04 1 0503-0508 ●
56 NUT; SPEAKER,RADIO OR STEREO 8-94152-494-0 04 1 0509- ● ●
80 ANTENNA 8-97378-376-0 01 1 0503-0508 ●
80 ANTENNA 8-98018-276-1 01 1 0509- ● ●
81 NUT; ANTENNA POLE
M5 POP NUT 		8-97249-574-0 02 1 0503-0508 ●
91 BOLT; ANTENNA
M5X16 		8-97375-569-0 02 1 0503-0508 ●
198 SHEET; ANTENNA 8-97368-126-0 01 1 0503-0508 ●
221 SEAL; SPEAKER PANEL 8-97328-113-0 02 1 0503-0508 ●
221 SEAL; SPEAKER PANEL 8-97328-113-0 02 1 0509- ● ●

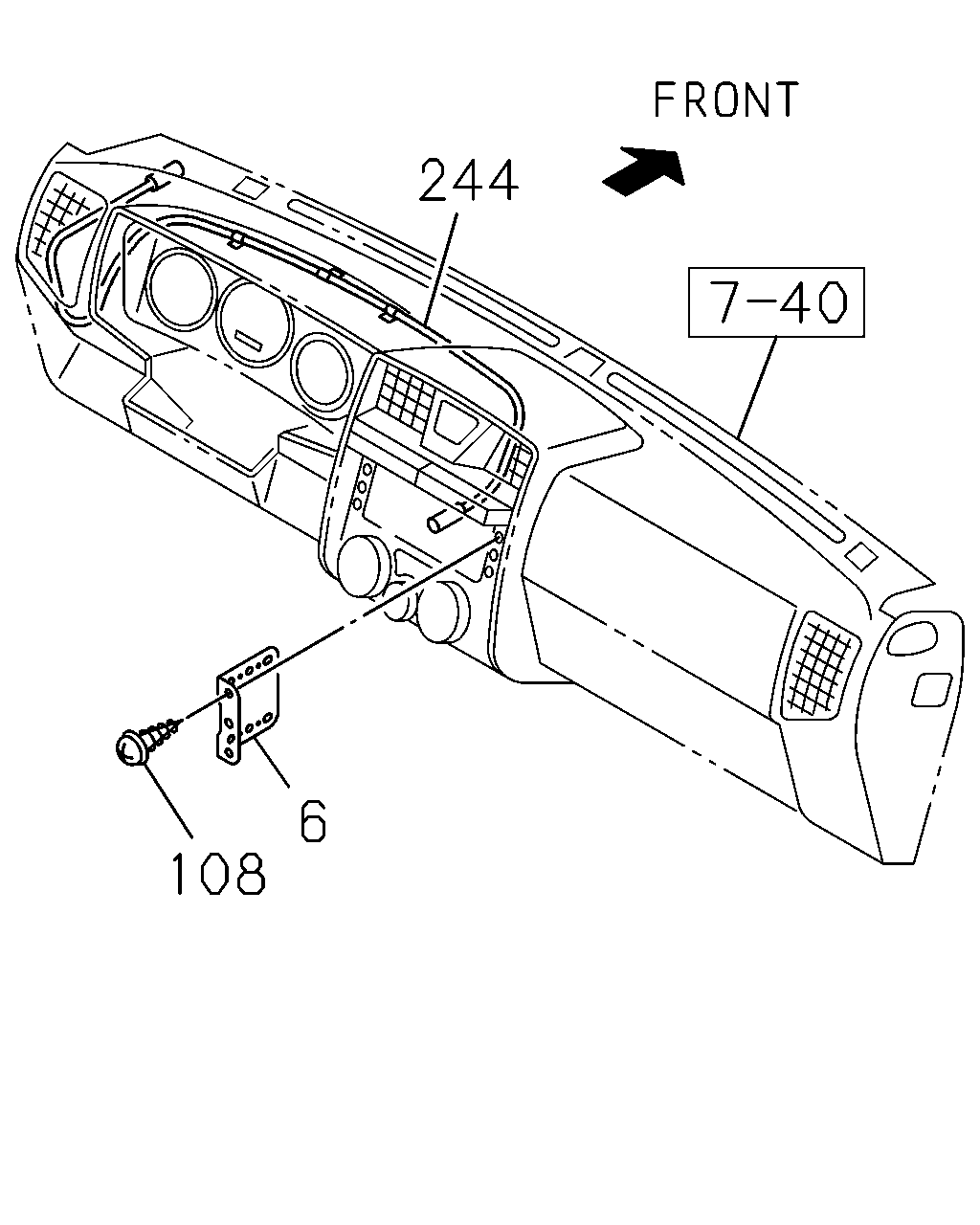

çizim 118720
244 6 108
BalonParca AdiParca NoAdetTipApplied Date A B
6 BRACKET; RADIO TO PANEL 8-97238-471-0 02 1 0503-0508 ●
6 BRACKET; RADIO TO PANEL 8-97238-471-0 02 1 0509-0606 ● ●
6 BRACKET; RADIO TO PANEL 8-98007-736-0 02 1 0610- ● ●
108 SCREW; BRKT
M5X16 TAPPING 		9-09829-323-1 04 1 0503-0508 ●
108 SCREW; BRKT
M5X16 TAPPING 		9-09829-323-1 04 1 0509-0702 ● ●
108 SCREW; BRKT
M5X16 TAPPING 		8-98061-685-0 04 1 0703-1005 ● ●
108 SCREW; BRKT
M5X16 TAPPING 		8-98167-449-0 04 1 1006- ● ●
244 CABLE; FEEDER 8-97238-487-1 01 1 0503-0508 ●
244 CABLE; FEEDER 8-97238-487-1 01 1 0509- ● ●
