Isuzu WW
▶
SUV
▶
UCR
▶
51032 - UCR/UCS-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-85 - REAR WIPER AND WASHER
▶
8-85 — REAR WIPER AND WASHER
(#75104) — 27 parça
Tümü
A - UCB6VF
B - UCS6VF
◀
[885A] NO.2 (17 parça)
[885A] NO.1 (10 parça)
▶

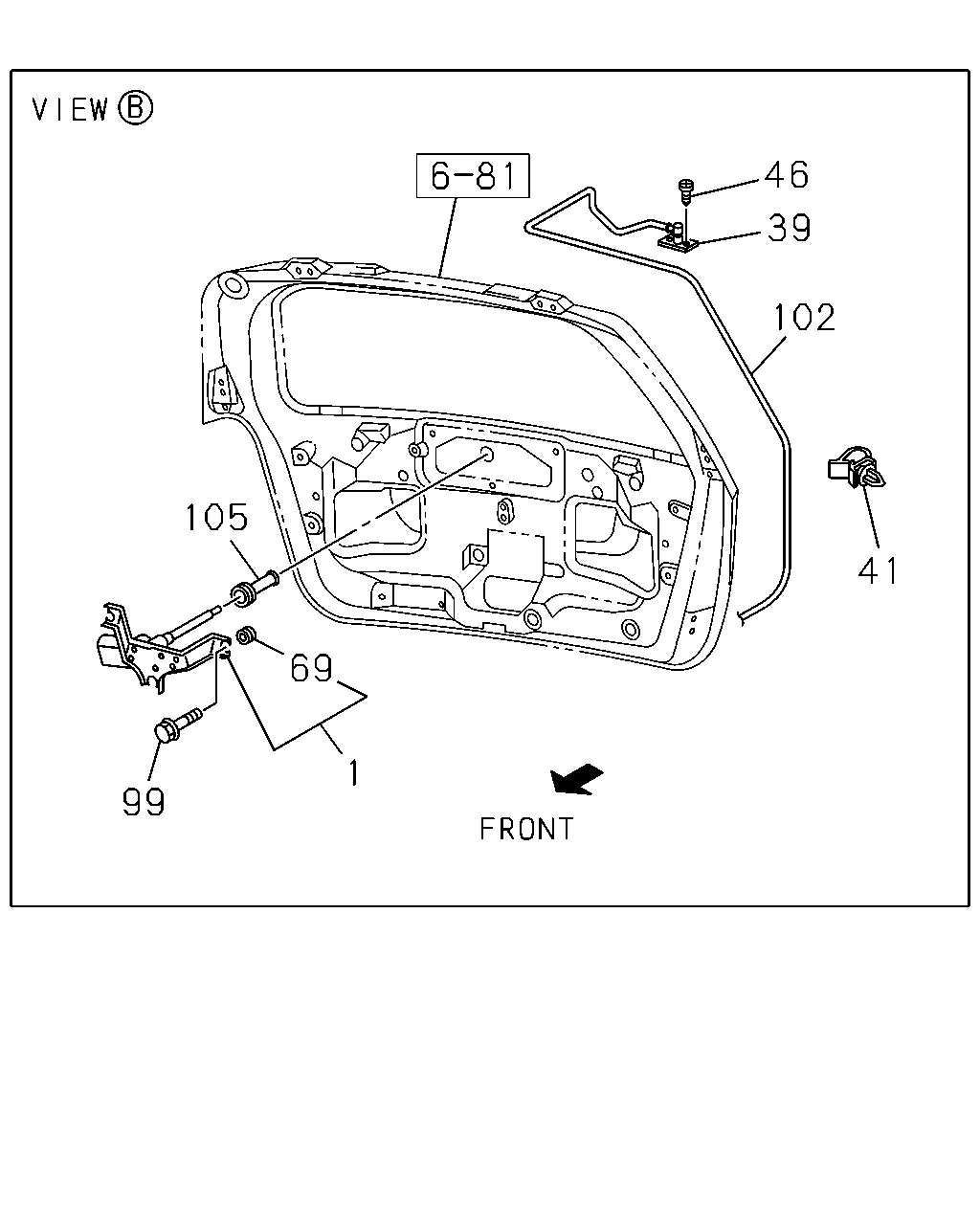

46
39
102
105
41
69
1
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MOTOR ASM; RR WIPER
8-97364-082-0
01
1
0503-0508
●
1
MOTOR ASM; RR WIPER
8-97364-082-1
01
1
0509-
●
●
39
NOZZLE; RR WINDSHIELD,WASHER
8-97364-009-1
01
1
0503-0508
●
39
NOZZLE; RR WINDSHIELD,WASHER
8-97364-009-1
01
1
0509-
●
●
41
CLIP; RR WASHER TANK HOSE
ID=7
8-97014-713-0
05
1
0503-0508
●
41
CLIP; RR WASHER TANK HOSE
ID=7
8-97014-713-0
05
1
0509-
●
●
46
SCREW; NOZZLE,RR WASHER
0-71260-510-0
02
1
0503-0508
●
46
SCREW; NOZZLE,RR WASHER
0-71260-510-0
02
1
0509-
●
●
69
RUBBER; CUSHION,RR,WIPER
8-97373-513-0
03
1
0503-0508
●
69
RUBBER; CUSHION,RR,WIPER
8-97373-513-0
03
1
0509-
●
●
99
BOLT; WIPER MOTOR
M6X22 W/PL WASHER
8-97012-072-0
03
1
0503-0508
●
99
BOLT; WIPER MOTOR
M6X22 W/PL WASHER
8-97012-072-0
03
1
0509-0906
●
●
99
BOLT; WIPER MOTOR
M6X22 W/PL WASHER
8-98136-167-0
03
1
0907-
●
●
102
HOSE; REAR WASHER
8-97372-439-1
01
1
0503-0508
●
102
HOSE; REAR WASHER
8-97372-439-1
01
1
0509-
●
●
105
GROMMET; RR WIPER MOTOR
8-97364-085-1
01
1
0503-0508
●
105
GROMMET; RR WIPER MOTOR
8-97364-085-1
01
1
0509-
●
●

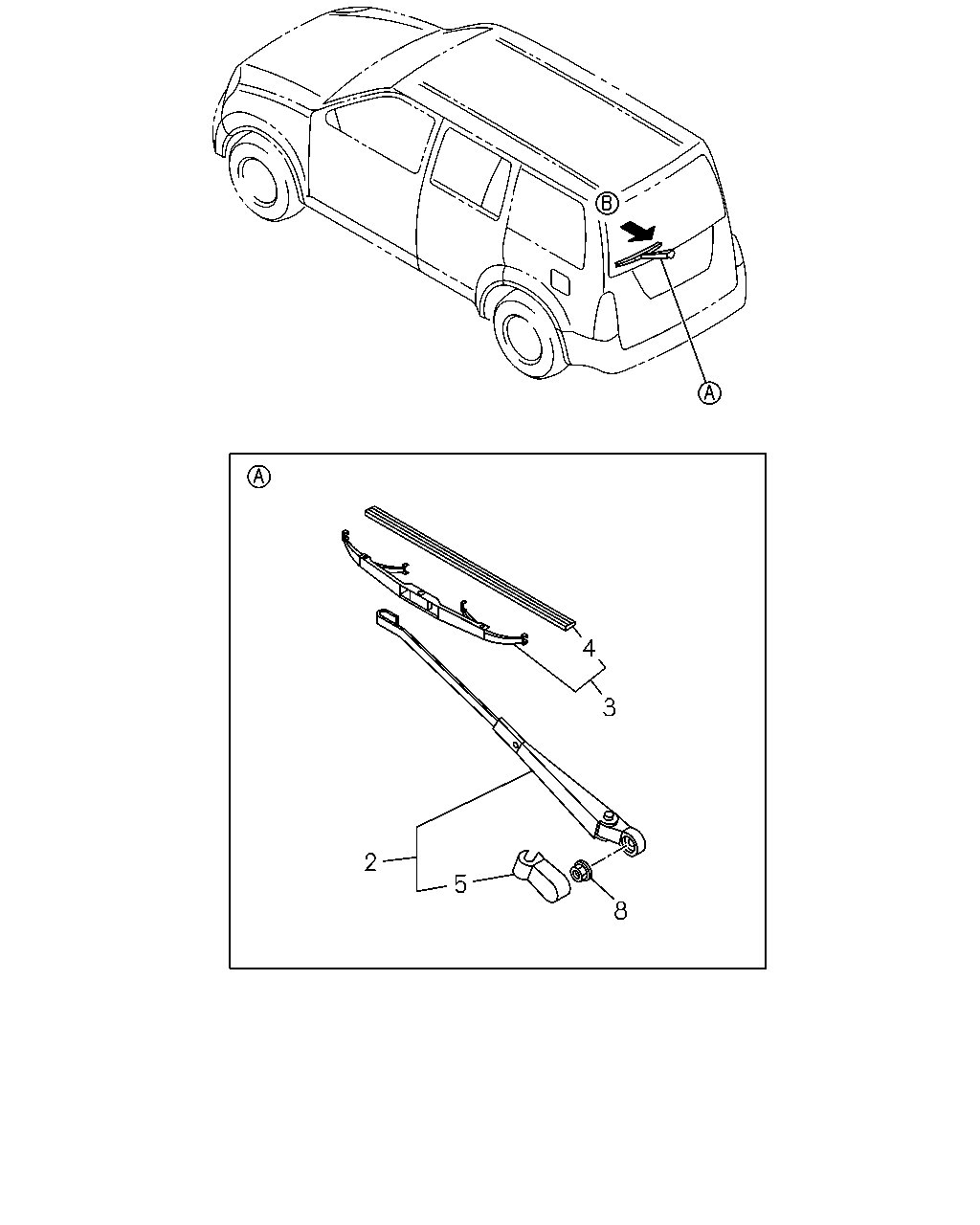

4
3
2
5
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
ARM ASM; REAR WIPER
8-98000-869-0
01
1
0503-0508
●
2
ARM ASM; REAR WIPER
8-98000-869-0
01
1
0509-
●
●
3
BLADE ASM; REAR WIPER
8-98000-871-0
01
1
0503-0508
●
3
BLADE ASM; REAR WIPER
8-98000-871-0
01
1
0509-
●
●
4
RUBBER; BLADE,RR WIPER
8-98000-872-0
01
1
0503-0508
●
4
RUBBER; BLADE,RR WIPER
8-98000-872-0
01
1
0509-
●
●
5
COVER; REAR WIPER ARM
8-98000-870-0
01
1
0503-0508
●
5
COVER; REAR WIPER ARM
8-98000-870-0
01
1
0509-
●
●
8
NUT; RR WIPER ARM TO WIPER MOTOR
M6
0-91111-506-0
01
1
0503-0508
●
8
NUT; RR WIPER ARM TO WIPER MOTOR
M6
0-91111-506-0
01
1
0509-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
