8-80 — WINDSHIELD WIPER AND WASHER (#75103) — 107 parça

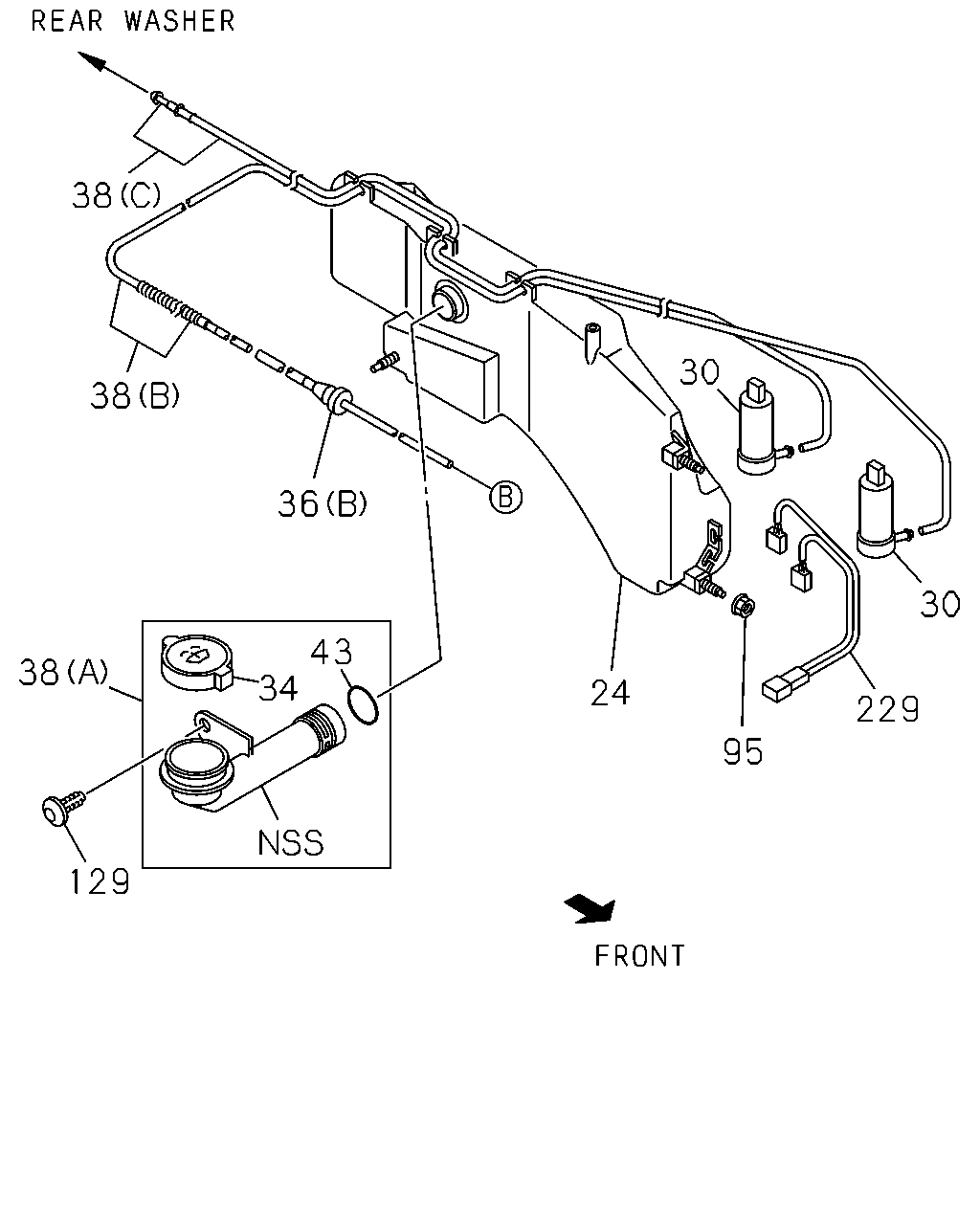

çizim 118716
36 38 38 38 129 34 43 24 95 30 229 30
BalonParca AdiParca NoAdetTipApplied Date A B
24 TANK ASM; WASHER 8-97373-636-0 01 1 0503-0508 ●
24 TANK ASM; WASHER 8-97373-636-0 01 1 0509- ● ●
30 MOTOR ASM; FRT WASHER TANK 8-97373-838-0 02 1 0503-0508 ●
30 MOTOR ASM; FRT WASHER TANK 8-97373-838-0 02 1 0509- ● ●
34 CAP; WASHER TANK 8-97349-905-0 01 1 0503-0508 ●
34 CAP; WASHER TANK 8-97349-905-0 01 1 0509- ● ●
36 HOSE; WASHER
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (B) 		8-97364-086-1 01 1 0809- ●
36 HOSE; WASHER
A/T 4 SPEED-JATCO(RMK) (B) 		8-97364-086-1 01 1 0809- ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-97349-607-0 01 1 0503-0508 ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-97349-607-0 01 1 0509- ● ●
36 HOSE; WASHER
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (B) 		8-97364-086-0 01 1 0503-0508 ●
36 HOSE; WASHER
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (B) 		8-97364-086-0 01 1 0509-0606 ●
36 HOSE; WASHER
A/T 4 SPEED-JATCO(RMK) (B) 		8-97364-086-0 01 1 0509-0606 ●
36 HOSE; WASHER
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (B) 		8-97364-086-1 01 1 0607- ● ●
38 HOSE; JOINT,TANK
(A) 		8-97310-064-1 01 1 0503-0508 ●
38 HOSE; JOINT,TANK
(A) 		8-97310-064-1 01 1 0509- ● ●
38 HOSE; JOINT,TANK
(B) 		8-97373-840-0 01 1 0503-0508 ●
38 HOSE; JOINT,TANK
(B) 		8-97373-840-0 01 1 0509- ● ●
38 HOSE; JOINT,TANK
(C) 		8-97373-841-0 01 1 0503-0508 ●
38 HOSE; JOINT,TANK
(C) 		8-97373-841-0 01 1 0509- ● ●
43 RUBBER; GASKET,TANK 8-97349-906-0 01 1 0503-0508 ●
43 RUBBER; GASKET,TANK 8-97349-906-0 01 1 0509- ● ●
95 NUT; WASHER TANK
M6 W/DISHED WASHER 		8-94170-192-0 03 1 0503-0508 ●
95 NUT; WASHER TANK
M6 W/DISHED WASHER 		8-94170-192-0 03 1 0509-0610 ● ●
95 NUT; WASHER TANK
M6 W/DISHED WASHER 		8-98049-368-0 03 1 0611- ● ●
129 CLIP; JOINT HOSE
L=19 BLACK 		8-94363-776-0 01 1 0503-0508 ●
129 CLIP; JOINT HOSE
L=19 BLACK 		8-94363-776-0 01 1 0509- ● ●
229 HARNESS; WASHER TANK 8-97373-839-0 01 1 0503-0508 ●
229 HARNESS; WASHER TANK 8-97373-839-0 01 1 0509- ● ●

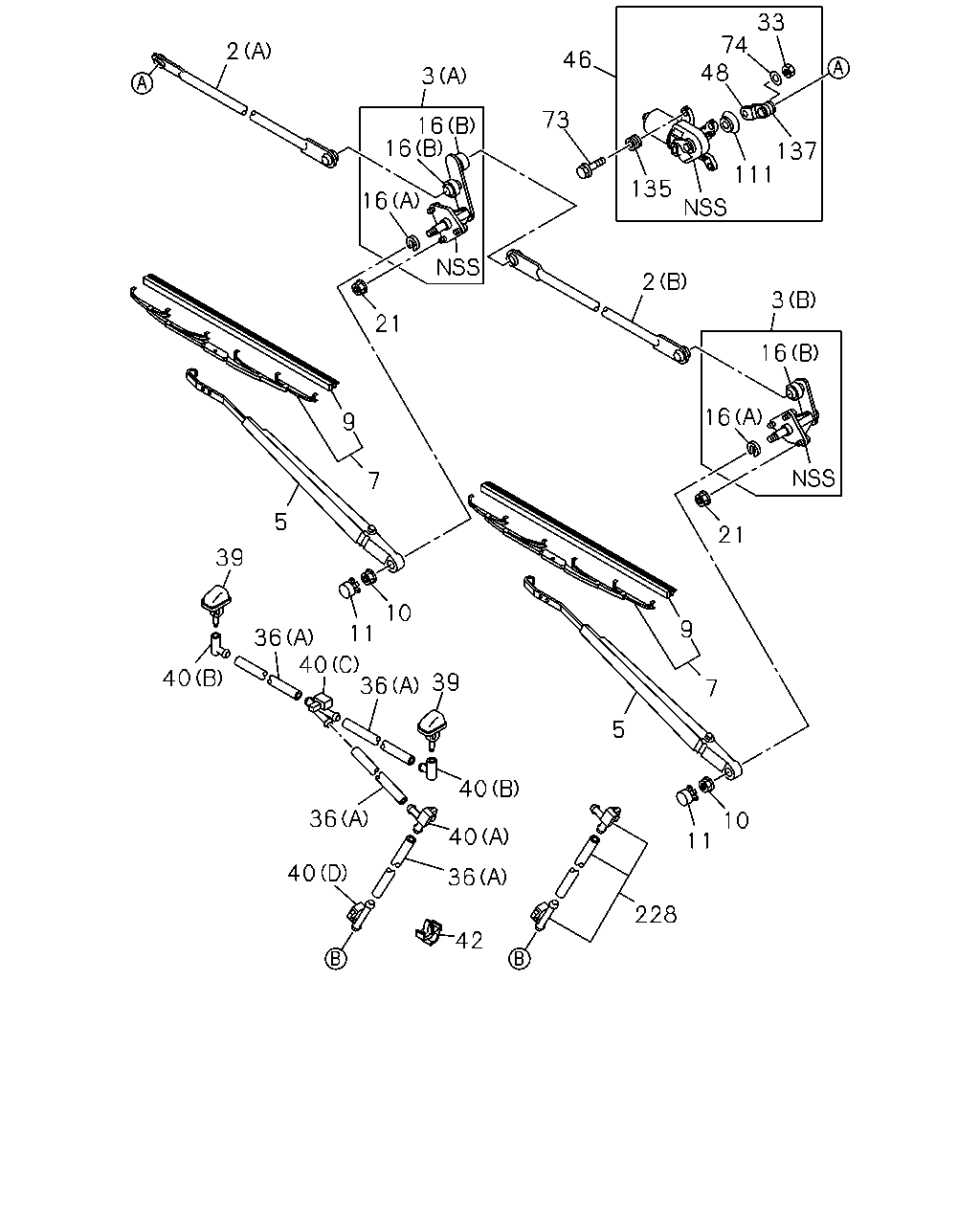

çizim 118751
33 74 48 2 46 3 73 16 16 137 111 135 16 2 3 21 16 16 9 7 5 21 39 10 9 11 36 40 36 40 39 7 5 40 36 10 40 11 40 36 228 42
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINK; FRT WIPER
(A) 		8-97352-434-0 01 1 0503-0508 ●
2 LINK; FRT WIPER
(A) 		8-97352-434-0 01 1 0509- ● ●
2 LINK; FRT WIPER
(B) 		8-97352-435-0 01 1 0503-0508 ●
2 LINK; FRT WIPER
(B) 		8-97352-435-0 01 1 0509- ● ●
3 PIVOT ASM; FRT WIPER
(B) 		8-97349-891-0 01 1 0503-0508 ●
3 PIVOT ASM; FRT WIPER
(B) 		8-97349-891-0 01 1 0509-0612 ● ●
3 PIVOT ASM; FRT WIPER
(B) 		8-98057-714-0 01 1 0701- ● ●
3 PIVOT ASM; FRT WIPER
(A) 		8-97352-433-1 01 1 0503-0508 ●
3 PIVOT ASM; FRT WIPER
(A) 		8-97352-433-1 01 1 0509-0612 ● ●
3 PIVOT ASM; FRT WIPER
(A) 		8-98057-713-0 01 1 0701- ● ●
5 ARM; WIPER 8-97351-483-0 01 1 0503-0508 ●
5 ARM; WIPER 8-97351-483-0 01 1 0509- ● ●
5 ARM; WIPER 8-97351-482-0 01 1 0503-0508 ●
5 ARM; WIPER 8-97351-482-0 01 1 0509- ● ●
7 BLADE; WIPER 8-97351-485-0 01 1 0503-0508 ●
7 BLADE; WIPER 8-97351-485-0 01 1 0509- ● ●
7 BLADE; WIPER 8-97351-484-0 01 1 0503-0508 ●
7 BLADE; WIPER 8-97351-484-0 01 1 0509- ● ●
9 RUBBER; FRT WIPER BLADE
L=475 		8-97349-904-0 01 1 0503-0508 ●
9 RUBBER; FRT WIPER BLADE
L=475 		8-97349-904-0 01 1 0509- ● ●
9 RUBBER; FRT WIPER BLADE
L=550 		8-97349-901-0 01 1 0503-0508 ●
9 RUBBER; FRT WIPER BLADE
L=550 		8-97349-901-0 01 1 0509- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE 		8-94144-220-0 02 1 0503-0508 ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE 		8-94144-220-0 02 1 0509-0610 ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE 		8-98049-367-0 02 1 0611- ● ●
11 COVER; WIPER ARM 8-94367-999-0 02 1 0503-0508 ●
11 COVER; WIPER ARM 8-94367-999-0 02 1 0509- ● ●
16 SEAL; BALL JOINT
(B) 		8-97025-889-0 03 1 0503-0508 ●
16 SEAL; BALL JOINT
(B) 		8-97025-889-0 03 1 0509- ● ●
16 SEAL; BALL JOINT
(A) 		8-97349-894-0 02 1 0503-0508 ●
16 SEAL; BALL JOINT
(A) 		8-97349-894-0 02 1 0509- ● ●
21 NUT; WIPER LINK PIVOT
M6 W/DISHED WASHER 		8-94423-325-0 06 1 0503-0508 ●
21 NUT; WIPER LINK PIVOT
M6 W/DISHED WASHER 		8-94423-325-0 06 1 0509-0509 ● ●
21 NUT; WIPER LINK PIVOT
M6 FLANGE 		0-91150-106-0 06 1 0510-0603 ● ●
21 NUT; WIPER LINK PIVOT
M6 FLANGE 		0-91180-106-0 06 1 0604- ● ●
33 NUT; MOTOR TO ARM 8-97349-898-0 01 1 0503-0508 ●
33 NUT; MOTOR TO ARM 8-97349-898-0 01 1 0509- ● ●
36 HOSE; WASHER
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (B) 		8-97364-086-1 01 1 0809- ●
36 HOSE; WASHER
A/T 4 SPEED-JATCO(RMK) (B) 		8-97364-086-1 01 1 0809- ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-97349-607-0 01 1 0503-0508 ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-97349-607-0 01 1 0509- ● ●
36 HOSE; WASHER
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (B) 		8-97364-086-0 01 1 0503-0508 ●
36 HOSE; WASHER
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (B) 		8-97364-086-0 01 1 0509-0606 ●
36 HOSE; WASHER
A/T 4 SPEED-JATCO(RMK) (B) 		8-97364-086-0 01 1 0509-0606 ●
36 HOSE; WASHER
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) (B) 		8-97364-086-1 01 1 0607- ● ●
39 NOZZLE; WINDSHIELD WASHER 8-97238-519-0 02 1 0503-0508 ●
39 NOZZLE; WINDSHIELD WASHER 8-97238-519-0 02 1 0509-0606 ● ●
39 NOZZLE; WINDSHIELD WASHER 8-98008-112-0 02 1 0607- ● ●
40 JOINT; WASHER HOSE
(A) 		8-94335-627-0 01 1 0503-0508 ●
40 JOINT; WASHER HOSE
(A) 		8-94335-627-0 01 1 0509-0708 ● ●
40 JOINT; WASHER HOSE
(B) 		8-97178-847-0 02 1 0503-0508 ●
40 JOINT; WASHER HOSE
(B) 		8-97178-847-0 02 1 0509- ● ●
40 JOINT; WASHER HOSE
(C) 		8-97215-337-0 01 1 0503-0508 ●
40 JOINT; WASHER HOSE
(C) 		8-97215-337-0 01 1 0509- ● ●
40 JOINT; WASHER HOSE
(D) 		8-97314-270-0 01 1 0503-0508 ●
40 JOINT; WASHER HOSE
(D) 		8-97314-270-0 01 1 0509-0708 ● ●
42 CLIP; WASHER HOSE
ID=5.8 L=8 		8-94155-681-0 02 1 0503-0508 ●
42 CLIP; WASHER HOSE
ID=5.8 L=8 		8-94155-681-0 02 1 0509-0606 ● ●
42 CLIP; WASHER HOSE
ID=5.8 L=8 		8-94155-681-0 03 1 0607- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-97364-370-0 01 1 0503-0508 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-97364-370-0 01 1 0509-0612 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98057-622-0 01 1 0701- ● ●
48 ARM; WIPER MOTOR 8-97349-895-0 01 1 0503-0508 ●
48 ARM; WIPER MOTOR 8-97349-895-0 01 1 0509-0612 ● ●
48 ARM; WIPER MOTOR 8-98057-654-0 01 1 0701- ● ●
73 BOLT
M6X33 W/PL WASHER 		8-97164-266-0 04 1 0503-0508 ●
73 BOLT
M6X33 W/PL WASHER 		8-97164-266-0 04 1 0509-0609 ● ●
73 BOLT
M6X33 W/PL WASHER 		8-98048-997-0 04 1 0610- ● ●
74 WASHER; ARM TO MOTOR 8-97349-897-0 01 1 0503-0508 ●
74 WASHER; ARM TO MOTOR 8-97349-897-0 01 1 0509- ● ●
111 SEAL; FRT WIPER MOTOR TO BRKT 8-97349-896-0 01 1 0503-0508 ●
111 SEAL; FRT WIPER MOTOR TO BRKT 8-97349-896-0 01 1 0509- ● ●
135 RUBBER; CUSHION,WIPER MOTOR 8-94387-088-0 04 1 0503-0508 ●
135 RUBBER; CUSHION,WIPER MOTOR 8-94387-088-0 04 1 0509-0612 ● ●
135 RUBBER; CUSHION,WIPER MOTOR 8-98057-655-0 04 1 0701- ● ●
137 SEAL; JOINT,WIPER MOTOR 8-97025-889-0 01 1 0503-0508 ●
137 SEAL; JOINT,WIPER MOTOR 8-97025-889-0 01 1 0509- ● ●
228 HOSE ASM; WASHER 8-98115-892-0 01 1 0709- ● ●
