8-75 — CONDENSER (#75102) — 63 parça

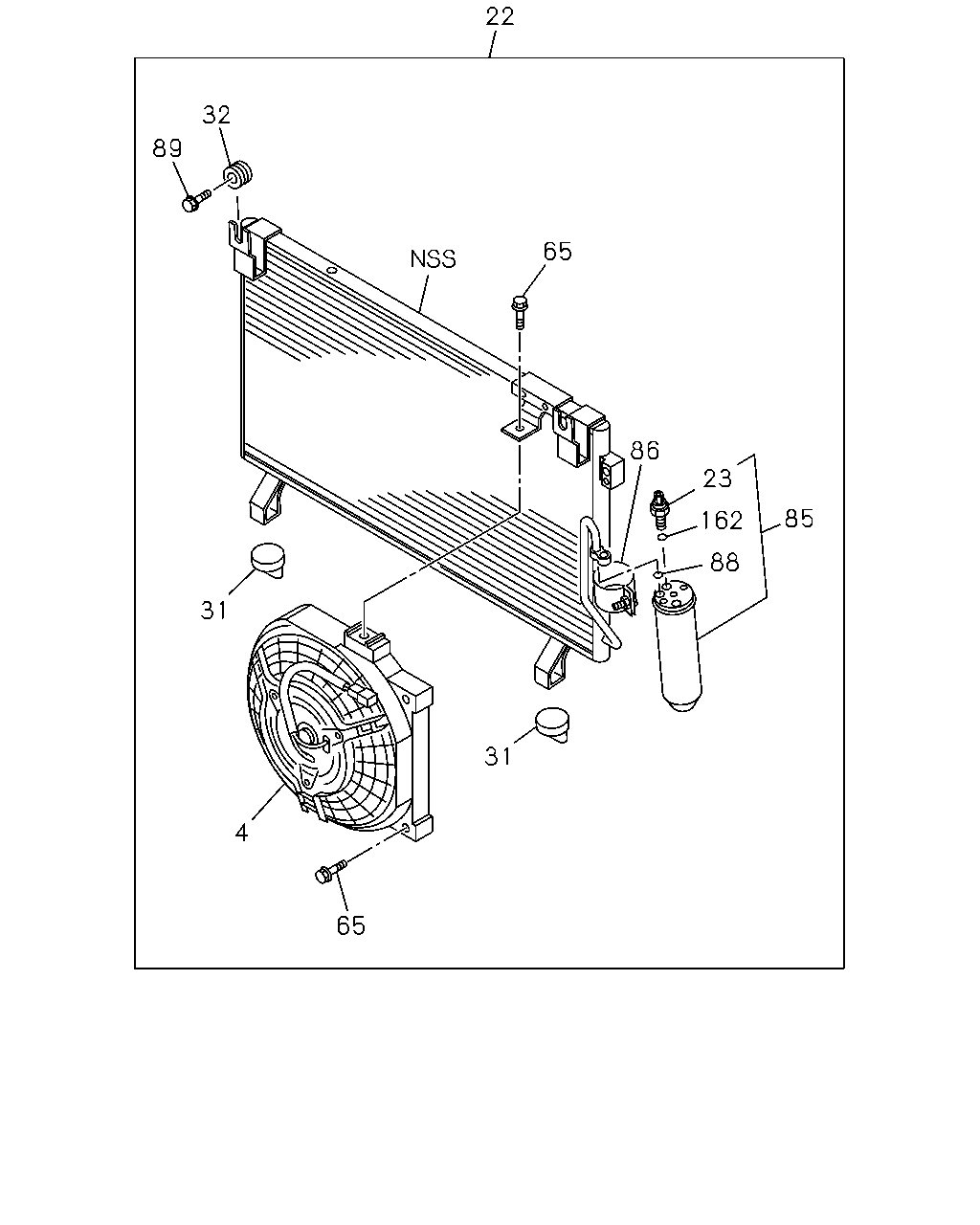

22 32 89 65 86 23 85 162 88 31 31 4 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	MOTOR ASM; FAN	8-97356-646-0	01	1	0503-0508	●
4	MOTOR ASM; FAN	8-97356-646-0	01	1	0509-	●	●
22	CONDENSER ASM; A/C	8-97367-519-3	01	1	0503-0508	●
22	CONDENSER ASM; A/C	8-97367-519-3	01	1	0509-0604	●	●
22	CONDENSER ASM; A/C	8-98000-111-0	01	1	0605-0703	●	●
22	CONDENSER ASM; A/C	8-98071-120-0	01	1	0704-1201	●	●
22	CONDENSER ASM; A/C	8-98176-437-0	01	1	1202-	●	●
23	SWITCH; PRESSURE,CONDENSER	8-97380-449-0	01	1	0503-0508	●
23	SWITCH; PRESSURE,CONDENSER	8-97380-449-0	01	1	0509-0703	●	●
23	SWITCH; PRESSURE,CONDENSER	8-97381-465-0	01	1	0704-	●	●
31	RUBBER; MTG,CONDENSER	8-97333-319-0	02	1	0503-0508	●
31	RUBBER; MTG,CONDENSER	8-97333-319-0	02	1	0509-	●	●
32	GROMMET; CONDENSER	8-97333-320-0	02	1	0503-0508	●
32	GROMMET; CONDENSER	8-97333-320-0	02	1	0509-	●	●
65	BOLT; SHROUD M6X16	8-97356-647-0	04	1	0503-0508	●
65	BOLT; SHROUD M6X16	8-97356-647-0	04	1	0509-0703	●	●
65	BOLT; SHROUD M6X18	8-98071-145-0	04	1	0704-	●	●
85	DRYER; RECEIVER	8-97380-448-2	01	1	0503-0508	●
85	DRYER; RECEIVER	8-97380-448-2	01	1	0509-1201	●	●
85	DRYER; RECEIVER	8-97381-576-0	01	1	1202-	●	●
86	BRACKET; RECEIVER DRYER	8-97380-437-0	01	1	0503-0508	●
86	BRACKET; RECEIVER DRYER	8-97380-437-0	01	1	0509-	●	●
88	GASKET; PRESSURE SW	8-97333-321-0	01	1	0503-0508	●
88	GASKET; PRESSURE SW	8-97333-321-0	01	1	0509-	●	●
89	BOLT; CONDENSER TO BODY M6X35	8-97333-317-0	02	1	0503-0508	●
89	BOLT; CONDENSER TO BODY M6X35	8-97333-317-0	02	1	0509-0703	●	●
89	BOLT; CONDENSER TO BODY M6X35	8-98071-149-0	02	1	0704-	●	●
162	GASKET; PIPE TO DRYER	8-97333-321-0	01	1	0503-0508	●
162	GASKET; PIPE TO DRYER	8-97333-321-0	01	1	0509-	●	●

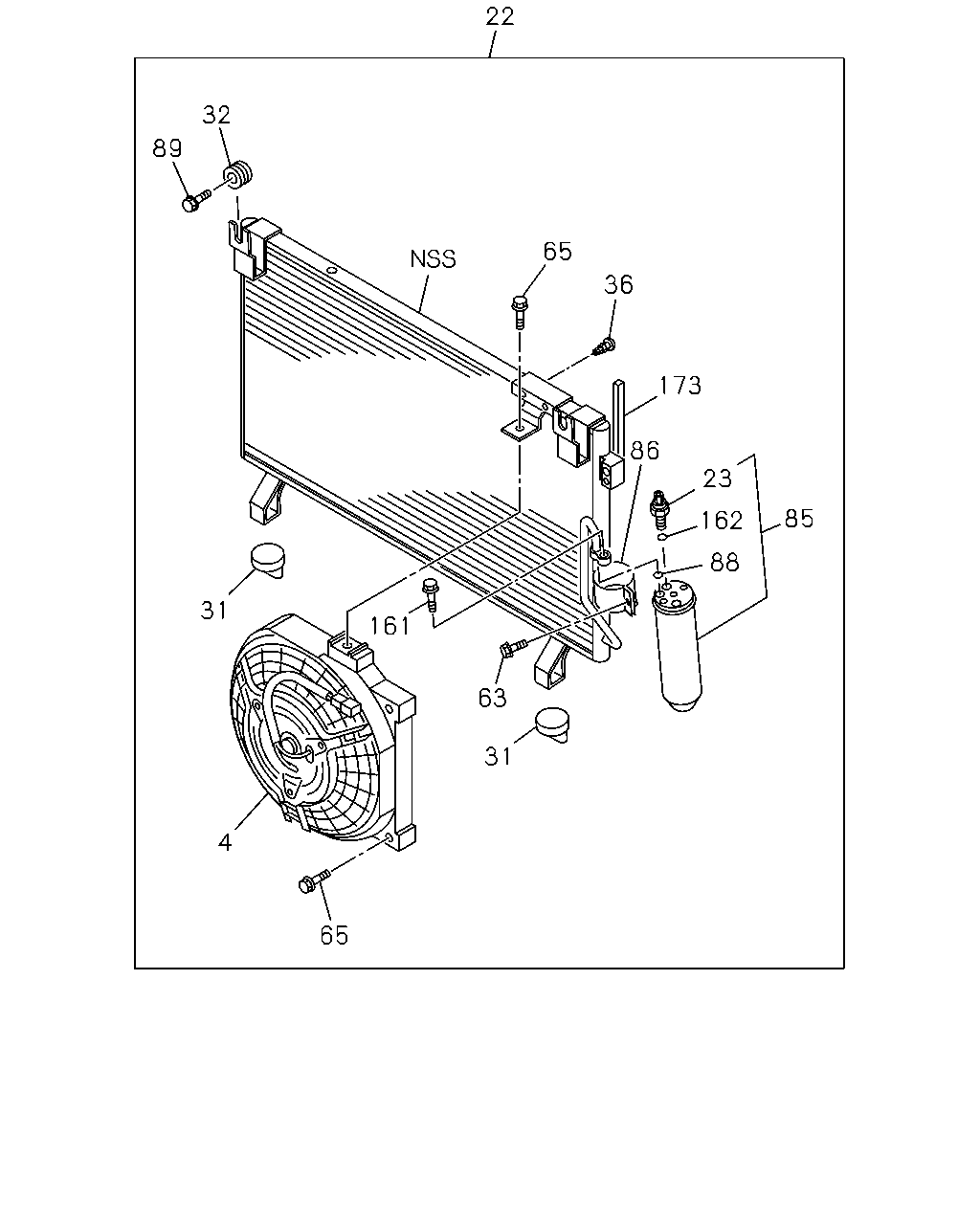

22 32 89 65 36 173 86 23 85 162 88 31 161 63 31 4 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	MOTOR ASM; FAN	8-97356-646-0	01	1	0503-0508	●
4	MOTOR ASM; FAN	8-97356-646-0	01	1	0509-	●	●
22	CONDENSER ASM; A/C	8-97367-519-3	01	1	0503-0508	●
22	CONDENSER ASM; A/C	8-97367-519-3	01	1	0509-0604	●	●
22	CONDENSER ASM; A/C	8-98000-111-0	01	1	0605-0703	●	●
22	CONDENSER ASM; A/C	8-98071-120-0	01	1	0704-1201	●	●
22	CONDENSER ASM; A/C	8-98176-437-0	01	1	1202-	●	●
23	SWITCH; PRESSURE,CONDENSER	8-97380-449-0	01	1	0503-0508	●
23	SWITCH; PRESSURE,CONDENSER	8-97380-449-0	01	1	0509-0703	●	●
23	SWITCH; PRESSURE,CONDENSER	8-97381-465-0	01	1	0704-	●	●
31	RUBBER; MTG,CONDENSER	8-97333-319-0	02	1	0503-0508	●
31	RUBBER; MTG,CONDENSER	8-97333-319-0	02	1	0509-	●	●
32	GROMMET; CONDENSER	8-97333-320-0	02	1	0503-0508	●
32	GROMMET; CONDENSER	8-97333-320-0	02	1	0509-	●	●
36	SCREW; PLATE TO CONDENSER M4X25	8-98071-148-0	09	1	0704-	●	●
63	BOLT; RECEIVER TANK M6X16	8-98071-146-0	03	1	0704-	●	●
65	BOLT; SHROUD M6X16	8-97356-647-0	04	1	0503-0508	●
65	BOLT; SHROUD M6X16	8-97356-647-0	04	1	0509-0703	●	●
65	BOLT; SHROUD M6X18	8-98071-145-0	04	1	0704-	●	●
85	DRYER; RECEIVER	8-97380-448-2	01	1	0503-0508	●
85	DRYER; RECEIVER	8-97380-448-2	01	1	0509-1201	●	●
85	DRYER; RECEIVER	8-97381-576-0	01	1	1202-	●	●
86	BRACKET; RECEIVER DRYER	8-97380-437-0	01	1	0503-0508	●
86	BRACKET; RECEIVER DRYER	8-97380-437-0	01	1	0509-	●	●
88	GASKET; PRESSURE SW	8-97333-321-0	01	1	0503-0508	●
88	GASKET; PRESSURE SW	8-97333-321-0	01	1	0509-	●	●
89	BOLT; CONDENSER TO BODY M6X35	8-97333-317-0	02	1	0503-0508	●
89	BOLT; CONDENSER TO BODY M6X35	8-97333-317-0	02	1	0509-0703	●	●
89	BOLT; CONDENSER TO BODY M6X35	8-98071-149-0	02	1	0704-	●	●
161	BOLT; PIPE M6X16	8-98071-146-0	01	1	0909-	●	●
161	BOLT; PIPE M6X20	8-98071-147-0	01	1	0704-0908	●	●
162	GASKET; PIPE TO DRYER	8-97333-321-0	01	1	0503-0508	●
162	GASKET; PIPE TO DRYER	8-97333-321-0	01	1	0509-	●	●
173	INSULATOR; CONDENSER	8-98034-693-0	02	1	0704-	●	●
