8-74 — EVAPORATOR (#75101) — 70 parça

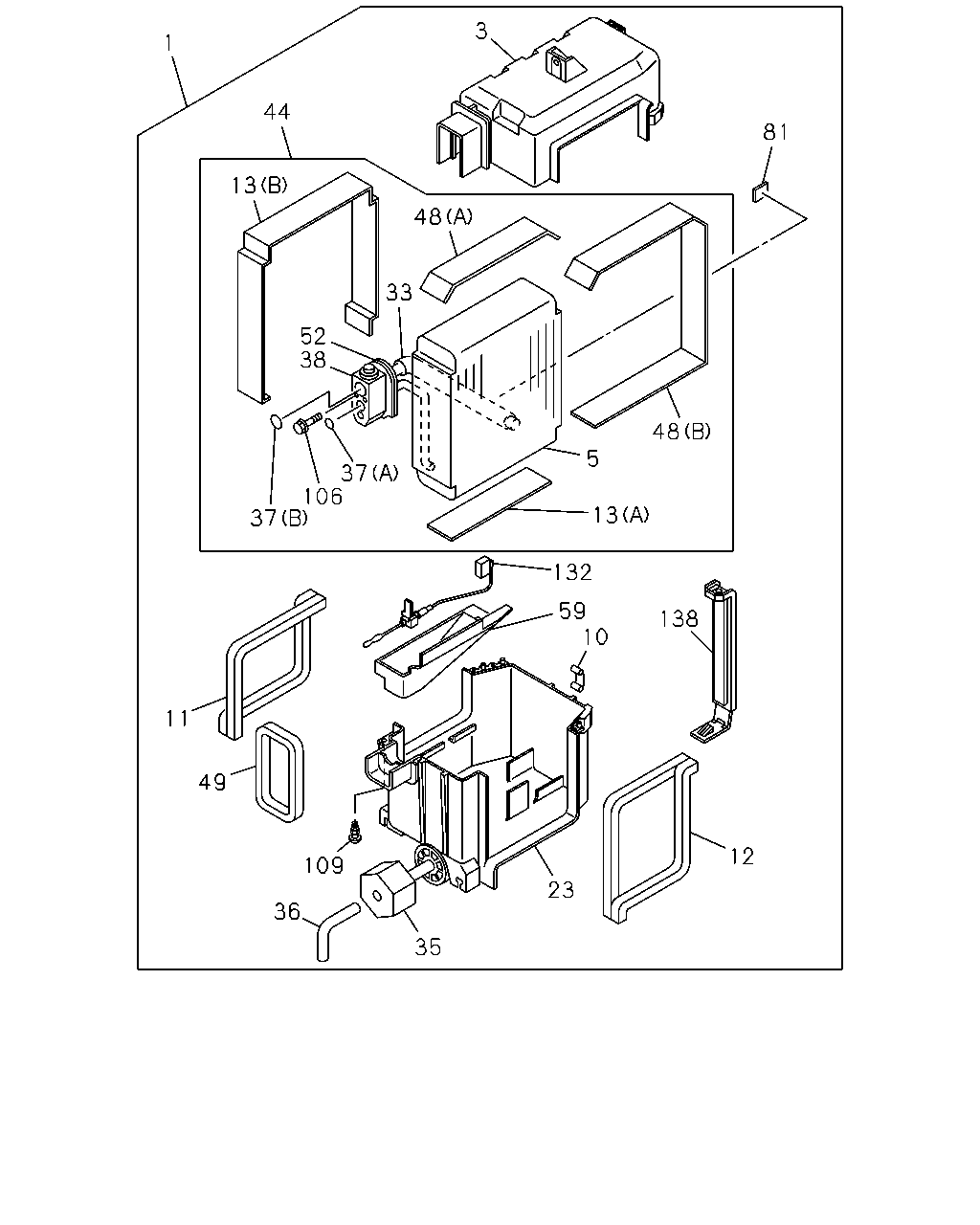

çizim 118709
3 1 44 81 13 48 33 52 38 48 5 37 106 37 13 132 59 10 138 11 49 12 109 23 36 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 EVAPORATOR ASM 8-98000-732-1 01 1 0503-0508 ●
1 EVAPORATOR ASM 8-98000-732-1 01 1 0509-0606 ● ●
1 EVAPORATOR ASM 8-98045-321-0 01 1 0607-0701 ● ●
1 EVAPORATOR ASM 8-98063-506-0 01 1 0702-0708 ● ●
1 EVAPORATOR ASM 8-98086-172-0 01 1 0709- ● ●
3 CASE; EVAP,UPR 8-97365-415-0 01 1 0503-0508 ●
3 CASE; EVAP,UPR 8-97365-415-0 01 1 0509-0606 ● ●
3 CASE; EVAP,UPR 8-98055-334-0 01 1 0607- ● ●
5 EVAPORATOR 8-98002-787-0 01 1 0503-0508 ●
5 EVAPORATOR 8-98002-787-0 01 1 0509-0606 ● ●
5 EVAPORATOR 8-98055-343-0 01 1 0607-0701 ● ●
5 EVAPORATOR 8-98063-688-0 01 1 0702- ● ●
10 CLIP; EVAP CASE 8-97321-166-0 01 1 0503-0508 ●
10 CLIP; EVAP CASE 8-97321-166-0 01 1 0509-0708 ● ●
10 CLIP; EVAP CASE 8-98088-089-0 01 1 0709- ● ●
11 LINING; EVAP A/C 8-97321-159-0 01 1 0503-0508 ●
11 LINING; EVAP A/C 8-97321-159-0 01 1 0509- ● ●
12 LINING; EVAP 8-97321-160-0 01 1 0503-0508 ●
12 LINING; EVAP 8-97321-160-0 01 1 0509-0701 ● ●
12 LINING; EVAP 8-98063-684-0 01 1 0702- ● ●
13 SEAL; EVAP
(B) 		8-97321-151-0 01 1 0503-0508 ●
13 SEAL; EVAP
(B) 		8-97321-151-0 01 1 0509-0606 ● ●
13 SEAL; EVAP
(B) 		8-98055-346-0 01 1 0607- ● ●
13 SEAL; EVAP
(A) 		8-97365-422-0 01 1 0503-0508 ●
13 SEAL; EVAP
(A) 		8-97365-422-0 01 1 0509-0606 ● ●
23 CASE; EVAP,LWR 8-98002-788-0 01 1 0503-0508 ●
23 CASE; EVAP,LWR 8-98002-788-0 01 1 0509-0606 ● ●
23 CASE; EVAP,LWR 8-98055-338-0 01 1 0607- ● ●
33 LINING; EVAP 8-97368-626-0 01 1 0503-0508 ●
33 LINING; EVAP 8-97368-626-0 01 1 0509-0606 ● ●
35 GROMMET; EVAP,LOW 8-97321-157-0 01 1 0503-0508 ●
35 GROMMET; EVAP,LOW 8-97321-157-0 01 1 0509- ● ●
36 HOSE; DRAIN EVAP 8-98002-093-0 01 1 0503-0508 ●
36 HOSE; DRAIN EVAP 8-98002-093-0 01 1 0509-0606 ● ●
36 HOSE; DRAIN EVAP 8-98042-659-0 01 1 0607-0701 ● ●
36 HOSE; DRAIN EVAP 8-98063-713-0 01 1 0702- ● ●
37 GASKET; EVAP
(A) 		8-97321-154-0 01 1 0503-0508 ●
37 GASKET; EVAP
(A) 		8-97321-154-0 01 1 0509- ● ●
37 GASKET; EVAP
(B) 		8-97321-155-0 01 1 0503-0508 ●
37 GASKET; EVAP
(B) 		8-97321-155-0 01 1 0509- ● ●
38 VALVE; EXPANSION 8-97370-353-0 01 1 0503-0508 ●
38 VALVE; EXPANSION 8-97370-353-0 01 1 0509-0606 ● ●
38 VALVE; EXPANSION 8-98055-344-0 01 1 0607-0701 ● ●
38 VALVE; EXPANSION 8-98063-690-0 01 1 0702- ● ●
44 EVAPORATOR ASM; A/C 8-98002-786-0 01 1 0503-0508 ●
44 EVAPORATOR ASM; A/C 8-98002-786-0 01 1 0509-0606 ● ●
44 EVAPORATOR ASM; A/C 8-98055-341-0 01 1 0607-0701 ● ●
44 EVAPORATOR ASM; A/C 8-98063-686-0 01 1 0702-0708 ● ●
44 EVAPORATOR ASM; A/C 8-98090-227-0 01 1 0709- ● ●
48 INSULATOR; EVAP
(A) 		8-98055-347-0 01 1 0607-0708 ● ●
48 INSULATOR; EVAP
(B) 		8-98090-228-0 01 1 0709- ● ●
49 GROMMET; EVAP 8-97321-158-1 01 1 0503-0508 ●
49 GROMMET; EVAP 8-97321-158-1 01 1 0509- ● ●
52 GROMMET; EVAP,A/C 8-97321-152-0 01 1 0503-0508 ●
52 GROMMET; EVAP,A/C 8-97321-152-0 01 1 0509- ● ●
59 LINING; EVAP,LWR 8-97365-418-0 01 1 0503-0508 ●
59 LINING; EVAP,LWR 8-97365-418-0 01 1 0509- ● ●
81 CLIP; THERMOSTAT A/C 8-97321-161-0 01 1 0503-0508 ●
81 CLIP; THERMOSTAT A/C 8-97321-161-0 01 1 0509- ● ●
106 BOLT; EXPANSION VLV 8-97321-153-0 02 1 0503-0508 ●
106 BOLT; EXPANSION VLV 8-97321-153-0 02 1 0509-0701 ● ●
106 BOLT; EXPANSION VLV 8-98072-395-0 02 1 0702- ● ●
109 BOLT; EVAP 8-97321-165-0 04 1 0503-0508 ●
109 BOLT; EVAP 8-97321-165-0 04 1 0509-0701 ● ●
109 BOLT; EVAP 8-98071-323-0 04 1 0702- ● ●
132 AMPLIFIER; EVAP 8-98002-789-0 01 1 0503-0508 ●
132 AMPLIFIER; EVAP 8-98002-789-0 01 1 0509-0606 ● ●
132 AMPLIFIER; EVAP 8-97321-163-0 01 1 0607- ● ●
138 COVER; CASE 8-97321-156-0 01 1 0503-0508 ●
138 COVER; CASE 8-97321-156-0 01 1 0509-0606 ● ●
