Isuzu WW
▶
SUV
▶
UCR
▶
51032 - UCR/UCS-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

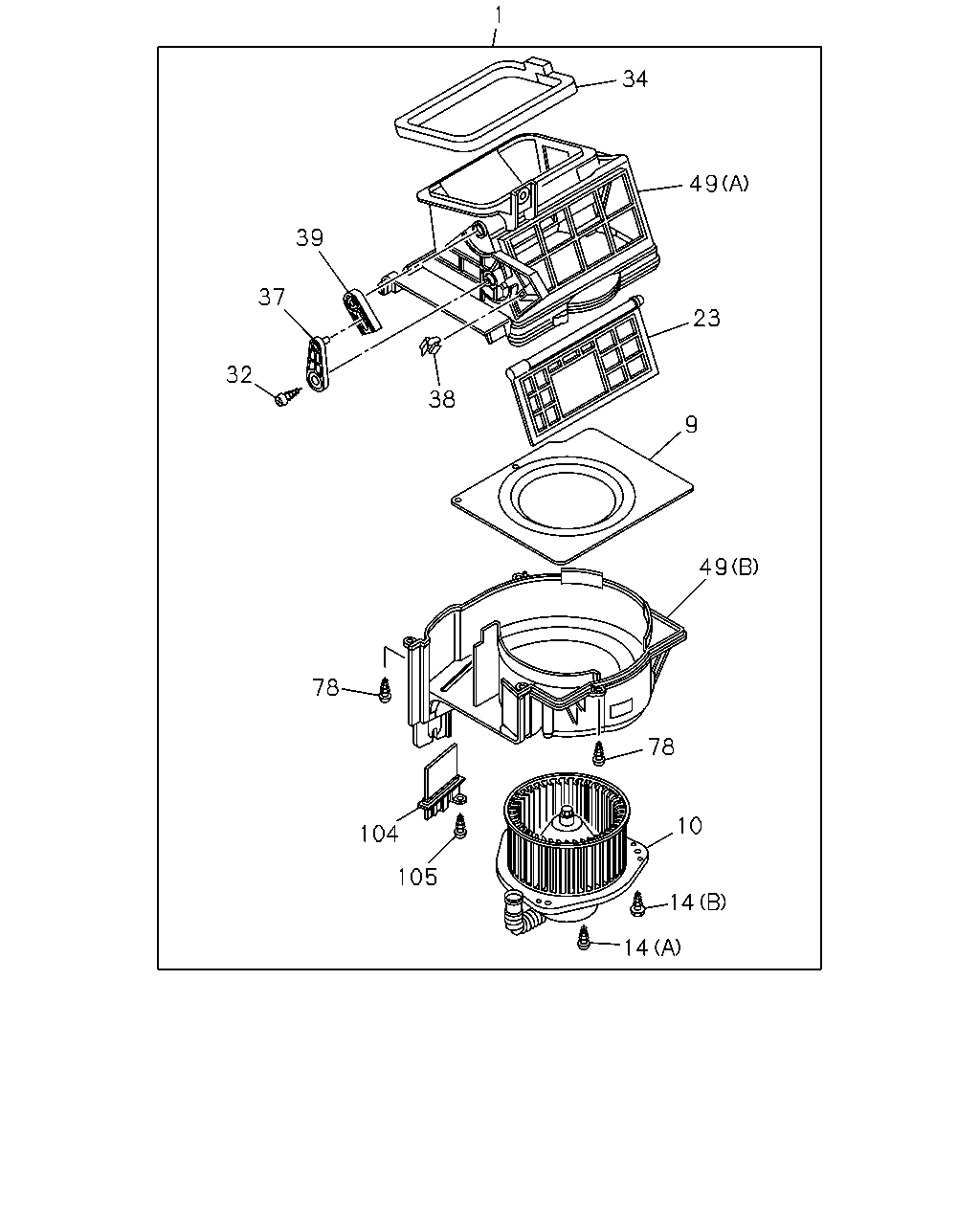

8-73 — BLOWER UNIT
(#75100) — 41 parça
Tümü
A - UCB6VF
B - UCS6VF
1
34
49
39
37
23
32
38
9
49
78
78
10
104
105
14
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BLOWER ASM
8-98000-786-0
01
1
0503-0508
●
1
BLOWER ASM
8-98000-786-0
01
1
0509-0606
●
●
1
BLOWER ASM
8-98034-544-0
01
1
0607-0703
●
●
1
BLOWER ASM
8-98070-133-0
01
1
0704-
●
●
9
GUIDE; BELL MOUTH HTR
8-97364-976-0
01
1
0503-0508
●
9
GUIDE; BELL MOUTH HTR
8-97364-976-0
01
1
0509-0703
●
●
9
GUIDE; BELL MOUTH HTR
8-98072-804-0
01
1
0704-
●
●
10
MOTOR ASM; FAN,BLOWER UNIT
8-98008-894-0
01
1
0503-0508
●
10
MOTOR ASM; FAN,BLOWER UNIT
8-98008-894-0
01
1
0509-
●
●
14
SCREW; COVER TO CASE
(A)
8-97321-165-0
01
1
0503-0508
●
14
SCREW; COVER TO CASE
(A)
8-97321-165-0
01
1
0509-0703
●
●
14
SCREW; COVER TO CASE
(B)
8-98070-134-0
03
1
0704-
●
●
14
SCREW; COVER TO CASE
(B)
8-97321-275-0
03
1
0503-0508
●
14
SCREW; COVER TO CASE
(B)
8-97321-275-0
03
1
0509-0703
●
●
14
SCREW; COVER TO CASE
(A)
8-98070-135-0
01
1
0704-
●
●
23
SHUTTER; BLOWER UNIT
8-97321-266-1
01
1
0503-0508
●
23
SHUTTER; BLOWER UNIT
8-98049-763-0
01
1
0509-
●
●
32
SCREW; LEVER
8-97321-276-0
01
1
0503-0508
●
32
SCREW; LEVER
8-97321-276-0
01
1
0509-0703
●
●
32
SCREW; LEVER
8-98070-136-0
01
1
0704-
●
●
34
LINING; BLOWER UNIT
8-97321-269-0
01
1
0503-0508
●
34
LINING; BLOWER UNIT
8-97321-269-0
01
1
0509-
●
●
37
LEVER; MODE LEVER
8-97364-978-0
01
1
0503-0508
●
37
LEVER; MODE LEVER
8-97364-978-0
01
1
0509-
●
●
38
CLIP; BLOWER UNIT
8-97321-274-0
01
1
0503-0508
●
38
CLIP; BLOWER UNIT
8-97321-274-0
01
1
0509-
●
●
39
LEVER; SHUTTER,BLOWER UNIT
8-97364-977-0
01
1
0503-0508
●
39
LEVER; SHUTTER,BLOWER UNIT
8-97364-977-0
01
1
0509-
●
●
49
CASE; BLOWER UNIT
(A)
8-97364-974-0
01
1
0503-0508
●
49
CASE; BLOWER UNIT
(A)
8-97364-974-0
01
1
0509-
●
●
49
CASE; BLOWER UNIT
(B)
8-97364-975-0
01
1
0503-0508
●
49
CASE; BLOWER UNIT
(B)
8-97364-975-0
01
1
0509-
●
●
78
SCREW; CASE TO CASE
8-97321-165-0
05
1
0503-0508
●
78
SCREW; CASE TO CASE
8-97321-165-0
05
1
0509-0703
●
●
78
SCREW; CASE TO CASE
8-98070-135-0
05
1
0704-
●
●
104
RESISTOR; BLOWER UNIT
8-97321-273-0
01
1
0503-0508
●
104
RESISTOR; BLOWER UNIT
8-97321-273-0
01
1
0509-0606
●
●
104
RESISTOR; BLOWER UNIT
8-98049-394-0
01
1
0607-
●
●
105
SCREW; RESISTOR
8-97321-165-0
02
1
0503-0508
●
105
SCREW; RESISTOR
8-97321-165-0
02
1
0509-0703
●
●
105
SCREW; RESISTOR
8-98070-135-0
02
1
0704-
●
●
