◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#7510) — 542 parça

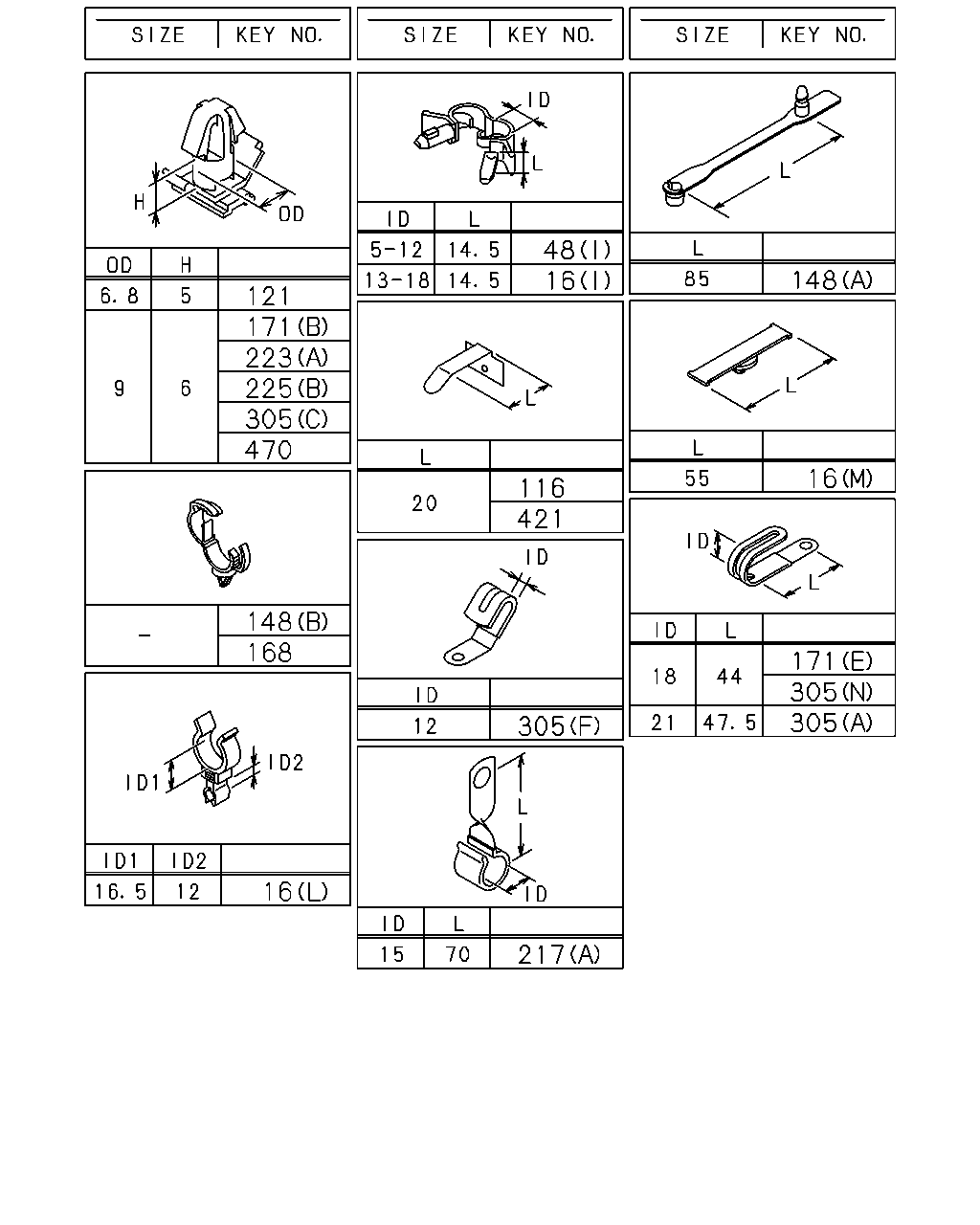

çizim 26301
48 16 148 121 171 223 225 305 470 16 116 421 148 168 171 305 305 305 16 217
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(F) ID=30 H=40 L=35 		1-09701-083-0 01 1 0611-0612 ●
16 CLIP; HARNESS
(E) ID=31 L=30 		1-09700-969-0 01 1 0611- ● ●
16 CLIP; HARNESS
(G) ID=29 L=35 		1-09701-301-0 02 1 0611-0612 ● ●
16 CLIP; HARNESS
(G) ID=29 L=35 		5-09700-293-1 02 1 0701- ● ●
16 CLIP; HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0611- ● ●
16 CLIP; HARNESS
(L) ID=12 & 16.5 		8-94400-865-0 01 1 0611-0701 ● ●
16 CLIP; HARNESS
(F) ID=30 H=40 L=35 		1-09701-083-0 03 1 0611-0612 ●
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 9811- ● ●
16 CLIP; HARNESS
(J) ID=28 L=78 		1-09700-858-0 02 1 9811-0610 ● ●
16 CLIP; HARNESS
(J) ID=28 L=78 		1-09700-858-0 01 1 0611- ● ●
16 CLIP; HARNESS
(P) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9811-0612 ● ●
16 CLIP; HARNESS
(P) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 0701- ● ●
16 CLIP; HARNESS
(Q) ID=19 H=21 L=50 		1-09700-910-1 01 1 9811-9907 ● ●
16 CLIP; HARNESS
(S) ID=18 H=23 L=28 		1-09700-860-0 01 1 9908-0610 ● ●
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 0611- ● ●
16 CLIP; HARNESS
(T) ID=25 L=50 		1-09701-019-0 01 1 9811- ● ●
16 CLIP; HARNESS
(H) L=300 USA 		1-09707-001-1 01 1 9811- ● ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 9811- ● ●
16 CLIP; HARNESS
(M) L=55 TAI 		8-94432-655-0 06 1 9811- ● ●
16 CLIP; HARNESS
(N) L=175 TAI 		8-97110-167-0 04 1 9811-0610 ● ●
16 CLIP; HARNESS
(N) L=175 TAI 		8-97110-167-0 06 1 0611- ● ●
16 CLIP; HARNESS
(O) ID=19 L=32 		9-09525-866-0 01 1 9811-0606 ● ●
16 CLIP; HARNESS
(O) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ●
16 CLIP; HARNESS
(U) L=350 		1-09707-183-0 02 1 9910-0610 ● ●
16 CLIP; HARNESS
(V) ID=33 L=63 		1-09700-807-0 01 1 0611- ● ●
16 CLIP; HARNESS
(K) L=250 TAI 		5-09707-030-1 01 1 9910- ● ●
16 CLIP; HARNESS
(R) L=180 		1-09707-162-1 01 1 9811-9906 ●
16 CLIP; HARNESS
(D) ID=26 L=27 		1-09701-006-0 01 1 9907- ● ●
48 CLIP; FRAME HARNESS
WB 5800MM(58W) (H) ID=20 L=50 		9-09917-430-0 19 1 0611- ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 05 1 0611- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9811-9906 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 9907-0610 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0611- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 04 1 9811- ●
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 05 1 9811- ●
48 CLIP; FRAME HARNESS
WB 4200MM(42W) (H) ID=20 L=50 		9-09917-430-0 16 1 9811-9906 ●
48 CLIP; FRAME HARNESS
WB 4200MM(42W) (H) ID=20 L=50 		9-09917-430-0 16 1 9907-0610 ●
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 16 1 9907-0610 ●
48 CLIP; FRAME HARNESS
WB 4200MM(42W) (H) ID=20 L=50 		9-09917-430-0 13 1 0611- ●
48 CLIP; FRAME HARNESS
WB 4800MM(48W) (H) ID=20 L=50 		9-09917-430-0 19 1 9811-0610 ●
48 CLIP; FRAME HARNESS
WB 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 19 1 9811-0610 ●
48 CLIP; FRAME HARNESS
WB 4800MM(48W) (H) ID=20 L=50 		9-09917-430-0 17 1 0611- ●
48 CLIP; FRAME HARNESS
WB 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 17 1 0611- ●
48 CLIP; FRAME HARNESS
WB 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 22 1 9811-0610 ●
48 CLIP; FRAME HARNESS
WB 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 20 1 0611- ●
48 CLIP; FRAME HARNESS
(C) L=180 		1-09707-162-1 01 1 9811-9906 ● ●
48 CLIP; FRAME HARNESS
(F) L=300 USA 		1-09707-001-1 01 1 9907-0610 ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 10 1 0611- ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 9811-0606 ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 9811-9906 ● ●
48 CLIP; FRAME HARNESS
WB 5800MM(58W) (H) ID=20 L=50 		9-09917-430-0 21 1 9907-0610 ●
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 14 1 0611- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 02 1 9811-9906 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 9907-0610 ● ●
48 CLIP; FRAME HARNESS
(I) ID=5-12 L=14.5 		1-09987-221-0 02 1 0611- ● ●
48 CLIP; FRAME HARNESS
(J) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9811-0610 ● ●
48 CLIP; FRAME HARNESS
(K) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0611- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 07 1 9811-9906 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 9907-0610 ●
48 CLIP; FRAME HARNESS
(L) ID=15 L=65 TAI 		1-09700-466-0 04 1 0611- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 05 1 9811-0610 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 10 1 0611-0701 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 08 1 0702- ●
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 9811- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 06 1 9907-0610 ●
48 CLIP; FRAME HARNESS
(M) ID=25 L=75 		1-09701-275-0 01 1 0611- ●
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 17 1 9811-9906 ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 04 1 9907-0610 ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 03 1 0611- ●
116 CLIP; ROOF HARNESS
EXC. MAP LAMP<C85> L=20 TAI 		1-09987-246-2 03 1 0611- ● ●
116 CLIP; ROOF HARNESS
L=20 TAI 		1-09987-246-2 05 1 9811-0610 ● ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 TAI 		1-09987-246-2 05 1 0611- ● ●
121 CLIP; FACIA HARNESS
OD=6.8 H=5 		8-97082-051-0 02 1 9811- ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 TAI 		8-94232-611-0 01 1 9811- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 TAI 		8-97069-515-0 01 1 9811- ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 TAI 		8-97069-515-0 06 1 9811-0610 ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 TAI 		8-97069-515-0 05 1 0611- ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9907-0606 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607-0610 ●
171 CLIP; STARTER HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0611- ● ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 TAI 		1-09709-178-0 02 1 9811-9906 ● ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 TAI 		1-09709-178-0 02 1 9907-0610 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9811-9906 ● ●
171 CLIP; STARTER HARNESS
(D) ID=19 L=24 H=21 		1-09700-109-1 01 1 9907-0610 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 02 1 0611- ● ●
171 CLIP; STARTER HARNESS
(E) ID=18 L=44 		8-94225-185-0 01 1 9811-0206 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 01 1 9907-0606 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 01 1 0607-0610 ●
171 CLIP; STARTER HARNESS
(F) L=140 		5-09707-031-1 01 1 0611- ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 03 1 9907-0606 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 03 1 0607-0610 ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 TAI 		1-09709-178-0 03 1 0611-0701 ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 TAI 		1-09709-178-0 02 1 0611- ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9811-0610 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 TAI 		5-09707-030-1 02 1 9811- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 TAI 		1-09709-178-0 02 1 0611- ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 06 1 9811-0610 ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 TAI 		1-09709-178-0 04 1 0611- ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 TAI 		1-09709-178-0 03 1 9811-0610 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 0611- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 9811- ●
223 CLIP; AIR TANK HARNESS
(C) L=140 		5-09707-031-1 01 1 9811- ●
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 9811- ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 9811-0610 ●
223 CLIP; AIR TANK HARNESS
(E) L=180 		1-09707-162-1 01 1 0611- ●
225 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 TAI 		1-09709-178-0 01 1 9811- ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 9811-0610 ●
225 CLIP; AIR TANK HARNESS
(C) L=140 		5-09707-031-1 02 1 0611- ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0611-0611 ● ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612- ● ●
305 CLIP; ENG HARNESS
A/C MAN CONT(C60) (A) ID=21 L=47.5 		8-94178-108-0 01 1 0612- ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612- ●
305 CLIP; ENG HARNESS
(F) ID=12 		8-97329-630-0 01 1 0611-0702 ● ●
305 CLIP; ENG HARNESS
(H) L=180 		1-09707-162-1 01 1 9811-9906 ● ●
305 CLIP; ENG HARNESS
(I) ID=24 L=32 		1-09700-766-1 03 1 9907-0610 ● ●
305 CLIP; ENG HARNESS
(D) L=250 TAI 		5-09707-030-1 07 1 0611-0701 ● ●
305 CLIP; ENG HARNESS
(J) L=300 USA 		1-09707-001-1 01 1 9907-0610 ● ●
305 CLIP; ENG HARNESS
(B) ID=19 H=33 L=45 		1-09701-045-0 01 1 0611- ● ●
305 CLIP; ENG HARNESS
(N) ID=18 L=44 		8-94225-185-0 03 1 9907-0610 ● ●
305 CLIP; ENG HARNESS
(C) OD=9 H=6 TAI 		1-09709-178-0 01 1 0611- ● ●
305 CLIP; ENG HARNESS
(K) ID=11 L=20 		9-09525-035-0 01 1 9907-0606 ● ●
305 CLIP; ENG HARNESS
(K) ID=11 L=20 		0-95235-035-0 01 1 0607-0610 ● ●
305 CLIP; ENG HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0611- ● ●
305 CLIP; ENG HARNESS
(M) ID=11 L=24 		9-09525-045-0 01 1 9907-0606 ● ●
305 CLIP; ENG HARNESS
(M) ID=11 L=24 		0-95235-045-0 01 1 0607-0610 ● ●
305 CLIP; ENG HARNESS
(E) ID=21 L=24 		8-94176-807-1 02 1 0611-0611 ● ●
305 CLIP; ENG HARNESS
(L) ID=16 L=40 		9-09525-576-0 02 1 0612- ● ●
421 CLIP; FLOOR HARNESS
L=20 TAI 		1-09987-246-2 05 1 9811-9906 ● ●
421 CLIP; FLOOR HARNESS
L=20 TAI 		1-09987-246-2 04 1 9907-0101 ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 TAI 		1-09709-178-0 01 1 9811- ● ●
çizim 26441
119 64 524 219 294 515 133 210 423 520 184 209
BalonParca AdiParca NoAdetTipApplied Date A B
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0611- ● ●
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 9811- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER TAI 		8-94279-402-0 01 1 9811-0110 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 9904- ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9811-0603 ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-0701 ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9904- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 06 1 9811-9906 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 06 1 9907-9907 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 9907-0602 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0610 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 12 1 0611- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 07 1 9908-0602 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 07 1 0603-0610 ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 9811-0602 ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9904-9906 ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9907-9909 ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9907-9909 ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0611- ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9904- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9811-0602 ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
çizim 26483
14 16 81 171 206 223 225 228 235 418 612 14 16 217 235 305 16 48 305 16 16 48 194 223 225 228 231 305 16
BalonParca AdiParca NoAdetTipApplied Date A B

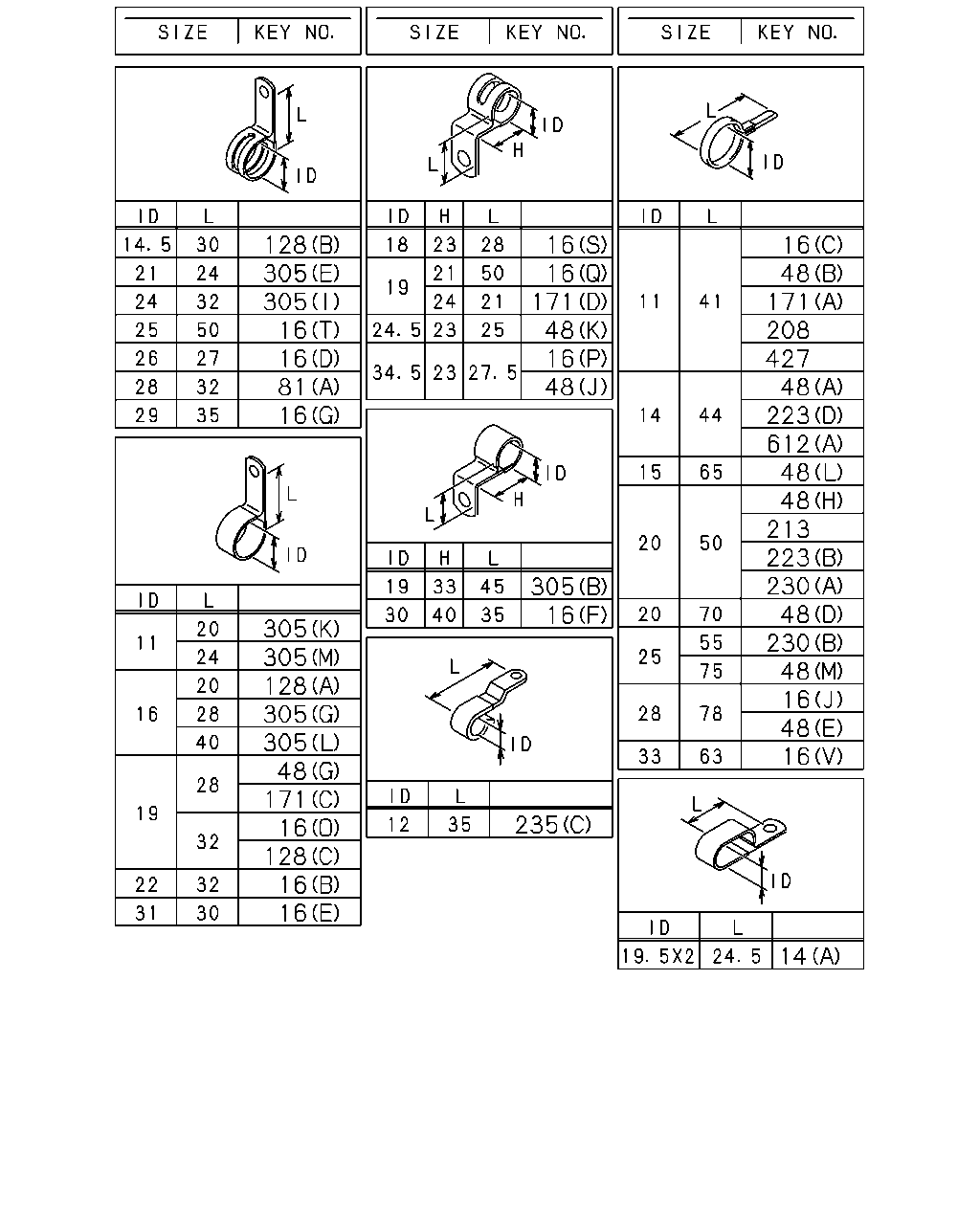

14 CLIP; BAND,HARNESS
(B) L=250 TAI 		5-09707-030-1 05 1 0611-0611 ● ●
14 CLIP; BAND,HARNESS
(B) L=250 TAI 		5-09707-030-1 08 1 0612- ● ●
14 CLIP; BAND,HARNESS
(A) ID=19.5X2 L=24.5 		9-09917-356-0 01 1 0611- ● ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 9907-0610 ● ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 06 1 0611- ● ●
16 CLIP; HARNESS
(F) ID=30 H=40 L=35 		1-09701-083-0 01 1 0611-0612 ●
16 CLIP; HARNESS
(E) ID=31 L=30 		1-09700-969-0 01 1 0611- ● ●
16 CLIP; HARNESS
(G) ID=29 L=35 		1-09701-301-0 02 1 0611-0612 ● ●
16 CLIP; HARNESS
(G) ID=29 L=35 		5-09700-293-1 02 1 0701- ● ●
16 CLIP; HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0611- ● ●
16 CLIP; HARNESS
(L) ID=12 & 16.5 		8-94400-865-0 01 1 0611-0701 ● ●
16 CLIP; HARNESS
(F) ID=30 H=40 L=35 		1-09701-083-0 03 1 0611-0612 ●
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 9811- ● ●
16 CLIP; HARNESS
(J) ID=28 L=78 		1-09700-858-0 02 1 9811-0610 ● ●
16 CLIP; HARNESS
(J) ID=28 L=78 		1-09700-858-0 01 1 0611- ● ●
16 CLIP; HARNESS
(P) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9811-0612 ● ●
16 CLIP; HARNESS
(P) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 0701- ● ●
16 CLIP; HARNESS
(Q) ID=19 H=21 L=50 		1-09700-910-1 01 1 9811-9907 ● ●
16 CLIP; HARNESS
(S) ID=18 H=23 L=28 		1-09700-860-0 01 1 9908-0610 ● ●
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 0611- ● ●
16 CLIP; HARNESS
(T) ID=25 L=50 		1-09701-019-0 01 1 9811- ● ●
16 CLIP; HARNESS
(H) L=300 USA 		1-09707-001-1 01 1 9811- ● ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 9811- ● ●
16 CLIP; HARNESS
(M) L=55 TAI 		8-94432-655-0 06 1 9811- ● ●
16 CLIP; HARNESS
(N) L=175 TAI 		8-97110-167-0 04 1 9811-0610 ● ●
16 CLIP; HARNESS
(N) L=175 TAI 		8-97110-167-0 06 1 0611- ● ●
16 CLIP; HARNESS
(O) ID=19 L=32 		9-09525-866-0 01 1 9811-0606 ● ●
16 CLIP; HARNESS
(O) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ●
16 CLIP; HARNESS
(U) L=350 		1-09707-183-0 02 1 9910-0610 ● ●
16 CLIP; HARNESS
(V) ID=33 L=63 		1-09700-807-0 01 1 0611- ● ●
16 CLIP; HARNESS
(K) L=250 TAI 		5-09707-030-1 01 1 9910- ● ●
16 CLIP; HARNESS
(R) L=180 		1-09707-162-1 01 1 9811-9906 ●
16 CLIP; HARNESS
(D) ID=26 L=27 		1-09701-006-0 01 1 9907- ● ●
48 CLIP; FRAME HARNESS
WB 5800MM(58W) (H) ID=20 L=50 		9-09917-430-0 19 1 0611- ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 05 1 0611- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9811-9906 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 9907-0610 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0611- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 04 1 9811- ●
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 05 1 9811- ●
48 CLIP; FRAME HARNESS
WB 4200MM(42W) (H) ID=20 L=50 		9-09917-430-0 16 1 9811-9906 ●
48 CLIP; FRAME HARNESS
WB 4200MM(42W) (H) ID=20 L=50 		9-09917-430-0 16 1 9907-0610 ●
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 16 1 9907-0610 ●
48 CLIP; FRAME HARNESS
WB 4200MM(42W) (H) ID=20 L=50 		9-09917-430-0 13 1 0611- ●
48 CLIP; FRAME HARNESS
WB 4800MM(48W) (H) ID=20 L=50 		9-09917-430-0 19 1 9811-0610 ●
48 CLIP; FRAME HARNESS
WB 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 19 1 9811-0610 ●
48 CLIP; FRAME HARNESS
WB 4800MM(48W) (H) ID=20 L=50 		9-09917-430-0 17 1 0611- ●
48 CLIP; FRAME HARNESS
WB 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 17 1 0611- ●
48 CLIP; FRAME HARNESS
WB 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 22 1 9811-0610 ●
48 CLIP; FRAME HARNESS
WB 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 20 1 0611- ●
48 CLIP; FRAME HARNESS
(C) L=180 		1-09707-162-1 01 1 9811-9906 ● ●
48 CLIP; FRAME HARNESS
(F) L=300 USA 		1-09707-001-1 01 1 9907-0610 ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 10 1 0611- ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 9811-0606 ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 9811-9906 ● ●
48 CLIP; FRAME HARNESS
WB 5800MM(58W) (H) ID=20 L=50 		9-09917-430-0 21 1 9907-0610 ●
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 14 1 0611- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 02 1 9811-9906 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 9907-0610 ● ●
48 CLIP; FRAME HARNESS
(I) ID=5-12 L=14.5 		1-09987-221-0 02 1 0611- ● ●
48 CLIP; FRAME HARNESS
(J) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9811-0610 ● ●
48 CLIP; FRAME HARNESS
(K) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0611- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 07 1 9811-9906 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 9907-0610 ●
48 CLIP; FRAME HARNESS
(L) ID=15 L=65 TAI 		1-09700-466-0 04 1 0611- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 05 1 9811-0610 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 10 1 0611-0701 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 08 1 0702- ●
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 9811- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 06 1 9907-0610 ●
48 CLIP; FRAME HARNESS
(M) ID=25 L=75 		1-09701-275-0 01 1 0611- ●
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 17 1 9811-9906 ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 04 1 9907-0610 ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 03 1 0611- ●
81 CLIP; HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 0611- ● ●
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 9811- ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9907-0606 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607-0610 ●
171 CLIP; STARTER HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0611- ● ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 TAI 		1-09709-178-0 02 1 9811-9906 ● ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 TAI 		1-09709-178-0 02 1 9907-0610 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9811-9906 ● ●
171 CLIP; STARTER HARNESS
(D) ID=19 L=24 H=21 		1-09700-109-1 01 1 9907-0610 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 02 1 0611- ● ●
171 CLIP; STARTER HARNESS
(E) ID=18 L=44 		8-94225-185-0 01 1 9811-0206 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 01 1 9907-0606 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 01 1 0607-0610 ●
171 CLIP; STARTER HARNESS
(F) L=140 		5-09707-031-1 01 1 0611- ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 03 1 9907-0606 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 03 1 0607-0610 ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 TAI 		1-09709-178-0 03 1 0611-0701 ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 TAI 		1-09709-178-0 02 1 0611- ● ●
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 9811-9906 ●
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 9907- ● ●
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 9811-9906 ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9811- ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9811-0610 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 TAI 		5-09707-030-1 02 1 9811- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 TAI 		1-09709-178-0 02 1 0611- ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 06 1 9811-0610 ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 TAI 		1-09709-178-0 04 1 0611- ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 TAI 		1-09709-178-0 03 1 9811-0610 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 0611- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 9811- ●
223 CLIP; AIR TANK HARNESS
(C) L=140 		5-09707-031-1 01 1 9811- ●
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 9811- ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 9811-0610 ●
223 CLIP; AIR TANK HARNESS
(E) L=180 		1-09707-162-1 01 1 0611- ●
225 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 TAI 		1-09709-178-0 01 1 9811- ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 9811-0610 ●
225 CLIP; AIR TANK HARNESS
(C) L=140 		5-09707-031-1 02 1 0611- ●
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 9811-0112 ● ●
228 CLIP; COOLER HARNESS
(B) L=180 		1-09707-162-1 01 1 0201- ● ●
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 9811-0610 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 9811-9906 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 9907-0610 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 TAI 		5-09707-030-1 01 1 0611- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=12 L=35 		5-09700-206-0 01 1 9811-0610 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=12 L=35 		5-09700-206-0 01 1 0611- ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0611-0611 ● ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612- ● ●
305 CLIP; ENG HARNESS
A/C MAN CONT(C60) (A) ID=21 L=47.5 		8-94178-108-0 01 1 0612- ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612- ●
305 CLIP; ENG HARNESS
(F) ID=12 		8-97329-630-0 01 1 0611-0702 ● ●
305 CLIP; ENG HARNESS
(H) L=180 		1-09707-162-1 01 1 9811-9906 ● ●
305 CLIP; ENG HARNESS
(I) ID=24 L=32 		1-09700-766-1 03 1 9907-0610 ● ●
305 CLIP; ENG HARNESS
(D) L=250 TAI 		5-09707-030-1 07 1 0611-0701 ● ●
305 CLIP; ENG HARNESS
(J) L=300 USA 		1-09707-001-1 01 1 9907-0610 ● ●
305 CLIP; ENG HARNESS
(B) ID=19 H=33 L=45 		1-09701-045-0 01 1 0611- ● ●
305 CLIP; ENG HARNESS
(N) ID=18 L=44 		8-94225-185-0 03 1 9907-0610 ● ●
305 CLIP; ENG HARNESS
(C) OD=9 H=6 TAI 		1-09709-178-0 01 1 0611- ● ●
305 CLIP; ENG HARNESS
(K) ID=11 L=20 		9-09525-035-0 01 1 9907-0606 ● ●
305 CLIP; ENG HARNESS
(K) ID=11 L=20 		0-95235-035-0 01 1 0607-0610 ● ●
305 CLIP; ENG HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0611- ● ●
305 CLIP; ENG HARNESS
(M) ID=11 L=24 		9-09525-045-0 01 1 9907-0606 ● ●
305 CLIP; ENG HARNESS
(M) ID=11 L=24 		0-95235-045-0 01 1 0607-0610 ● ●
305 CLIP; ENG HARNESS
(E) ID=21 L=24 		8-94176-807-1 02 1 0611-0611 ● ●
305 CLIP; ENG HARNESS
(L) ID=16 L=40 		9-09525-576-0 02 1 0612- ● ●
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 		5-09707-031-1 01 1 0703- ● ●
612 CLIP; HARNESS DPD
(B) L=140 		5-09707-031-1 01 1 0611- ● ●
612 CLIP; HARNESS DPD
(A) ID=14 L=44 		9-09917-427-0 01 1 0611- ● ●
çizim 26669
1 224 1 510 513 530 178 178 178 503
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(A) ID=17 OD=21 L=40 		1-09337-012-0 03 1 0611-0611 ● ●
1 SLEEVE; RUBBER
(A) ID=17 OD=21 L=40 		1-09337-012-0 04 1 0612- ● ●
1 SLEEVE; RUBBER
(B) ID=10 OD=14 L=30 		9-09956-682-0 02 1 0611- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0611- ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0611- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 9811-0610 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0611- ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9811-0610 ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 02 1 0611- ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9811-0610 ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0611- ●
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 05 1 0611-0701 ● ●
503 CONNECTOR
HEATER & DEFROSTER(C41) 		1-82690-668-0 01 1 0611- ●
510 GROMMET; SCREW
D=9.7X9.7 L=8 TAI 		8-94222-314-0 01 1 0611- ● ●
513 TAPE; SOFT,HARNESS
100X40 TAI 		1-72498-022-0 03 1 0611-0701 ● ●
513 TAPE; SOFT,HARNESS
100X40 TAI 		1-72498-022-0 01 1 0702- ● ●
513 TAPE; SOFT,HARNESS
100X30 		1-72498-014-1 02 1 9811-9903 ● ●
513 TAPE; SOFT,HARNESS
100X40 TAI 		1-72498-022-0 02 1 9904-0206 ● ●
530 SEAL; HARNESS
180X40 TAI 		1-72498-019-0 09 1 0611-0702 ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 08 1 0703- ●
530 SEAL; HARNESS
180X40 TAI 		1-72498-019-0 03 1 9907-0101 ● ●
530 SEAL; HARNESS
180X40 TAI 		1-72498-019-0 09 1 0102-0610 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0611- ●
çizim 26672
53 53 59 21 308 308 154 308 312 312 308 308 335 334 335
BalonParca AdiParca NoAdetTipApplied Date A B
21 BRACKET; ENG HARNESS 8-94391-071-3 01 1 9907-0610 ● ●
53 BRACKET; HARNESS
(B) L=55 TAI 		1-47475-304-0 01 1 0611- ● ●
53 BRACKET; HARNESS
(A) 		1-82698-656-1 02 1 0611- ● ●
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9811- ● ●
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 9811-9906 ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0611- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0611- ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0611- ● ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 02 1 0611- ● ●
308 BRACKET; CLIP,ENG HARNESS
(E) 		8-98021-694-1 01 1 0611- ● ●
312 BRACKET; CLIP HARNESS
(A) 		1-82699-588-0 01 1 9811-0302 ● ●
312 BRACKET; CLIP HARNESS
(B) 		1-47478-981-0 01 1 0303-0610 ● ●
334 BRACKET 1-82698-494-3 01 1 0611- ● ●
335 BRACKET; CONNECTOR
(A) 		1-82699-416-0 01 1 9811-0610 ● ●
335 BRACKET; CONNECTOR
(B) 		1-82698-167-0 01 1 0611- ● ●
çizim 99122
128 305 305 16 16 81 16 16 16 171 48 16 48 16 48 171 208 427 48 223 612 48 48 213 223 230 48 230 48 16 48 16 305 16 305 305 128 305 305 48 171 16 128 16 16 235 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(B) L=250 TAI 		5-09707-030-1 05 1 0611-0611 ● ●
14 CLIP; BAND,HARNESS
(B) L=250 TAI 		5-09707-030-1 08 1 0612- ● ●
14 CLIP; BAND,HARNESS
(A) ID=19.5X2 L=24.5 		9-09917-356-0 01 1 0611- ● ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 9907-0610 ● ●
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 06 1 0611- ● ●
16 CLIP; HARNESS
(F) ID=30 H=40 L=35 		1-09701-083-0 01 1 0611-0612 ●
16 CLIP; HARNESS
(E) ID=31 L=30 		1-09700-969-0 01 1 0611- ● ●
16 CLIP; HARNESS
(G) ID=29 L=35 		1-09701-301-0 02 1 0611-0612 ● ●
16 CLIP; HARNESS
(G) ID=29 L=35 		5-09700-293-1 02 1 0701- ● ●
16 CLIP; HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0611- ● ●
16 CLIP; HARNESS
(L) ID=12 & 16.5 		8-94400-865-0 01 1 0611-0701 ● ●
16 CLIP; HARNESS
(F) ID=30 H=40 L=35 		1-09701-083-0 03 1 0611-0612 ●
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 9811- ● ●
16 CLIP; HARNESS
(J) ID=28 L=78 		1-09700-858-0 02 1 9811-0610 ● ●
16 CLIP; HARNESS
(J) ID=28 L=78 		1-09700-858-0 01 1 0611- ● ●
16 CLIP; HARNESS
(P) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9811-0612 ● ●
16 CLIP; HARNESS
(P) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 0701- ● ●
16 CLIP; HARNESS
(Q) ID=19 H=21 L=50 		1-09700-910-1 01 1 9811-9907 ● ●
16 CLIP; HARNESS
(S) ID=18 H=23 L=28 		1-09700-860-0 01 1 9908-0610 ● ●
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 0611- ● ●
16 CLIP; HARNESS
(T) ID=25 L=50 		1-09701-019-0 01 1 9811- ● ●
16 CLIP; HARNESS
(H) L=300 USA 		1-09707-001-1 01 1 9811- ● ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 9811- ● ●
16 CLIP; HARNESS
(M) L=55 TAI 		8-94432-655-0 06 1 9811- ● ●
16 CLIP; HARNESS
(N) L=175 TAI 		8-97110-167-0 04 1 9811-0610 ● ●
16 CLIP; HARNESS
(N) L=175 TAI 		8-97110-167-0 06 1 0611- ● ●
16 CLIP; HARNESS
(O) ID=19 L=32 		9-09525-866-0 01 1 9811-0606 ● ●
16 CLIP; HARNESS
(O) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ●
16 CLIP; HARNESS
(U) L=350 		1-09707-183-0 02 1 9910-0610 ● ●
16 CLIP; HARNESS
(V) ID=33 L=63 		1-09700-807-0 01 1 0611- ● ●
16 CLIP; HARNESS
(K) L=250 TAI 		5-09707-030-1 01 1 9910- ● ●
16 CLIP; HARNESS
(R) L=180 		1-09707-162-1 01 1 9811-9906 ●
16 CLIP; HARNESS
(D) ID=26 L=27 		1-09701-006-0 01 1 9907- ● ●
48 CLIP; FRAME HARNESS
WB 5800MM(58W) (H) ID=20 L=50 		9-09917-430-0 19 1 0611- ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 05 1 0611- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9811-9906 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 9907-0610 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0611- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 04 1 9811- ●
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 05 1 9811- ●
48 CLIP; FRAME HARNESS
WB 4200MM(42W) (H) ID=20 L=50 		9-09917-430-0 16 1 9811-9906 ●
48 CLIP; FRAME HARNESS
WB 4200MM(42W) (H) ID=20 L=50 		9-09917-430-0 16 1 9907-0610 ●
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 16 1 9907-0610 ●
48 CLIP; FRAME HARNESS
WB 4200MM(42W) (H) ID=20 L=50 		9-09917-430-0 13 1 0611- ●
48 CLIP; FRAME HARNESS
WB 4800MM(48W) (H) ID=20 L=50 		9-09917-430-0 19 1 9811-0610 ●
48 CLIP; FRAME HARNESS
WB 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 19 1 9811-0610 ●
48 CLIP; FRAME HARNESS
WB 4800MM(48W) (H) ID=20 L=50 		9-09917-430-0 17 1 0611- ●
48 CLIP; FRAME HARNESS
WB 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 17 1 0611- ●
48 CLIP; FRAME HARNESS
WB 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 22 1 9811-0610 ●
48 CLIP; FRAME HARNESS
WB 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 20 1 0611- ●
48 CLIP; FRAME HARNESS
(C) L=180 		1-09707-162-1 01 1 9811-9906 ● ●
48 CLIP; FRAME HARNESS
(F) L=300 USA 		1-09707-001-1 01 1 9907-0610 ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 10 1 0611- ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 9811-0606 ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 9811-9906 ● ●
48 CLIP; FRAME HARNESS
WB 5800MM(58W) (H) ID=20 L=50 		9-09917-430-0 21 1 9907-0610 ●
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 14 1 0611- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 02 1 9811-9906 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 9907-0610 ● ●
48 CLIP; FRAME HARNESS
(I) ID=5-12 L=14.5 		1-09987-221-0 02 1 0611- ● ●
48 CLIP; FRAME HARNESS
(J) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9811-0610 ● ●
48 CLIP; FRAME HARNESS
(K) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0611- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 07 1 9811-9906 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 9907-0610 ●
48 CLIP; FRAME HARNESS
(L) ID=15 L=65 TAI 		1-09700-466-0 04 1 0611- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 05 1 9811-0610 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 10 1 0611-0701 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 08 1 0702- ●
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 9811- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 06 1 9907-0610 ●
48 CLIP; FRAME HARNESS
(M) ID=25 L=75 		1-09701-275-0 01 1 0611- ●
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 17 1 9811-9906 ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 04 1 9907-0610 ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 03 1 0611- ●
81 CLIP; HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 0611- ● ●
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 9811- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9811-0606 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=19 L=32 		9-09525-862-0 01 1 9811-0011 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 TAI 		9-09916-893-1 01 1 0012- ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9907-0606 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607-0610 ●
171 CLIP; STARTER HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0611- ● ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 TAI 		1-09709-178-0 02 1 9811-9906 ● ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 TAI 		1-09709-178-0 02 1 9907-0610 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9811-9906 ● ●
171 CLIP; STARTER HARNESS
(D) ID=19 L=24 H=21 		1-09700-109-1 01 1 9907-0610 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 02 1 0611- ● ●
171 CLIP; STARTER HARNESS
(E) ID=18 L=44 		8-94225-185-0 01 1 9811-0206 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 01 1 9907-0606 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 01 1 0607-0610 ●
171 CLIP; STARTER HARNESS
(F) L=140 		5-09707-031-1 01 1 0611- ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 03 1 9907-0606 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 03 1 0607-0610 ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 TAI 		1-09709-178-0 03 1 0611-0701 ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 TAI 		1-09709-178-0 02 1 0611- ● ●
208 CLIP; HARNESS,MAG VLV
ID=11 L=41 		1-09700-403-0 01 1 0611- ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9811- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 TAI 		1-09709-178-0 02 1 0611- ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 06 1 9811-0610 ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 TAI 		1-09709-178-0 04 1 0611- ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 TAI 		1-09709-178-0 03 1 9811-0610 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 0611- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 9811- ●
223 CLIP; AIR TANK HARNESS
(C) L=140 		5-09707-031-1 01 1 9811- ●
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 9811- ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 9811-0610 ●
223 CLIP; AIR TANK HARNESS
(E) L=180 		1-09707-162-1 01 1 0611- ●
230 CLIP; C/MBR HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 9811-0610 ● ●
230 CLIP; C/MBR HARNESS
(B) ID=25 L=55 		9-09917-573-0 02 1 0611- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 9811-9906 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 9907-0610 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 TAI 		5-09707-030-1 01 1 0611- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=12 L=35 		5-09700-206-0 01 1 9811-0610 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=12 L=35 		5-09700-206-0 01 1 0611- ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0611-0611 ● ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612- ● ●
305 CLIP; ENG HARNESS
A/C MAN CONT(C60) (A) ID=21 L=47.5 		8-94178-108-0 01 1 0612- ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612- ●
305 CLIP; ENG HARNESS
(F) ID=12 		8-97329-630-0 01 1 0611-0702 ● ●
305 CLIP; ENG HARNESS
(H) L=180 		1-09707-162-1 01 1 9811-9906 ● ●
305 CLIP; ENG HARNESS
(I) ID=24 L=32 		1-09700-766-1 03 1 9907-0610 ● ●
305 CLIP; ENG HARNESS
(D) L=250 TAI 		5-09707-030-1 07 1 0611-0701 ● ●
305 CLIP; ENG HARNESS
(J) L=300 USA 		1-09707-001-1 01 1 9907-0610 ● ●
305 CLIP; ENG HARNESS
(B) ID=19 H=33 L=45 		1-09701-045-0 01 1 0611- ● ●
305 CLIP; ENG HARNESS
(N) ID=18 L=44 		8-94225-185-0 03 1 9907-0610 ● ●
305 CLIP; ENG HARNESS
(C) OD=9 H=6 TAI 		1-09709-178-0 01 1 0611- ● ●
305 CLIP; ENG HARNESS
(K) ID=11 L=20 		9-09525-035-0 01 1 9907-0606 ● ●
305 CLIP; ENG HARNESS
(K) ID=11 L=20 		0-95235-035-0 01 1 0607-0610 ● ●
305 CLIP; ENG HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0611- ● ●
305 CLIP; ENG HARNESS
(M) ID=11 L=24 		9-09525-045-0 01 1 9907-0606 ● ●
305 CLIP; ENG HARNESS
(M) ID=11 L=24 		0-95235-045-0 01 1 0607-0610 ● ●
305 CLIP; ENG HARNESS
(E) ID=21 L=24 		8-94176-807-1 02 1 0611-0611 ● ●
305 CLIP; ENG HARNESS
(L) ID=16 L=40 		9-09525-576-0 02 1 0612- ● ●
427 CLIP; HARNESS,FULL ELEC
ID=11 L=41 		1-09700-403-0 01 1 0611- ● ●
612 CLIP; HARNESS DPD
(B) L=140 		5-09707-031-1 01 1 0611- ● ●
612 CLIP; HARNESS DPD
(A) ID=14 L=44 		9-09917-427-0 01 1 0611- ● ●

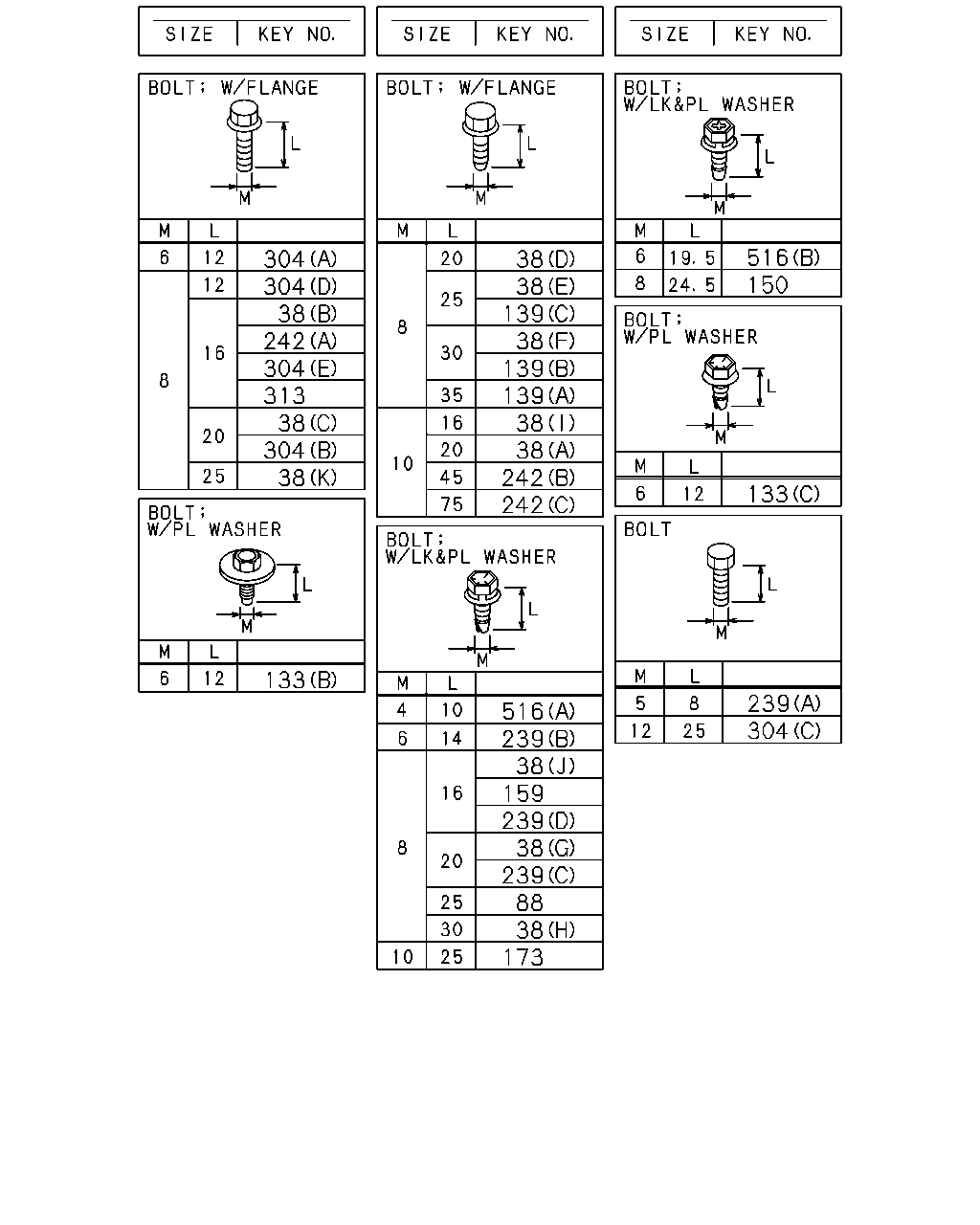

çizim 99124
516 150 304 304 38 242 304 313 38 304 38 38 38 139 38 139 139 38 38 242 242 133 133 239 304 516 239 38 159 239 38 239 88 38 173
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0611- ● ●
38 BOLT; CLIP,HARNESS
(A) M10X20 FLANGE 		0-28781-020-0 01 1 9811-0512 ●
38 BOLT; CLIP,HARNESS
(A) M10X20 FLANGE 		0-28751-020-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 03 1 0611- ●
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28080-816-0 04 1 9811-9906 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28080-816-0 05 1 9907-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 05 1 0601-0610 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0611- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 02 1 9811-9906 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 9907-9907 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 9908-0512 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 9908-0512 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0610 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0610 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 05 1 0611- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28680-825-0 02 1 9811-9907 ● ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28680-825-0 03 1 9908-0512 ● ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28680-830-0 02 1 9811-0512 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(G) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9811-9903 ● ●
38 BOLT; CLIP,HARNESS
(J) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-9906 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 02 1 9907-9907 ● ●
38 BOLT; CLIP,HARNESS
(H) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9811-0512 ● ●
38 BOLT; CLIP,HARNESS
(H) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(J) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9907-9909 ● ●
38 BOLT; CLIP,HARNESS
(J) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9907-9909 ● ●
38 BOLT; CLIP,HARNESS
(G) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9910-0610 ● ●
38 BOLT; CLIP,HARNESS
(G) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9910-0610 ● ●
38 BOLT; CLIP,HARNESS
(G) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0611- ● ●
38 BOLT; CLIP,HARNESS
(I) M10X16 FLANGE 		0-28181-016-0 01 1 9811-0512 ●
38 BOLT; CLIP,HARNESS
(I) M10X16 FLANGE 		0-28151-016-0 01 1 0601-0610 ●
38 BOLT; CLIP,HARNESS
(K) M8X25 FLANGE 		0-28050-825-0 03 1 0611- ●
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9811- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER TAI 		8-94279-402-0 01 1 9811-0110 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0611- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9811-0512 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0610 ●
139 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0611- ●
139 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 9811-0512 ●
139 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0601-0610 ●
139 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0611- ●
150 BOLT; CLIP
M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 01 1 0611- ● ●
159 BOLT; GRAND ENG ELEC
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0611- ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9811- ● ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9811-0701 ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9811- ● ●
239 BOLT; GRAND
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9811-9903 ● ●
239 BOLT; GRAND
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9907-0512 ● ●
242 BOLT; BRKT,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0601-0610 ● ●
242 BOLT; BRKT,HARNESS
(B) M10X45 FLANGE 		0-28181-045-0 01 1 9907-0512 ● ●
242 BOLT; BRKT,HARNESS
(B) M10X45 FLANGE 		0-28151-045-0 01 1 0601-0610 ● ●
242 BOLT; BRKT,HARNESS
(C) M10X75 FLANGE 		8-94399-669-1 01 1 9907-0610 ● ●
304 BOLT; ENG HARNESS CLIP
(A) M6X12 FLANGE 		0-28050-612-0 01 1 0611- ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0611- ● ●
304 BOLT; ENG HARNESS CLIP
(C) M12X25 		5-09000-227-0 01 1 0611- ● ●
304 BOLT; ENG HARNESS CLIP
(D) M8X12 FLANGE 		0-28080-812-0 03 1 9907-0512 ● ●
304 BOLT; ENG HARNESS CLIP
(D) M8X12 FLANGE 		0-28050-812-0 03 1 0601- ● ●
304 BOLT; ENG HARNESS CLIP
(E) M8X16 FLANGE 		0-28080-816-0 04 1 9907-0512 ● ●
304 BOLT; ENG HARNESS CLIP
(E) M8X16 FLANGE 		0-28050-816-0 04 1 0601-0610 ● ●
304 BOLT; ENG HARNESS CLIP
(E) M8X16 FLANGE 		0-28050-816-0 05 1 0611- ● ●
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9811-0512 ● ●
313 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-0610 ● ●
516 BOLT; HARNESS
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0611- ● ●
516 BOLT; HARNESS
(B) M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 02 1 9811- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
