◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-72 - COOLER UNIT ▶
8-72 — COOLER UNIT (#75099) — 100 parça

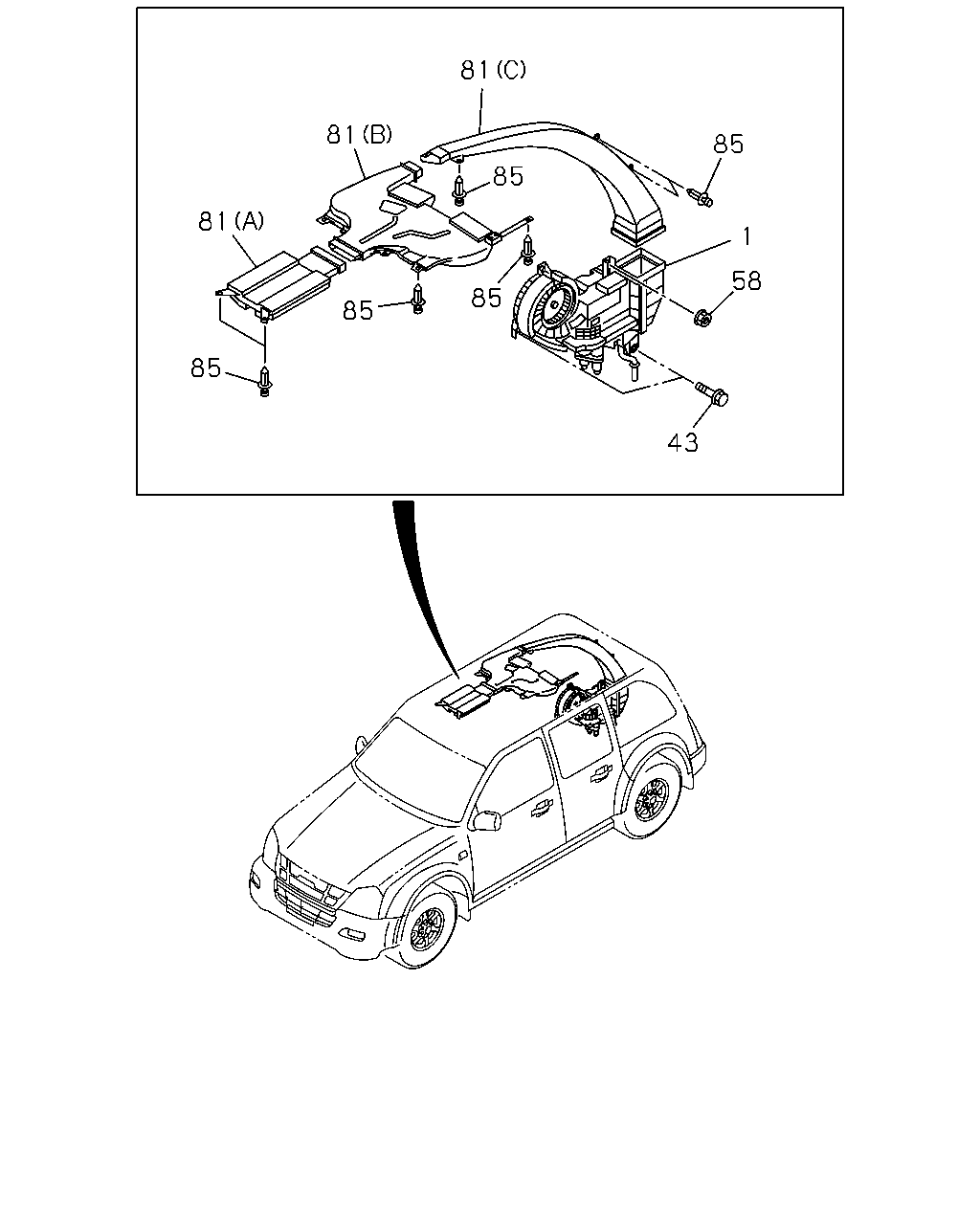

çizim 118694
81 81 85 85 81 1 58 85 85 85 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLING UNIT; RR
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97363-893-3 01 1 0503-0508 ●
1 COOLING UNIT; RR
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97363-893-3 01 1 0509-0703 ● ●
1 COOLING UNIT; RR
AIR CONDITIONER ROOF MOUNTED<C69> 		8-98072-391-0 01 1 0704- ● ●
43 BOLT; COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> M6X25 FLANGE 		0-28450-625-0 03 1 0503-0508 ●
43 BOLT; COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> M6X25 FLANGE 		0-28450-625-0 03 1 0509- ● ●
58 NUT; CASE
AIR CONDITIONER ROOF MOUNTED<C69> M6 FLANGE 		8-97063-399-0 01 1 0503-0508 ●
58 NUT; CASE
AIR CONDITIONER ROOF MOUNTED<C69> M6 FLANGE 		8-97063-399-0 01 1 0509-0702 ● ●
58 NUT; CASE
AIR CONDITIONER ROOF MOUNTED<C69> M6 FLANGE 		8-98055-704-0 01 1 0703- ● ●
81 DUCT; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97363-895-1 01 1 0503-0508 ●
81 DUCT; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97363-895-1 01 1 0509- ● ●
81 DUCT; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97363-898-1 01 1 0503-0508 ●
81 DUCT; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97363-898-1 01 1 0509- ● ●
81 DUCT; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> (C) 		8-97363-899-1 01 1 0503-0508 ●
81 DUCT; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> (C) 		8-97363-899-1 01 1 0509- ● ●
85 CLIP; DUCT
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97327-315-0 12 1 0503-0508 ●
85 CLIP; DUCT
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97327-315-0 12 1 0509- ● ●

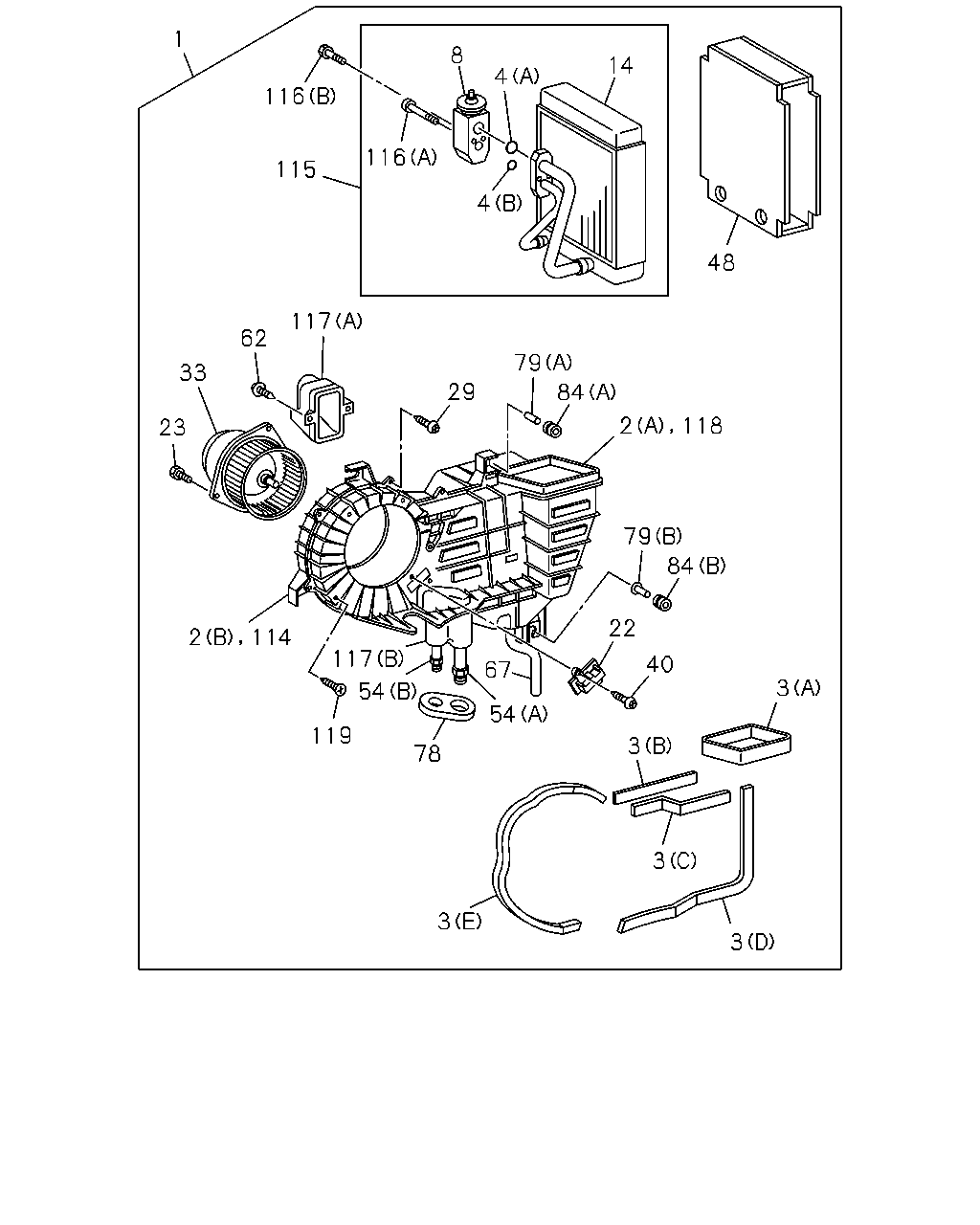

çizim 118706
1 8 14 4 116 116 115 4 48 117 62 79 33 29 84 2 118 23 79 84 22 2 114 117 40 67 3 54 54 119 3 78 3 3 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLING UNIT; RR
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97363-893-3 01 1 0503-0508 ●
1 COOLING UNIT; RR
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97363-893-3 01 1 0509-0703 ● ●
1 COOLING UNIT; RR
AIR CONDITIONER ROOF MOUNTED<C69> 		8-98072-391-0 01 1 0704- ● ●
2 CASE; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97385-848-0 01 1 0503-0508 ●
2 CASE; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97385-848-0 01 1 0509- ● ●
2 CASE; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97385-852-0 01 1 0503-0508 ●
2 CASE; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97385-852-0 01 1 0509- ● ●
3 LINING; CASE
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97387-162-0 01 1 0503-0508 ●
3 LINING; CASE
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97387-162-0 01 1 0509- ● ●
3 LINING; CASE
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97387-164-0 01 1 0503-0508 ●
3 LINING; CASE
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97387-164-0 01 1 0509- ● ●
3 LINING; CASE
AIR CONDITIONER ROOF MOUNTED<C69> (C) 		8-97387-165-0 01 1 0503-0508 ●
3 LINING; CASE
AIR CONDITIONER ROOF MOUNTED<C69> (C) 		8-97387-165-0 01 1 0509- ● ●
3 LINING; CASE
AIR CONDITIONER ROOF MOUNTED<C69> (D) 		8-97387-166-0 01 1 0503-0508 ●
3 LINING; CASE
AIR CONDITIONER ROOF MOUNTED<C69> (D) 		8-97387-166-0 01 1 0509- ● ●
3 LINING; CASE
AIR CONDITIONER ROOF MOUNTED<C69> (E) 		8-97387-167-0 01 1 0503-0508 ●
3 LINING; CASE
AIR CONDITIONER ROOF MOUNTED<C69> (E) 		8-97387-167-0 01 1 0509- ● ●
4 GASKET; VLV TO PIPE
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97387-114-0 01 1 0503-0508 ●
4 GASKET; VLV TO PIPE
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97387-114-0 01 1 0509-0606 ● ●
4 GASKET; VLV TO PIPE
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97387-115-0 01 1 0503-0508 ●
4 GASKET; VLV TO PIPE
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97387-115-0 01 1 0509-0606 ● ●
4 GASKET; VLV TO PIPE
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97321-154-0 01 1 0607- ● ●
4 GASKET; VLV TO PIPE
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97321-155-0 01 1 0607- ● ●
8 VALVE; EXPANSION
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-111-0 01 1 0503-0508 ●
8 VALVE; EXPANSION
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-111-0 01 1 0509-0703 ● ●
8 VALVE; EXPANSION
AIR CONDITIONER ROOF MOUNTED<C69> 		8-98073-310-0 01 1 0704- ● ●
14 EVAPORATOR; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-110-0 01 1 0503-0508 ●
14 EVAPORATOR; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-110-0 01 1 0509- ● ●
22 RESISTOR; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97321-273-0 01 1 0503-0508 ●
22 RESISTOR; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97321-273-0 01 1 0509- ● ●
23 SCREW; CASE TO MOTOR
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97321-275-0 03 1 0503-0508 ●
23 SCREW; CASE TO MOTOR
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97321-275-0 03 1 0509-0703 ● ●
23 SCREW; CASE TO MOTOR
AIR CONDITIONER ROOF MOUNTED<C69> 		8-98070-134-0 03 1 0704- ● ●
29 SCREW; CASE
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97321-165-0 14 1 0503-0508 ●
29 SCREW; CASE
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97321-165-0 14 1 0509-0703 ● ●
29 SCREW; CASE
AIR CONDITIONER ROOF MOUNTED<C69> 		8-98070-135-0 14 1 0704- ● ●
33 BLOWER; COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97385-853-0 01 1 0503-0508 ●
33 BLOWER; COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97385-853-0 01 1 0509- ● ●
40 SCREW; RESISTOR FIX,COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97321-165-0 02 1 0503-0508 ●
40 SCREW; RESISTOR FIX,COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97321-165-0 02 1 0509-0703 ● ●
40 SCREW; RESISTOR FIX,COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> 		8-98070-135-0 02 1 0704- ● ●
48 SEAL; EVAP,COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-112-0 01 1 0503-0508 ●
48 SEAL; EVAP,COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-112-0 01 1 0509- ● ●
54 PIPE; COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97387-123-0 01 1 0503-0508 ●
54 PIPE; COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97387-123-0 01 1 0509- ● ●
54 PIPE; COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97387-125-0 01 1 0503-0508 ●
54 PIPE; COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97387-125-0 01 1 0509- ● ●
62 SCREW; COVER
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97321-165-0 06 1 0503-0508 ●
62 SCREW; COVER
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97321-165-0 06 1 0509-0703 ● ●
62 SCREW; COVER
AIR CONDITIONER ROOF MOUNTED<C69> 		8-98070-135-0 06 1 0704- ● ●
67 HOSE; DRAIN
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-122-0 01 1 0503-0508 ●
67 HOSE; DRAIN
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-122-0 01 1 0509- ● ●
78 GROMMET; COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-149-0 01 1 0503-0508 ●
78 GROMMET; COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-149-0 01 1 0509- ● ●
79 COLLAR; COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97387-101-0 02 1 0503-0508 ●
79 COLLAR; COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97387-101-0 02 1 0509-0703 ● ●
79 COLLAR; COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-98072-393-0 02 1 0704- ● ●
79 COLLAR; COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97387-103-0 02 1 0503-0508 ●
79 COLLAR; COOLER UNIT
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97387-103-0 02 1 0509- ● ●
84 RUBBER
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97387-100-0 02 1 0503-0508 ●
84 RUBBER
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97387-100-0 02 1 0509- ● ●
84 RUBBER
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97387-102-0 02 1 0503-0508 ●
84 RUBBER
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97387-102-0 02 1 0509- ● ●
114 SEAL; CASE
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-108-0 01 1 0503-0508 ●
114 SEAL; CASE
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-108-0 01 1 0509- ● ●
115 EVAPORATOR ASM; COOLING UNIT
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-109-0 01 1 0503-0508 ●
115 EVAPORATOR ASM; COOLING UNIT
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-109-0 01 1 0509- ● ●
116 BOLT; EXPANSION VALVE
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97321-153-0 02 1 0503-0508 ●
116 BOLT; EXPANSION VALVE
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97321-153-0 02 1 0509-0703 ● ●
116 BOLT; EXPANSION VALVE
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-98072-395-0 02 1 0704- ● ●
116 BOLT; EXPANSION VALVE
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97387-144-0 01 1 0503-0508 ●
116 BOLT; EXPANSION VALVE
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97387-144-0 01 1 0509-0606 ● ●
116 BOLT; EXPANSION VALVE
AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X20 FLANGE 		0-28650-620-0 01 1 0607-0703 ● ●
116 BOLT; EXPANSION VALVE
AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X20 W/LK&PL WASHER 		0-50640-620-0 01 1 0704- ● ●
117 COVER; PIPE
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97387-116-0 01 1 0503-0508 ●
117 COVER; PIPE
AIR CONDITIONER ROOF MOUNTED<C69> (A) 		8-97387-116-0 01 1 0509- ● ●
117 COVER; PIPE
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97387-117-0 01 1 0503-0508 ●
117 COVER; PIPE
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97387-117-0 01 1 0509- ● ●
118 GUIDE; AIR
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-163-0 01 1 0503-0508 ●
118 GUIDE; AIR
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97387-163-0 01 1 0509- ● ●
119 SCREW; AIR GUIDE
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97321-165-0 08 1 0503-0508 ●
119 SCREW; AIR GUIDE
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97321-165-0 08 1 0509-0606 ● ●
119 SCREW; AIR GUIDE
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97321-165-0 07 1 0607-0703 ● ●
119 SCREW; AIR GUIDE
AIR CONDITIONER ROOF MOUNTED<C69> 		8-98070-135-0 07 1 0704- ● ●
