◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#75098) — 19 parça

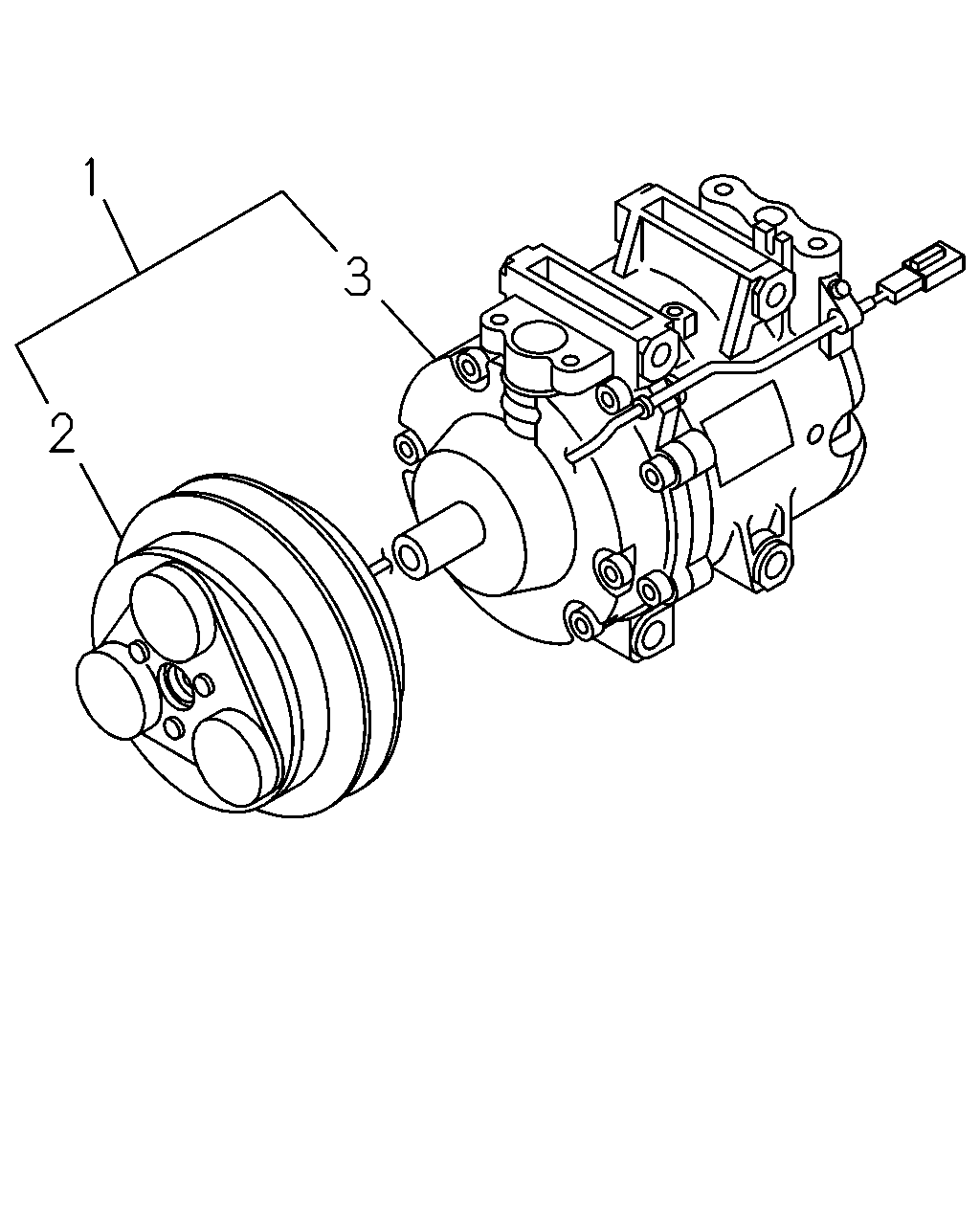

çizim 118723
1 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; A/C
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97373-416-2 01 1 0503-0508 ●
1 COMPRESSOR ASM; A/C
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97373-416-2 01 1 0509-1109 ● ●
1 COMPRESSOR ASM; A/C
AIR CONDITIONER ROOF MOUNTED<C69> 		8-98199-294-1 01 1 1110- ● ●
1 COMPRESSOR ASM; A/C
EXC. AIR CONDITIONER ROOF MOUNTED<C69> 		8-97370-661-3 01 1 0503-0508 ●
1 COMPRESSOR ASM; A/C
EXC. AIR CONDITIONER ROOF MOUNTED<C69> 		8-97370-661-3 01 1 0509-1109 ● ●
1 COMPRESSOR ASM; A/C
EXC. AIR CONDITIONER ROOF MOUNTED<C69> 		8-98199-292-1 01 1 1110- ● ●
2 CLUTCH; MAGNET,A/C 8-97372-920-0 01 1 0503-0508 ●
2 CLUTCH; MAGNET,A/C 8-97372-920-0 01 1 0509-1402 ● ●
2 CLUTCH; MAGNET,A/C 8-98252-777-0 01 1 1403- ● ●
3 COMPRESSOR ASM; A/C
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97375-963-0 01 1 0503-0508 ●
3 COMPRESSOR ASM; A/C
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97375-963-0 01 1 0509-0606 ● ●
3 COMPRESSOR ASM; A/C
EXC. AIR CONDITIONER ROOF MOUNTED<C69> 		8-97372-919-0 01 1 0503-0508 ●
3 COMPRESSOR ASM; A/C
EXC. AIR CONDITIONER ROOF MOUNTED<C69> 		8-97372-919-0 01 1 0509-0606 ● ●
3 COMPRESSOR ASM; A/C
AIR CONDITIONER ROOF MOUNTED<C69> 		8-98070-189-0 01 1 0607-1109 ● ●
3 COMPRESSOR ASM; A/C
AIR CONDITIONER ROOF MOUNTED<C69> 		8-98204-875-0 01 1 1110-1402 ● ●
3 COMPRESSOR ASM; A/C
AIR CONDITIONER ROOF MOUNTED<C69> 		8-98258-535-0 01 1 1403- ● ●
3 COMPRESSOR ASM; A/C
EXC. AIR CONDITIONER ROOF MOUNTED<C69> 		8-98070-188-0 01 1 0607-1109 ● ●
3 COMPRESSOR ASM; A/C
EXC. AIR CONDITIONER ROOF MOUNTED<C69> 		8-98204-874-0 01 1 1110-1402 ● ●
3 COMPRESSOR ASM; A/C
EXC. AIR CONDITIONER ROOF MOUNTED<C69> 		8-98258-533-0 01 1 1403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
