8-65 — CONTROL LEVER; HEATER AND AIR CON (#75097) — 100 parça

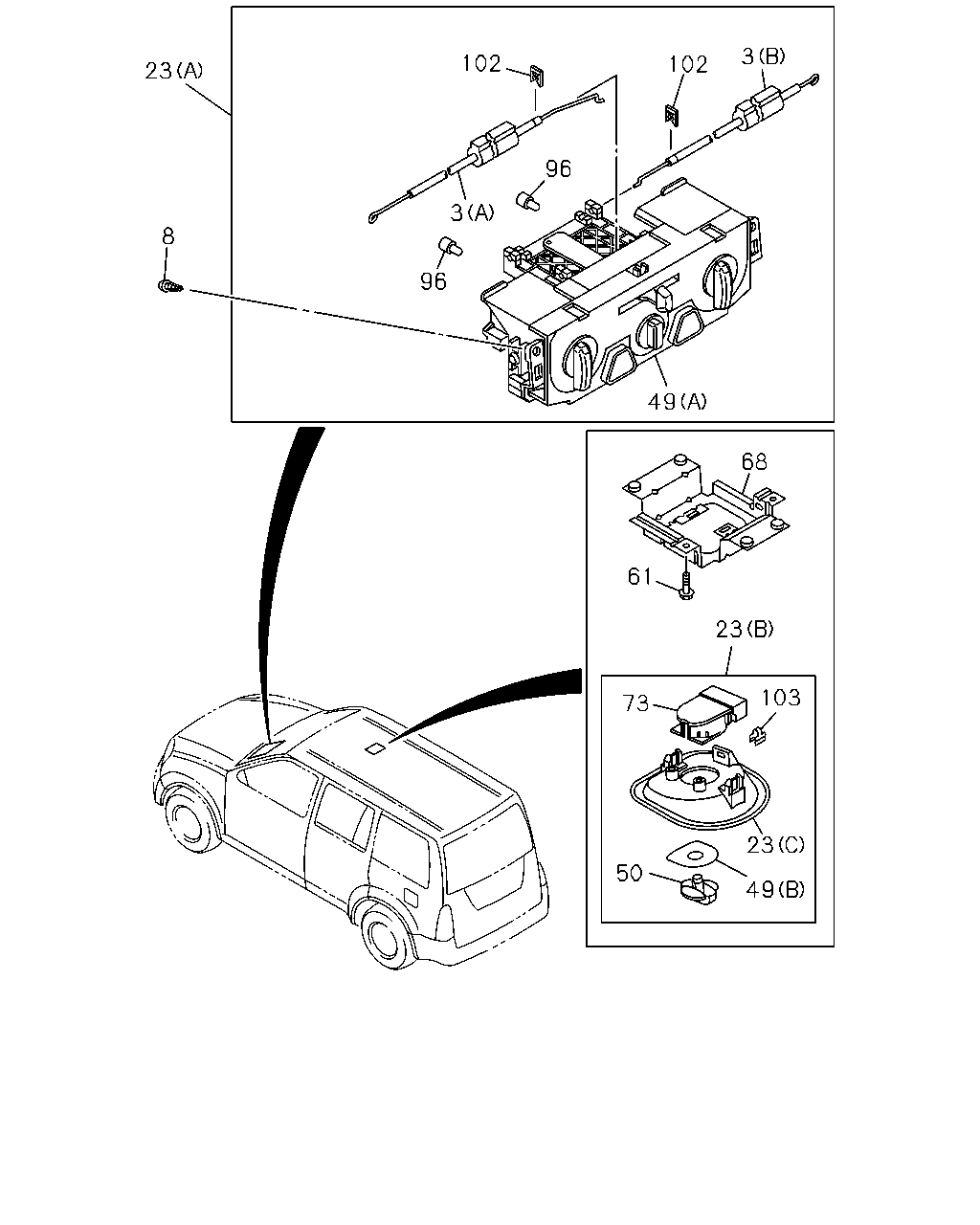

çizim 118680
3 102 102 23 96 3 8 96 49 68 61 23 103 73 23 50 49
BalonParca AdiParca NoAdetTipApplied Date A B
3 CABLE; HTR CONT LVR
(A) MODE 		8-97321-478-0 01 1 0503-0508 ●
3 CABLE; HTR CONT LVR
(A) MODE 		8-97321-478-0 01 1 0509-0606 ● ●
3 CABLE; HTR CONT LVR
(A) MODE 		8-98029-160-0 01 1 0607- ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE 		8-97321-479-0 01 1 0503-0508 ●
3 CABLE; HTR CONT LVR
(B) INTAKE 		8-97321-479-0 01 1 0509-0606 ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE 		8-98029-162-0 01 1 0607- ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING 		9-09829-323-1 02 1 0503-0508 ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING 		9-09829-323-1 02 1 0509-0702 ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING 		8-98061-685-0 02 1 0703-1005 ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING 		8-98167-449-0 02 1 1006- ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) 		8-98183-782-0 01 1 1108- ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> SALES PACKAGE EQUIPMENT SPORTY<XK0> (C) 		8-98188-717-0 01 1 1108- ● ●
23 BEZEL; CONT LEVER
(A) 		8-98006-182-0 01 1 0503-0508 ●
23 BEZEL; CONT LEVER
(A) 		8-98004-366-0 01 1 0509-0606 ● ●
23 BEZEL; CONT LEVER
(A) 		8-98038-139-0 01 1 0607-1001 ● ●
23 BEZEL; CONT LEVER
(A) 		8-98152-844-1 01 1 1002- ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97363-880-1 01 1 0503-0508 ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97363-880-1 01 1 0509-0606 ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-98039-692-0 01 1 0607-1107 ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) 		8-98039-692-0 01 1 1108- ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> (C) 		8-97386-828-0 01 1 0503-0508 ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> (C) 		8-97386-828-0 01 1 0509-0606 ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> (C) 		8-98044-513-0 01 1 0607-1107 ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (C) 		8-98044-513-0 01 1 1108- ● ●
49 PANEL; CONT
AIR CONDITIONER ROOF MOUNTED<C69> SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) 		8-98188-718-0 01 1 1108- ● ●
49 PANEL; CONT
(A) 		8-98013-449-0 01 1 0503-0508 ●
49 PANEL; CONT
(A) 		8-98013-452-0 01 1 0509-0606 ● ●
49 PANEL; CONT
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97386-831-0 01 1 0503-0508 ●
49 PANEL; CONT
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97386-831-0 01 1 0509-0606 ● ●
49 PANEL; CONT
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-98044-515-0 01 1 0607-1107 ● ●
49 PANEL; CONT
AIR CONDITIONER ROOF MOUNTED<C69> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) 		8-98044-515-0 01 1 1108- ● ●
50 KNOB; CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98188-714-0 01 1 1108- ● ●
50 KNOB; CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97386-829-0 01 1 0503-0508 ●
50 KNOB; CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97386-829-0 01 1 0509-0606 ● ●
50 KNOB; CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> 		8-98044-514-0 01 1 0607-1107 ● ●
50 KNOB; CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98044-514-0 01 1 1108- ● ●
61 BOLT; CONT LEVER
M6X12 FLANGE 		0-28050-612-0 02 1 0503-0508 ●
61 BOLT; CONT LEVER
M6X12 FLANGE 		0-28050-612-0 02 1 0509- ● ●
68 BRACKET; BEZEL 8-97367-517-0 01 1 0503-0508 ●
68 BRACKET; BEZEL 8-97367-517-0 01 1 0509-0703 ● ●
68 BRACKET; BEZEL 8-98072-792-0 01 1 0704- ● ●
73 SWITCH; FAN,CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97386-830-0 01 1 0503-0508 ●
73 SWITCH; FAN,CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97386-830-0 01 1 0509- ● ●
96 BULB ASM; BEZEL 8-98006-462-0 02 1 0503-0508 ●
96 BULB ASM; BEZEL 8-98006-462-0 02 1 0509-0606 ● ●
96 BULB ASM; BEZEL 8-98029-142-0 02 1 0607-1001 ● ●
96 BULB ASM; BEZEL 8-98159-721-0 02 1 1002- ● ●
102 RING; SNAP,CABLE 8-97321-480-0 02 1 0503-0508 ●
102 RING; SNAP,CABLE 8-97321-480-0 02 1 0509-0606 ● ●
103 CLIP
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97386-832-0 02 1 0503-0508 ●
103 CLIP
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97386-832-0 02 1 0509- ● ●

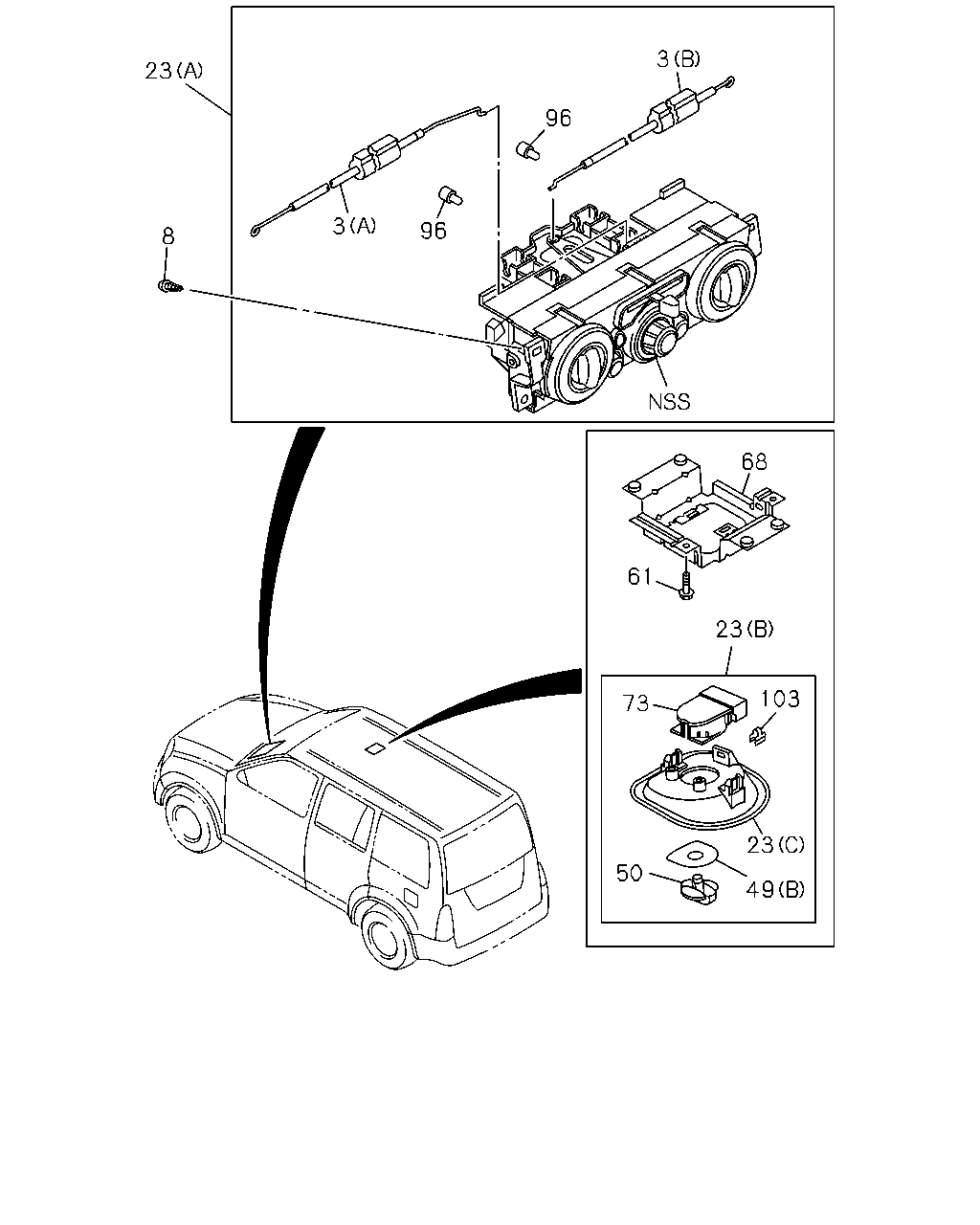

çizim 118757
3 23 96 3 96 8 68 61 23 103 73 23 50 49
BalonParca AdiParca NoAdetTipApplied Date A B
3 CABLE; HTR CONT LVR
(A) MODE 		8-97321-478-0 01 1 0503-0508 ●
3 CABLE; HTR CONT LVR
(A) MODE 		8-97321-478-0 01 1 0509-0606 ● ●
3 CABLE; HTR CONT LVR
(A) MODE 		8-98029-160-0 01 1 0607- ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE 		8-97321-479-0 01 1 0503-0508 ●
3 CABLE; HTR CONT LVR
(B) INTAKE 		8-97321-479-0 01 1 0509-0606 ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE 		8-98029-162-0 01 1 0607- ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING 		9-09829-323-1 02 1 0503-0508 ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING 		9-09829-323-1 02 1 0509-0702 ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING 		8-98061-685-0 02 1 0703-1005 ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING 		8-98167-449-0 02 1 1006- ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) 		8-98183-782-0 01 1 1108- ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> SALES PACKAGE EQUIPMENT SPORTY<XK0> (C) 		8-98188-717-0 01 1 1108- ● ●
23 BEZEL; CONT LEVER
(A) 		8-98006-182-0 01 1 0503-0508 ●
23 BEZEL; CONT LEVER
(A) 		8-98004-366-0 01 1 0509-0606 ● ●
23 BEZEL; CONT LEVER
(A) 		8-98038-139-0 01 1 0607-1001 ● ●
23 BEZEL; CONT LEVER
(A) 		8-98152-844-1 01 1 1002- ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97363-880-1 01 1 0503-0508 ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97363-880-1 01 1 0509-0606 ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-98039-692-0 01 1 0607-1107 ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) 		8-98039-692-0 01 1 1108- ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> (C) 		8-97386-828-0 01 1 0503-0508 ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> (C) 		8-97386-828-0 01 1 0509-0606 ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> (C) 		8-98044-513-0 01 1 0607-1107 ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER ROOF MOUNTED<C69> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (C) 		8-98044-513-0 01 1 1108- ● ●
49 PANEL; CONT
AIR CONDITIONER ROOF MOUNTED<C69> SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) 		8-98188-718-0 01 1 1108- ● ●
49 PANEL; CONT
(A) 		8-98013-449-0 01 1 0503-0508 ●
49 PANEL; CONT
(A) 		8-98013-452-0 01 1 0509-0606 ● ●
49 PANEL; CONT
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97386-831-0 01 1 0503-0508 ●
49 PANEL; CONT
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-97386-831-0 01 1 0509-0606 ● ●
49 PANEL; CONT
AIR CONDITIONER ROOF MOUNTED<C69> (B) 		8-98044-515-0 01 1 0607-1107 ● ●
49 PANEL; CONT
AIR CONDITIONER ROOF MOUNTED<C69> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) 		8-98044-515-0 01 1 1108- ● ●
50 KNOB; CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98188-714-0 01 1 1108- ● ●
50 KNOB; CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97386-829-0 01 1 0503-0508 ●
50 KNOB; CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97386-829-0 01 1 0509-0606 ● ●
50 KNOB; CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> 		8-98044-514-0 01 1 0607-1107 ● ●
50 KNOB; CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> 		8-98044-514-0 01 1 1108- ● ●
61 BOLT; CONT LEVER
M6X12 FLANGE 		0-28050-612-0 02 1 0503-0508 ●
61 BOLT; CONT LEVER
M6X12 FLANGE 		0-28050-612-0 02 1 0509- ● ●
68 BRACKET; BEZEL 8-97367-517-0 01 1 0503-0508 ●
68 BRACKET; BEZEL 8-97367-517-0 01 1 0509-0703 ● ●
68 BRACKET; BEZEL 8-98072-792-0 01 1 0704- ● ●
73 SWITCH; FAN,CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97386-830-0 01 1 0503-0508 ●
73 SWITCH; FAN,CONT PANEL
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97386-830-0 01 1 0509- ● ●
96 BULB ASM; BEZEL 8-98006-462-0 02 1 0503-0508 ●
96 BULB ASM; BEZEL 8-98006-462-0 02 1 0509-0606 ● ●
96 BULB ASM; BEZEL 8-98029-142-0 02 1 0607-1001 ● ●
96 BULB ASM; BEZEL 8-98159-721-0 02 1 1002- ● ●
103 CLIP
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97386-832-0 02 1 0503-0508 ●
103 CLIP
AIR CONDITIONER ROOF MOUNTED<C69> 		8-97386-832-0 02 1 0509- ● ●
