8-60 — HEATER UNIT; FRONT (#75096) — 40 parça

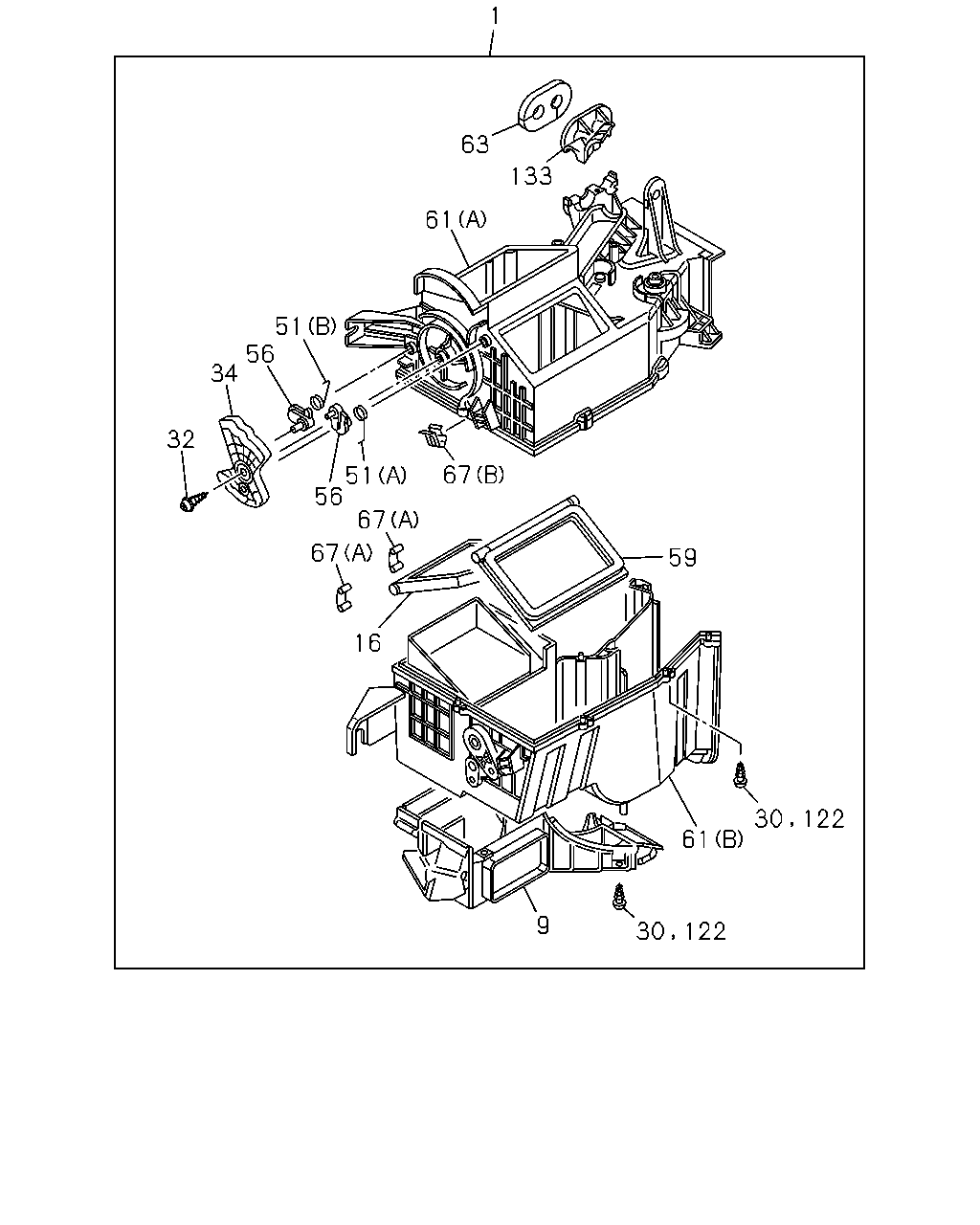

çizim 118699
1 63 133 61 51 56 34 32 67 51 56 67 67 59 16 61 9 122 30 122 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT 8-97369-319-0 01 1 0503-0508 ●
1 HEATER UNIT 8-97369-319-0 01 1 0509-0510 ● ●
1 HEATER UNIT 8-98027-413-0 01 1 0511-0703 ● ●
1 HEATER UNIT 8-98071-343-0 01 1 0704-0708 ● ●
1 HEATER UNIT 8-98086-160-0 01 1 0709- ● ●
9 DUCT; HTR UNIT 8-97364-986-0 01 1 0503-0508 ●
9 DUCT; HTR UNIT 8-97364-986-0 01 1 0509-0510 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-97364-989-0 01 1 0503-0508 ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-97364-989-0 01 1 0509- ● ●
30 SCREW; HTR UNIT 8-97321-165-0 09 1 0503-0508 ●
30 SCREW; HTR UNIT 8-97321-165-0 09 1 0509-0703 ● ●
30 SCREW; HTR UNIT 8-98071-324-0 09 1 0704- ● ●
32 SCREW; HTR UNIT 8-97321-276-0 01 1 0503-0508 ●
32 SCREW; HTR UNIT 8-97321-276-0 01 1 0509-0703 ● ●
32 SCREW; HTR UNIT 8-98071-323-0 01 1 0704- ● ●
34 LEVER; SHUTTER,HTR UNIT 8-97364-992-0 01 1 0503-0508 ●
34 LEVER; SHUTTER,HTR UNIT 8-97364-992-0 01 1 0509- ● ●
51 SPRING; HTR UNIT
(A) 		8-97364-994-0 01 1 0503-0508 ●
51 SPRING; HTR UNIT
(A) 		8-97364-994-0 01 1 0509- ● ●
51 SPRING; HTR UNIT
(B) 		8-97364-995-0 01 1 0503-0508 ●
51 SPRING; HTR UNIT
(B) 		8-97364-995-0 01 1 0509- ● ●
56 LEVER; SHUTTER,HTR UNIT 8-97321-341-0 02 1 0503-0508 ●
56 LEVER; SHUTTER,HTR UNIT 8-97321-341-0 02 1 0509- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-97364-988-0 01 1 0503-0508 ●
59 SHUTTER; HTR UNIT,SIDE 8-97364-988-0 01 1 0509- ● ●
61 CASE; HTR UNIT
(A) 		8-97364-981-0 01 1 0503-0508 ●
61 CASE; HTR UNIT
(A) 		8-97364-981-0 01 1 0509- ● ●
61 CASE; HTR UNIT
(B) 		8-97364-983-0 01 1 0503-0508 ●
61 CASE; HTR UNIT
(B) 		8-97364-983-0 01 1 0509- ● ●
63 LINING; HTR UNIT 8-97321-370-1 01 1 0503-0508 ●
63 LINING; HTR UNIT 8-97321-370-1 01 1 0509- ● ●
67 CLIP; HTR UNIT
(A) 		8-97321-166-0 01 1 0503-0508 ●
67 CLIP; HTR UNIT
(A) 		8-97321-166-0 01 1 0509-0708 ● ●
67 CLIP; HTR UNIT
(A) 		8-98088-089-0 01 1 0709- ● ●
67 CLIP; HTR UNIT
(B) 		8-97321-274-0 01 1 0503-0508 ●
67 CLIP; HTR UNIT
(B) 		8-97321-274-0 01 1 0509- ● ●
122 SCREW; DUCT 8-97321-165-0 02 1 0503-0508 ●
122 SCREW; DUCT 8-97321-165-0 02 1 0509-0510 ● ●
133 CLIP; PIPE 8-97364-993-0 01 1 0503-0508 ●
133 CLIP; PIPE 8-97364-993-0 01 1 0509- ● ●
