8-52 — PIPING; AIR CONDITIONING (#75095) — 151 parça

116 116 185 189 185 8 116 116 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X16 FLANGE	0-28650-616-0	01	1	0503-0508	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X16 FLANGE	0-28650-616-0	01	1	0509-	●	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X16 FLANGE	0-28650-616-0	07	1	0503-0508	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X16 FLANGE	0-28650-616-0	07	1	0509-	●	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97383-407-0	02	1	0503-0508	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97383-407-0	02	1	0509-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97321-353-0	02	1	0503-0508	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97321-353-0	02	1	0509-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97321-353-0	03	1	0503-0508	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97321-353-0	03	1	0509-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) SCAL	8-97919-270-0	01	1	0503-0508	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) SCAL	8-97919-270-0	01	1	0509-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) SCAL	8-97919-270-0	04	1	0503-0508	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) SCAL	8-97919-270-0	04	1	0509-	●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97363-889-0	01	1	0503-0508	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97363-889-0	01	1	0509-	●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER ROOF MOUNTED<C69> (B)	8-97363-891-1	01	1	0503-0508	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER ROOF MOUNTED<C69> (B)	8-97363-891-1	01	1	0509-	●	●
189	GROMMET AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97382-968-0	01	1	0503-0508	●
189	GROMMET AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97382-968-0	01	1	0509-	●	●
189	GROMMET EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) OD=30	8-94107-655-0	01	1	0503-0508	●
189	GROMMET EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) OD=30	8-94107-655-0	01	1	0509-	●	●
189	GROMMET EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C)	8-97363-901-0	01	1	0503-0508	●
189	GROMMET EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C)	8-97363-901-0	01	1	0509-	●	●

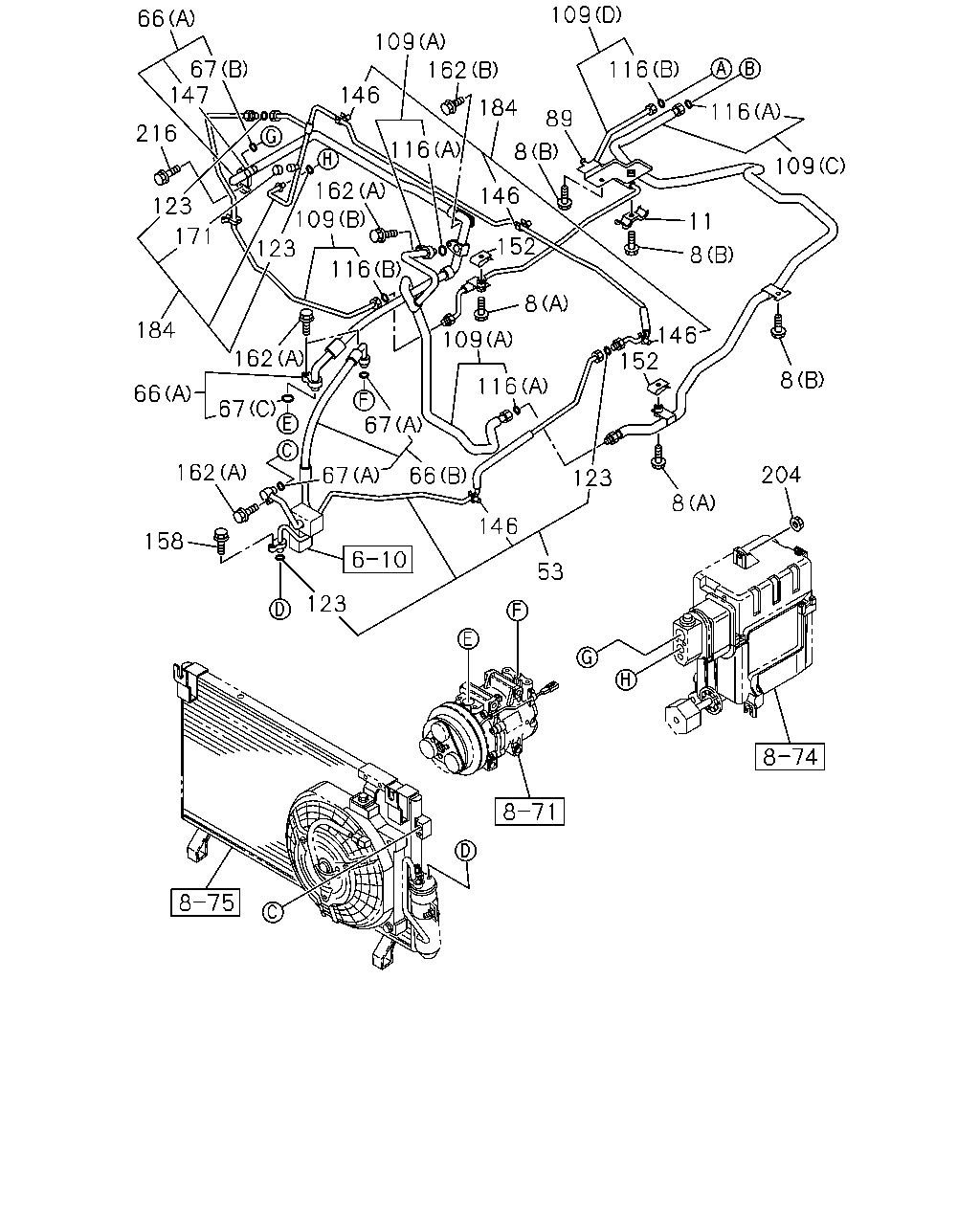

109 66 109 162 67 147 116 146 184 116 89 216 116 8 109 162 109 146 123 11 171 152 123 8 116 8 184 146 152 109 162 8 116 66 67 67 162 204 67 66 123 8 146 158 53 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X16 FLANGE	0-28650-616-0	01	1	0503-0508	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X16 FLANGE	0-28650-616-0	01	1	0509-	●	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X16 FLANGE	0-28650-616-0	07	1	0503-0508	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (B) M6X16 FLANGE	0-28650-616-0	07	1	0509-	●	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97383-407-0	02	1	0503-0508	●
8	BOLT; CLIP AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97383-407-0	02	1	0509-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER ROOF MOUNTED<C69>	8-97375-867-0	01	1	0503-0508	●
11	CLIP; COOLER PIPE AIR CONDITIONER ROOF MOUNTED<C69>	8-97375-867-0	01	1	0509-	●	●
53	PIPE; RECEIVER TANK TO EVAP	8-97378-434-0	01	1	0503-0508	●
53	PIPE; RECEIVER TANK TO EVAP	8-97378-434-0	01	1	0509-0606	●	●
53	PIPE; RECEIVER TANK TO EVAP	8-98018-750-0	01	1	0607-	●	●
66	HOSE; FLEX,A/C (B)	8-97363-903-0	01	1	0503-0508	●
66	HOSE; FLEX,A/C (B)	8-97363-903-0	01	1	0509-	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-98001-322-1	01	1	0503-0508	●
66	HOSE; FLEX,A/C AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-98001-322-1	01	1	0509-	●	●
66	HOSE; FLEX,A/C EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C)	8-97383-574-2	01	1	0503-0508	●
66	HOSE; FLEX,A/C EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C)	8-97383-574-2	01	1	0509-	●	●
67	GASKET; FLEX HOSE (B)	8-97321-351-0	01	1	0503-0508	●
67	GASKET; FLEX HOSE (B)	8-97321-351-0	01	1	0509-	●	●
67	GASKET; FLEX HOSE (C)	8-97321-352-0	01	1	0503-0508	●
67	GASKET; FLEX HOSE (C)	8-97321-352-0	01	1	0509-	●	●
67	GASKET; FLEX HOSE (A)	8-97321-353-0	02	1	0503-0508	●
67	GASKET; FLEX HOSE (A)	8-97321-353-0	02	1	0509-	●	●
89	BRACKET; A/C PIPE AIR CONDITIONER ROOF MOUNTED<C69>	8-97363-892-0	01	1	0503-0508	●
89	BRACKET; A/C PIPE AIR CONDITIONER ROOF MOUNTED<C69>	8-97363-892-0	01	1	0509-	●	●
109	PIPE; PIPE TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (C)	8-97363-886-1	01	1	0503-0508	●
109	PIPE; PIPE TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (C)	8-97363-886-1	01	1	0509-	●	●
109	PIPE; PIPE TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (D)	8-97363-887-2	01	1	0503-0508	●
109	PIPE; PIPE TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (D)	8-97363-887-2	01	1	0509-	●	●
109	PIPE; PIPE TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-98001-323-2	01	1	0503-0508	●
109	PIPE; PIPE TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-98001-323-2	01	1	0509-0606	●	●
109	PIPE; PIPE TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-98027-844-0	01	1	0607-	●	●
109	PIPE; PIPE TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B)	8-98001-324-0	01	1	0503-0508	●
109	PIPE; PIPE TO PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B)	8-98001-324-0	01	1	0509-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97321-353-0	02	1	0503-0508	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97321-353-0	02	1	0509-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97321-353-0	03	1	0503-0508	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97321-353-0	03	1	0509-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) SCAL	8-97919-270-0	01	1	0503-0508	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) SCAL	8-97919-270-0	01	1	0509-	●	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) SCAL	8-97919-270-0	04	1	0503-0508	●
116	GASKET; PIPE AIR CONDITIONER ROOF MOUNTED<C69> (B) SCAL	8-97919-270-0	04	1	0509-	●	●
123	GASKET; RECEIVER PIPE SCAL	8-97919-270-0	02	1	0503-0508	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> SCAL	8-97919-270-0	02	1	0503-0508	●
123	GASKET; RECEIVER PIPE SCAL	8-97919-270-0	02	1	0509-	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> SCAL	8-97919-270-0	02	1	0509-	●	●
123	GASKET; RECEIVER PIPE EXC. AIR CONDITIONER ROOF MOUNTED<C69> SCAL	8-97919-270-0	01	1	0503-0508	●
123	GASKET; RECEIVER PIPE EXC. AIR CONDITIONER ROOF MOUNTED<C69> SCAL	8-97919-270-0	01	1	0509-	●	●
146	CLIP; RECEIVER PIPE	8-97354-058-0	01	1	0503-0508	●
146	CLIP; RECEIVER PIPE	8-97354-058-0	01	1	0509-	●	●
146	CLIP; RECEIVER PIPE	8-97354-058-0	03	1	0503-0508	●
146	CLIP; RECEIVER PIPE	8-97354-058-0	03	1	0509-	●	●
147	CAP; FLEX HOSE	8-97386-623-0	01	1	0503-0508	●
147	CAP; FLEX HOSE	8-97386-623-0	01	1	0509-	●	●
152	NUT; CLIP AIR CONDITIONER ROOF MOUNTED<C69>	8-94334-769-0	02	1	0503-0508	●
152	NUT; CLIP AIR CONDITIONER ROOF MOUNTED<C69>	8-94334-769-0	02	1	0509-	●	●
158	BOLT; PIPE FIX M6X25 FLANGE	0-28650-625-0	01	1	0503-0508	●
158	BOLT; PIPE FIX M6X25 FLANGE	0-28650-625-0	01	1	0509-	●	●
162	BOLT; FLEX HOSE (B) M6X25 FLANGE	0-28650-625-0	01	1	0503-0508	●
162	BOLT; FLEX HOSE (B) M6X25 FLANGE	0-28650-625-0	01	1	0509-	●	●
162	BOLT; FLEX HOSE (A) M8X25 FLANGE	0-28650-825-0	03	1	0503-0508	●
162	BOLT; FLEX HOSE (A) M8X25 FLANGE	0-28650-825-0	03	1	0509-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> (A) M8X25 FLANGE	0-28650-825-0	01	1	0503-0508	●
162	BOLT; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> (A) M8X25 FLANGE	0-28650-825-0	01	1	0509-	●	●
171	CAP; PIPE	8-97376-622-0	01	1	0503-0508	●
171	CAP; PIPE	8-97376-622-0	01	1	0509-	●	●
184	PIPE; PIPE TO EVAP AIR CONDITIONER ROOF MOUNTED<C69>	8-98001-325-0	01	1	0503-0508	●
184	PIPE; PIPE TO EVAP AIR CONDITIONER ROOF MOUNTED<C69>	8-98001-325-0	01	1	0509-	●	●
184	PIPE; PIPE TO EVAP EXC. AIR CONDITIONER ROOF MOUNTED<C69>	8-97383-575-1	01	1	0503-0508	●
184	PIPE; PIPE TO EVAP EXC. AIR CONDITIONER ROOF MOUNTED<C69>	8-97383-575-1	01	1	0509-	●	●
204	NUT M6 FLANGE	8-97063-399-0	02	1	0503-0508	●
204	NUT M6 FLANGE	8-97063-399-0	02	1	0509-0702	●	●
204	NUT M6 FLANGE	8-98055-704-0	02	1	0703-	●	●
216	BOLT; HOSE FIX M6X20 FLANGE	0-28650-620-0	01	1	0503-0508	●
216	BOLT; HOSE FIX M6X20 FLANGE	0-28650-620-0	01	1	0509-	●	●

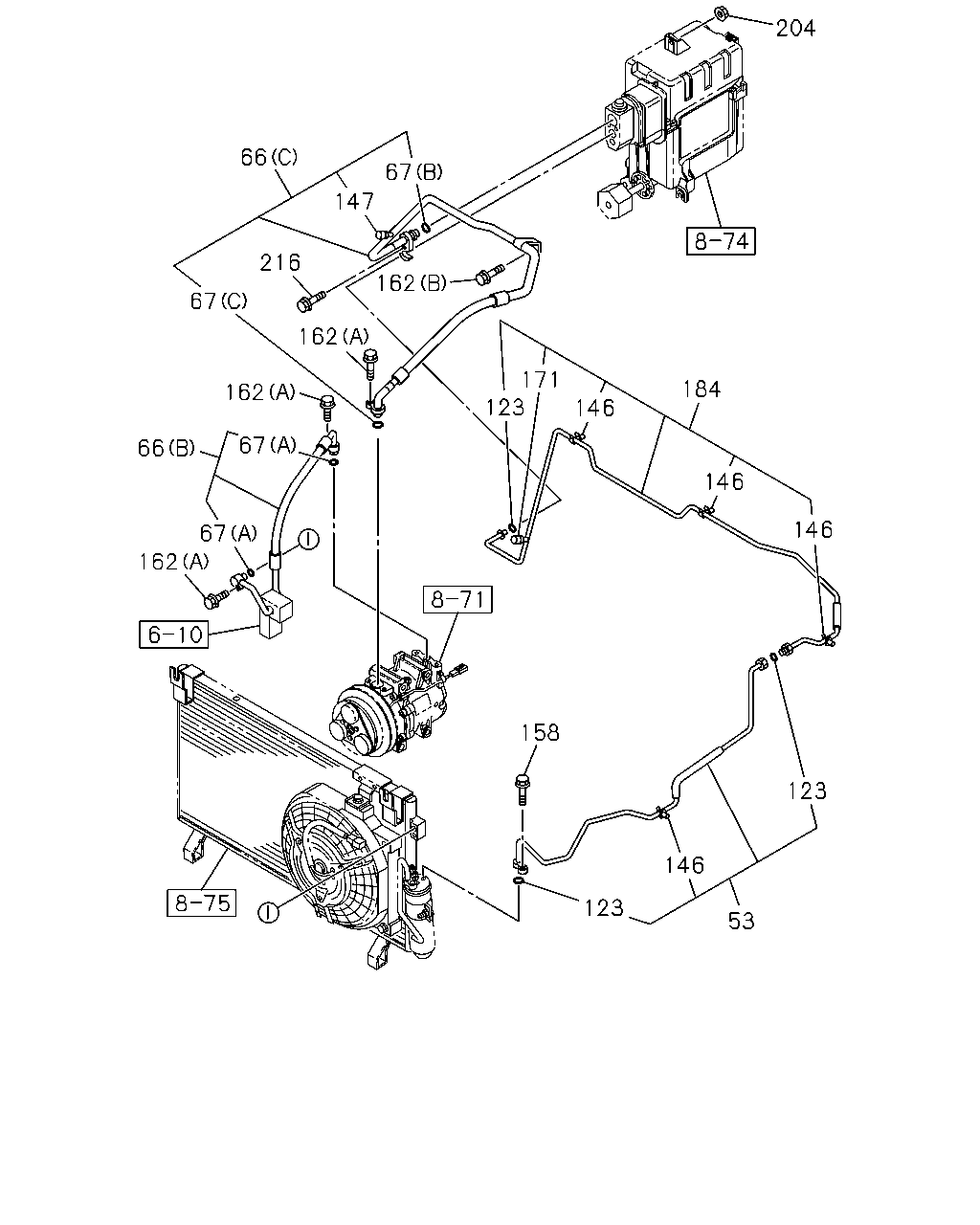

204 66 67 147 216 162 67 162 171 123 184 162 146 67 66 146 146 67 162 158 123 146 123 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	PIPE; RECEIVER TANK TO EVAP	8-97378-434-0	01	1	0503-0508	●
53	PIPE; RECEIVER TANK TO EVAP	8-97378-434-0	01	1	0509-0606	●	●
53	PIPE; RECEIVER TANK TO EVAP	8-98018-750-0	01	1	0607-	●	●
66	HOSE; FLEX,A/C (B)	8-97363-903-0	01	1	0503-0508	●
66	HOSE; FLEX,A/C (B)	8-97363-903-0	01	1	0509-	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-98001-322-1	01	1	0503-0508	●
66	HOSE; FLEX,A/C AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-98001-322-1	01	1	0509-	●	●
66	HOSE; FLEX,A/C EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C)	8-97383-574-2	01	1	0503-0508	●
66	HOSE; FLEX,A/C EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C)	8-97383-574-2	01	1	0509-	●	●
67	GASKET; FLEX HOSE (B)	8-97321-351-0	01	1	0503-0508	●
67	GASKET; FLEX HOSE (B)	8-97321-351-0	01	1	0509-	●	●
67	GASKET; FLEX HOSE (C)	8-97321-352-0	01	1	0503-0508	●
67	GASKET; FLEX HOSE (C)	8-97321-352-0	01	1	0509-	●	●
67	GASKET; FLEX HOSE (A)	8-97321-353-0	02	1	0503-0508	●
67	GASKET; FLEX HOSE (A)	8-97321-353-0	02	1	0509-	●	●
123	GASKET; RECEIVER PIPE SCAL	8-97919-270-0	02	1	0503-0508	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> SCAL	8-97919-270-0	02	1	0503-0508	●
123	GASKET; RECEIVER PIPE SCAL	8-97919-270-0	02	1	0509-	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER ROOF MOUNTED<C69> SCAL	8-97919-270-0	02	1	0509-	●	●
123	GASKET; RECEIVER PIPE EXC. AIR CONDITIONER ROOF MOUNTED<C69> SCAL	8-97919-270-0	01	1	0503-0508	●
123	GASKET; RECEIVER PIPE EXC. AIR CONDITIONER ROOF MOUNTED<C69> SCAL	8-97919-270-0	01	1	0509-	●	●
146	CLIP; RECEIVER PIPE	8-97354-058-0	01	1	0503-0508	●
146	CLIP; RECEIVER PIPE	8-97354-058-0	01	1	0509-	●	●
146	CLIP; RECEIVER PIPE	8-97354-058-0	03	1	0503-0508	●
146	CLIP; RECEIVER PIPE	8-97354-058-0	03	1	0509-	●	●
147	CAP; FLEX HOSE	8-97386-623-0	01	1	0503-0508	●
147	CAP; FLEX HOSE	8-97386-623-0	01	1	0509-	●	●
158	BOLT; PIPE FIX M6X25 FLANGE	0-28650-625-0	01	1	0503-0508	●
158	BOLT; PIPE FIX M6X25 FLANGE	0-28650-625-0	01	1	0509-	●	●
162	BOLT; FLEX HOSE (B) M6X25 FLANGE	0-28650-625-0	01	1	0503-0508	●
162	BOLT; FLEX HOSE (B) M6X25 FLANGE	0-28650-625-0	01	1	0509-	●	●
162	BOLT; FLEX HOSE (A) M8X25 FLANGE	0-28650-825-0	03	1	0503-0508	●
162	BOLT; FLEX HOSE (A) M8X25 FLANGE	0-28650-825-0	03	1	0509-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> (A) M8X25 FLANGE	0-28650-825-0	01	1	0503-0508	●
162	BOLT; FLEX HOSE AIR CONDITIONER ROOF MOUNTED<C69> (A) M8X25 FLANGE	0-28650-825-0	01	1	0509-	●	●
171	CAP; PIPE	8-97376-622-0	01	1	0503-0508	●
171	CAP; PIPE	8-97376-622-0	01	1	0509-	●	●
184	PIPE; PIPE TO EVAP AIR CONDITIONER ROOF MOUNTED<C69>	8-98001-325-0	01	1	0503-0508	●
184	PIPE; PIPE TO EVAP AIR CONDITIONER ROOF MOUNTED<C69>	8-98001-325-0	01	1	0509-	●	●
184	PIPE; PIPE TO EVAP EXC. AIR CONDITIONER ROOF MOUNTED<C69>	8-97383-575-1	01	1	0503-0508	●
184	PIPE; PIPE TO EVAP EXC. AIR CONDITIONER ROOF MOUNTED<C69>	8-97383-575-1	01	1	0509-	●	●
204	NUT M6 FLANGE	8-97063-399-0	02	1	0503-0508	●
204	NUT M6 FLANGE	8-97063-399-0	02	1	0509-0702	●	●
204	NUT M6 FLANGE	8-98055-704-0	02	1	0703-	●	●
216	BOLT; HOSE FIX M6X20 FLANGE	0-28650-620-0	01	1	0503-0508	●
216	BOLT; HOSE FIX M6X20 FLANGE	0-28650-620-0	01	1	0509-	●	●

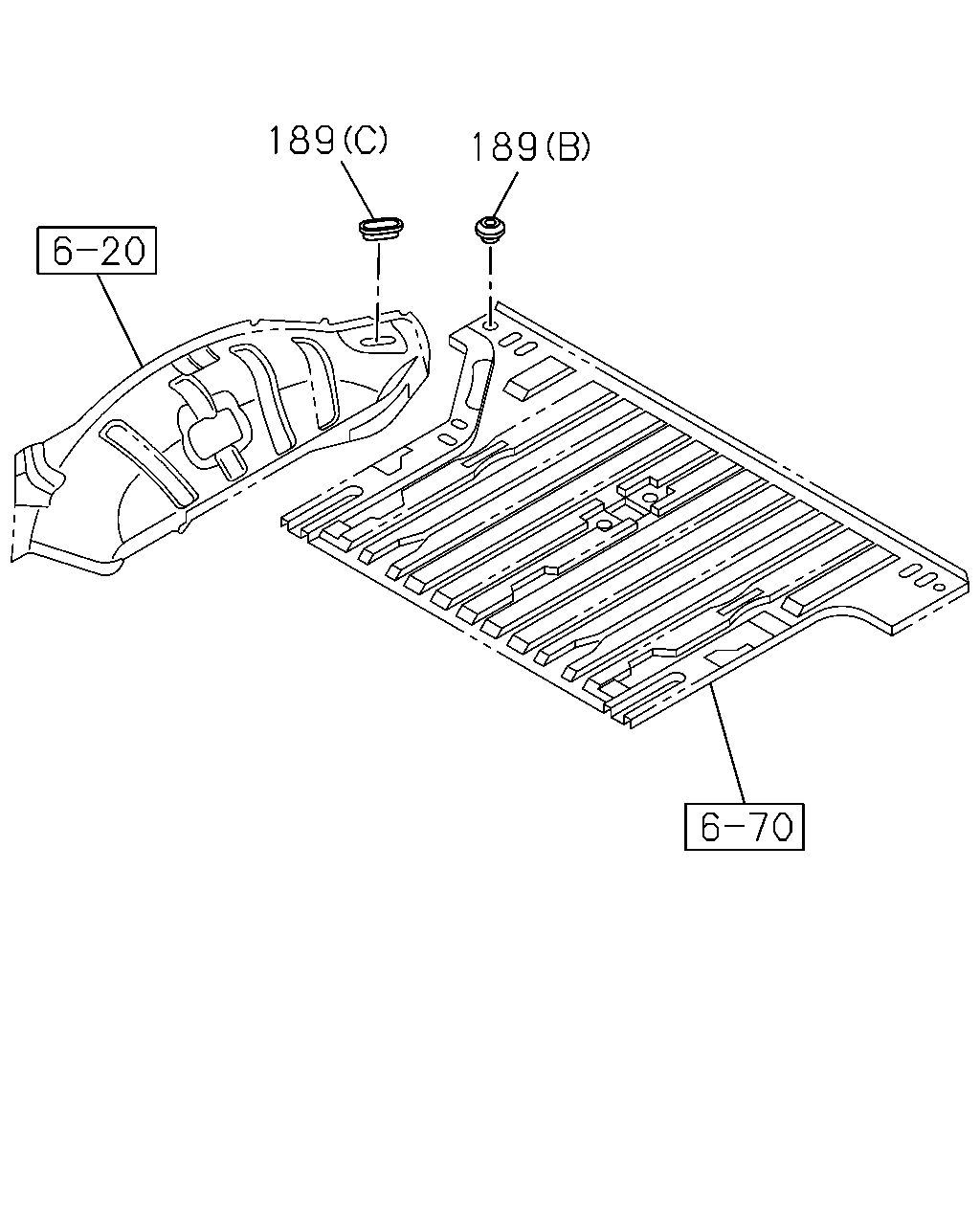

189 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
189	GROMMET AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97382-968-0	01	1	0503-0508	●
189	GROMMET AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97382-968-0	01	1	0509-	●	●
189	GROMMET EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) OD=30	8-94107-655-0	01	1	0503-0508	●
189	GROMMET EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) OD=30	8-94107-655-0	01	1	0509-	●	●
189	GROMMET EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C)	8-97363-901-0	01	1	0503-0508	●
189	GROMMET EXC. AIR CONDITIONER ROOF MOUNTED<C69> (C)	8-97363-901-0	01	1	0509-	●	●
