Isuzu WW
▶
SUV
▶
UCR
▶
51032 - UCR/UCS-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶

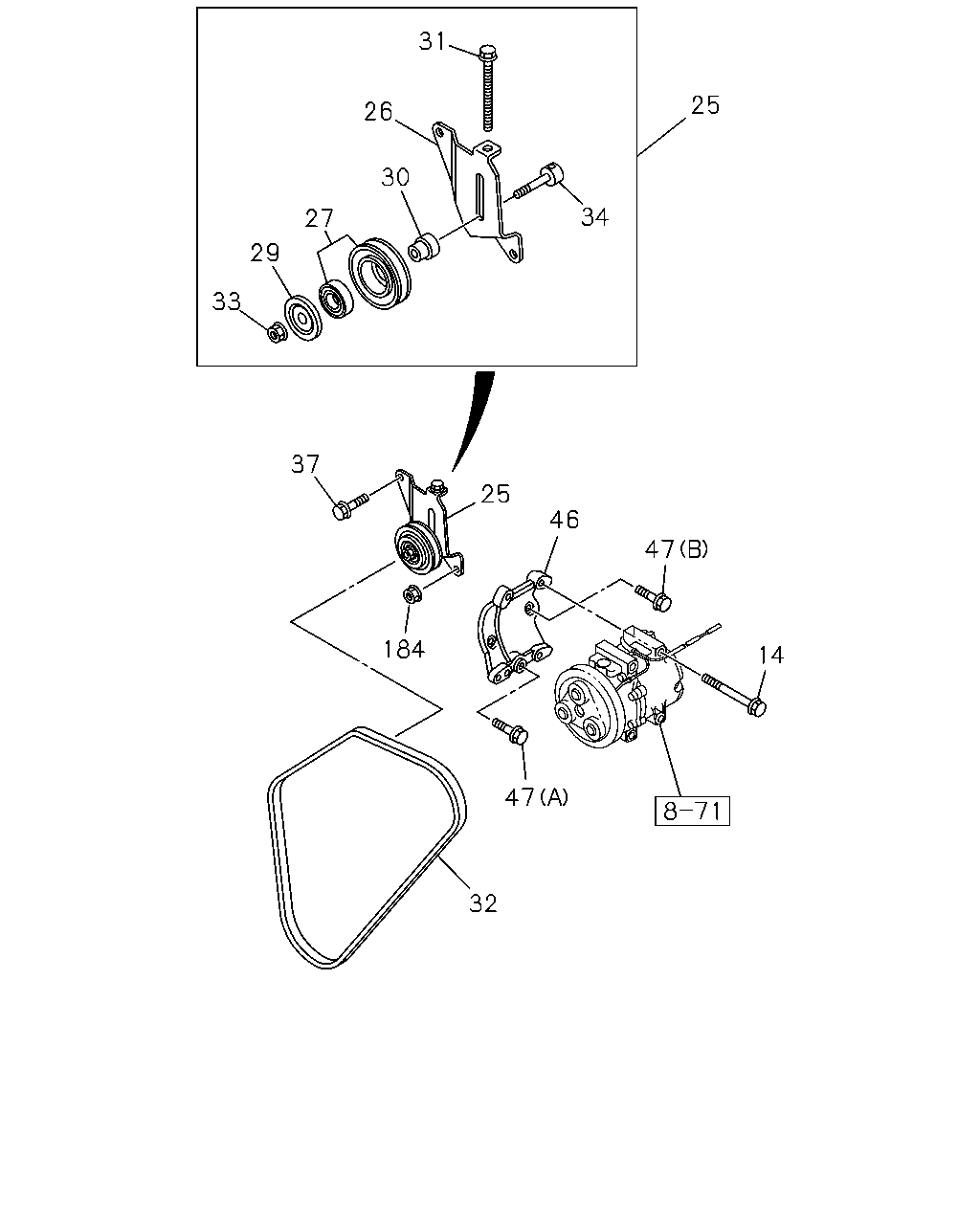

8-50 — AIR CONDITIONING SYSTEM; FRONT
(#75094) — 36 parça
Tümü
A - UCB6VF
B - UCS6VF
31
25
26
30
34
27
29
33
37
25
46
47
184
14
47
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
14
BOLT; CMPR
M10X100 FLANGE
0-28151-000-0
04
1
0503-0508
●
14
BOLT; CMPR
M10X100 FLANGE
0-28151-000-0
04
1
0509-
●
●
25
PULLEY ASM; IDLER,CMPR
8-97363-476-3
01
1
0503-0508
●
25
PULLEY ASM; IDLER,CMPR
8-97945-065-0
01
1
0509-0610
●
●
25
PULLEY ASM; IDLER,CMPR
1-GROOVE
8-98051-011-0
01
1
0611-
●
●
26
BRACKET; IDLE PULLEY,A/C
8-97377-329-0
01
1
0503-0508
●
26
BRACKET; IDLE PULLEY,A/C
8-97377-329-0
01
1
0509-0908
●
●
27
PULLEY; IDLE,A/C
8-97377-328-0
01
1
0503-0508
●
27
PULLEY; IDLE,A/C
8-97377-328-0
01
1
0509-0908
●
●
29
COVER; DUST,IDLE PULLEY
8-97377-334-0
01
1
0503-0508
●
29
COVER; DUST,IDLE PULLEY
8-97377-334-1
01
1
0509-0908
●
●
30
COLLAR; IDLE PULLEY
8-97377-333-2
01
1
0503-0508
●
30
COLLAR; IDLE PULLEY
8-97377-333-2
01
1
0509-0908
●
●
31
BOLT; ADJ,IDLE PULLEY
M8X75
8-97377-330-1
01
1
0503-0508
●
31
BOLT; ADJ,IDLE PULLEY
M8X75
8-97377-330-2
01
1
0509-0908
●
●
32
BELT; A/C CMPR
MITSUBOSHI
8-97944-104-0
01
1
0503-0508
●
32
BELT; A/C CMPR
MITSUBOSHI
8-97944-104-0
01
1
0509-0711
●
●
32
BELT; A/C CMPR
L=1355 MITSUBOSHI
8-98088-385-0
01
1
0712-
●
●
32
BELT; A/C CMPR
BANDO
8-97944-138-0
01
1
0503-0508
●
32
BELT; A/C CMPR
BANDO
8-97944-138-0
01
1
0509-
●
●
33
NUT; IDLER PULLEY
M10
8-97377-331-0
01
1
0503-0508
●
33
NUT; IDLER PULLEY
M10
8-97377-331-0
01
1
0509-0908
●
●
34
SHAFT; IDLE PULLEY
8-97377-332-1
01
1
0503-0508
●
34
SHAFT; IDLE PULLEY
8-97945-181-0
01
1
0509-0908
●
●
37
BOLT; PULLEY BRKT
M8X20 FLANGE
0-28650-820-0
01
1
0503-0508
●
37
BOLT; PULLEY BRKT
M8X20 FLANGE
0-28650-820-0
01
1
0509-
●
●
46
BRACKET; CMPR
8-97371-258-0
01
1
0503-0508
●
46
BRACKET; CMPR
8-97371-258-0
01
1
0509-
●
●
47
BOLT; BRKT TO BODY
(A) M8X35 FLANGE
0-28650-835-0
01
1
0503-0508
●
47
BOLT; BRKT TO BODY
(A) M8X35 FLANGE
0-28650-835-0
01
1
0509-0606
●
●
47
BOLT; BRKT TO BODY
(A) M8X35 FLANGE
8-98049-562-0
01
1
0607-
●
●
47
BOLT; BRKT TO BODY
(B) M8X25 FLANGE
0-28680-825-0
03
1
0503-0508
●
47
BOLT; BRKT TO BODY
(B) M8X25 FLANGE
0-28680-825-0
03
1
0509-0601
●
●
47
BOLT; BRKT TO BODY
(B) M8X25 FLANGE
0-28650-825-0
03
1
0602-
●
●
184
NUT; A/C PIPE BRKT
M8 FLANGE
0-91180-208-0
01
1
0503-0508
●
184
NUT; A/C PIPE BRKT
M8 FLANGE
0-91180-208-0
01
1
0509-
●
●
