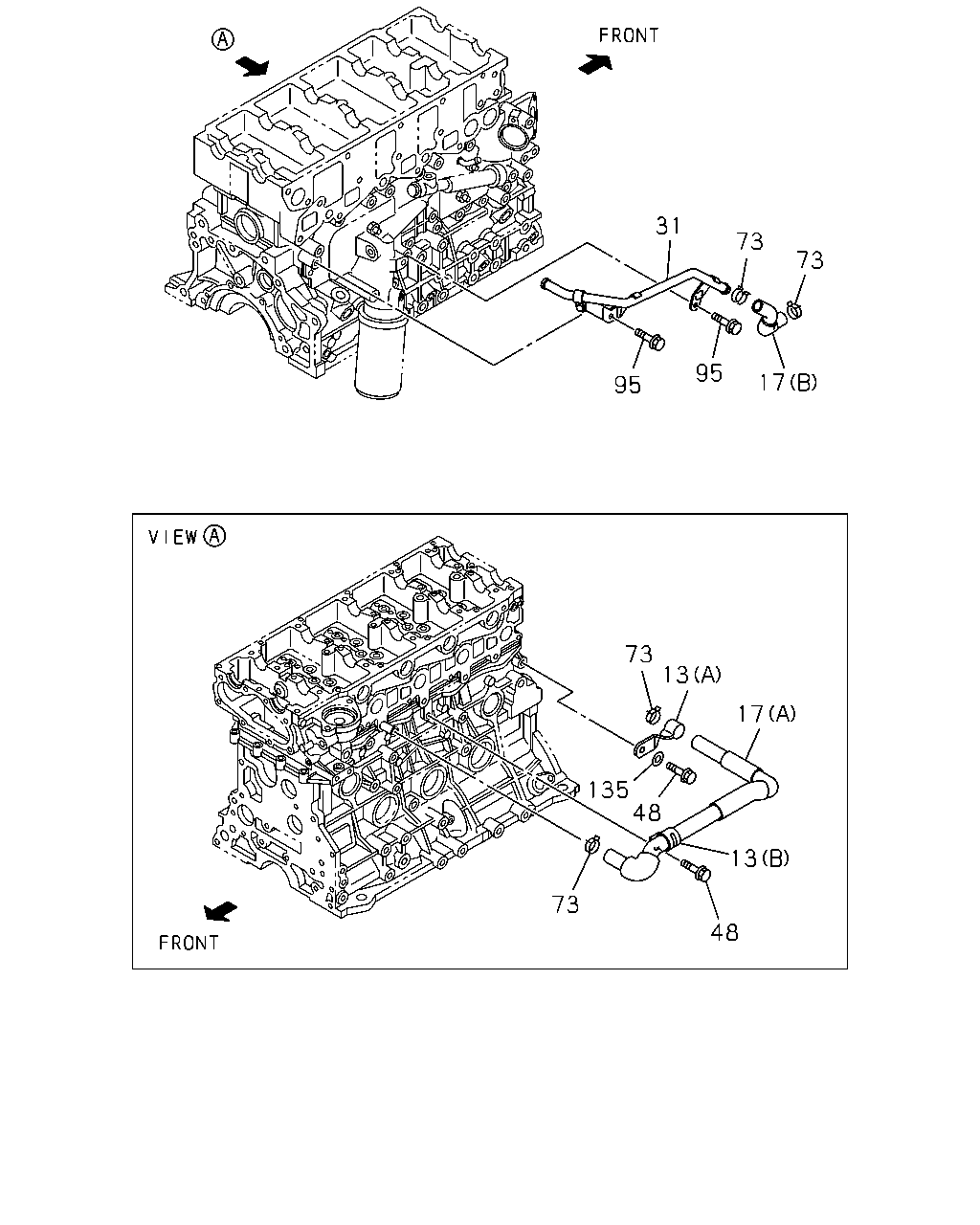

8-45 — HEATER PIPING (#75093) — 23 parça
çizim 118691
31 73 73 95 17 95 73 13 17 135 48 13 73 48
BalonParca AdiParca NoAdetTipApplied Date A B
13 CLIP; HTR HOSE
(A) ID=25 L=54 		1-09700-392-0 01 1 0503-0508 ●
13 CLIP; HTR HOSE
(A) ID=25 L=54 		1-09700-392-1 01 1 0509- ● ●
13 CLIP; HTR HOSE
(B) ID=24 H=40 L=24 		1-09701-243-0 01 1 0503-0508 ●
13 CLIP; HTR HOSE
(B) ID=24 H=40 L=24 		1-09701-243-1 01 1 0509- ● ●
17 HOSE; WATER,BYPASS
A/T 4 SPEED-JATCO(RMK) (A) 		8-97383-552-0 01 1 0503-0508 ●
17 HOSE; WATER,BYPASS
A/T 4 SPEED-JATCO(RMK) (A) 		8-97383-552-0 01 1 0509-0606 ● ●
17 HOSE; WATER,BYPASS
A/T 4 SPEED-JATCO(RMK) (A) 		8-98036-953-0 01 1 0607- ● ●
17 HOSE; WATER,BYPASS
(B) 		8-97375-189-1 01 1 0503-0508 ●
17 HOSE; WATER,BYPASS
(B) 		8-97375-189-1 01 1 0509-0606 ● ●
17 HOSE; WATER,BYPASS
(B) 		8-98031-860-0 01 1 0607- ● ●
17 HOSE; WATER,BYPASS
M/T MUA 5 SPEED 5G(RSP) (A) 		8-97375-188-1 01 1 0503-0606 ●
17 HOSE; WATER,BYPASS
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98036-848-0 01 1 0607- ●
31 PIPE; BYPASS,HTR 8-97375-042-0 01 1 0503-0508 ●
31 PIPE; BYPASS,HTR 8-97375-042-0 01 1 0509-0606 ● ●
31 PIPE; BYPASS,HTR 8-98025-351-0 01 1 0607- ● ●
48 BOLT; CLIP FIX
M8X12 FLANGE 		0-28050-812-0 02 1 0503-0508 ●
48 BOLT; CLIP FIX
M8X12 FLANGE 		0-28050-812-0 02 1 0509- ● ●
73 CLIP; HTR HOSE
ID=20.8 		8-97944-127-0 04 1 0503-0508 ●
73 CLIP; HTR HOSE
ID=20.8 		8-97944-127-0 04 1 0509- ● ●
95 BOLT; BYPASS PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0503-0508 ●
95 BOLT; BYPASS PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0509- ● ●
135 WASHER; PL
ID=8.4 OD=16 		0-91610-508-0 01 1 0503-0508 ●
135 WASHER; PL
ID=8.4 OD=16 		0-91610-508-0 01 1 0509- ● ●
