Isuzu WW
▶
SUV
▶
UCR
▶
51032 - UCR/UCS-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶

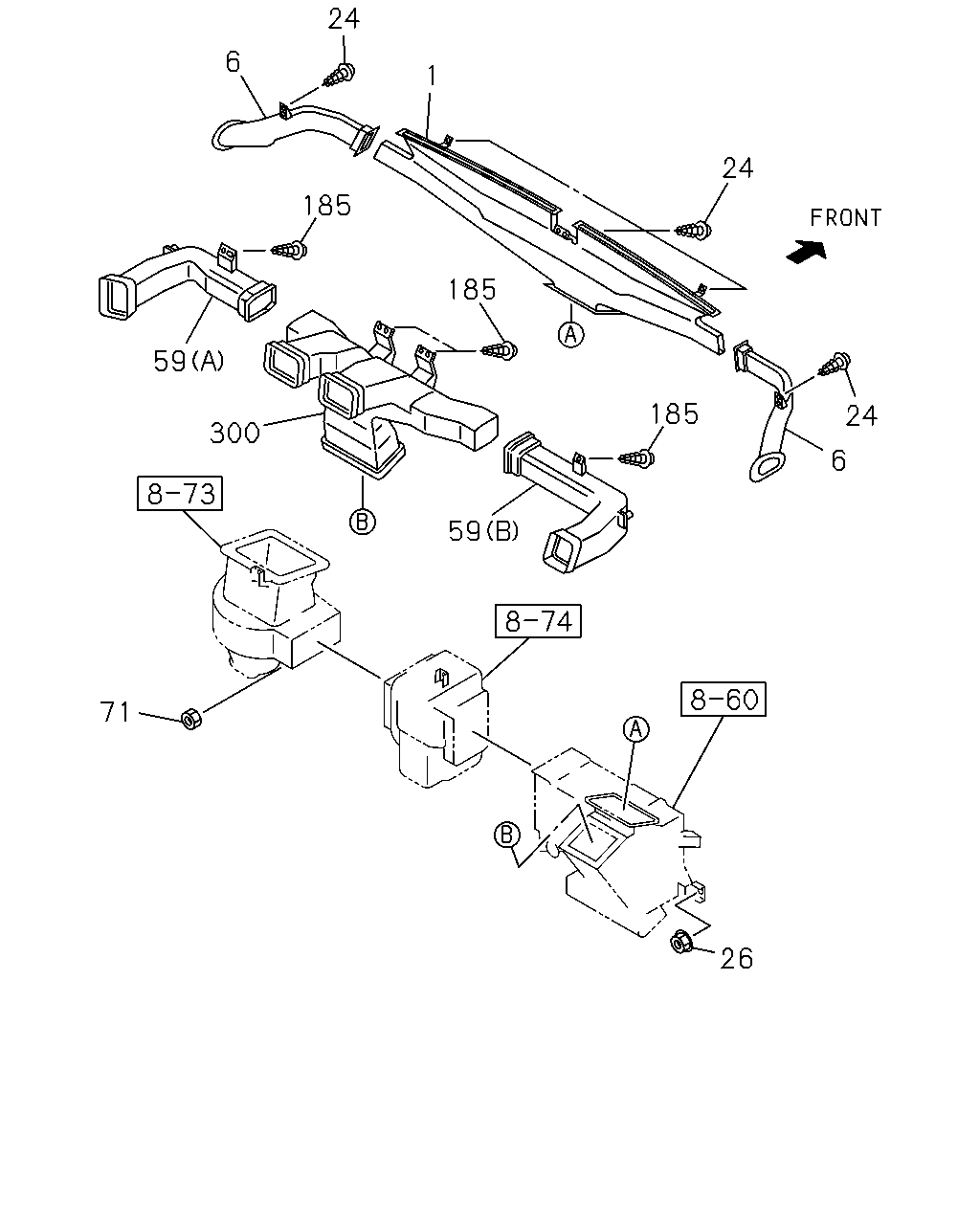

8-40 — HEATER SYSTEM
(#75092) — 29 parça
Tümü
A - UCB6VF
B - UCS6VF
24
6
1
24
185
185
59
185
24
300
6
59
71
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
NOZZLE; DEFROSTER,INST PNL
8-97316-590-1
01
1
0503-0508
●
1
NOZZLE; DEFROSTER,INST PNL
8-97316-590-1
01
1
0509-
●
●
6
DUCT; SIDE DEFROSTER
8-97235-878-0
01
1
0503-0508
●
6
DUCT; SIDE DEFROSTER
8-97235-878-0
01
1
0509-
●
●
6
DUCT; SIDE DEFROSTER
8-97235-874-0
01
1
0503-0508
●
6
DUCT; SIDE DEFROSTER
8-97235-874-0
01
1
0509-
●
●
24
SCREW; NOZZLE TO INST PNL
M5X16 TAPPING
9-09829-323-1
05
1
0503-0508
●
24
SCREW; NOZZLE TO INST PNL
M5X16 TAPPING
9-09829-323-1
05
1
0509-0702
●
●
24
SCREW; NOZZLE TO INST PNL
M5X16 TAPPING
8-98061-685-0
05
1
0703-1005
●
●
24
SCREW; NOZZLE TO INST PNL
M5X16 TAPPING
8-98167-449-0
05
1
1006-
●
●
26
NUT; HTR
M6 FLANGE
8-97063-399-0
04
1
0503-0508
●
26
NUT; HTR
M6 FLANGE
8-97063-399-0
04
1
0509-0702
●
●
26
NUT; HTR
M6 FLANGE
8-98055-704-0
04
1
0703-
●
●
59
DUCT; VENT,ASSIST SIDE
(A)
8-97316-594-0
01
1
0503-0508
●
59
DUCT; VENT,ASSIST SIDE
(A)
8-97316-594-0
01
1
0509-0606
●
●
59
DUCT; VENT,ASSIST SIDE
(A)
8-98007-085-0
01
1
0607-
●
●
59
DUCT; VENT,ASSIST SIDE
(B)
8-97316-595-0
01
1
0503-0508
●
59
DUCT; VENT,ASSIST SIDE
(B)
8-97316-595-0
01
1
0509-0606
●
●
59
DUCT; VENT,ASSIST SIDE
(B)
8-98007-086-0
01
1
0607-
●
●
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE
8-97063-399-0
03
1
0503-0508
●
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE
8-97063-399-0
03
1
0509-0702
●
●
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE
8-98055-704-0
03
1
0703-
●
●
185
SCREW; VENT DUCT
M5X16 TAPPING
9-09829-323-1
04
1
0503-0508
●
185
SCREW; VENT DUCT
M5X16 TAPPING
9-09829-323-1
04
1
0509-0702
●
●
185
SCREW; VENT DUCT
M5X16 TAPPING
8-98061-685-0
04
1
0703-1005
●
●
185
SCREW; VENT DUCT
M5X16 TAPPING
8-98167-449-0
04
1
1006-
●
●
300
DUCT; VENT,CENTER
8-97357-828-0
01
1
0503-0508
●
300
DUCT; VENT,CENTER
8-97357-828-0
01
1
0509-0606
●
●
300
DUCT; VENT,CENTER
8-98007-075-0
01
1
0607-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
