◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#75090) — 38 parça

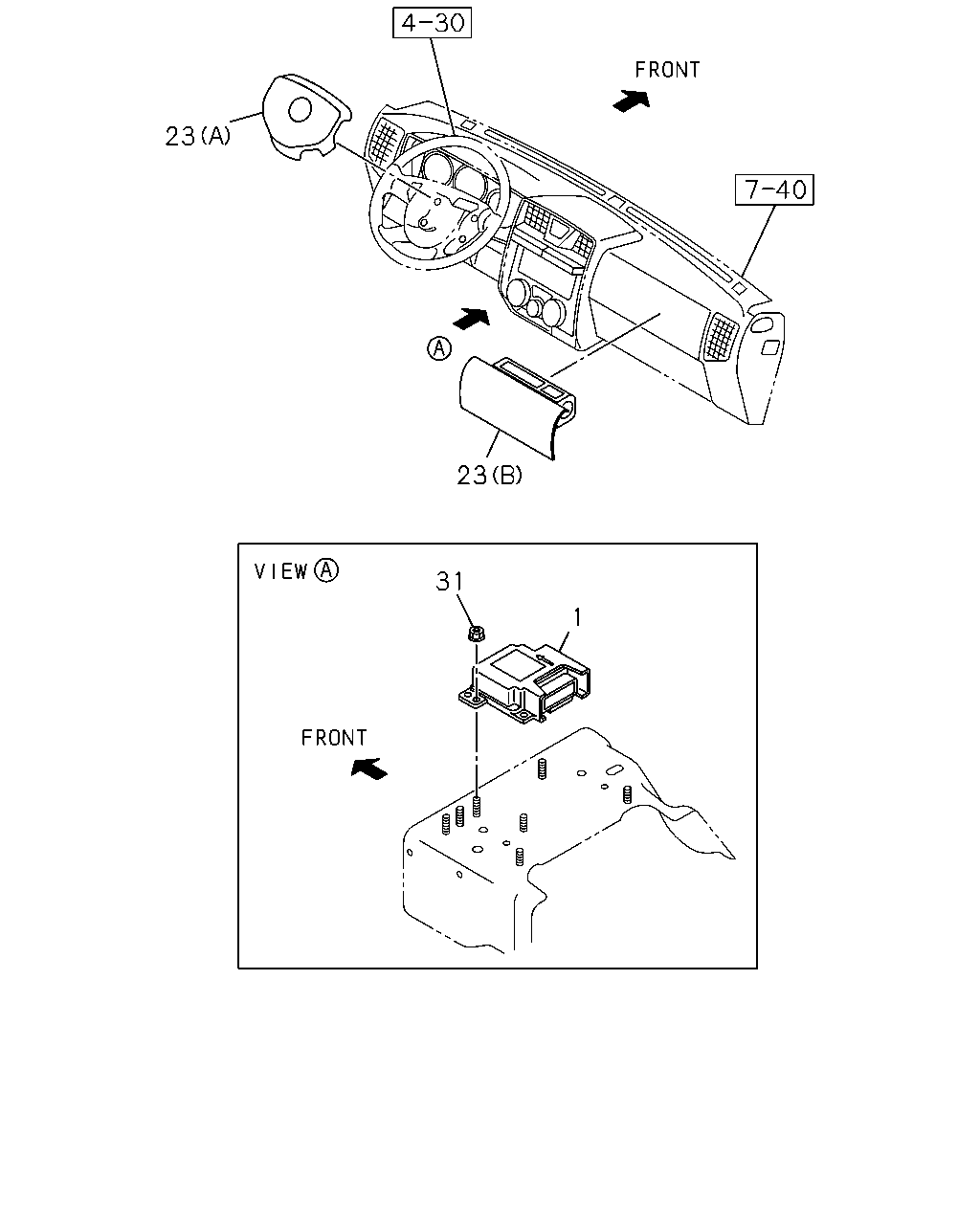

çizim 118670
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONTROL UNIT; SIR 8-97373-161-0 01 1 0503-0508 ●
1 CONTROL UNIT; SIR 8-97373-161-0 01 1 0509-0512 ● ●
1 CONTROL UNIT; SIR 8-98032-629-0 01 1 0601-0606 ● ●
1 CONTROL UNIT; SIR 8-98039-723-0 01 1 0607- ● ●
23 AIR BAG UNIT
(B) DARK GRAY 		8-97396-840-0 01 1 0503-0508 ●
23 AIR BAG UNIT
(B) DARK GRAY 		8-97396-840-0 01 1 0509-0606 ● ●
23 AIR BAG UNIT
(A) DARK GRAY 		8-97403-333-1 01 1 0607-0609 ● ●
23 AIR BAG UNIT
(A) DARK GRAY 		8-97408-898-0 01 1 0610-0904 ● ●
23 AIR BAG UNIT
(A) DARK GRAY 		8-97417-274-0 01 1 0905-0906 ● ●
23 AIR BAG UNIT
(A) DARK GRAY 		8-97418-298-0 01 1 0907-1107 ● ●
23 AIR BAG UNIT
(A) DARK GRAY 		8-97418-298-0 01 1 1108- ● ●
23 AIR BAG UNIT
(A) DARK GRAY 		8-97397-845-0 01 1 0503-0508 ●
23 AIR BAG UNIT
(A) DARK GRAY 		8-97404-845-0 01 1 0509-0606 ● ●
23 AIR BAG UNIT
(B) DARK GRAY 		8-97403-930-1 01 1 0607-0609 ● ●
23 AIR BAG UNIT
(B) DARK GRAY 		8-97408-901-1 01 1 0610-1007 ● ●
23 AIR BAG UNIT
(B) BLACK 		8-97422-062-0 01 1 1008-1107 ● ●
23 AIR BAG UNIT
(B) BLACK 		8-97422-062-0 01 1 1108- ● ●
31 NUT
M6 FLANGE 		0-91180-206-0 03 1 0503-0508 ●
31 NUT
M6 FLANGE 		0-91180-206-0 03 1 0509- ● ●

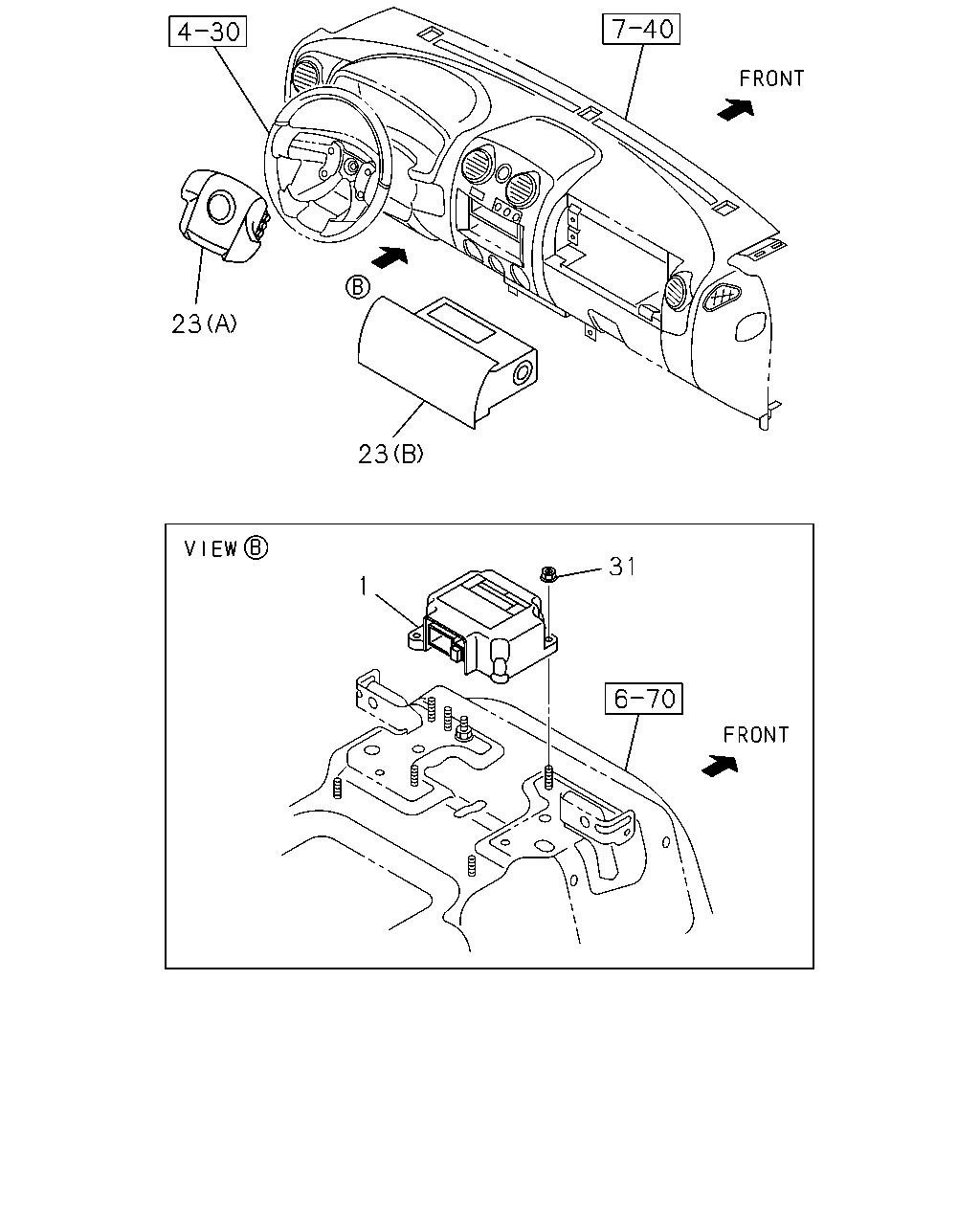

çizim 118748
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONTROL UNIT; SIR 8-97373-161-0 01 1 0503-0508 ●
1 CONTROL UNIT; SIR 8-97373-161-0 01 1 0509-0512 ● ●
1 CONTROL UNIT; SIR 8-98032-629-0 01 1 0601-0606 ● ●
1 CONTROL UNIT; SIR 8-98039-723-0 01 1 0607- ● ●
23 AIR BAG UNIT
(B) DARK GRAY 		8-97396-840-0 01 1 0503-0508 ●
23 AIR BAG UNIT
(B) DARK GRAY 		8-97396-840-0 01 1 0509-0606 ● ●
23 AIR BAG UNIT
(A) DARK GRAY 		8-97403-333-1 01 1 0607-0609 ● ●
23 AIR BAG UNIT
(A) DARK GRAY 		8-97408-898-0 01 1 0610-0904 ● ●
23 AIR BAG UNIT
(A) DARK GRAY 		8-97417-274-0 01 1 0905-0906 ● ●
23 AIR BAG UNIT
(A) DARK GRAY 		8-97418-298-0 01 1 0907-1107 ● ●
23 AIR BAG UNIT
(A) DARK GRAY 		8-97418-298-0 01 1 1108- ● ●
23 AIR BAG UNIT
(A) DARK GRAY 		8-97397-845-0 01 1 0503-0508 ●
23 AIR BAG UNIT
(A) DARK GRAY 		8-97404-845-0 01 1 0509-0606 ● ●
23 AIR BAG UNIT
(B) DARK GRAY 		8-97403-930-1 01 1 0607-0609 ● ●
23 AIR BAG UNIT
(B) DARK GRAY 		8-97408-901-1 01 1 0610-1007 ● ●
23 AIR BAG UNIT
(B) BLACK 		8-97422-062-0 01 1 1008-1107 ● ●
23 AIR BAG UNIT
(B) BLACK 		8-97422-062-0 01 1 1108- ● ●
31 NUT
M6 FLANGE 		0-91180-206-0 03 1 0503-0508 ●
31 NUT
M6 FLANGE 		0-91180-206-0 03 1 0509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
