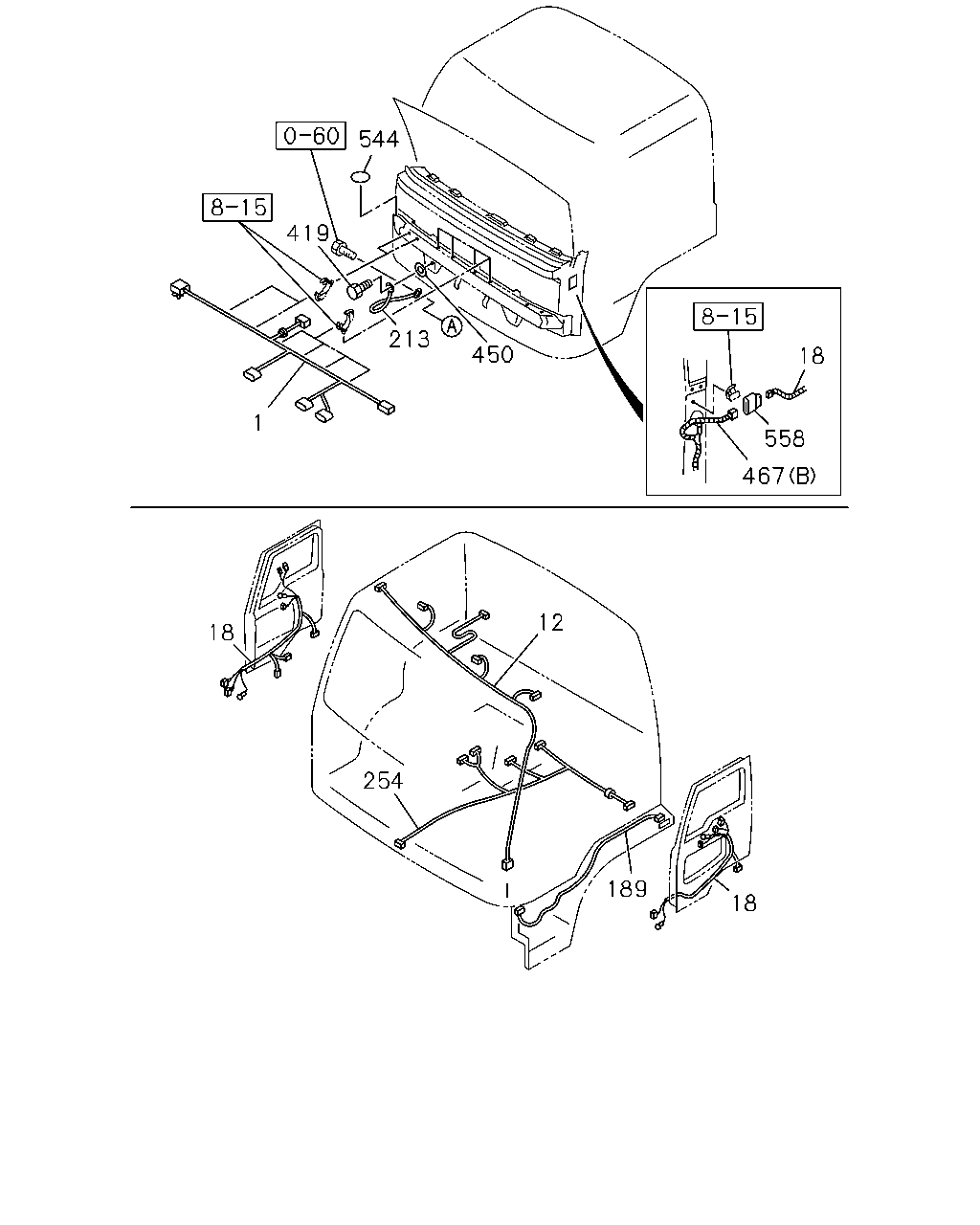

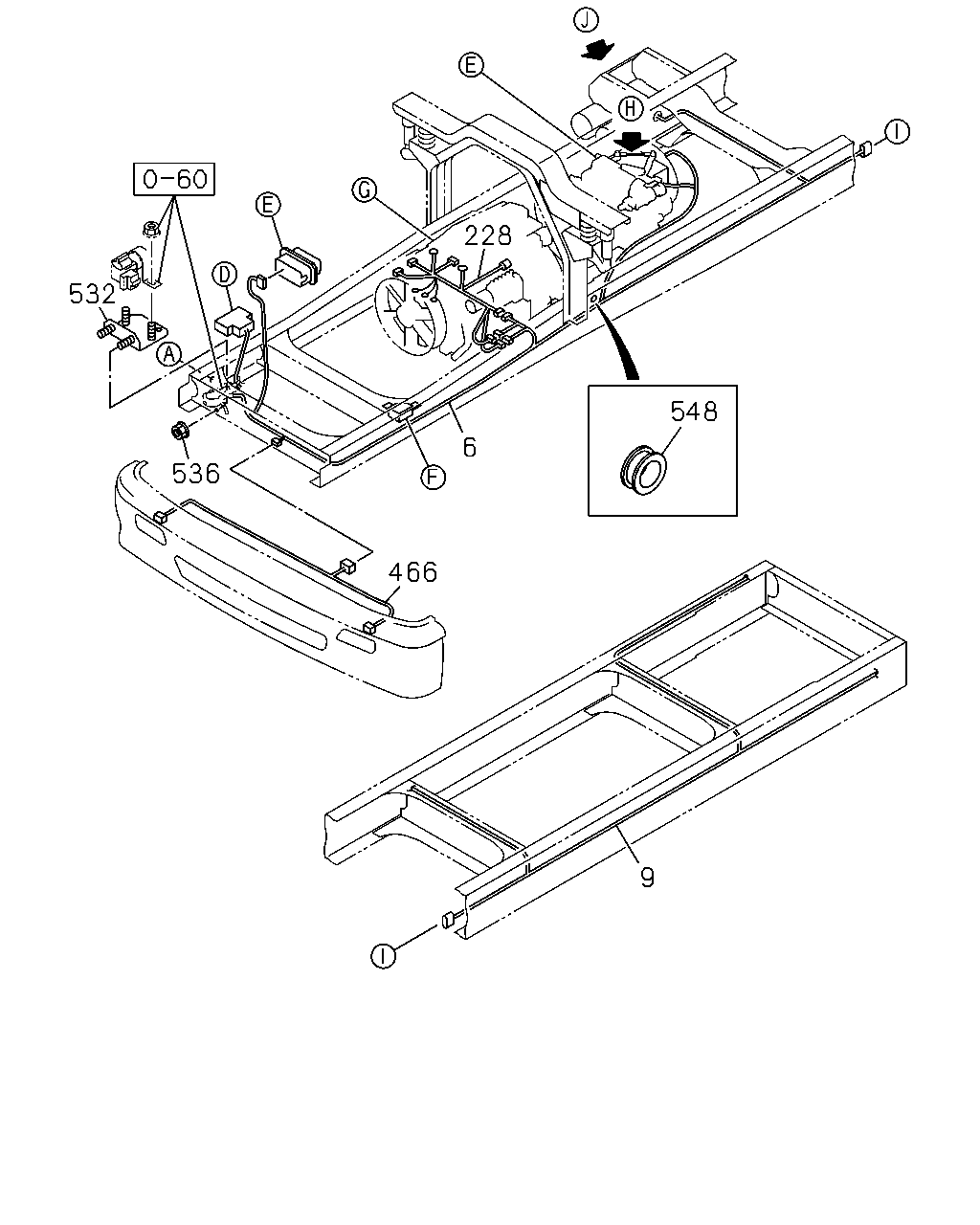

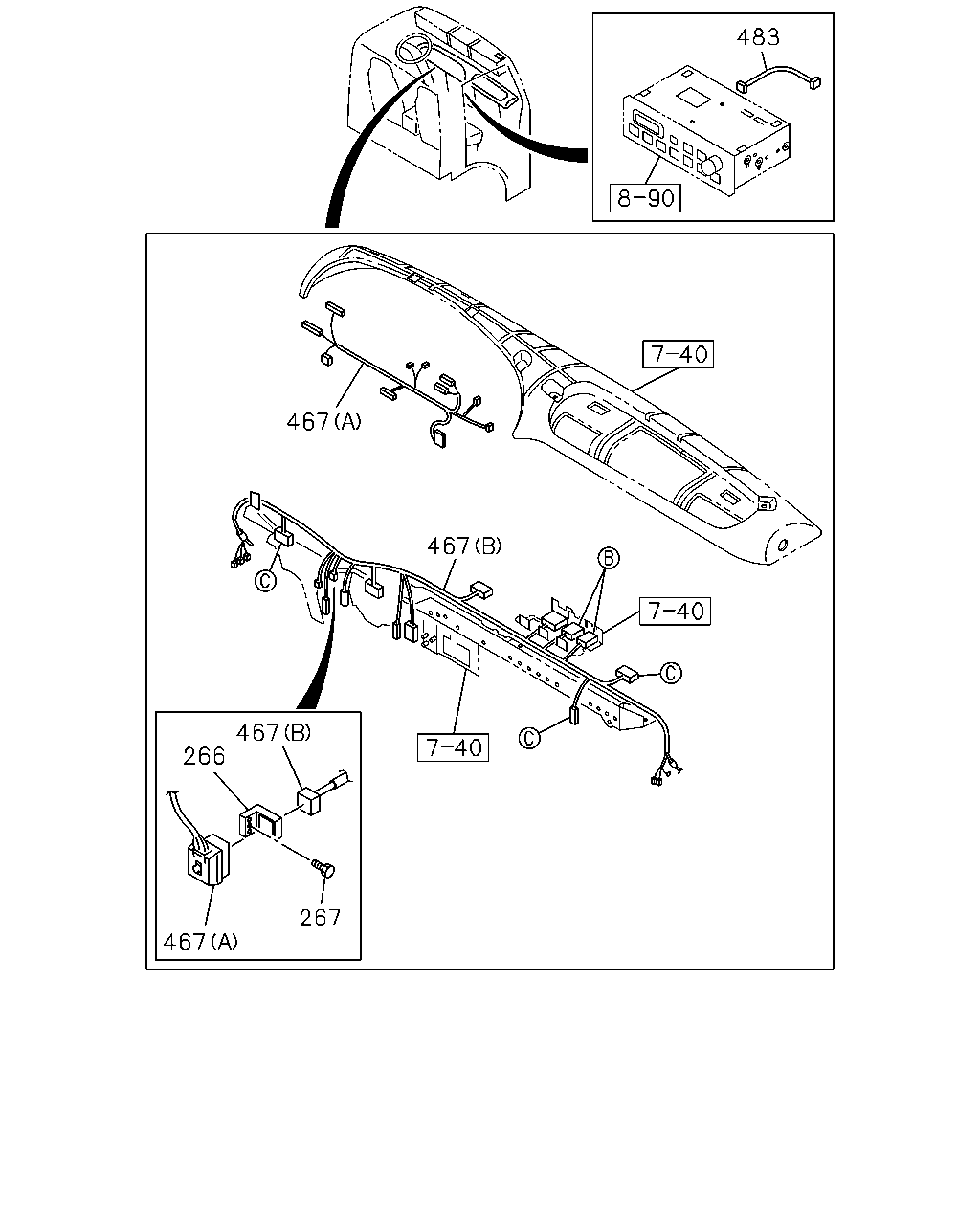

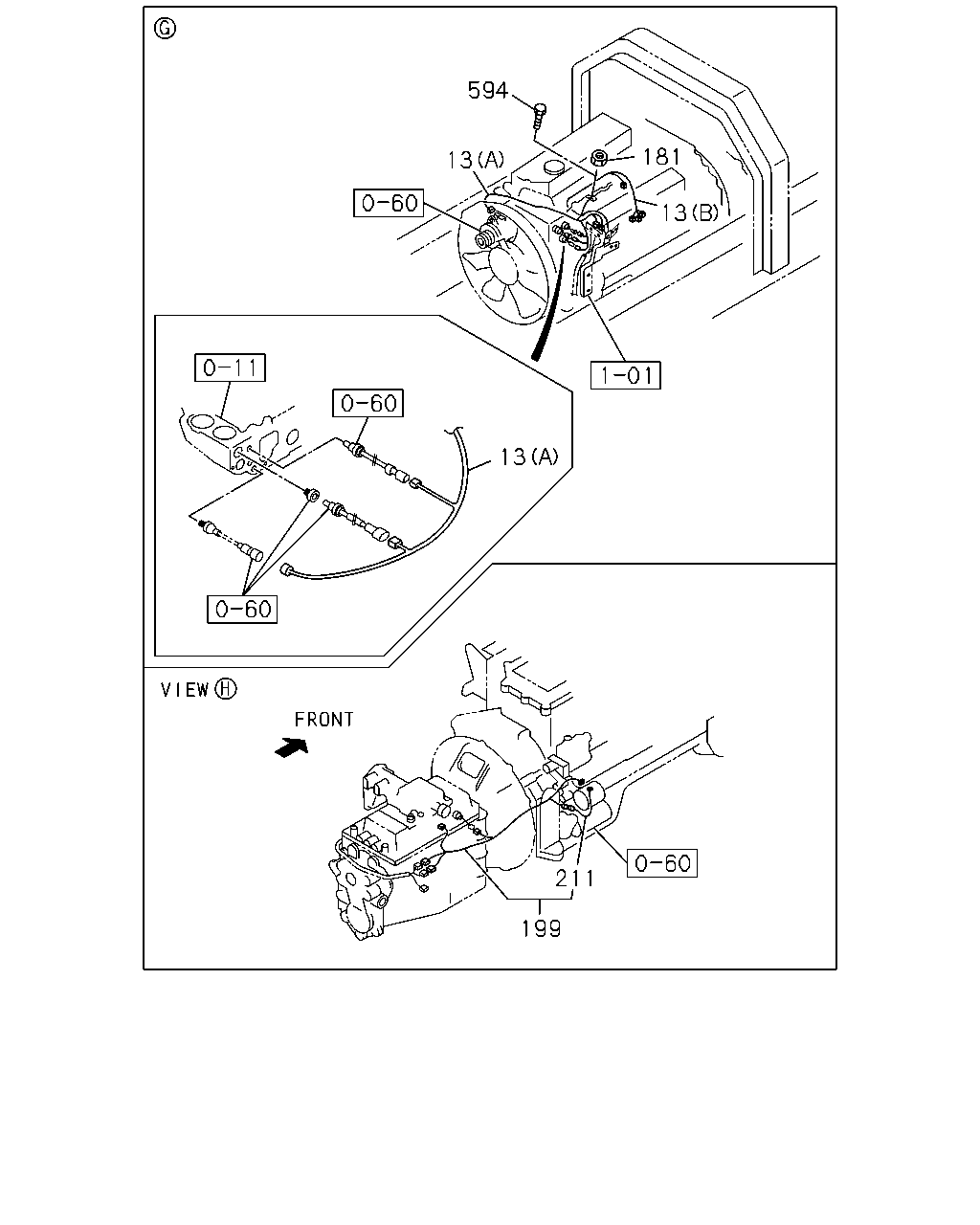

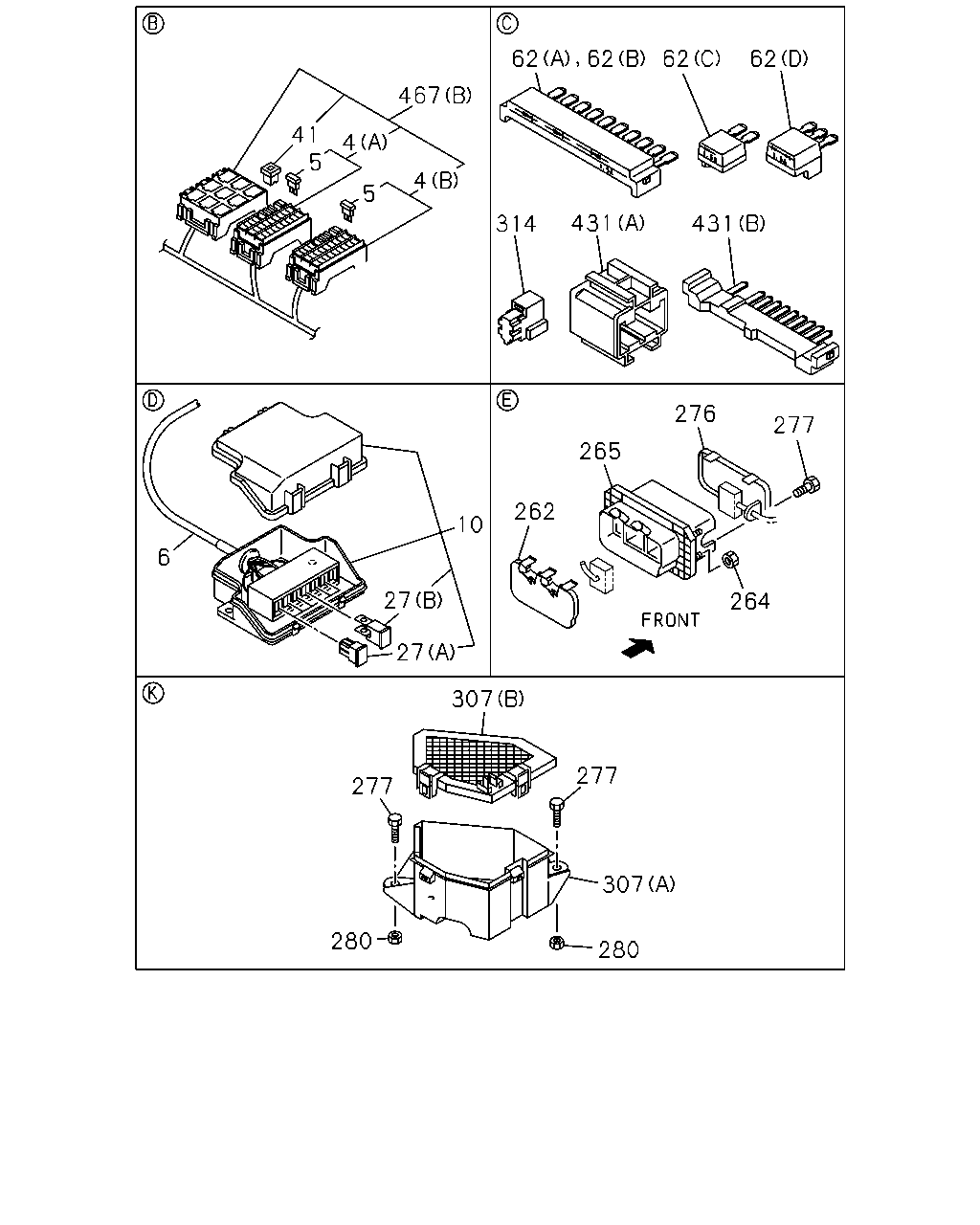

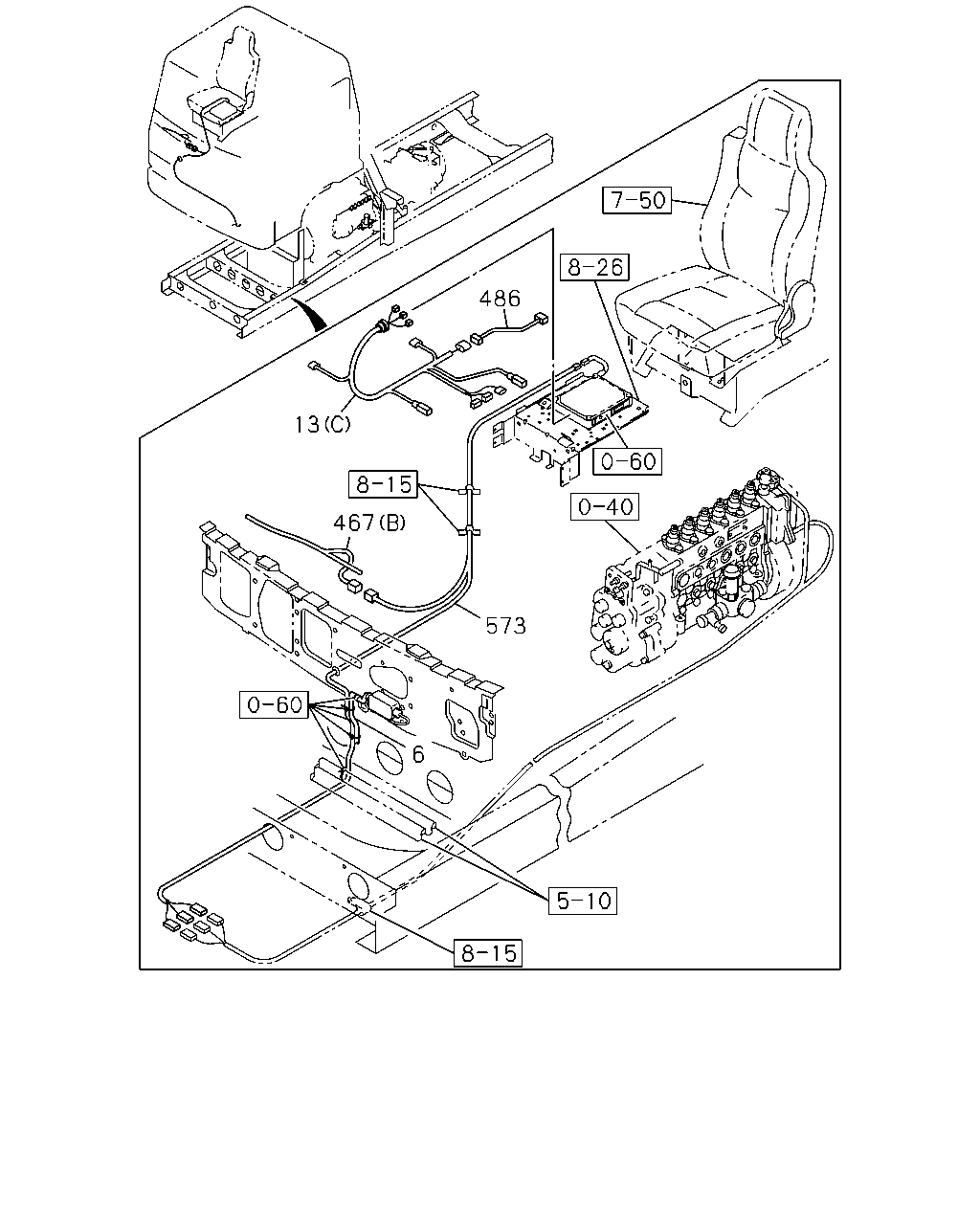

8-10 — WIRING HARNESS AND FUSE (#7509) — 202 parça

201

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	201	HARNESS; AIR TANK TAI	1-82678-430-0	01	1	0611-	●
	201	HARNESS; AIR TANK TAI	1-82678-039-1	01	1	0611-		●

62 62 62 62 467 41 5 4 4 5 431 431 314 276 277 265 262 10 6 27 264 27 307 277 277 307 280 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS (A) 7.5AX13 TAI	1-82510-421-0	01	1	9811-9906	●	●
4	BOX ASM; FUSE,HARNESS (A) 7.5AX14 TAI	1-82510-486-0	01	1	9907-0610	●	●
4	BOX ASM; FUSE,HARNESS HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 15AX15 TAI	1-82510-521-0	01	1	0611-	●
4	BOX ASM; FUSE,HARNESS (B) 15AX15 TAI	1-82510-521-0	01	1	0611-		●
4	BOX ASM; FUSE,HARNESS (B) 15AX12 TAI	1-82510-432-0	01	1	9811-9906	●	●
4	BOX ASM; FUSE,HARNESS (B) 15AX13 TAI	1-82510-475-0	01	1	9907-0610	●	●
4	BOX ASM; FUSE,HARNESS HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) 7.5AX12 TAI	1-82510-480-0	01	1	0611-	●
4	BOX ASM; FUSE,HARNESS (A) 7.5AX12 TAI	1-82510-480-0	01	1	0611-		●
5	FUSE; FACIA HARNESS 15A BLUE TAI	5-82516-003-0	12	1	9811-9906	●	●
5	FUSE; FACIA HARNESS 15A BLUE TAI	5-82516-003-0	13	1	9907-0610	●	●
5	FUSE; FACIA HARNESS HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 15A BLUE TAI	5-82516-003-0	15	1	0611-	●
5	FUSE; FACIA HARNESS 15A BLUE TAI	5-82516-003-0	15	1	0611-		●
5	FUSE; FACIA HARNESS 7.5A BROWN TAI	8-94159-007-0	13	1	9811-9906	●	●
5	FUSE; FACIA HARNESS 7.5A BROWN TAI	8-94159-007-0	14	1	9907-0610	●	●
5	FUSE; FACIA HARNESS HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 7.5A BROWN TAI	8-94159-007-0	12	1	0611-	●
5	FUSE; FACIA HARNESS 7.5A BROWN TAI	8-94159-007-0	12	1	0611-		●
6	HARNESS; FRAME WB 4200MM(42W) TAI	8-97530-297-2	01	1	9811-9906	●
6	HARNESS; FRAME WB 4200MM(42W) TAI	8-97530-655-3	01	1	9907-0610	●
6	HARNESS; FRAME TAI	1-82678-212-2	01	1	0611-	●
6	HARNESS; FRAME WB 4800MM(48W) TAI	8-97530-298-2	01	1	9811-9906	●
6	HARNESS; FRAME WB 4800MM(48W) TAI	8-97530-656-3	01	1	9907-0610	●
6	HARNESS; FRAME TAI	1-82678-438-1	01	1	0611-		●
6	HARNESS; FRAME WB 5500MM(55W) TAI	8-97530-299-2	01	1	9811-9906	●
6	HARNESS; FRAME WB 5500MM(55W) TAI	8-97530-657-3	01	1	9907-0610	●
6	HARNESS; FRAME WB 5000MM(50W) TAI	8-97530-300-2	01	1	9811-9906		●
6	HARNESS; FRAME WB 5000MM(50W) TAI	8-97530-658-3	01	1	9907-0610		●
6	HARNESS; FRAME WB 5500MM(55W) TAI	8-97530-301-2	01	1	9811-9906		●
6	HARNESS; FRAME WB 5500MM(55W) TAI	8-97530-659-3	01	1	9907-0610		●
6	HARNESS; FRAME WB 5800MM(58W) TAI	8-97530-660-3	01	1	9907-0610		●
10	BOX; FUSE,HARNESS TAI	1-82510-409-0	01	1	9811-0610	●	●
10	BOX; FUSE,HARNESS TAI	1-82510-409-0	01	1	0611-	●	●
27	FUSE UNIT (A) 40A GREEN TAI	8-94468-662-0	03	1	9811-0610	●	●
27	FUSE UNIT (A) 40A GREEN TAI	8-94468-662-0	03	1	0611-	●	●
27	FUSE UNIT (B) 60A YELLOW TAI	8-94468-669-0	01	1	9811-0610	●	●
27	FUSE UNIT (B) 60A YELLOW TAI	8-94468-669-0	01	1	0611-	●	●
41	PULLER; FUSE L=25.3 B=11.5 TAI	8-94121-482-0	01	1	9811-0610	●	●
41	PULLER; FUSE HEATER & DEFROSTER(C41),A/C MAN CONT(C60) L=25.3 B=11.5 TAI	8-94121-482-0	01	1	0611-	●
41	PULLER; FUSE L=25.3 B=11.5 TAI	8-94121-482-0	01	1	0611-		●
62	DIODE; HARNESS HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (D) BLACK 3P-1.5A TAI	8-94416-438-1	02	1	0611-	●
62	DIODE; HARNESS (D) BLACK 3P-1.5A TAI	8-94416-438-1	02	1	0611-		●
62	DIODE; HARNESS (A) BROWN 10P TAI	1-82699-601-0	01	1	9811-9906	●	●
62	DIODE; HARNESS (B) BLACK 10P TAI	1-82699-703-0	02	1	9811-0610	●	●
62	DIODE; HARNESS HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) BLACK 10P TAI	1-82699-703-0	02	1	0611-	●
62	DIODE; HARNESS (A) BLACK 10P TAI	1-82699-703-0	02	1	0611-		●
62	DIODE; HARNESS (C) BLACK 2P-1.5A TAI	8-94422-639-1	02	1	9811-9906	●	●
62	DIODE; HARNESS (C) BLACK 2P-1.5A TAI	8-94422-639-1	01	1	9907-9907	●	●
62	DIODE; HARNESS (C) BLACK 2P-1.5A TAI	8-94422-639-1	02	1	9907-0009	●	●
62	DIODE; HARNESS (C) BLACK 2P-1.5A TAI	8-94422-639-1	03	1	0010-0610	●	●
62	DIODE; HARNESS HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (C) BLACK 2P-1.5A TAI	8-94422-639-1	02	1	0611-	●
62	DIODE; HARNESS (C) BLACK 2P-1.5A TAI	8-94422-639-1	02	1	0611-		●
262	COVER; CONNECTOR BOX,FRT PNL TAI	1-82699-605-1	01	1	9811-	●	●
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER TAI	1-09984-180-0	04	1	9811-	●	●
265	BOX; CONN,FRT PNL TAI	1-82699-538-3	01	1	9811-	●	●
276	COVER; BOX,FRAME HARNESS TAI	8-97530-306-0	01	1	9811-0610	●	●
276	COVER; BOX,FRAME HARNESS TAI	1-82699-558-3	01	1	0611-	●	●
277	BOLT; BOX ASM FIX M8X25 W/LK&PL WASHER	1-09980-479-0	02	1	9907-0610	●
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	9811-0512	●	●
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	0601-	●	●
277	BOLT; BOX ASM FIX M8X30 W/LK&PL WASHER	8-94279-144-0	02	1	9907-0610		●
280	NUT; BOX ASM FIX M8	9-09110-408-0	02	1	9907-0512	●	●
280	NUT; BOX ASM FIX M8	0-91110-508-0	02	1	0601-0610	●	●
307	BOX; ENG HARNESS (A)	1-82698-070-1	01	1	9907-0610	●
307	BOX; ENG HARNESS (B)	1-82698-138-0	01	1	9907-0610	●	●
307	BOX; ENG HARNESS (A)	1-82698-119-0	01	1	9907-0610		●
314	RESISTOR; HARNESS HEATER & DEFROSTER(C41),A/C MAN CONT(C60) BLUE TAI	1-82691-204-0	02	1	0611-	●
314	RESISTOR; HARNESS BLUE TAI	1-82691-204-0	02	1	0611-		●
431	CONNECTOR; JOINT HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (A) 3P & 3P TAI	1-82698-170-0	01	1	0611-	●
431	CONNECTOR; JOINT (A) 3P & 3P TAI	1-82698-170-0	01	1	0611-		●
431	CONNECTOR; JOINT (B) BROWN 10P TAI	1-82699-601-0	01	1	9907-0610	●	●
431	CONNECTOR; JOINT HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) BROWN 10P TAI	1-82699-601-0	06	1	0611-	●
431	CONNECTOR; JOINT (B) BROWN 10P TAI	1-82699-601-0	06	1	0611-		●
467	HARNESS; FACIA (A) TAI	8-97530-292-1	01	1	9811-9906	●	●
467	HARNESS; FACIA (A) TAI	8-97530-999-0	01	1	9907-9907	●	●
467	HARNESS; FACIA (A) TAI	8-97531-151-0	01	1	9908-0610	●	●
467	HARNESS; FACIA (A) TAI	1-82662-797-1	01	1	0611-	●	●
467	HARNESS; FACIA (B) TAI	8-97530-293-1	01	1	9811-9906	●	●
467	HARNESS; FACIA (B) TAI	8-97530-652-4	01	1	9907-0009	●	●
467	HARNESS; FACIA (B) TAI	8-97531-266-2	01	1	0010-0610	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI	1-82662-798-5	01	1	0611-	●
467	HARNESS; FACIA (B) TAI	1-82662-798-5	01	1	0611-		●

483 467 467 467 266 267 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
266	BRACKET; CONN BOX TAI	1-82699-580-0	01	1	9811-	●	●
267	BOLT; BRKT M6X16 W/PL WASHER TAI	1-09981-438-0	02	1	9811-	●	●
467	HARNESS; FACIA (A) TAI	8-97530-292-1	01	1	9811-9906	●	●
467	HARNESS; FACIA (A) TAI	8-97530-999-0	01	1	9907-9907	●	●
467	HARNESS; FACIA (A) TAI	8-97531-151-0	01	1	9908-0610	●	●
467	HARNESS; FACIA (A) TAI	1-82662-797-1	01	1	0611-	●	●
467	HARNESS; FACIA (B) TAI	8-97530-293-1	01	1	9811-9906	●	●
467	HARNESS; FACIA (B) TAI	8-97530-652-4	01	1	9907-0009	●	●
467	HARNESS; FACIA (B) TAI	8-97531-266-2	01	1	0010-0610	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI	1-82662-798-5	01	1	0611-	●
467	HARNESS; FACIA (B) TAI	1-82662-798-5	01	1	0611-		●
483	HARNESS; EXT,RADIO RADIO CLARION(SK2)	8-98075-645-0	01	1	0703-	●	●

544 419 213 450 18 1 558 467 12 18 254 189 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB A/C MAN CONT(C60) TAI	1-82662-688-0	01	1	0611-	●
1	HARNESS; CAB TAI	1-82662-688-0	01	1	0611-		●
1	HARNESS; CAB EXC. A/C MAN CONT(C60)	1-82662-816-0	01	1	0611-	●
12	HARNESS; ROOF TAI	8-97530-288-1	01	1	9811-0610	●	●
12	HARNESS; ROOF TAI	1-82625-714-6	01	1	0611-	●	●
18	HARNESS; DOOR TAI	8-97530-780-0	01	1	9811-9904	●
18	HARNESS; DOOR TAI	8-97531-028-0	01	1	9905-0610	●
18	HARNESS; DOOR TAI	1-82628-584-0	01	1	0611-	●
18	HARNESS; DOOR TAI	8-97530-777-0	01	1	9811-9904	●
18	HARNESS; DOOR TAI	8-97531-026-0	01	1	9905-0610	●
18	HARNESS; DOOR TAI	1-82628-582-0	01	1	0611-	●
18	HARNESS; DOOR TAI	8-97530-779-0	01	1	9811-9904		●
18	HARNESS; DOOR TAI	8-97531-029-0	01	1	9905-0610		●
18	HARNESS; DOOR TAI	1-82628-585-0	01	1	0611-		●
18	HARNESS; DOOR TAI	8-97530-778-0	01	1	9811-9904		●
18	HARNESS; DOOR TAI	8-97531-027-0	01	1	9905-0610		●
18	HARNESS; DOOR TAI	1-82628-583-0	01	1	0611-		●
189	HARNESS; EXT TAI	8-97530-294-0	02	1	9811-0610		●
189	HARNESS; EXT TAI	1-82625-673-2	02	1	0611-		●
213	CABLE; EARTH,CAB TO FRAME TAI	8-97530-305-0	01	1	9811-0610	●	●
213	CABLE; EARTH,CAB TO FRAME TAI	1-82657-055-1	01	1	0611-	●	●
254	HARNESS; CAB FLOOR TAI	8-97530-295-0	01	1	9811-9906	●	●
254	HARNESS; CAB FLOOR TAI	8-97530-665-0	01	1	9907-0610	●	●
254	HARNESS; CAB FLOOR TAI	1-82628-388-1	01	1	0611-	●	●
419	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9811-9903	●
419	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9907-	●
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9811-9903		●
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9904-0004	●	●
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0005-		●
450	WASHER; PL,CAB EARTH ID=8.4 OD=18	9-09164-608-0	01	1	0205-0605		●
450	WASHER; PL,CAB EARTH ID=8.4 OD=18	0-91614-608-0	01	1	0606-		●
467	HARNESS; FACIA (A) TAI	8-97530-292-1	01	1	9811-9906	●	●
467	HARNESS; FACIA (A) TAI	8-97530-999-0	01	1	9907-9907	●	●
467	HARNESS; FACIA (A) TAI	8-97531-151-0	01	1	9908-0610	●	●
467	HARNESS; FACIA (A) TAI	1-82662-797-1	01	1	0611-	●	●
467	HARNESS; FACIA (B) TAI	8-97530-293-1	01	1	9811-9906	●	●
467	HARNESS; FACIA (B) TAI	8-97530-652-4	01	1	9907-0009	●	●
467	HARNESS; FACIA (B) TAI	8-97531-266-2	01	1	0010-0610	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI	1-82662-798-5	01	1	0611-	●
467	HARNESS; FACIA (B) TAI	1-82662-798-5	01	1	0611-		●
544	SEAL; FRT MTG RAIL EXC. A/C MAN CONT(C60) OD=25 BLACK TAI	1-76798-019-0	01	1	0611-	●
558	CONNECTOR; HARNESS TAI	1-82690-666-0	02	1	9811-	●

594 181 13 13 13 211 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	HARNESS; ENG (A) TAI	8-97530-302-0	01	1	9811-9906	●	●
13	HARNESS; ENG (A) TAI	8-97530-654-1	01	1	9907-0610	●	●
13	HARNESS; ENG (B)	8-97605-001-6	01	1	0611-	●	●
13	HARNESS; ENG (B)	1-82640-950-7	01	1	9907-0610	●	●
13	HARNESS; ENG (C)	1-82662-799-4	01	1	0611-	●	●
181	NUT; GLOW PLUG HARNESS M4 FLANGE	5-09440-007-0	01	1	9811-9906	●	●
199	HARNESS; STARTER TAI	8-97530-303-0	01	1	9811-9906	●	●
199	HARNESS; STARTER TAI	8-97530-661-2	01	1	9907-0610	●	●
211	WIRE; FUSIBLE LINK,STARTER WHITE TAI	1-82659-124-0	01	1	9811-0610	●	●
594	BOLT; GLOW PLUG HARNESS M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	9907-0604	●	●
594	BOLT; GLOW PLUG HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0605-0701	●	●

486 13 467 573 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WB 4200MM(42W) TAI	8-97530-297-2	01	1	9811-9906	●
6	HARNESS; FRAME WB 4200MM(42W) TAI	8-97530-655-3	01	1	9907-0610	●
6	HARNESS; FRAME TAI	1-82678-212-2	01	1	0611-	●
6	HARNESS; FRAME WB 4800MM(48W) TAI	8-97530-298-2	01	1	9811-9906	●
6	HARNESS; FRAME WB 4800MM(48W) TAI	8-97530-656-3	01	1	9907-0610	●
6	HARNESS; FRAME TAI	1-82678-438-1	01	1	0611-		●
6	HARNESS; FRAME WB 5500MM(55W) TAI	8-97530-299-2	01	1	9811-9906	●
6	HARNESS; FRAME WB 5500MM(55W) TAI	8-97530-657-3	01	1	9907-0610	●
6	HARNESS; FRAME WB 5000MM(50W) TAI	8-97530-300-2	01	1	9811-9906		●
6	HARNESS; FRAME WB 5000MM(50W) TAI	8-97530-658-3	01	1	9907-0610		●
6	HARNESS; FRAME WB 5500MM(55W) TAI	8-97530-301-2	01	1	9811-9906		●
6	HARNESS; FRAME WB 5500MM(55W) TAI	8-97530-659-3	01	1	9907-0610		●
6	HARNESS; FRAME WB 5800MM(58W) TAI	8-97530-660-3	01	1	9907-0610		●
13	HARNESS; ENG (A) TAI	8-97530-302-0	01	1	9811-9906	●	●
13	HARNESS; ENG (A) TAI	8-97530-654-1	01	1	9907-0610	●	●
13	HARNESS; ENG (B)	8-97605-001-6	01	1	0611-	●	●
13	HARNESS; ENG (B)	1-82640-950-7	01	1	9907-0610	●	●
13	HARNESS; ENG (C)	1-82662-799-4	01	1	0611-	●	●
467	HARNESS; FACIA (A) TAI	8-97530-292-1	01	1	9811-9906	●	●
467	HARNESS; FACIA (A) TAI	8-97530-999-0	01	1	9907-9907	●	●
467	HARNESS; FACIA (A) TAI	8-97531-151-0	01	1	9908-0610	●	●
467	HARNESS; FACIA (A) TAI	1-82662-797-1	01	1	0611-	●	●
467	HARNESS; FACIA (B) TAI	8-97530-293-1	01	1	9811-9906	●	●
467	HARNESS; FACIA (B) TAI	8-97530-652-4	01	1	9907-0009	●	●
467	HARNESS; FACIA (B) TAI	8-97531-266-2	01	1	0010-0610	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) TAI	1-82662-798-5	01	1	0611-	●
467	HARNESS; FACIA (B) TAI	1-82662-798-5	01	1	0611-		●
486	HARNESS; ALL SPEED ACCEL PTO CONTROL<SV6>	1-82675-898-0	01	1	0611-	●
573	HARNESS; CONTROL UNIT TAI	8-97530-653-2	01	1	9907-0009	●	●
573	HARNESS; CONTROL UNIT TAI	8-97531-267-0	01	1	0010-0610	●	●

228 532 548 6 536 466 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WB 4200MM(42W) TAI	8-97530-297-2	01	1	9811-9906	●
6	HARNESS; FRAME WB 4200MM(42W) TAI	8-97530-655-3	01	1	9907-0610	●
6	HARNESS; FRAME TAI	1-82678-212-2	01	1	0611-	●
6	HARNESS; FRAME WB 4800MM(48W) TAI	8-97530-298-2	01	1	9811-9906	●
6	HARNESS; FRAME WB 4800MM(48W) TAI	8-97530-656-3	01	1	9907-0610	●
6	HARNESS; FRAME TAI	1-82678-438-1	01	1	0611-		●
6	HARNESS; FRAME WB 5500MM(55W) TAI	8-97530-299-2	01	1	9811-9906	●
6	HARNESS; FRAME WB 5500MM(55W) TAI	8-97530-657-3	01	1	9907-0610	●
6	HARNESS; FRAME WB 5000MM(50W) TAI	8-97530-300-2	01	1	9811-9906		●
6	HARNESS; FRAME WB 5000MM(50W) TAI	8-97530-658-3	01	1	9907-0610		●
6	HARNESS; FRAME WB 5500MM(55W) TAI	8-97530-301-2	01	1	9811-9906		●
6	HARNESS; FRAME WB 5500MM(55W) TAI	8-97530-659-3	01	1	9907-0610		●
6	HARNESS; FRAME WB 5800MM(58W) TAI	8-97530-660-3	01	1	9907-0610		●
9	HARNESS; FRAME,RR WB 4200MM(42W) TAI	1-82678-247-0	01	1	0611-	●
9	HARNESS; FRAME,RR WB 4800MM(48W) TAI	1-82678-248-0	01	1	0611-	●
9	HARNESS; FRAME,RR WB 5500MM(55W) TAI	1-82678-249-0	01	1	0611-	●
9	HARNESS; FRAME,RR WB 5000MM(50W) TAI	1-82678-250-0	01	1	0611-		●
9	HARNESS; FRAME,RR WB 5500MM(55W) TAI	1-82678-252-0	01	1	0611-		●
9	HARNESS; FRAME,RR WB 5800MM(58W) TAI	1-82678-437-0	01	1	0611-		●
228	HARNESS; GEN	8-98019-892-5	01	1	0611-	●	●
466	HARNESS; BUMPER TAI	8-97530-296-0	01	1	9811-0610	●	●
466	HARNESS; BUMPER TAI	1-82638-758-1	01	1	0611-	●	●
532	BRACKET; RELAY	8-98049-149-0	01	1	0611-	●	●
536	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0611-	●	●
548	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	0611-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
