8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#75089) — 41 parça

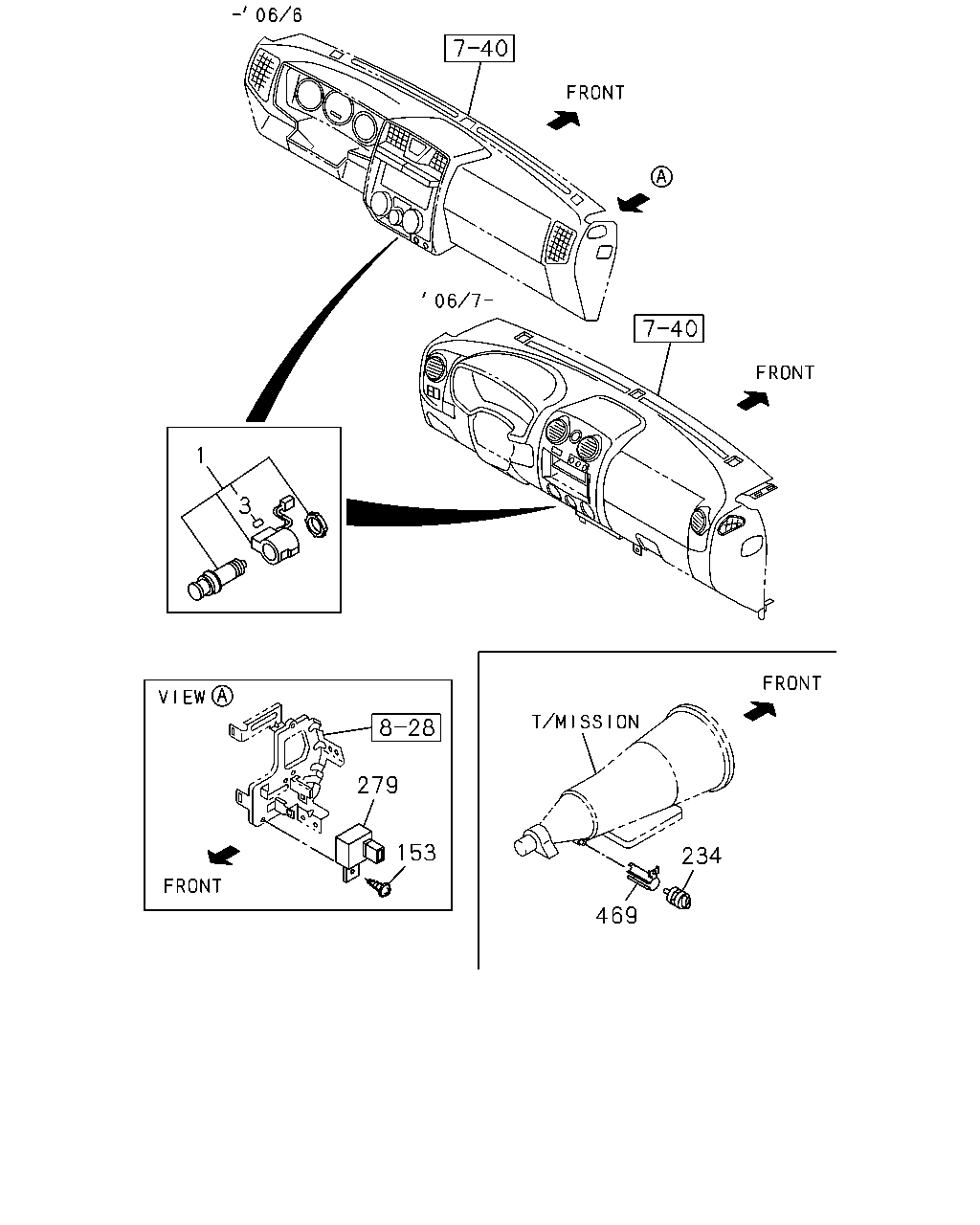

çizim 118676
1 3 279 153 234 469
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97329-641-0 01 1 0503-0508 ●
1 LIGHTER; CIGAR 8-97329-641-0 01 1 0509-1001 ● ●
1 LIGHTER; CIGAR 8-97302-229-0 01 1 1002- ● ●
3 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0503-0508 ●
3 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0509- ● ●
153 BOLT; BUZZER FIX
M5X16 TAPPING 		9-09829-323-1 01 1 0503-0508 ●
153 BOLT; BUZZER FIX
M5X16 TAPPING 		9-09829-323-1 01 1 0509-0606 ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5G(RSP) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0503-0508 ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5G(RSP) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0509-0606 ●
234 SENSOR; VEHICLE SPD
A/T 4 SPEED-JATCO(RMK) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0509-0606 ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0607- ●
234 SENSOR; VEHICLE SPD
A/T 4 SPEED-JATCO(RMK) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0607- ●
279 BUZZER ASM; SEAT BELT WARNING 8-97135-562-0 01 1 0503-0508 ●
279 BUZZER ASM; SEAT BELT WARNING 8-97135-562-0 01 1 0509-0606 ● ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5G(RSP) 		8-97168-308-0 01 1 0503-0606 ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ) 		8-97168-308-0 01 1 0607-0809 ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ) 		8-98119-901-0 01 1 0810- ●

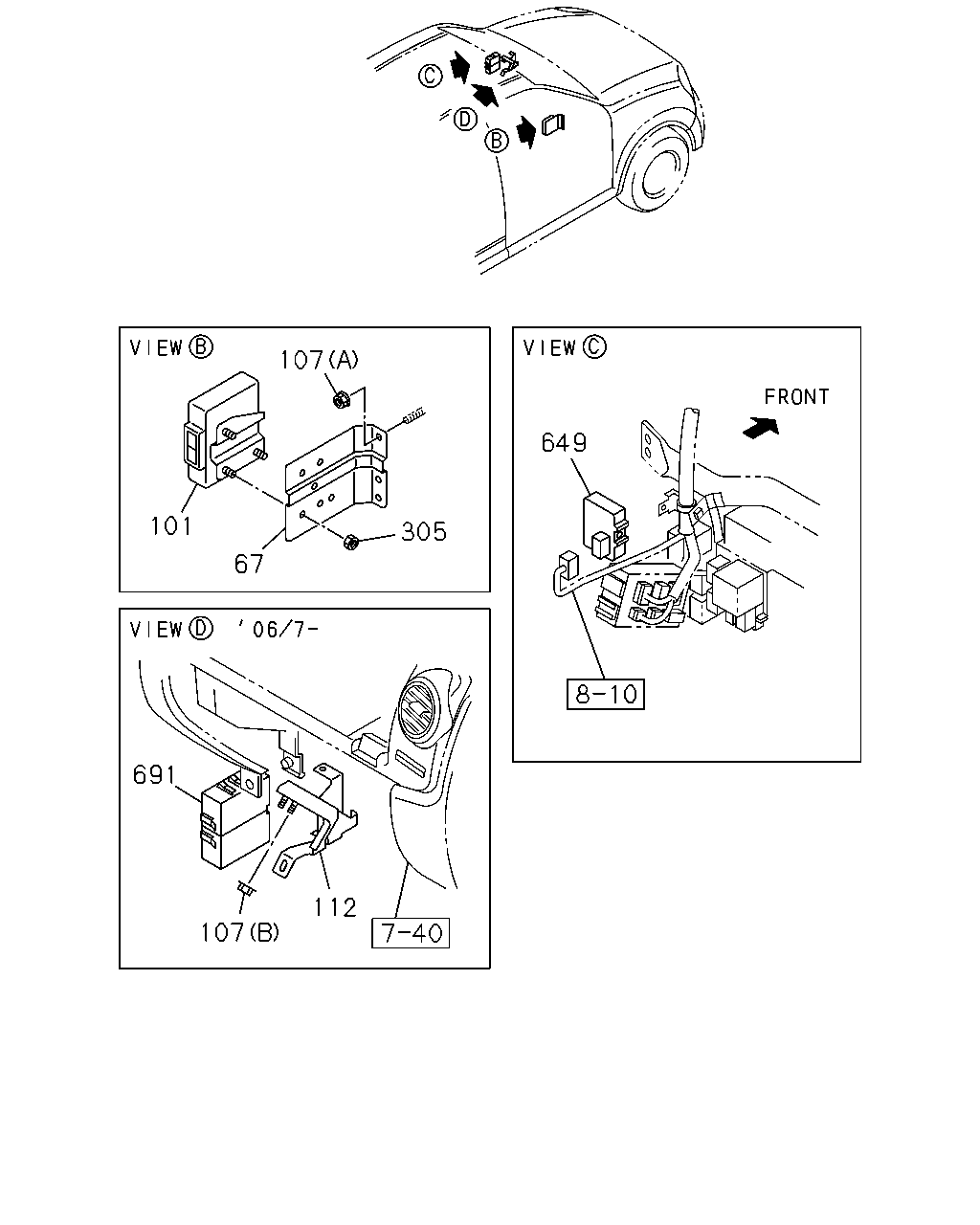

çizim 118693
107 649 101 305 67 691 112 107
BalonParca AdiParca NoAdetTipApplied Date A B
67 BRACKET; CONT UNIT
A/T 4 SPEED-JATCO(RMK) 		8-97306-829-0 01 1 0503-0508 ●
67 BRACKET; CONT UNIT
A/T 4 SPEED-JATCO(RMK) 		8-97306-829-0 01 1 0509- ● ●
101 CONTROL UNIT; ELEC,A/T
A/T 4 SPEED-JATCO(RMK) 		8-97374-474-0 01 1 0503-0503 ●
101 CONTROL UNIT; ELEC,A/T
A/T 4 SPEED-JATCO(RMK) 		8-98012-395-0 01 1 0504-0508 ●
101 CONTROL UNIT; ELEC,A/T
A/T 4 SPEED-JATCO(RMK) 		8-98012-395-0 01 1 0509-0606 ● ●
101 CONTROL UNIT; ELEC,A/T
A/T 4 SPEED-JATCO(RMK) 		8-98041-750-0 01 1 0607- ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO(RMK) (A) M8 FLANGE 		0-91180-108-0 02 1 0503-0508 ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO(RMK) (A) M8 FLANGE 		0-91180-108-0 02 1 0509- ● ●
107 NUT; BRKT,ELEC CONT UNIT
(B) M6 FLANGE 		0-91180-106-0 02 1 0607- ●
112 BRACKET; CONT UNIT 8-97945-257-0 01 1 0607-1008 ●
112 BRACKET; CONT UNIT 8-97945-257-0 01 1 1009- ●
305 NUT; CONT UNIT
A/T 4 SPEED-JATCO(RMK) M6 FLANGE 		0-91180-106-0 03 1 0503-0508 ●
305 NUT; CONT UNIT
A/T 4 SPEED-JATCO(RMK) M6 FLANGE 		0-91180-106-0 03 1 0509- ● ●
649 CONTROL UNIT; RR FOG LAMP 8-97362-213-0 01 1 0503-0508 ●
649 CONTROL UNIT; RR FOG LAMP 8-97362-213-0 01 1 0509- ● ●
691 CONTROLLER; TRANSFER 8-97386-320-0 01 1 0509-0512 ●
691 CONTROLLER; TRANSFER 8-98021-885-0 01 1 0601-0606 ●
691 CONTROLLER; TRANSFER 8-98024-663-0 01 1 0607- ●

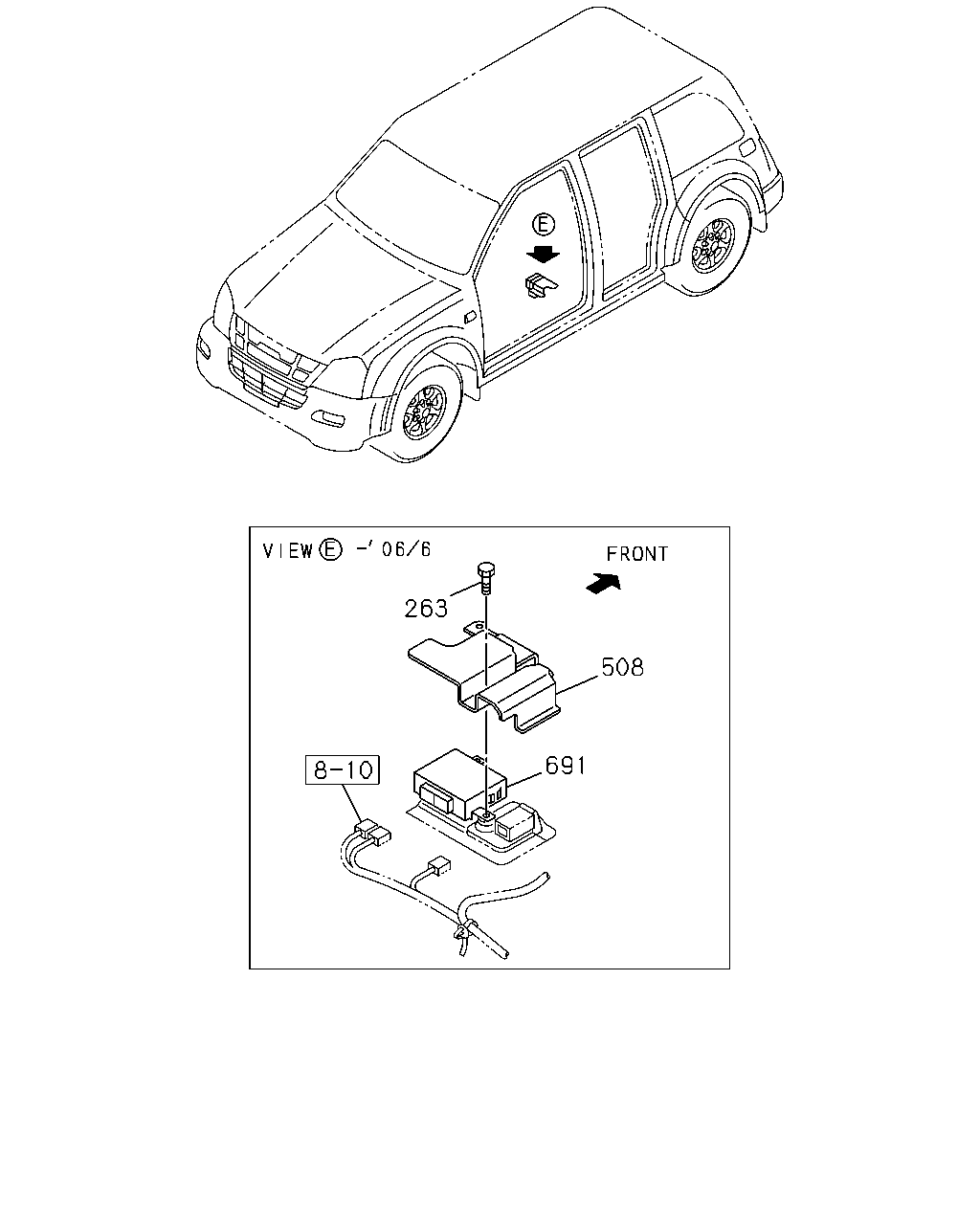

çizim 118762
263 508 691
BalonParca AdiParca NoAdetTipApplied Date A B
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28680-616-0 02 1 0509-0601 ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 0602-0606 ●
508 PROTECTOR 8-97324-594-1 01 1 0509-0606 ●
691 CONTROLLER; TRANSFER 8-97386-320-0 01 1 0509-0512 ●
691 CONTROLLER; TRANSFER 8-98021-885-0 01 1 0601-0606 ●
691 CONTROLLER; TRANSFER 8-98024-663-0 01 1 0607- ●
