8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#75088) — 244 parça

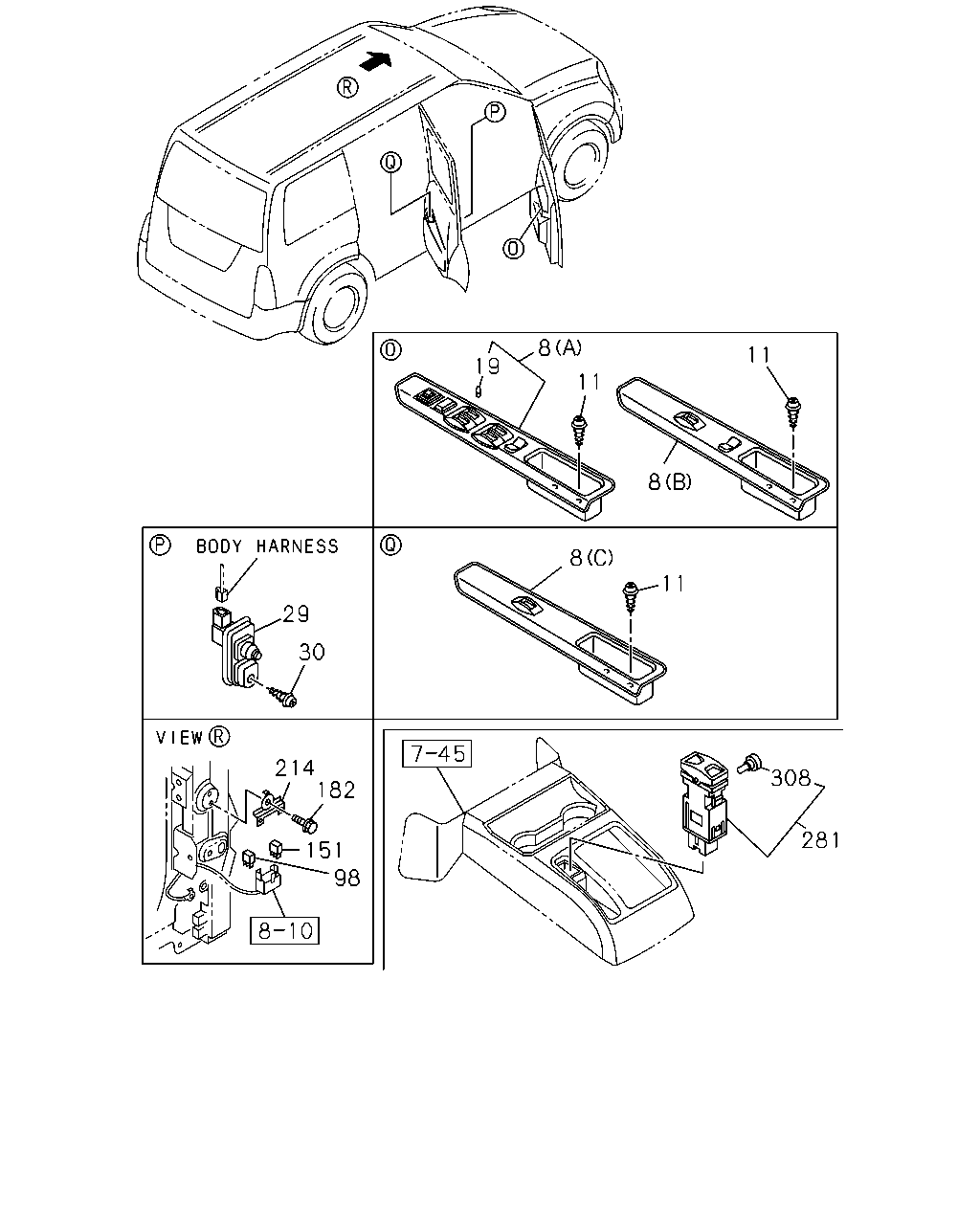

çizim 118674
8 11 19 11 8 8 11 29 30 214 182 308 281 151 98
BalonParca AdiParca NoAdetTipApplied Date A B
8 SWITCH; POWER WINDOW
INTERIOR CUSTOM<B19> (C) REAR 		8-98181-514-0 01 1 1108- ● ●
8 SWITCH; POWER WINDOW
INTERIOR CUSTOM<B19> (C) REAR 		8-98181-515-0 01 1 1108- ● ●
8 SWITCH; POWER WINDOW
INTERIOR CUSTOM<B19> (A) DRIVER 		8-98202-780-0 01 1 1111- ● ●
8 SWITCH; POWER WINDOW
INTERIOR CUSTOM<B19> (B) PASSENGER 		8-98202-781-0 01 1 1111- ● ●
8 SWITCH; POWER WINDOW
(A) DRIVER LIGHT GRAY 		8-97400-383-0 01 1 0503-0508 ●
8 SWITCH; POWER WINDOW
(C) REAR LIGHT GRAY 		8-97400-392-0 01 1 0503-0508 ●
8 SWITCH; POWER WINDOW
(C) REAR LIGHT GRAY 		8-98019-687-0 01 1 0509-0606 ● ●
8 SWITCH; POWER WINDOW
(C) REAR 		8-98034-483-0 01 1 0607-0908 ● ●
8 SWITCH; POWER WINDOW
(A) DRIVER 		8-98149-089-0 01 1 0909-1001 ● ●
8 SWITCH; POWER WINDOW
(A) DRIVER 		8-98152-495-0 01 1 1002-1110 ● ●
8 SWITCH; POWER WINDOW
EXC. INTERIOR CUSTOM<B19> (A) DRIVER 		8-98152-495-0 01 1 1111- ● ●
8 SWITCH; POWER WINDOW
(B) PASSENGER LIGHT GRAY 		8-97400-388-0 01 1 0503-0508 ●
8 SWITCH; POWER WINDOW
(C) REAR LIGHT GRAY 		8-97400-394-0 01 1 0503-0508 ●
8 SWITCH; POWER WINDOW
(A) DRIVER 		8-98020-161-0 01 1 0509-0606 ● ●
8 SWITCH; POWER WINDOW
(A) DRIVER 		8-98034-484-0 01 1 0607-0708 ● ●
8 SWITCH; POWER WINDOW
(A) DRIVER 		8-98053-621-0 01 1 0709-0712 ● ●
8 SWITCH; POWER WINDOW
DOOR MIR ELEC PWR FOLDING TURN SIG IND COLOR<8ME> (A) DRIVER 		8-98053-621-0 01 1 0801-0802 ● ●
8 SWITCH; POWER WINDOW
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>, DOOR MIR ELEC PWR FOLDING TURN SIG IND COLOR<8ME> (A) DRIVER 		8-98053-621-0 01 1 0803-0808 ● ●
8 SWITCH; POWER WINDOW
(A) DRIVER 		8-98053-621-0 01 1 0809-0908 ● ●
8 SWITCH; POWER WINDOW
(C) REAR 		8-98149-096-0 01 1 0909-1107 ● ●
8 SWITCH; POWER WINDOW
EXC. INTERIOR CUSTOM<B19> (C) REAR 		8-98149-096-0 01 1 1108- ● ●
8 SWITCH; POWER WINDOW
(C) REAR LIGHT GRAY 		8-98019-686-0 01 1 0509-0606 ● ●
8 SWITCH; POWER WINDOW
(C) REAR 		8-98034-482-0 01 1 0607-0908 ● ●
8 SWITCH; POWER WINDOW
(B) PASSENGER 		8-98149-091-0 01 1 0909-1110 ● ●
8 SWITCH; POWER WINDOW
EXC. INTERIOR CUSTOM<B19> (B) PASSENGER 		8-98149-091-0 01 1 1111- ● ●
8 SWITCH; POWER WINDOW
(B) PASSENGER 		8-98020-162-0 01 1 0509-0606 ● ●
8 SWITCH; POWER WINDOW
(B) PASSENGER 		8-98034-485-0 01 1 0607-0908 ● ●
8 SWITCH; POWER WINDOW
(C) REAR 		8-98149-093-0 01 1 0909-1107 ● ●
8 SWITCH; POWER WINDOW
EXC. INTERIOR CUSTOM<B19> (C) REAR 		8-98149-093-0 01 1 1108- ● ●
11 BOLT; POWER WINDOW
M5X14 		8-94152-495-0 08 1 0503-0508 ●
11 BOLT; POWER WINDOW
M5X14 		8-94152-495-0 08 1 0509- ● ●
19 BULB; POWER WINDOW SW 8-97327-881-0 01 1 0909-1001 ● ●
19 BULB; POWER WINDOW SW 8-98152-589-0 01 1 1002- ● ●
19 BULB; POWER WINDOW SW 8-97327-881-0 01 1 0503-0508 ●
19 BULB; POWER WINDOW SW 8-97327-881-0 01 1 0509-0708 ● ●
29 SWITCH; DOOR 8-97313-208-0 04 1 0503-0508 ●
29 SWITCH; DOOR 8-97313-208-0 04 1 0509- ● ●
30 SCREW; DOOR SW
M5X14 		8-94120-095-0 04 1 0503-0508 ●
30 SCREW; DOOR SW
M5X14 		8-94120-095-0 04 1 0509- ● ●
98 RELAY; RR FOG LAMP
12V OMRON 		8-98005-407-0 01 1 0503-0508 ●
98 RELAY; RR FOG LAMP
12V OMRON 		8-98005-407-0 01 1 0509-0708 ● ●
98 RELAY; RR FOG LAMP
12V YAZAKI 		8-97309-293-0 01 1 0709- ● ●
151 RELAY; HTR & A/C
AIR CONDITIONER ROOF MOUNTED<C69> 12V YAZAKI 		8-97309-292-0 01 1 0503-0508 ●
151 RELAY; HTR & A/C
AIR CONDITIONER ROOF MOUNTED<C69> 12V YAZAKI 		8-97309-292-0 01 1 0509- ● ●
182 BOLT; RELAY BRKT
M6X16 FLANGE 		0-28450-616-0 01 1 0503-0508 ●
182 BOLT; RELAY BRKT
M6X16 FLANGE 		0-28450-616-0 01 1 0509- ● ●
214 BRACKET; RELAY,FOG LAMP 8-97373-034-0 01 1 0503-0508 ●
214 BRACKET; RELAY,FOG LAMP 8-97373-034-0 01 1 0509- ● ●
281 SWITCH; SELECT,TRANS CONT
A/T 4 SPEED-JATCO(RMK) DARK GRAY 		8-97300-364-0 01 1 0503-0508 ●
281 SWITCH; SELECT,TRANS CONT
A/T 4 SPEED-JATCO(RMK) DARK GRAY 		8-97300-364-0 01 1 0509-0606 ● ●
281 SWITCH; SELECT,TRANS CONT
A/T 4 SPEED-JATCO(RMK) DARK GRAY 		8-97396-692-0 01 1 0607-1001 ● ●
281 SWITCH; SELECT,TRANS CONT
A/T 4 SPEED-JATCO(RMK) DARK GRAY 		8-97418-478-0 01 1 1002-1107 ● ●
281 SWITCH; SELECT,TRANS CONT
A/T 4 SPEED-JATCO(RMK) DARK GRAY 		8-97418-478-0 01 1 1108- ● ●
308 BULB; SELECT SW
A/T 4 SPEED-JATCO(RMK) 14V 0.84W 		8-97329-092-0 01 1 0503-0508 ●
308 BULB; SELECT SW
A/T 4 SPEED-JATCO(RMK) 14V 0.84W 		8-97329-092-0 01 1 0509-1001 ● ●
308 BULB; SELECT SW
A/T 4 SPEED-JATCO(RMK) 14V 0.84W 		8-98152-591-0 01 1 1002-1107 ● ●
308 BULB; SELECT SW
A/T 4 SPEED-JATCO(RMK) 14V 0.84W 		8-98152-591-0 01 1 1108- ● ●

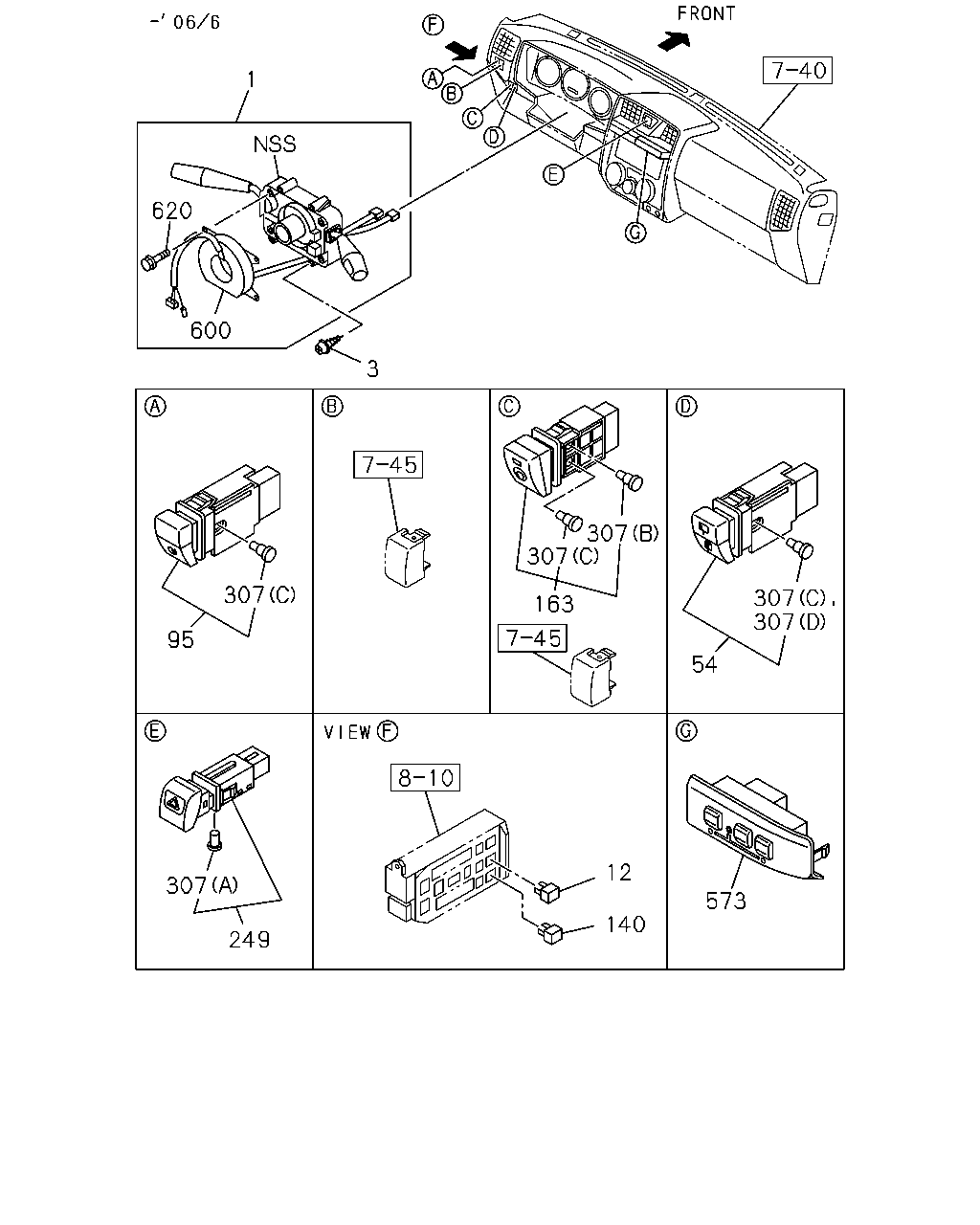

çizim 118685
1 620 600 3 307 307 307 307 307 163 95 54 12 307 573 140 249
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 8-97360-694-0 01 1 0503-0508 ●
1 SWITCH; COMB 8-97360-700-0 01 1 0509-0606 ● ●
1 SWITCH; COMB 8-98007-726-0 01 1 0607- ● ●
3 SCREW; COMB SW
M5X14 W/LK&PL WASHER 		9-03920-514-0 02 1 0503-0508 ●
3 SCREW; COMB SW
M5X14 W/LK&PL WASHER 		9-03920-514-0 02 1 0509-0606 ● ●
3 SCREW; COMB SW
M5X14 W/LK&PL WASHER 		0-36230-514-0 02 1 0607- ● ●
12 RELAY; POWER WINDOW
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0503-0508 ●
12 RELAY; POWER WINDOW
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
12 RELAY; POWER WINDOW
A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
12 RELAY; POWER WINDOW
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V OMRON 		8-98005-407-0 01 1 0503-0508 ●
12 RELAY; POWER WINDOW
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V OMRON 		8-98005-407-0 01 1 0509-0606 ●
12 RELAY; POWER WINDOW
A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0509-0606 ●
12 RELAY; POWER WINDOW
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0607- ● ●
54 SWITCH; RR WIPER
DARK GRAY 		8-97398-944-0 01 1 0503-0508 ●
54 SWITCH; RR WIPER
DARK GRAY 		8-97398-944-0 01 1 0509-0606 ● ●
54 SWITCH; RR WIPER
DARK GRAY 		8-97404-581-0 01 1 0607-1001 ● ●
54 SWITCH; RR WIPER
DARK GRAY 		8-97418-508-0 01 1 1002- ● ●
95 SWITCH; RR FOG LAMP 8-98000-500-0 01 1 0503-0508 ●
95 SWITCH; RR FOG LAMP 8-98000-500-0 01 1 0509-0606 ● ●
95 SWITCH; RR FOG LAMP
DARK GRAY 		8-97403-904-0 01 1 0607-1001 ● ●
95 SWITCH; RR FOG LAMP
DARK GRAY 		8-97418-510-0 01 1 1002- ● ●
140 RELAY; RR DEFOGGER
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0503-0508 ●
140 RELAY; RR DEFOGGER
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
140 RELAY; RR DEFOGGER
A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
140 RELAY; RR DEFOGGER
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V OMRON 		8-98005-407-0 01 1 0503-0508 ●
140 RELAY; RR DEFOGGER
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V OMRON 		8-98005-407-0 01 1 0509-0606 ●
140 RELAY; RR DEFOGGER
A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0509-0606 ●
140 RELAY; RR DEFOGGER
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0607- ● ●
163 SWITCH; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY 		8-97398-945-2 01 1 0503-0508 ●
163 SWITCH; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY 		8-97398-945-2 01 1 0509-0606 ● ●
163 SWITCH; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY 		8-97404-582-2 01 1 0607-1001 ● ●
163 SWITCH; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY 		8-97418-509-0 01 1 1002-1107 ● ●
163 SWITCH; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY 		8-97418-509-0 01 1 1108- ● ●
249 SWITCH; HAZARD
DARK GRAY 		8-97238-511-0 01 1 0503-0508 ●
249 SWITCH; HAZARD
DARK GRAY 		8-97238-511-0 01 1 0509-0606 ● ●
249 SWITCH; HAZARD 8-98046-194-0 01 1 0607- ● ●
307 BULB ASM; SW
(D) 14V 0.84W 		8-98161-974-0 01 1 1002- ● ●
307 BULB ASM; SW
(C) 14V 0.84W 		8-97327-317-0 01 1 0503-0508 ●
307 BULB ASM; SW
(C) 14V 0.84W 		8-97327-317-0 01 1 0503-0508 ●
307 BULB ASM; SW
AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W 		8-97327-317-0 01 1 0503-0508 ●
307 BULB ASM; SW
(C) 14V 0.84W 		8-97327-317-0 01 1 0509-1001 ● ●
307 BULB ASM; SW
AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W 		8-97327-317-0 01 1 0509-1001 ● ●
307 BULB ASM; SW
(C) 14V 0.84W 		8-97327-317-0 01 1 0509-1001 ● ●
307 BULB ASM; SW
AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W 		8-98152-588-0 01 1 1002-1107 ● ●
307 BULB ASM; SW
(C) 14V 0.84W 		8-98152-588-0 01 1 1002-1107 ● ●
307 BULB ASM; SW
AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W 		8-98152-588-0 01 1 1108- ● ●
307 BULB ASM; SW
(C) 14V 0.84W 		8-98152-588-0 01 1 1108- ● ●
307 BULB ASM; SW
(A) 14V 0.91W 		8-97327-526-0 01 1 0503-0508 ●
307 BULB ASM; SW
(A) 14V 0.91W 		8-97327-526-0 01 1 0509-0606 ● ●
307 BULB ASM; SW
(A) 		8-97532-440-0 01 1 0607-0607 ● ●
307 BULB ASM; SW
(A) 		8-98057-959-0 01 1 0608- ● ●
307 BULB ASM; SW
AIR CONDITIONER ROOF MOUNTED<C69> (B) 14V 0.63W 		8-97378-795-0 01 1 0503-0508 ●
307 BULB ASM; SW
AIR CONDITIONER ROOF MOUNTED<C69> (B) 14V 0.63W 		8-97378-795-0 01 1 0509-1107 ● ●
307 BULB ASM; SW
AIR CONDITIONER ROOF MOUNTED<C69> (B) 14V 0.63W 		8-97378-795-0 01 1 1108- ● ●
573 SWITCH; 4WD
LIGHT GRAY 		8-97298-475-0 01 1 0509-0606 ●
573 SWITCH; 4WD
LIGHT GRAY 		8-97407-362-0 01 1 0607-1001 ●
573 SWITCH; 4WD
LIGHT GRAY 		8-97418-479-0 01 1 1002-1107 ●
573 SWITCH; 4WD
LIGHT GRAY 		8-97418-479-0 01 1 1108- ● ●
600 COIL ASM; SIR 8-97308-028-1 01 1 0503-0508 ●
600 COIL ASM; SIR 8-97308-028-1 01 1 0509-0606 ● ●
600 COIL ASM; SIR 8-98014-766-0 01 1 0607- ● ●
620 SCREW; COIL,COMB SW 8-97166-506-0 06 1 0503-0508 ●
620 SCREW; COIL,COMB SW 8-97166-506-0 06 1 0509- ● ●
çizim 118698
1 620 600 3 307 307 307 307 163 54 95 370 12 307 573 140 249
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 8-97360-694-0 01 1 0503-0508 ●
1 SWITCH; COMB 8-97360-700-0 01 1 0509-0606 ● ●
1 SWITCH; COMB 8-98007-726-0 01 1 0607- ● ●
3 SCREW; COMB SW
M5X14 W/LK&PL WASHER 		9-03920-514-0 02 1 0503-0508 ●
3 SCREW; COMB SW
M5X14 W/LK&PL WASHER 		9-03920-514-0 02 1 0509-0606 ● ●
3 SCREW; COMB SW
M5X14 W/LK&PL WASHER 		0-36230-514-0 02 1 0607- ● ●
12 RELAY; POWER WINDOW
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0503-0508 ●
12 RELAY; POWER WINDOW
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
12 RELAY; POWER WINDOW
A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
12 RELAY; POWER WINDOW
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V OMRON 		8-98005-407-0 01 1 0503-0508 ●
12 RELAY; POWER WINDOW
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V OMRON 		8-98005-407-0 01 1 0509-0606 ●
12 RELAY; POWER WINDOW
A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0509-0606 ●
12 RELAY; POWER WINDOW
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0607- ● ●
54 SWITCH; RR WIPER
DARK GRAY 		8-97398-944-0 01 1 0503-0508 ●
54 SWITCH; RR WIPER
DARK GRAY 		8-97398-944-0 01 1 0509-0606 ● ●
54 SWITCH; RR WIPER
DARK GRAY 		8-97404-581-0 01 1 0607-1001 ● ●
54 SWITCH; RR WIPER
DARK GRAY 		8-97418-508-0 01 1 1002- ● ●
95 SWITCH; RR FOG LAMP 8-98000-500-0 01 1 0503-0508 ●
95 SWITCH; RR FOG LAMP 8-98000-500-0 01 1 0509-0606 ● ●
95 SWITCH; RR FOG LAMP
DARK GRAY 		8-97403-904-0 01 1 0607-1001 ● ●
95 SWITCH; RR FOG LAMP
DARK GRAY 		8-97418-510-0 01 1 1002- ● ●
140 RELAY; RR DEFOGGER
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0503-0508 ●
140 RELAY; RR DEFOGGER
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
140 RELAY; RR DEFOGGER
A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
140 RELAY; RR DEFOGGER
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V OMRON 		8-98005-407-0 01 1 0503-0508 ●
140 RELAY; RR DEFOGGER
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V OMRON 		8-98005-407-0 01 1 0509-0606 ●
140 RELAY; RR DEFOGGER
A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0509-0606 ●
140 RELAY; RR DEFOGGER
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0607- ● ●
163 SWITCH; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY 		8-97398-945-2 01 1 0503-0508 ●
163 SWITCH; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY 		8-97398-945-2 01 1 0509-0606 ● ●
163 SWITCH; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY 		8-97404-582-2 01 1 0607-1001 ● ●
163 SWITCH; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY 		8-97418-509-0 01 1 1002-1107 ● ●
163 SWITCH; RR COOLER
AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY 		8-97418-509-0 01 1 1108- ● ●
249 SWITCH; HAZARD
DARK GRAY 		8-97238-511-0 01 1 0503-0508 ●
249 SWITCH; HAZARD
DARK GRAY 		8-97238-511-0 01 1 0509-0606 ● ●
249 SWITCH; HAZARD 8-98046-194-0 01 1 0607- ● ●
307 BULB ASM; SW
(D) 14V 0.84W 		8-98161-974-0 01 1 1002- ● ●
307 BULB ASM; SW
(C) 14V 0.84W 		8-97327-317-0 01 1 0503-0508 ●
307 BULB ASM; SW
(C) 14V 0.84W 		8-97327-317-0 01 1 0503-0508 ●
307 BULB ASM; SW
AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W 		8-97327-317-0 01 1 0503-0508 ●
307 BULB ASM; SW
(C) 14V 0.84W 		8-97327-317-0 01 1 0509-1001 ● ●
307 BULB ASM; SW
AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W 		8-97327-317-0 01 1 0509-1001 ● ●
307 BULB ASM; SW
(C) 14V 0.84W 		8-97327-317-0 01 1 0509-1001 ● ●
307 BULB ASM; SW
AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W 		8-98152-588-0 01 1 1002-1107 ● ●
307 BULB ASM; SW
(C) 14V 0.84W 		8-98152-588-0 01 1 1002-1107 ● ●
307 BULB ASM; SW
AIR CONDITIONER ROOF MOUNTED<C69> (C) 14V 0.84W 		8-98152-588-0 01 1 1108- ● ●
307 BULB ASM; SW
(C) 14V 0.84W 		8-98152-588-0 01 1 1108- ● ●
307 BULB ASM; SW
(A) 14V 0.91W 		8-97327-526-0 01 1 0503-0508 ●
307 BULB ASM; SW
(A) 14V 0.91W 		8-97327-526-0 01 1 0509-0606 ● ●
307 BULB ASM; SW
(A) 		8-97532-440-0 01 1 0607-0607 ● ●
307 BULB ASM; SW
(A) 		8-98057-959-0 01 1 0608- ● ●
307 BULB ASM; SW
AIR CONDITIONER ROOF MOUNTED<C69> (B) 14V 0.63W 		8-97378-795-0 01 1 0503-0508 ●
307 BULB ASM; SW
AIR CONDITIONER ROOF MOUNTED<C69> (B) 14V 0.63W 		8-97378-795-0 01 1 0509-1107 ● ●
307 BULB ASM; SW
AIR CONDITIONER ROOF MOUNTED<C69> (B) 14V 0.63W 		8-97378-795-0 01 1 1108- ● ●
370 BOLT; SW
M5X16 TAPPING 		9-09829-323-1 02 1 0607-0702 ● ●
370 BOLT; SW
M5X16 TAPPING 		8-98061-685-0 02 1 0703-1005 ● ●
370 BOLT; SW
M5X16 TAPPING 		8-98167-449-0 02 1 1006- ● ●
573 SWITCH; 4WD
LIGHT GRAY 		8-97298-475-0 01 1 0509-0606 ●
573 SWITCH; 4WD
LIGHT GRAY 		8-97407-362-0 01 1 0607-1001 ●
573 SWITCH; 4WD
LIGHT GRAY 		8-97418-479-0 01 1 1002-1107 ●
573 SWITCH; 4WD
LIGHT GRAY 		8-97418-479-0 01 1 1108- ● ●
600 COIL ASM; SIR 8-97308-028-1 01 1 0503-0508 ●
600 COIL ASM; SIR 8-97308-028-1 01 1 0509-0606 ● ●
600 COIL ASM; SIR 8-98014-766-0 01 1 0607- ● ●
620 SCREW; COIL,COMB SW 8-97166-506-0 06 1 0503-0508 ●
620 SCREW; COIL,COMB SW 8-97166-506-0 06 1 0509- ● ●
çizim 118731
99 45 208 85 154 277 164 490
BalonParca AdiParca NoAdetTipApplied Date A B
45 RELAY; HORN
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0503-0508 ●
45 RELAY; HORN
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
45 RELAY; HORN
A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
45 RELAY; HORN
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0709-0808 ● ●
45 RELAY; HORN
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0809-1008 ●
45 RELAY; HORN
A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0809-1008 ●
45 RELAY; HORN
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 1009- ● ●
45 RELAY; HORN
A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0509-0606 ●
45 RELAY; HORN
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0607-0808 ● ●
45 RELAY; HORN
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0809-1008 ●
45 RELAY; HORN
A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0809-1008 ●
45 RELAY; HORN
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 1009- ● ●
85 RELAY; HEADLAMP
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0503-0508 ●
85 RELAY; HEADLAMP
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
85 RELAY; HEADLAMP
A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
85 RELAY; HEADLAMP
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0709-0808 ● ●
85 RELAY; HEADLAMP
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0809-1008 ●
85 RELAY; HEADLAMP
A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0809-1008 ●
85 RELAY; HEADLAMP
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 1009- ● ●
85 RELAY; HEADLAMP
A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0509-0606 ●
85 RELAY; HEADLAMP
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0607-0808 ● ●
85 RELAY; HEADLAMP
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0809-1008 ●
85 RELAY; HEADLAMP
A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0809-1008 ●
85 RELAY; HEADLAMP
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 1009- ● ●
99 RELAY; FOG LAMP
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0503-0508 ●
99 RELAY; FOG LAMP
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
99 RELAY; FOG LAMP
A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
99 RELAY; FOG LAMP
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0709- ● ●
99 RELAY; FOG LAMP
A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0509-0606 ●
99 RELAY; FOG LAMP
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0607- ● ●
154 RELAY; CONDENSER FAN
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0503-0508 ●
154 RELAY; CONDENSER FAN
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
154 RELAY; CONDENSER FAN
A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
154 RELAY; CONDENSER FAN
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0709- ● ●
154 RELAY; CONDENSER FAN
A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0509-0606 ●
154 RELAY; CONDENSER FAN
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0607- ● ●
164 RELAY; A/C COMPRESSOR
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0503-0508 ●
164 RELAY; A/C COMPRESSOR
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
164 RELAY; A/C COMPRESSOR
A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
164 RELAY; A/C COMPRESSOR
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0709- ● ●
164 RELAY; A/C COMPRESSOR
A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0509-0606 ●
164 RELAY; A/C COMPRESSOR
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0607- ● ●
208 RELAY; DIMMER & PASSING
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-292-0 01 1 0503-0508 ●
208 RELAY; DIMMER & PASSING
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-292-0 01 1 0509-0606 ●
208 RELAY; DIMMER & PASSING
A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-292-0 01 1 0509-0606 ●
208 RELAY; DIMMER & PASSING
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-292-0 01 1 0607- ● ●
277 RELAY; FUEL PUMP
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0503-0508 ●
277 RELAY; FUEL PUMP
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
277 RELAY; FUEL PUMP
A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
277 RELAY; FUEL PUMP
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0709- ● ●
277 RELAY; FUEL PUMP
A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0509-0606 ●
277 RELAY; FUEL PUMP
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0607- ● ●
490 RELAY; THERMO
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0503-0508 ●
490 RELAY; THERMO
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
490 RELAY; THERMO
A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0509-0606 ●
490 RELAY; THERMO
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V YAZAKI 		8-97309-293-0 01 1 0709- ● ●
490 RELAY; THERMO
A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0509-0606 ●
490 RELAY; THERMO
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 12V OMRON 		8-98005-407-0 01 1 0607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
